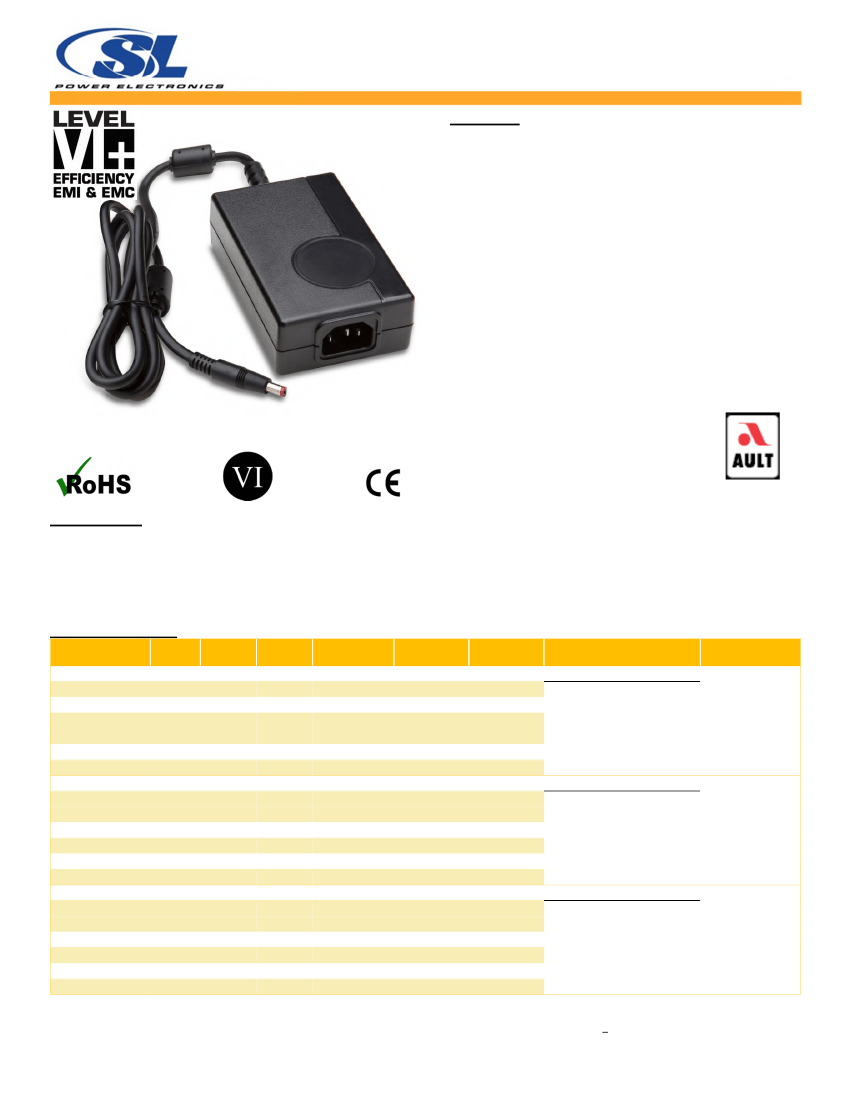

A high performance AC to DC external power supply family designed for test & measurement and industrial applications.
Fully compliant with Efficiency Level VI requirements per U.S. Dept. of Energy, and also compliant to the Heavy Industrial
levels of various EN61000-4-x standards for EMC. The TE60A series models also meet Class B conducted and radiated
EMI per FCC Part 15, EN55022, CISPR22. Designed to allow easy integration with test and measurement equipment
and other industrial applications.
Model Selection
Model
Number
TE60A0551F01
TE60A0903F01
TE60A1203F01
TE60A1503F01
TE60A1803F01
TE60A2403F01
TE60A4803F01
TE60A0551N01
TE60A0903N01
TE60A1203N01
TE60A1503N01
TE60A1803N01
TE60A2403N01
TE60A4803N01
TE60A0551Q01
TE60A0903Q01
TE60A1203Q01
TE60A1503Q01
TE60A1803Q01
TE60A2403Q01
TE60A4803Q01
Notes:
Volts
5.0V
9.0V
12.0V
15.0V
18.0V
24.0V
48.0V
5.0V
9.0V
12.0V
15.0V
18.0V
24.0V
48.0V
5.0V
9.0V
12.0V
15.0V
18.0V
24.0V
48.0V
Output
Current
7.00A
6.00A
5.00A
4.00A
3.40A
2.70A
1.35A
7.00A
6.00A
5.00A
4.00A
3.40A
2.70A
1.35A
7.00A
6.00A
5.00A
4.00A
3.40A
2.70A
1.35A
Output
Power
35W
54W
60W
60W
60W
60W
60W
35W
54W
60W
60W
60W
60W
60W
60W
54W
60W
60W
60W
60W
60W
Ripple &
Noise¹
75mV pk-pk
90mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
75mV pk-pk
90mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
75mV pk-pk
90mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
480mV pk-pk
Line
Regulation
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Output Cable
& Connector
6 pin Molex Type
2
1150mm long, UL2464,
18AWG, 4 conductors;
2.5 x 5.5 x 9.5mm Straight
Barrel Type, center positive
6 pin Molex Type
2
1150mm long, UL2464,
18AWG, 4 conductors;
2.5 x 5.5 x 9.5mm Straight
Barrel Type, center positive
6 pin Molex Type
2
1150mm long, UL2464,
18AWG, 4 conductors;
2.5 x 5.5 x 9.5mm Straight
Barrel Type, center positive
Input
Configuration
Class I Desktop,
IEC60320 C14
Receptacle
Class II Desktop,
IEC60320 C8
Receptacle
Class II Desktop,
IEC60320 C18
Receptacle
1. Measured at the output connector, with noise probe directly across output and load, terminated with 0.1μF ceramic and 47μF low ESR capacitors. For 5V and 6V models, values listed
are typical, 100mV pk-pk maximum.
2. Molex p/n 39-01-2060 or equivalent. See outline drawing for pinout information.
3. For Input Class I models: For AC GND connected to output common (-), insert a “B” in the part number where the “A” is located (TE60B1203F01).
4. All specifications are typical at nominal input, full load, at 25°C ambient unless noted.
www.slpower.com
TE60 Rev 2.5
13-JAN-16
1
TE60
60W Single Output External Power
Test & Measurement/Industrial Series
General Specifications
AC Input
100-240Vac, ±10%, 47-63Hz, 1∅
Turn On Time
Less than 1 sec @115Vac, full load
Input Current
115Vac: 1.5A, 230Vac: 0.75A
Hold-up Time
Overtemperature
Protection
Overload Protection
Short Circuit
Protection
Overvoltage
Protection
Isolation
20mS min., at full Load, 100Vac input
Inrush Current
264Vac, cold start: will not exceed 40A
Will shutdown upon an over-temperature
condition, auto-recovery.
Input Fuses
Earth Leakage
Current
Efficiency
F1, F2: 2A, 250Vac fuses (line & neutral lines)
provided on all models
Input-GND: <500μA@264Vac, 60Hz, NC
Output-GND: <4mA@264Vac, 60Hz, NC

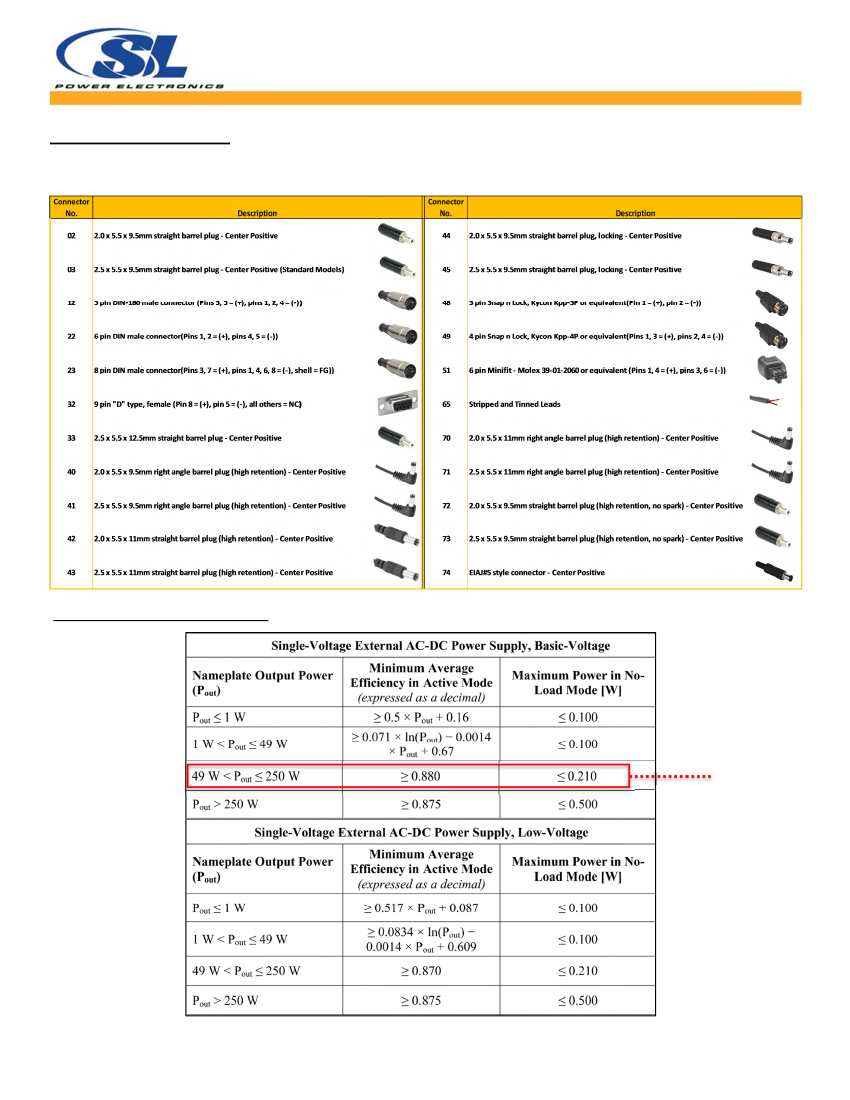

Meets US DoE Efficiency Level VI average
efficiency levels
60W continuous – See models chart for
specific voltage model ratings.
<0.210W per DoE Efficiency Level VI
Requirements
130 to 180% of rating, Hiccup Mode
Hiccup Mode, auto recovery.
130 to 150% of output voltage (max. 60V on
48V model), hiccup mode
Input-Output: 4000Vac
Input-Ground: 1500Vac
Output-Ground: 1500Vac
EN/CSA/UL/IEC 60950-1, 2nd Edition, Am 2
-20°C to +50°C. Derate above 40°C.
Start Up at -40°C, full load,
(warmup period before
all parameters are within published specifications).
Output Power
No Load Input
Power
Ripple and Noise
Safety Standards
Operating
Temperature
Case Temperature
See models chart on pg 1.
Output Voltage
See models chart on pg 1.
500µs response time for return to within 0.5%
of final value for any 50% load step over the
range of 5% to 100% of rated load,
∆i/∆t<
0.2A/µs. Max. voltage deviation is +/-3.5%.
>7 year life based on calculations at
115Vac/60Hz & 230Vac/50Hz, ambient 25°C
at 24 hrs per day, 365 days/year, 6 power up
cycles per day.
(80% load on 12V model)
400g
Case Temperatures are within regulatory
guidelines. Care should be taken to avoid
prolonged contact with skin or other heat
sensitive surfaces.
Derate output power above 40°C to 52W at
50°C.
Transient
Response
Temperature
Derating
E-Cap Life
MTBF
>250,000 hours, full load, 110 & 220Vac
input, 25°C amb., per Telcordia 332 Issue 6.
Weight
Storage Temperature
-40°C to +85°C
Safety Drop Test
1.4m from table top to wooden platform, 6
faces.

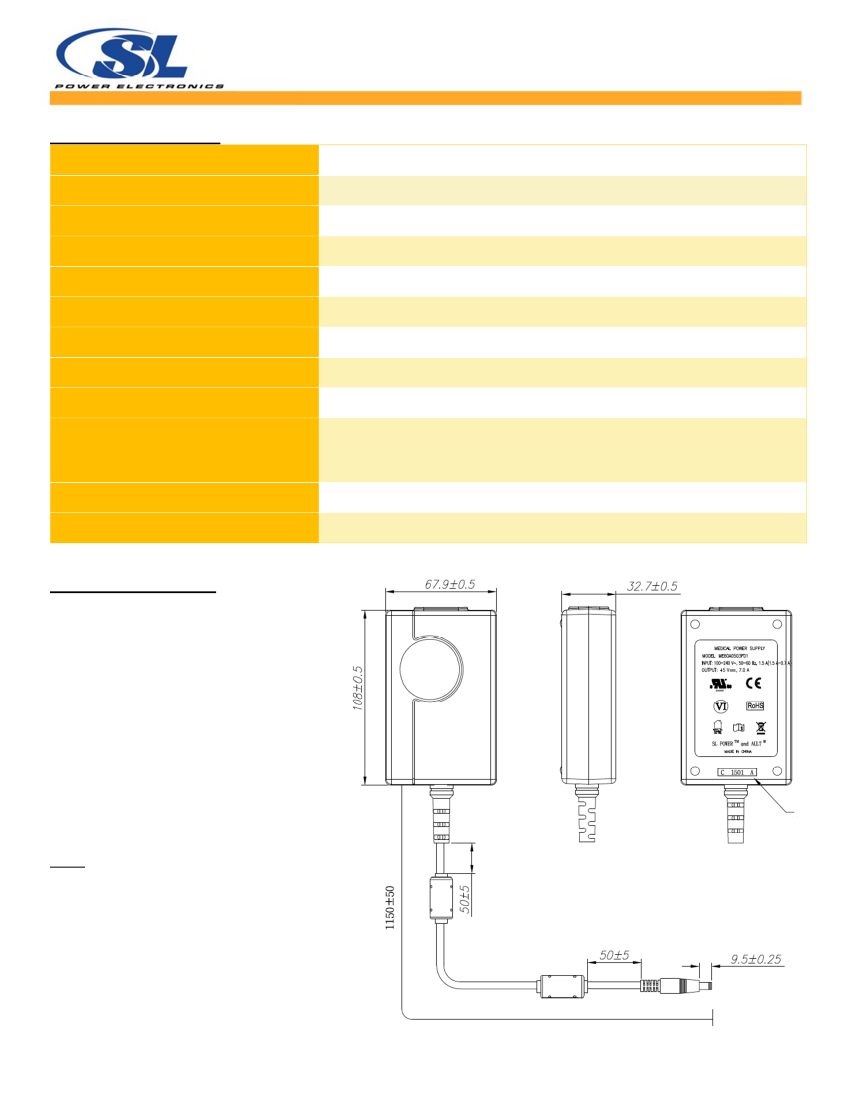

W: 2.67” x L: 4.25” x H: 1.29”
W: 67.9mm x L: 108mm x H: 32.7mm
Operating: 0.003g/Hz, 1.5grms overall, 3
axes, 10 min/axis, 1-500Hz.
Non-Oper.: random waveform, 3 minutes per
axis, 3 axes and Sine waveform, Vib.
frequency/acceleration: 10-500Hz/1g, sweep
rate of 1 octave / minutes, Vibration time of 10
sweeps / axes, 3 axes
Altitude
Operating: to 5000m
Non-operating: -500 to 40,000 ft.
Dimensions
Relative Humidity
5% to 95%, non-condensing
Operating: Half-sine, 20gpk, 10mS, 3 axes,
6 shocks total
Non-Operating: Half-sine waveform, impact
acceleration of 100G, Pulse duration of 6
mS, Number of shocks: 3 for each of the
three axis
Vibration
Shock
All specifications are typical at nominal input, full load, at 25°C ambient unless noted.
www.slpower.com
TE60 Rev 2.5
13-JAN-16
2
TE60
60W Single Output External Power
Test & Measurement/Industrial Series
EMI/EMC Compliance
Conducted Emissions:
Radiated Emissions:
Common Mode Noise:
Electro-Static Discharge (ESD)
Immunity on Power ports:
Radiated RF EM Fields Susceptibility
Electrical Fast Transients (EFT) /Bursts:
Surges, Line to Line (Diff Mode) and Line
to GND (CMN Mode)
Conducted Disturbances induced by RF
Fields
Rated Power frequency magnetic fields
Voltage Interruptions, Dips, Sags &
Surges
Harmonic Current Emissions
Flicker Test
EN55011/CISPR22 Class B, FCC Part 15.107, Class B: 6db margin typ, at 115 and 230Vac
EN55022/CISPR22 Class B, FCC Part 15.109, Class B: 3db margin typ, at 115 and 230Vac
