55003-301003 datasheet, PDF - EEWORLD Datasheet

55003-301003: DescriptionBoard Connector, 36 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle,; CategoryThe connector The connector; File Size731KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

55003-301003 Overview

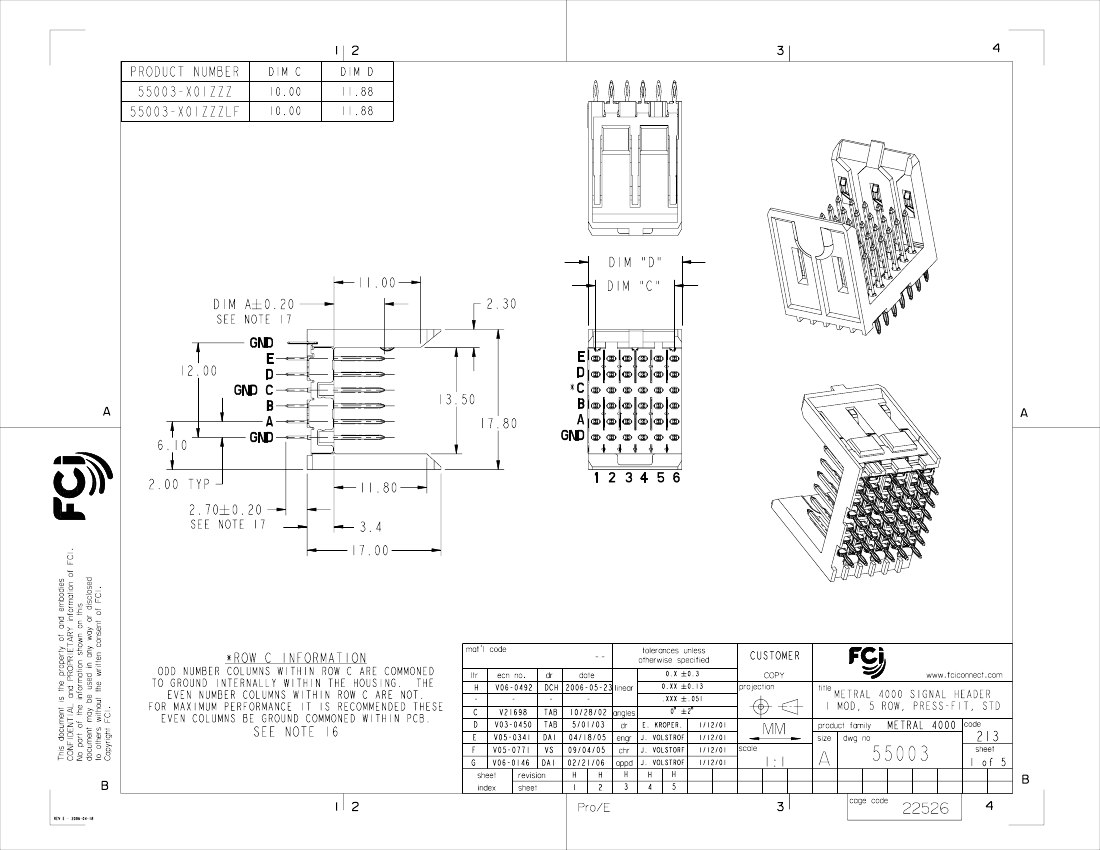

Board Connector, 36 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	2144949376
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6

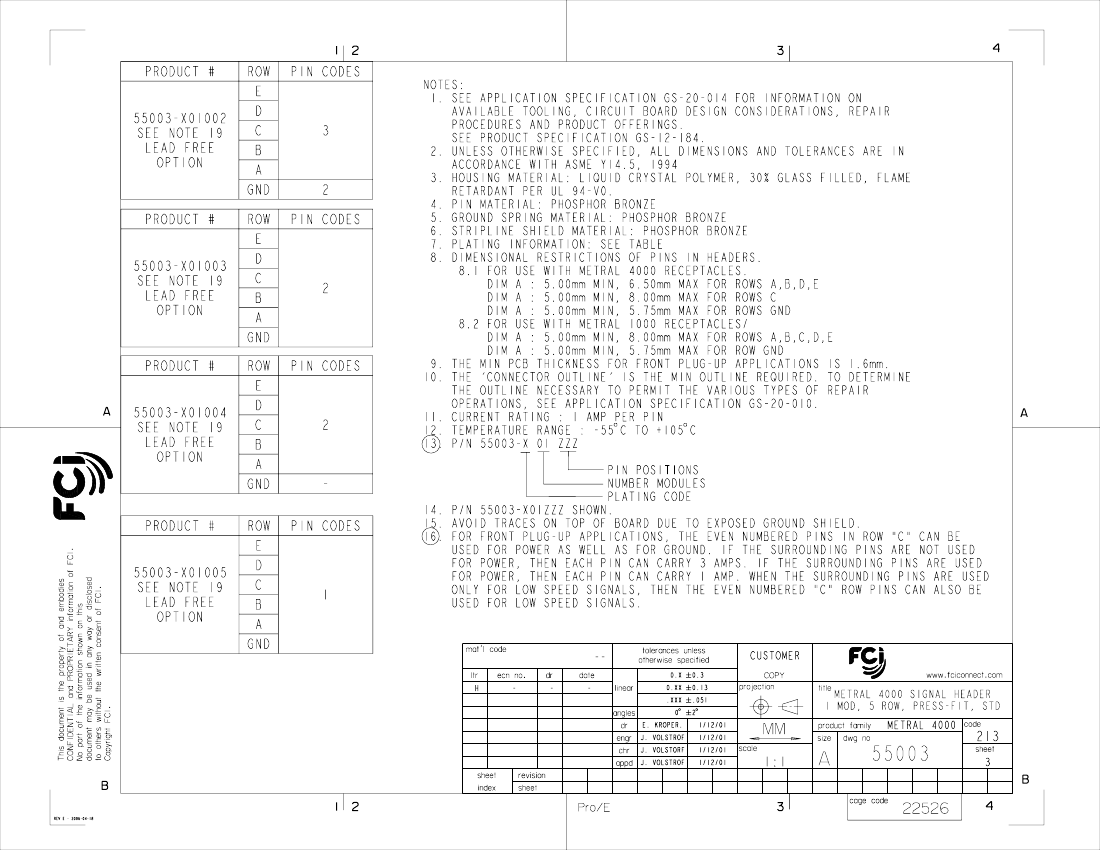

Other features	15 GROUND CONTACTS IN 3 ROWS AVAILABLE
body width	0.701 inch
subject depth	0.669 inch
body length	0.468 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR

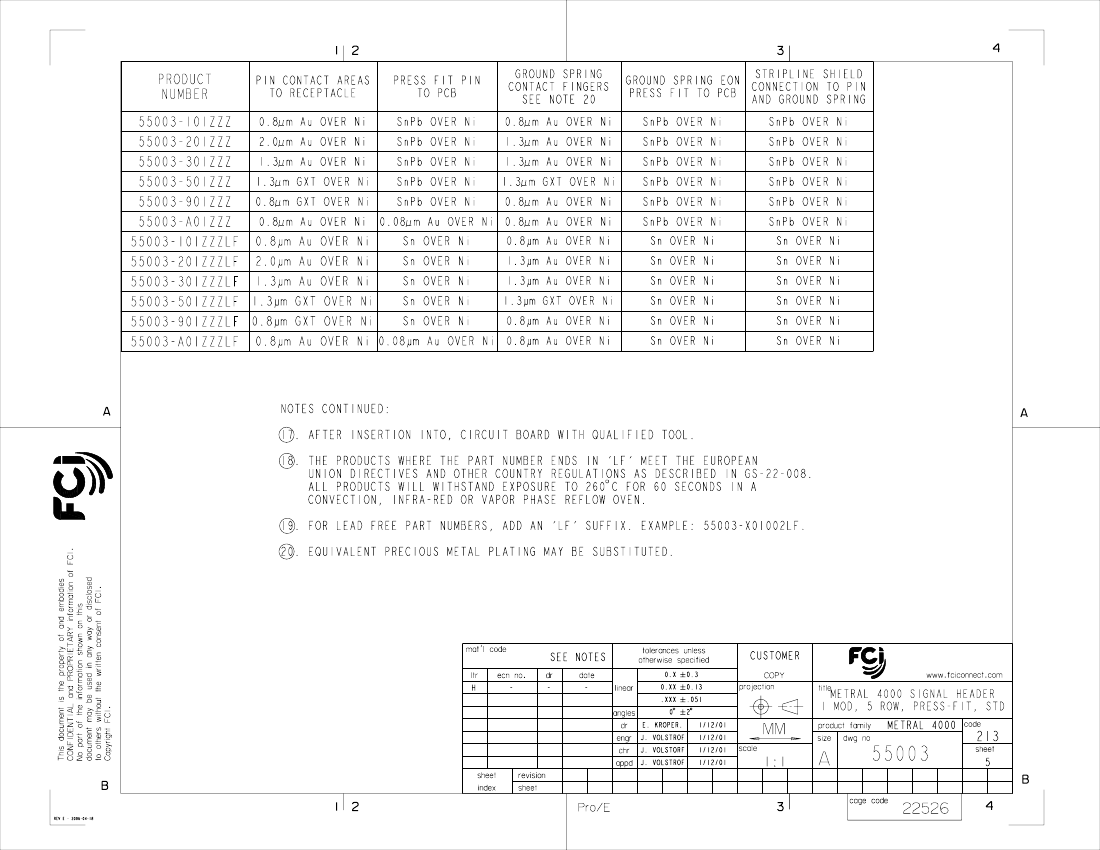

Contact to complete cooperation	GOLD (51) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.556 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE

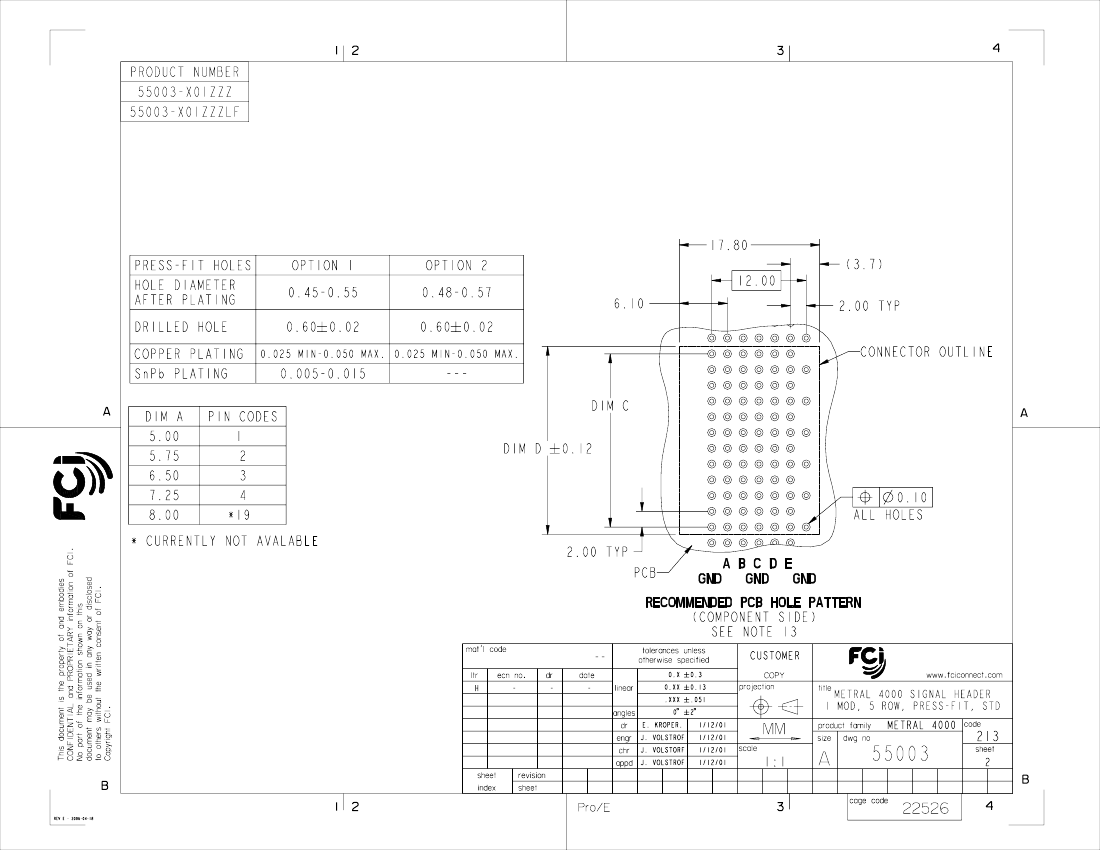

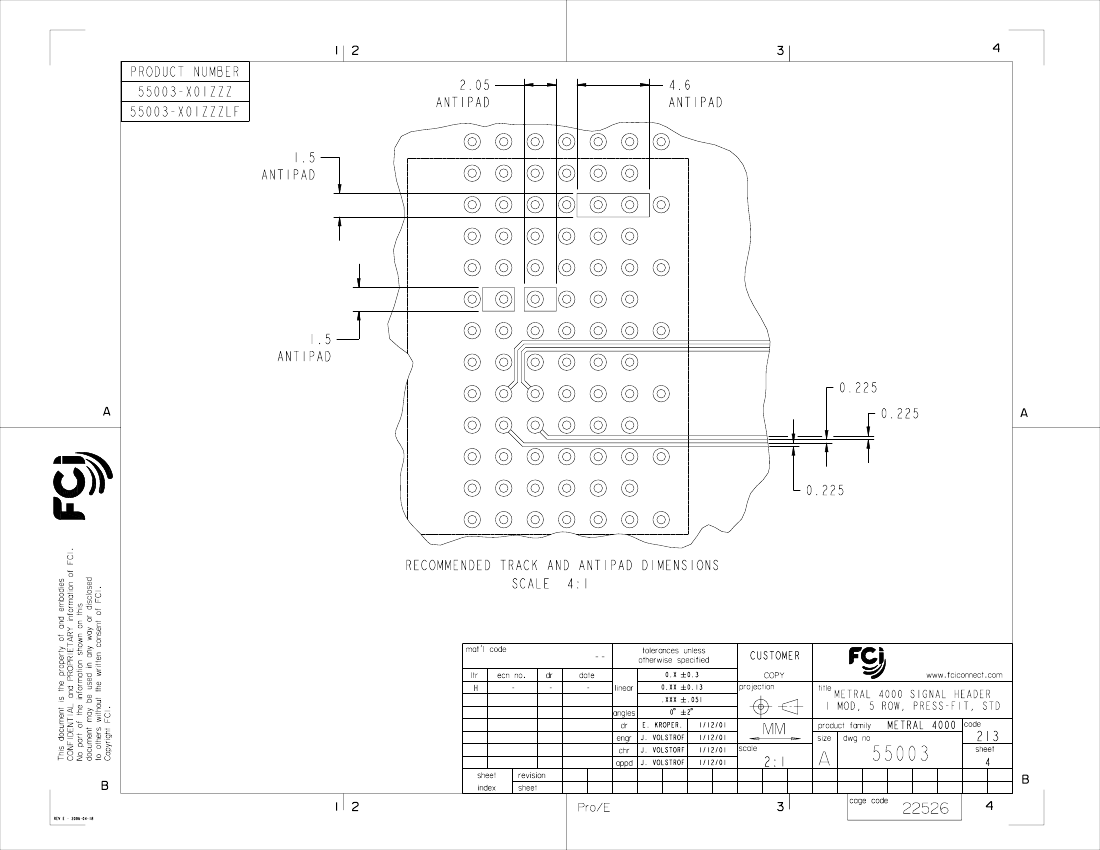

PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
Terminal length	0.106 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	36
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

PDM: Rev:H

STATUS:

Released

Printed: Feb 22, 2007
