61082-201520PLF datasheet, PDF

61082-201520PLF: DescriptionBoard Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size1MB，7 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

61082-201520PLF Overview

Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	315207236
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.7
Board mount options	PEG
body width	0.236 inch
subject depth	0.146 inch
body length	3.378 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	707VAC V
Durability	100 Cycles
Filter function	NO
maximum insertion force	0.9 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.032 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.4 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.8 A
Guideline	UL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	200
UL Flammability Code	94V-0
Evacuation force-minimum value	0.1 N

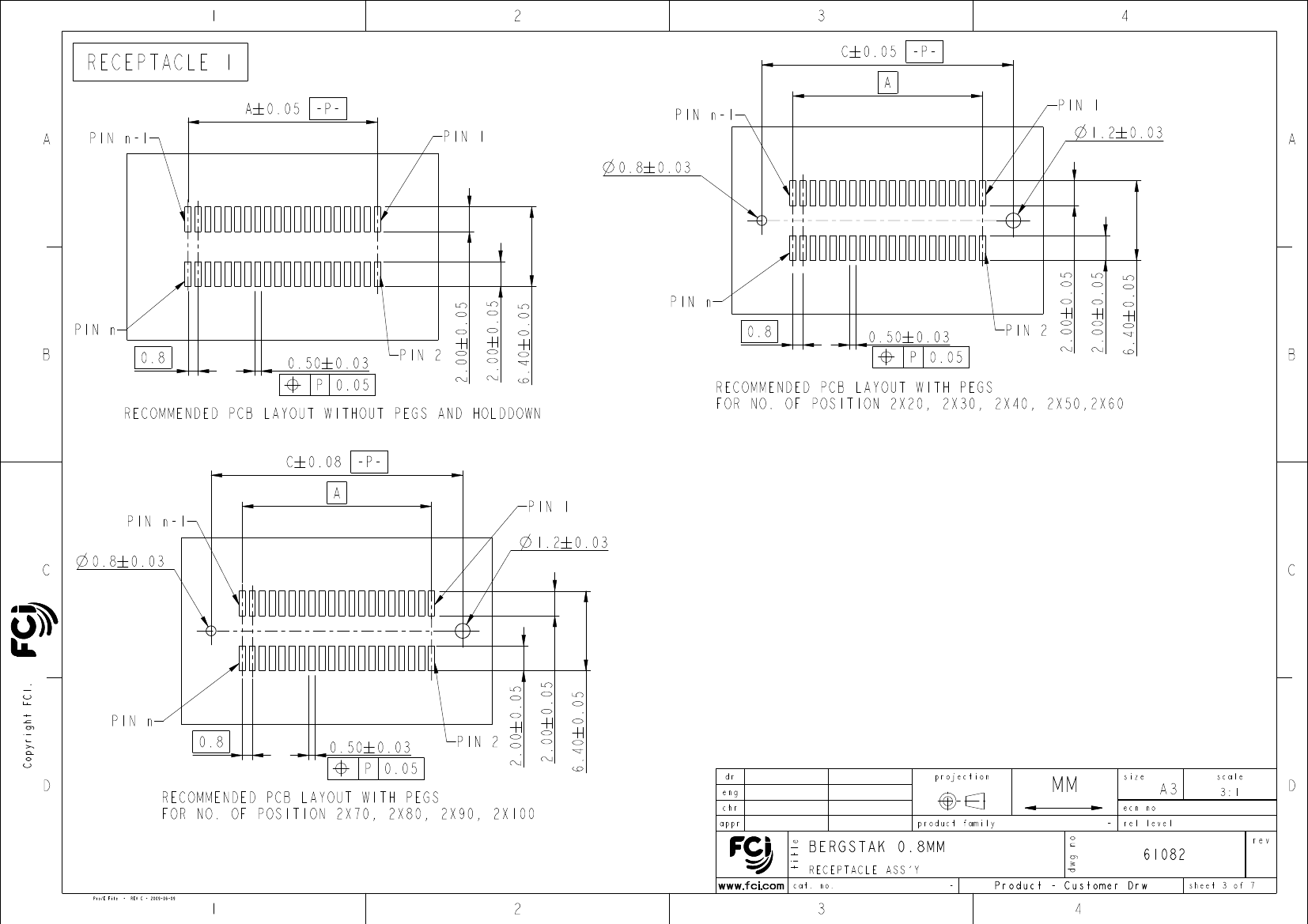

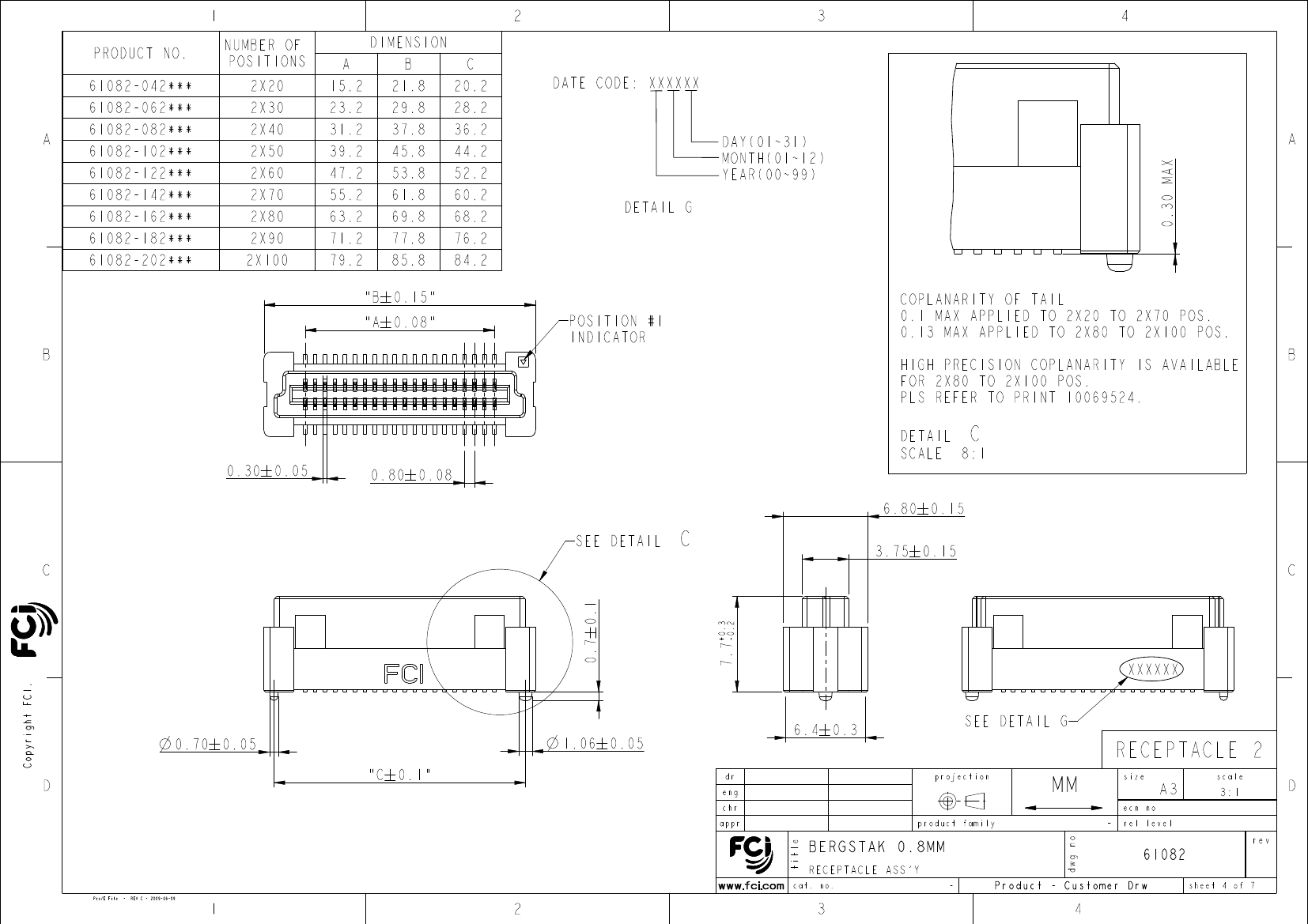

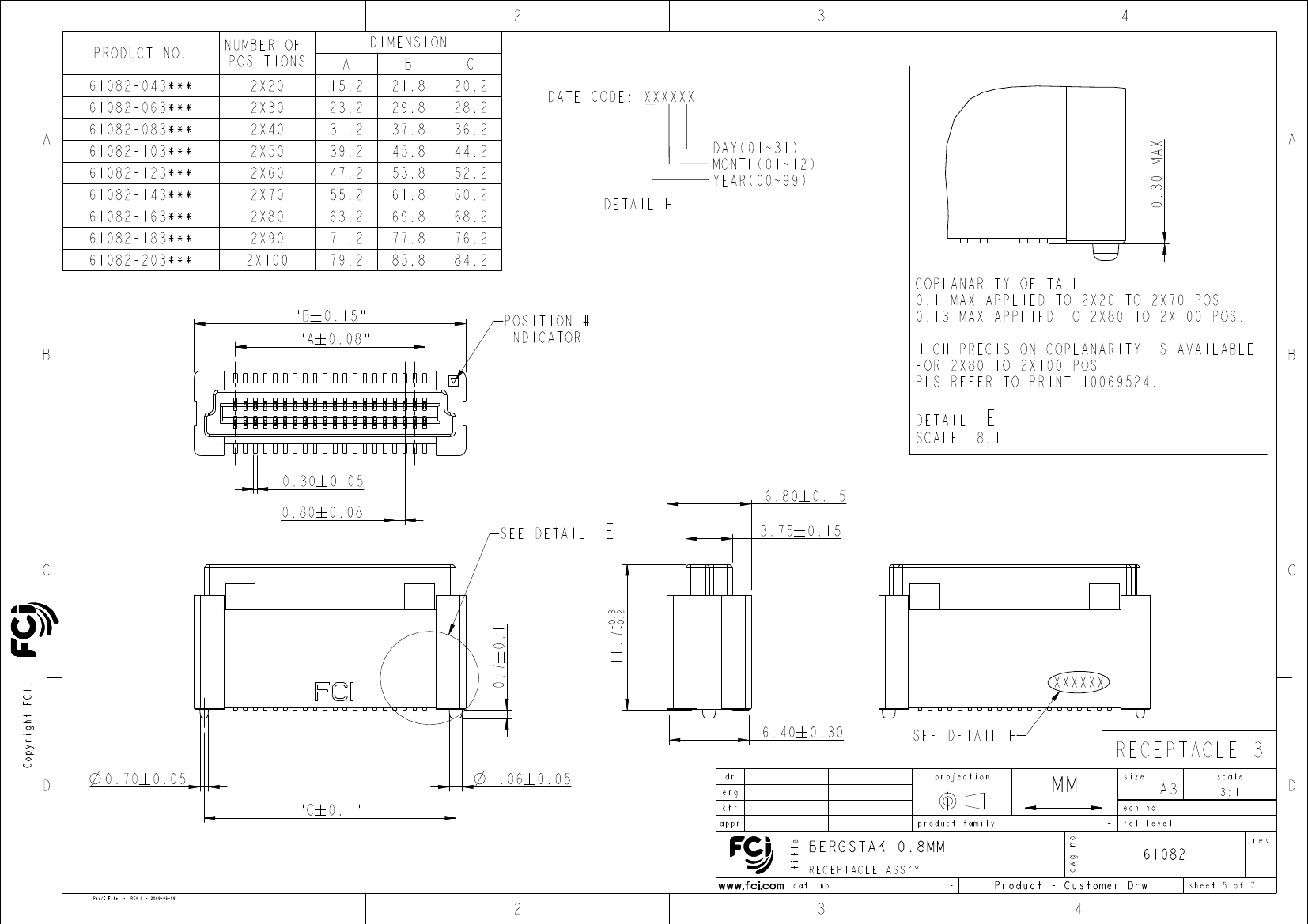

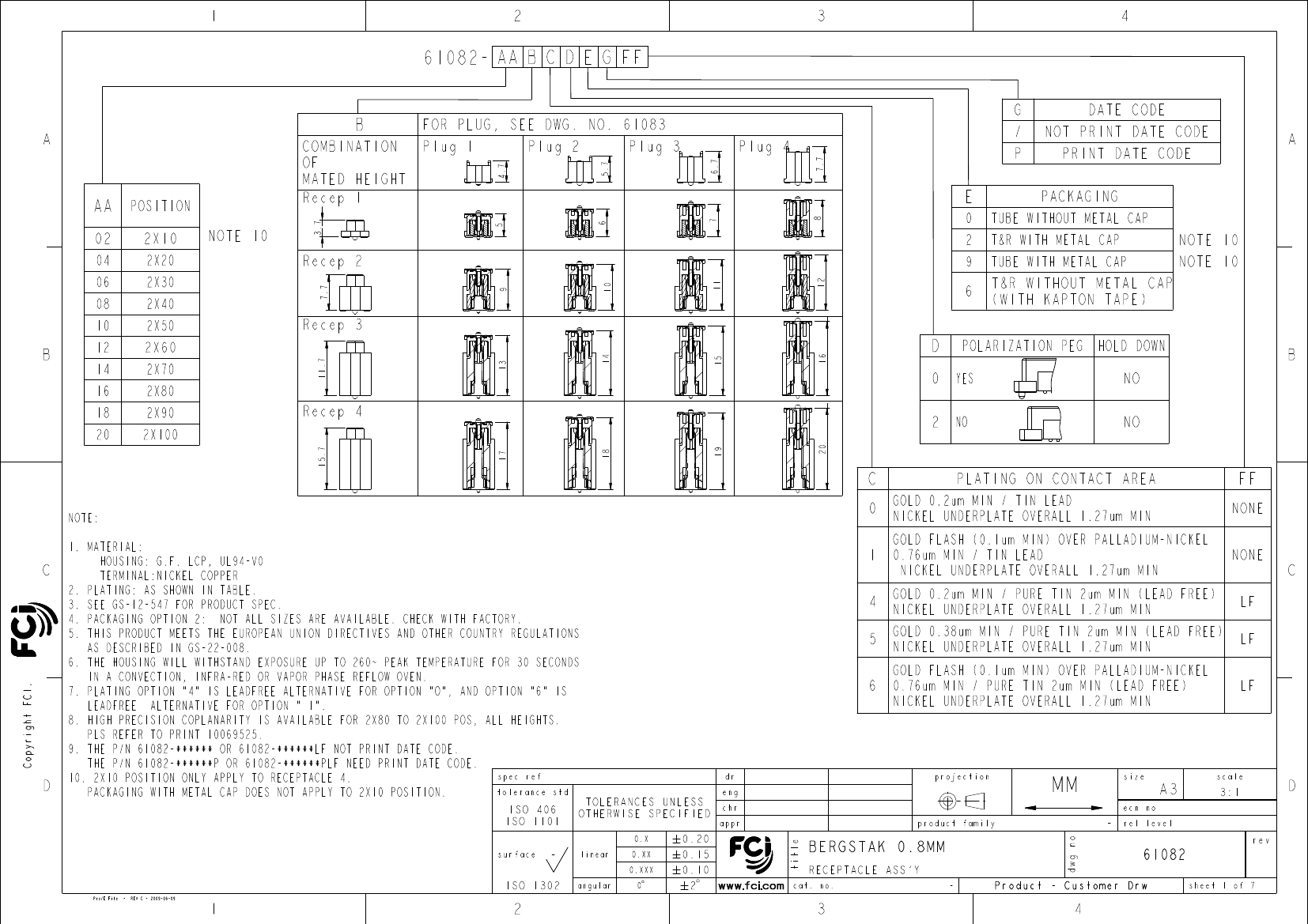

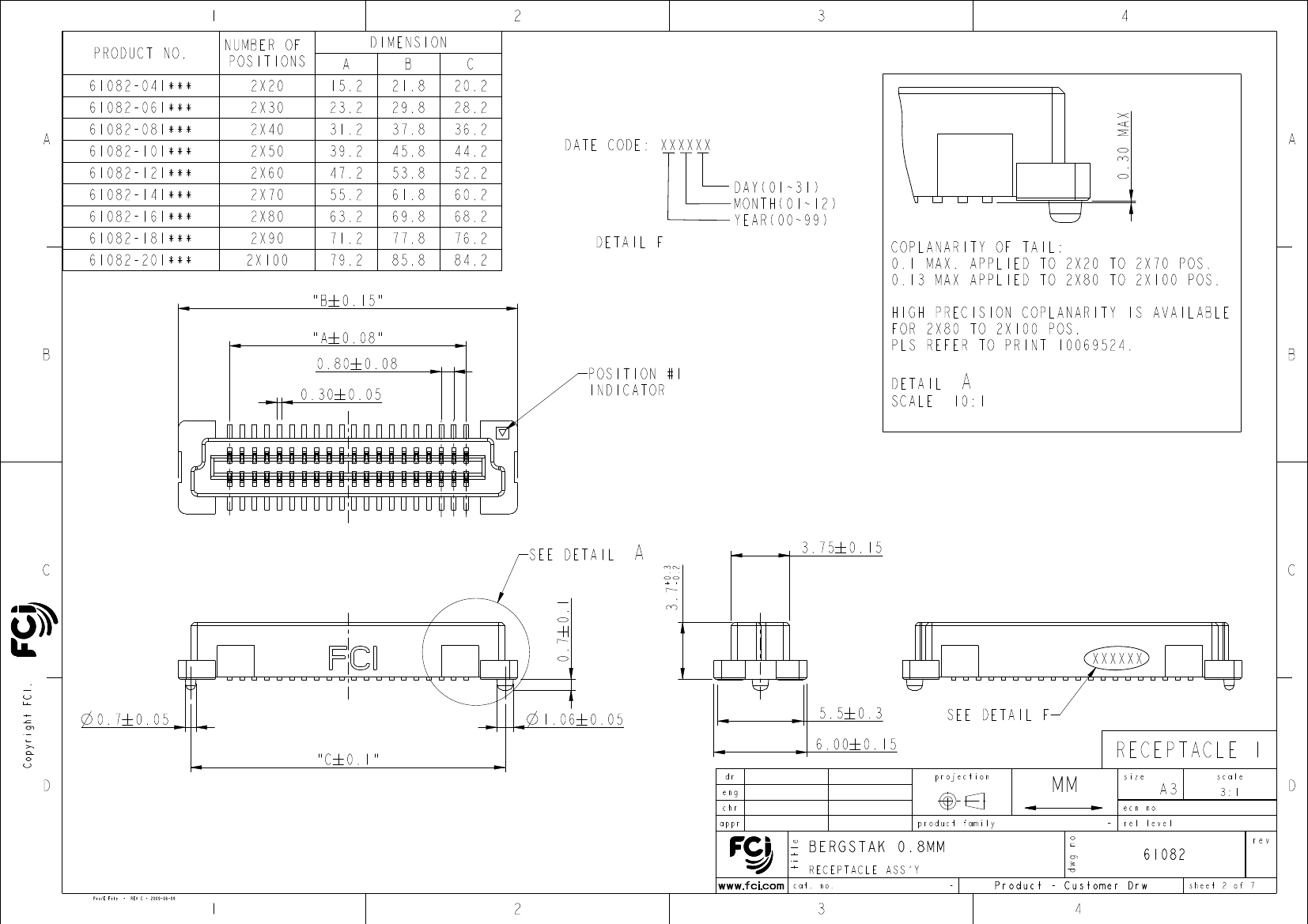

Matthew Cheong

Jim Meng

Tim Yao

2009/06/09

2015/03/25

2015/04/02

ELX-N-20397-1

Released

PDS: Rev :AD

STATUS:Released

Printed: Apr 02, 2015
