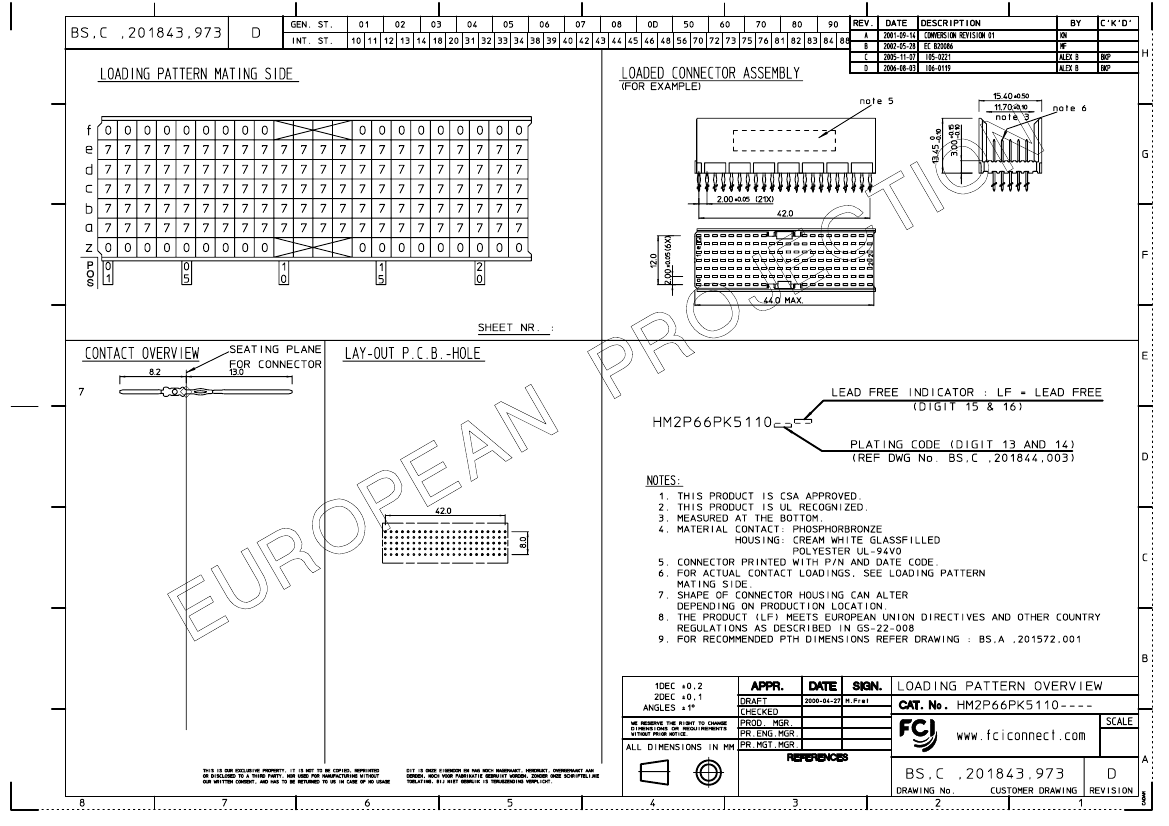

Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Receptacle
| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | STANDARDS: IEC 917; IEC 61076-4-101, HIGH DENSITY, POLARIZED |
| body width | 0.606 inch |
| subject depth | 0.53 inch |
| body length | 1.728 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | TIN LEAD |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .3614 N |
| Insulation resistance | 10000000000 Ω |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | HM2 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | GUIDE SLOT |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 31u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1.5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.512 inch |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 110 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .0834 N |
| HM2P66PK5110GF | HM2P66PK5110GCLF | HM2P66PK5110GC | HM2P66PK5110GLLF | HM2P66PK5110GL | |
|---|---|---|---|---|---|
| Description | Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, Receptacle | Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE | Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal | Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE | Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compli | compliant | compliant | compliant | compliant |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | TIN LEAD | MATTE TIN | TIN LEAD | MATTE TIN | TIN LEAD |
| Contact point gender | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| JESD-609 code | e0 | e3 | e0 | e3 | e0 |
| MIL compliance | NO | NO | NO | NO | NO |
| Manufacturer's serial number | HM2 | HM2 | HM2 | HM2 | HM2 |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 5 | 5 | 5 | 5 | 5 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 110 | 110 | 110 | 110 | 110 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
