FEATURES AND SPECIFICATIONS
Customized and Standard Small Form-factor Pluggable (SFP) Multi-Port Stacked Cage Assemblies
with SlimStack Connectors Provide One-Piece Convenience and Superior Electrical Performance
These SFP Multi-Port Stacked Cage Assemblies from
Molex provide a simplified one-piece solution to meet
customer requirements for high-density SFP module
spacing. Available products support up to 4.25Gbps
data rates with power-filtering circuitry. Standard
versions feature an elastomeric gasket that reduces
insertion force into the I/O panel while ensuring a
reliable EMI seal. These assemblies feature the Molex
Board-to-Board SlimStack connector to maintain signal
transmission speeds and minimize costs. Circuit
components have been designed into the assemblies to
optimize electrical performance.
The product offering consists of standard and
customized assemblies, tailored to suit customers'
applications:
Standard Products
- begin with two versions which
utilize two 1-by-4 SFP cages (series 73927) installed
Features and Benefits
I
Single-piece board-to-board assembly provides easy
installation and facilitates ordering and
inventorying of components
I
High-speed electrical performance tested to 2.5Gbps
and 4.25Gbps supports high-speed networking and
data exchange equipment
I
Individual electrical customization provides added
board components for power filtering, enhanced
electrical performance and added LEDs and
lightpipes
I
Mechanical customization allows board size to fit
customer dimensions and shape and reduces lead
time for modification and design changes
belly-to-belly using one spacer board. The interface to
the host board is achieved with a 0.635mm (.025”)
SlimStack connector.
Styles include an original SFP-chassis style or a version
compliant with the ATCA* (Advanced Telecom
Computing Architecture) standard, the difference
specified by the height of the interface connector. The
ATCA version uses a 7.00mm (.276”) height while the
standard version uses a 10.00mm (.394”) height
connector.
Customized Products
- include different configurations
of SFP cages, along with the addition of power filtering
components on the spacer board, customized
mechanical outlines or the options of pre-installed
LEDs and light pipes.
SFP Cage Assemblies
Multi-Port Stacked with
SlimStack™ Connectors
79527

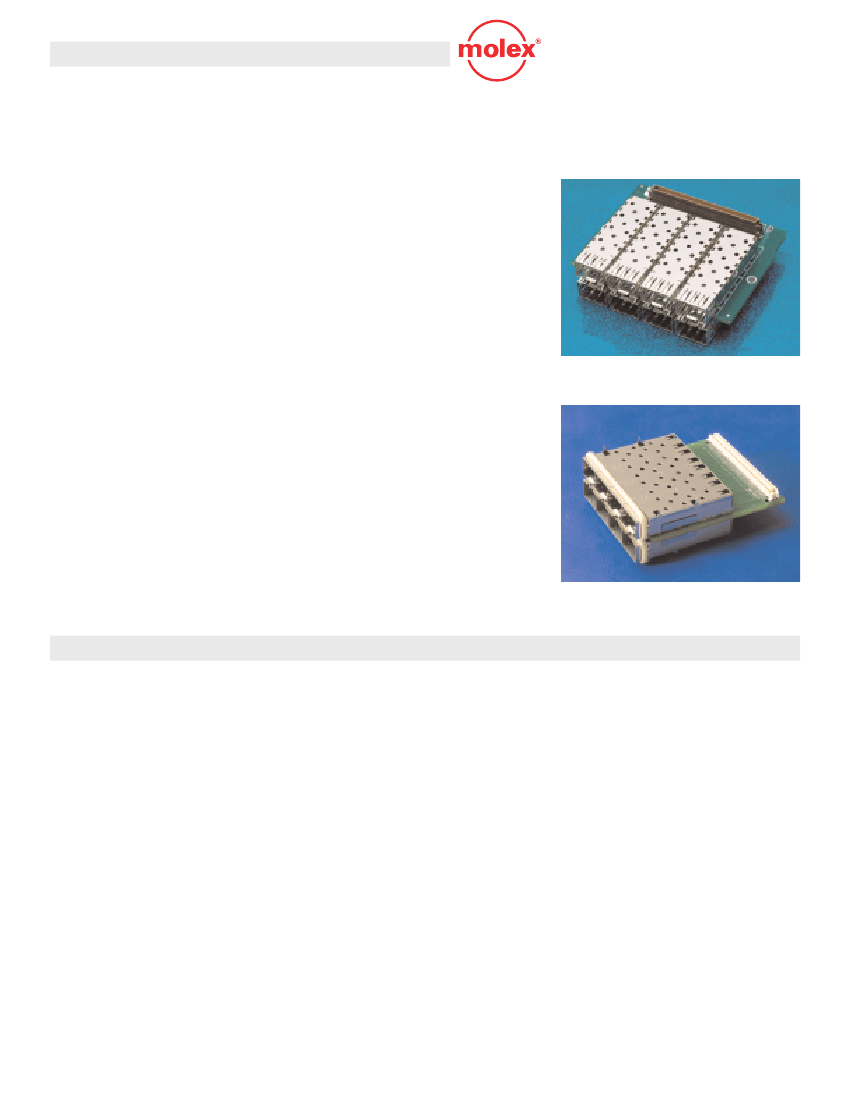

Custom SFP Multi-Port Stacked Assembly
Host PCB Side Up with SlimStack Connector
SFP Multi-Port Stacked Assembly
Standard Form Factor Chassis
SPECIFICATIONS
Reference Information
Packaging: Box
Mates With: 73929 Copper Patch Cable,
74720 HSSDC2 Copper Pluggable Module and
industry-standard optical SFP modules
Used With: 0.635mm (.025”) SlimStack Connector Plug
on host PCB
Designed In: Millimeters
Electrical - SFP Connector (74441)
Voltage: 30V
Current: 0.5A
Contact Resistance: 10m max.
Dielectric Withstanding Voltage: 300VAC
Insulation Resistance: 100M min.
Electrical - 0.635mm (.025”) SlimStack
Receptacle
Voltage: 100V
Current: 0.5A
Contact Resistance: 40m max.
Dielectric Withstanding Voltage: 250V AC
Insulation Resistance: 1000M min.
Mechanical
SFP Connector contact retention to Housing:
4.4N (1.0 lb)
Mating Force: 22N (5.0 lb)
Unmating Force: 8.8N (2.0 lb)
Normal Force: 0.8N (80g)
Durability: 200 cycles
Physical - SFP Connector (74441)
Housing: High-temperature thermoplastic
Contact: Copper Alloy
Plating: Contact Area - 0.38µm min. Gold
Solder Tail Area - Gold flash or 2.54µm Tin/Lead
Underplating - 2.54µm Nickel
Physical - 0.635mm (.025”) SlimStack
Receptacle
Housing: White Glass Filled LCP, UL 94V-0
Contact: Copper Alloy
Plating: Gold over Nickel
Operating Temperature: -55 to +85°C
Physical - Multi-Port Stacked SFP Cage
(79527)
Housing: Nickel-Silver alloy
PCB Thickness: 3.00mm (.118”) min. for single-sided
PCB, 3.81mm (.150”) min. for double-sided PCB
Operating Temperature: -55 to +85° C

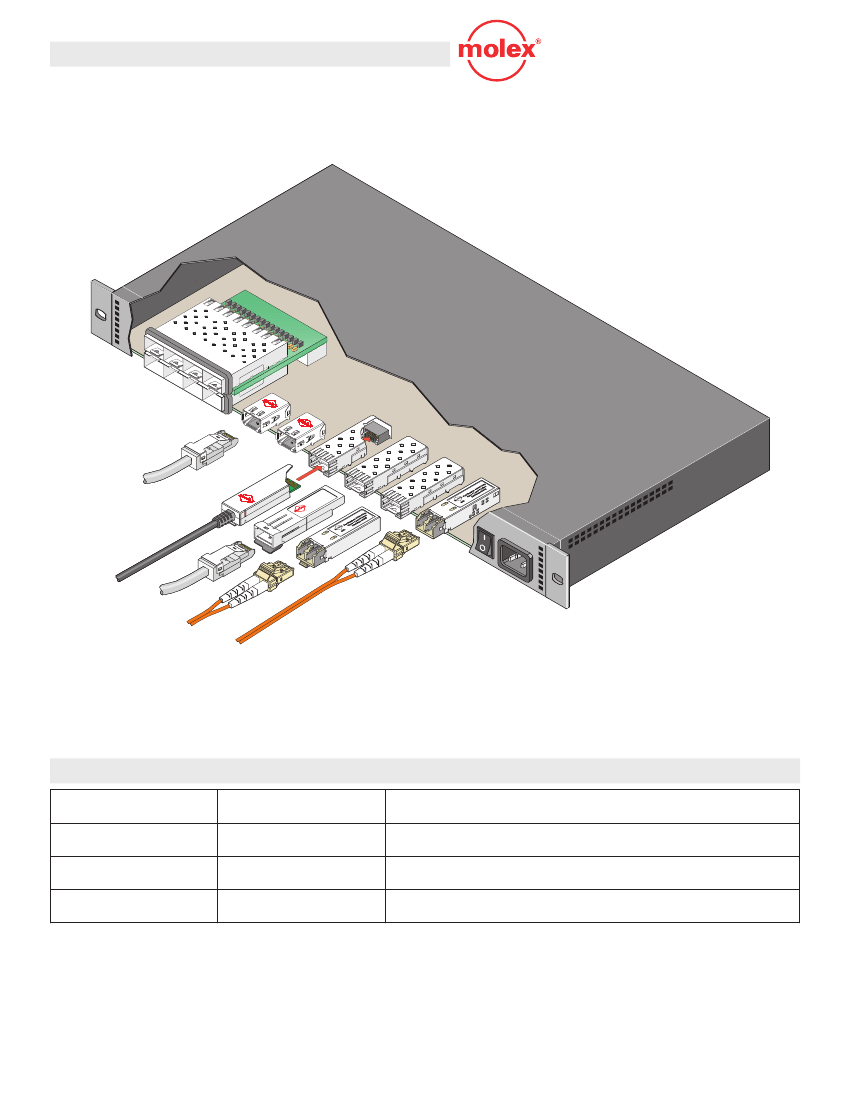

APPLICATIONS
SFP Cage Assemblies
Multi-Port Stacked with
SlimStack™ Connectors
79527
I
Networking and Storage
- Optical and Copper Adapters
•
Fibre Channel
•
Gigabit Ethernet
•
InfiniBand*
•
ATM / SONET / SDH
*InfiniBand is a registered trademark of the InfiniBand Trade Association.
ORDERING INFORMATION
Order No.
79527-5001
79527-5002
79527-5003
Number of Ports
8
8
8
Description
SFP Cage Assembly, Two 1-by-4 SFP Cages , Multi-Port Stacked, 4.25Gbps
with Power Filtering Circuitry, Standard Form Factor Chassis, PCB Mounting Flanges
SFP Cage Assembly, Two 1-by-4 SFP Cages , Multi-Port Stacked, 4.25Gbps
with Power Filtering Circuitry, ATCA Standard Compliant Chassis (Low Profile), PCB Mounting Flanges
SFP Cage Assembly, Two 1-by-4 SFP Cages , Multi-Port Stacked, 4.25Gbps
with Power Filtering Circuitry, ATCA Standard Compliant Chassis (Low Profile)
