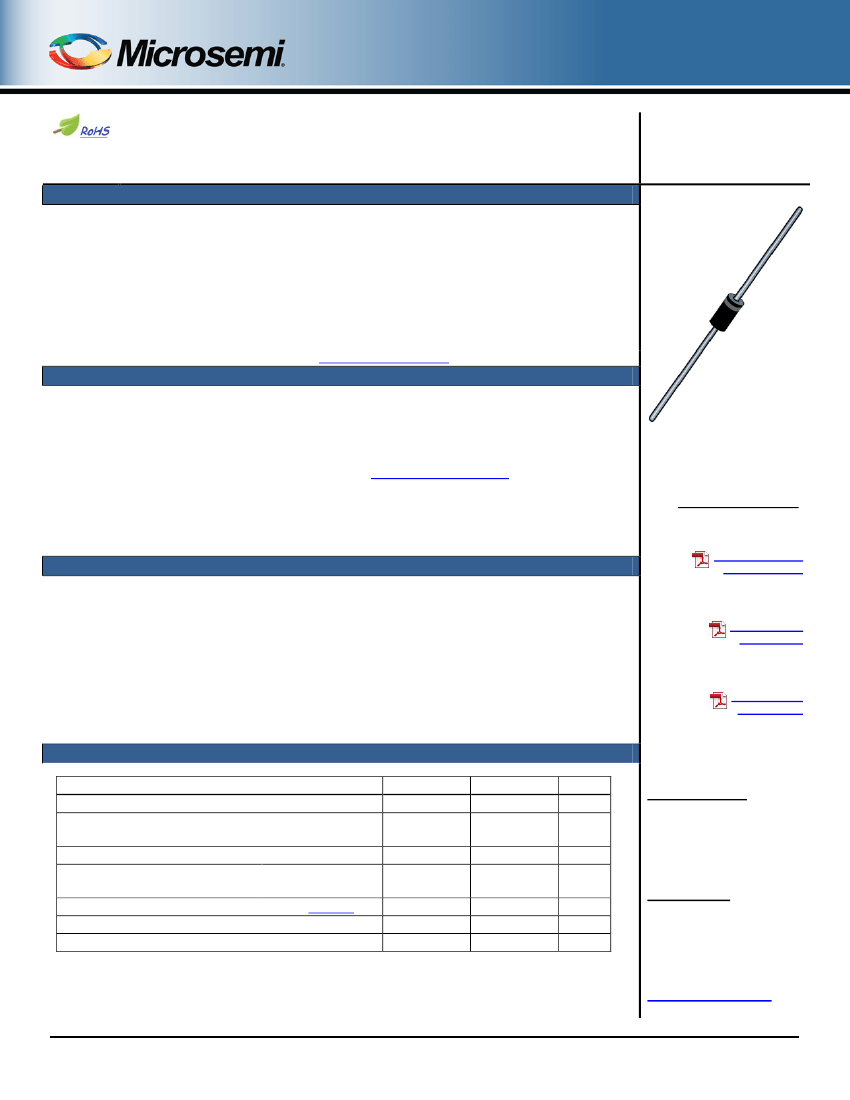

1N5913BPe3 – 1N5956BPe3 (Plastic)
Compliant
Axial-Leaded 1.5 Watt Plastic Zener Diodes
DESCRIPTION
The 1N5913BPe3 – 5956BPe3 series of 1.5 watt Zeners provides voltage regulation in a
selection from 3.3 to 200 volts with different tolerances available. These plastic encapsulated
Zeners have moisture classification of Level 1 with no dry pack required. They are also
available in various military equivalent screening levels for high reliability. The plastic molded
Zeners with a P suffix provide a lower thermal resistance (junction to lead) compared to the
optional glass body (G suffix) for these same JEDEC part numbers. Both package options are
available by Microsemi.
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
•
•
•
•
JEDEC registered 1N5913B – 1N5956B number series.
Zener voltage available 3.3 V to 200 V.
Tolerances of 10%, 5%, and 2% are available.
RoHS compliant.
Optional glass body axial-leaded Zeners available as
1N5913BG – 1N5956BG
(see separate data sheet).
DO-41
(DO-204AL)
Plastic Package
Also available in:
SMB package
(tabbed surface mount)
SMBG(J)5913B –
SMBG(J)5956B
APPLICATIONS / BENEFITS
•
•
•
•
Regulates voltage over a broad operating current and temperature range.
Flexible axial-lead mounting terminals.
Non-sensitive to ESD per MIL-STD-750 method 1020.
Moisture classification is Level 1 per IPC/JEDEC J-STD-020B with no dry pack required.
SMAJ package
(tabbed surface mount)
SMAJ5913B –
SMAJ5956B
Powermite package
(tabbed surface mount)
1PMT5913B –
1PMT5956B
MAXIMUM RATINGS
@ T
A
= 25 C unless otherwise specified
Parameters/Test Conditions
Junction and Storage Temperature
Thermal Resistance Junction-to-Lead
@ 3/8 inch (10 mm) lead length from body
(1)
Thermal Resistance Junction-to-Ambient
(2)
Steady State Power Dissipation
@ T
L
≤ 82.5 ºC
(1)
@ T
A
= 25 ºC
Rated Average Power Dissipation (also see
Figure 1)
Forward Voltage @ 200 mA
Solder Temperature @ 10 s
Symbol
T
J
& T
STG
R
ӨJL
R
ӨJA
P
D
P
M(AV)
V
F
Value
-65 to +150
45
105
1.5
1.19
1.5
1.2
260
Unit
o
C
o
C/W
o
o
C/W
W
W
V
o
C
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
Tel: 1-800-446-1158 or
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
Notes:
1. When mounted on FR4 PC board (1 oz Cu) with 4 mm
2
copper pads and track width 1 mm, length 25 mm.
2. At 3/8 inch (10 mm) lead length from body.
RF01133, Rev. A (5/28/13)
©2013 Microsemi Corporation
Page 1 of 5
1N5913BPe3 – 1N5956BPe3 (Plastic)
MECHANICAL and PACKAGING
•
•
•
•
•
•
•
CASE: Void-free transfer molded thermosetting epoxy body meeting UL94V-0.
TERMINALS: RoHS compliant matte/tin over copper. Solderable per MIL-STD-750, method 2026.
MARKING: Part number.
POLARITY: Cathode indicated by band. Diode to be operated with the banded end positive with respect to the opposite end for
Zener regulation.
TAPE & REEL option: Standard per EIA-296 (add TR suffix to part number). Consult factory for quantities.
WEIGHT: Approximately 0.7 grams.
See
Package Dimensions
on last page.
PART NOMENCLATURE
1N5913
JEDEC type number
(See
Electrical Characteristics
table)
Tolerance Level
A = 10 %
B=5%
C=2%
B
P
(e3)
RoHS Compliance
e3 = RoHS compliant
Plastic Casing
Symbol
V
Z
I
Z
, I
ZT
, I
ZK
Z
ZT
or Z
ZK
V
F
I
R
I
ZM
SYMBOLS & DEFINITIONS
Definition
Zener Voltage: The Zener voltage the device will exhibit at a specified current (I
Z
) in its breakdown region.
Regulator Current: The dc regulator current (I
Z
), at a specified test point (I
ZT
), near breakdown knee (I
ZK
).
Dynamic Impedance: The small signal impedance of the diode when biased to operate in its breakdown region at a
specified rms current modulation (typically 10% of I
ZT
or I
ZK
) and superimposed on I
ZT
or I
ZK
respectively.
Maximum Forward Voltage: The maximum forward voltage the device will exhibit at a specified current.
Maximum Reverse Current: The maximum reverse (leakage) current that will flow at the specified voltage and
temperature.
Maximum Regulator (Zener) Current: The maximum rated dc current for the specified power rating.
RF01133, Rev. A (5/28/13)
©2013 Microsemi Corporation
Page 2 of 5
1N5913BPe3 – 1N5956BPe3 (Plastic)
ELECTRICAL CHARACTERISTICS
@ T
L
= 30 ºC
JEDEC
TYPE
NUMBER
(Note 1)
1N5913B
1N5914B
1N5915B
1N5916B
1N5917B
1N5918B
1N5919B
1N5920B
1N5921B
1N5922B
1N5923B
1N5924B
1N5925B
1N5926B
1N5927B
1N5928B
1N5929B
1N5930B
1N5931B
1N5932B
1N5933B
1N5934B
1N5935B
1N5936B
1N5937B
1N5938B
1N5939B
1N5940B
1N5941B
1N5942B
1N5943B
1N5944B
1N5945B
1N5946B
1N5947B
1N5948B
1N5949B
1N5950B
1N5951B
1N5952B
1N5953B
1N5954B
1N5955B
1N5956B
NOTES:
1.
2.
Zener voltage (
V
Z
) is measured at T
L
= 30
o
C and 90 seconds after application of dc current.
The Zener impedance is derived from the 60 Hz ac voltage, which results when an ac current having an rms value equal to 10% of the
dc Zener current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK
. See
MicroNote 202
for Zener impedance variation with different operating
currents.
ZENER
VOLTAGE
V
Z
Volts
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
TEST
CURRENT
I
ZT
mA
113.6
104.2
96.1
87.2
79.8
73.5
66.9
60.5
55.1
50
45.7
41.2
37.5
34.1
31.2
28.8
25
23.4
20.8
18.7
17
15.6
13.9
12.5
11.4
10.4
9.6
8.7
8.0
7.3
6.7
6.0
5.5
5.0
4.6
4.1
3.7
3.4
3.1
2.9
2.5
2.3
2.1
1.9
MAXIMUM
DYNAMIC
IMPEDANCE
Z
ZT
Ohms
10
9.0
7.5
6.0
5.0
4.0
2.0
2.0
2.5
3.0
3.5
4.0
4.5
5.5
6.5
7.0
9.0
10
12
14
17.5
19
23
28
33
38
45
53
67
70
86
100
120
140
160
200
250
300
380
450
600
700
900
1200
KNEE
CURRENT
I
ZK
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
MAXIMUM
KNEE
IMPEDANCE
Z
ZK
Ohms
500
500
500
500
500
350
250
200
200
400
400
500
500
550
550
550
600
600
650
650
650
700
700
750
800
850
900
950
1000
1100
1300
1500
1700
2000
2500
3000
3100
4000
4500
5000
6000
6500
7000
8000
MAXIMUM
REVERSE
CURRENT
I
R
@ V
R
µA
100
75
25
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
REVERSE
VOLTAGE
V
R
Volts
1.0
1.0
1.0
1.0
1.5
2.0
3.0
4.0
5.2
6.0
6.5
7.0
8.0
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.2
56
62.2
69.2
76
83.6
91.2
98.8
114
121.6
136.8
152
MAX. DC
CURRENT
I
ZM
mA
454
416
384
348
319
294
267
241
220
200
182
164
150
136
125
115
100
93
83
75
68
62
55
50
45
41
38
34
31
29
26
24
22
20
18
16
15
13
12
11
10
9.0
8.0
7.0
RF01133, Rev. A (5/28/13)
©2013 Microsemi Corporation
Page 3 of 5
1N5913BPe3 – 1N5956BPe3 (Plastic)

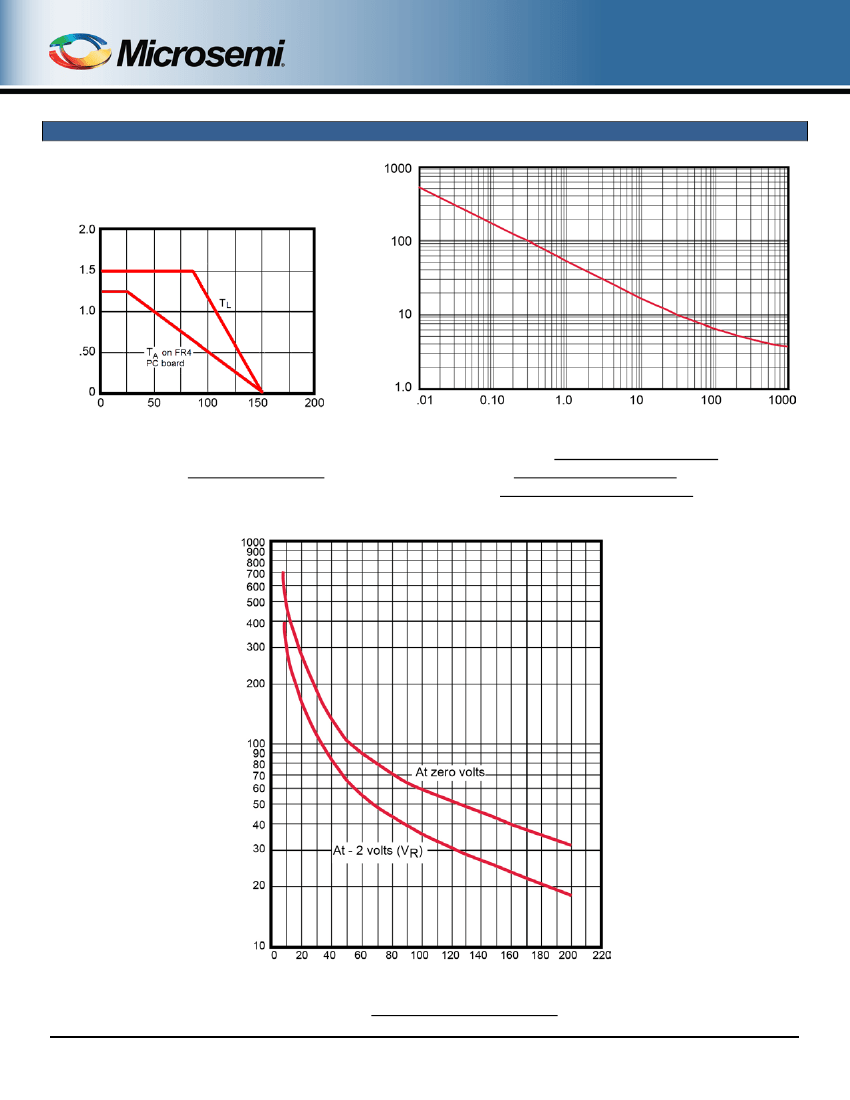

GRAPHS
P
D
, Maximum Power Dissipation (Watts)
Temperature ( C)
T
L
Lead temp (ºC), or T
A
on FR4 PC Board
o
Typical Maximum Power in Watts
Time in Milliseconds
FIGURE 2
– Transient Surge Capability
Square-Wave Pulse Width
(non-Repetitive) in Milliseconds
FIGURE 1 –
Power Derating Curve
C – Capacitance - Picofarads
V
Z
– Zener Voltage – Volts
FIGURE 3 –
Capacitance vs Zener Voltage
RF01133, Rev. A (5/28/13)
©2013 Microsemi Corporation
Page 4 of 5
1N5913BPe3 – 1N5956BPe3 (Plastic)

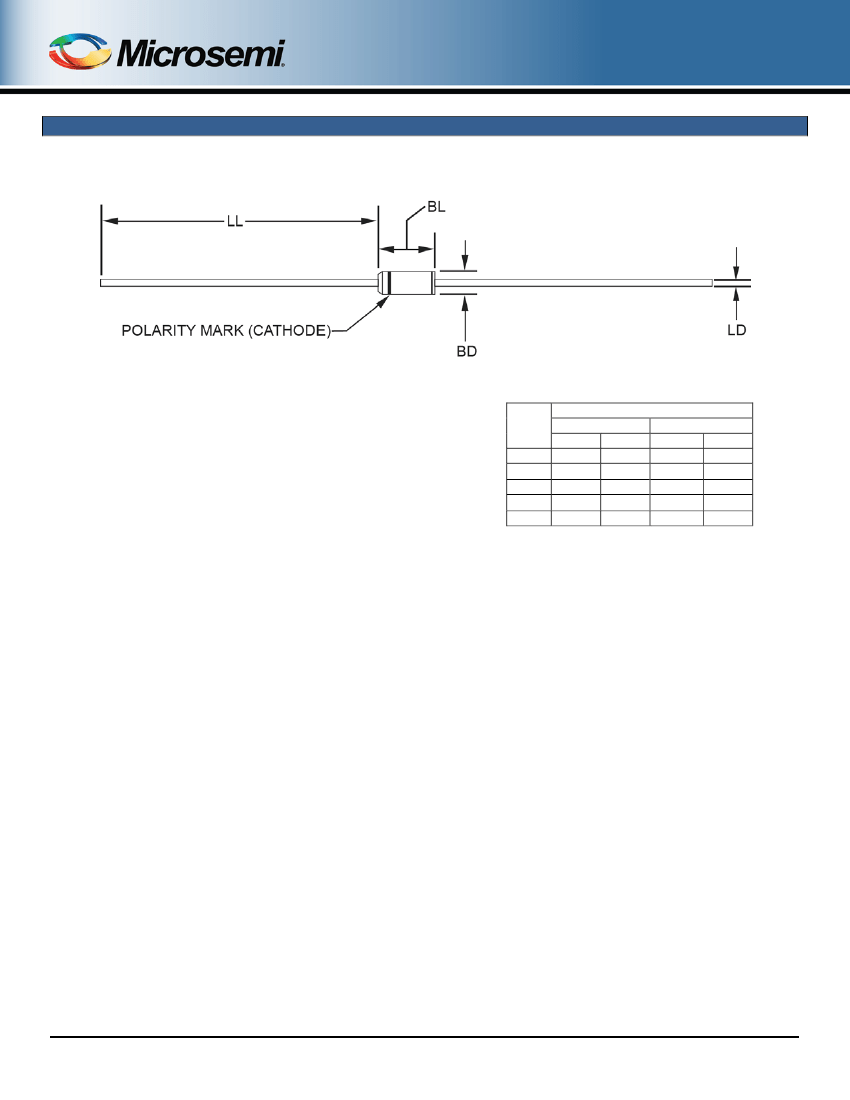

PACKAGE DIMENSIONS
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for information only.
3. In accordance with ASME Y14.5M, diameters are equivalent
to
Φx
symbology.
Ltr
BD
BL
LD
LL
DIMENSIONS
INCH
MILLIMETERS
Min
Max
Min
Max
-
0.107
-
2.718
-
0.205
-
5.207
0.030 0.034
0.762
0.864
1.10
-
27.940
-
RF01133, Rev. A (5/28/13)
©2013 Microsemi Corporation
Page 5 of 5
