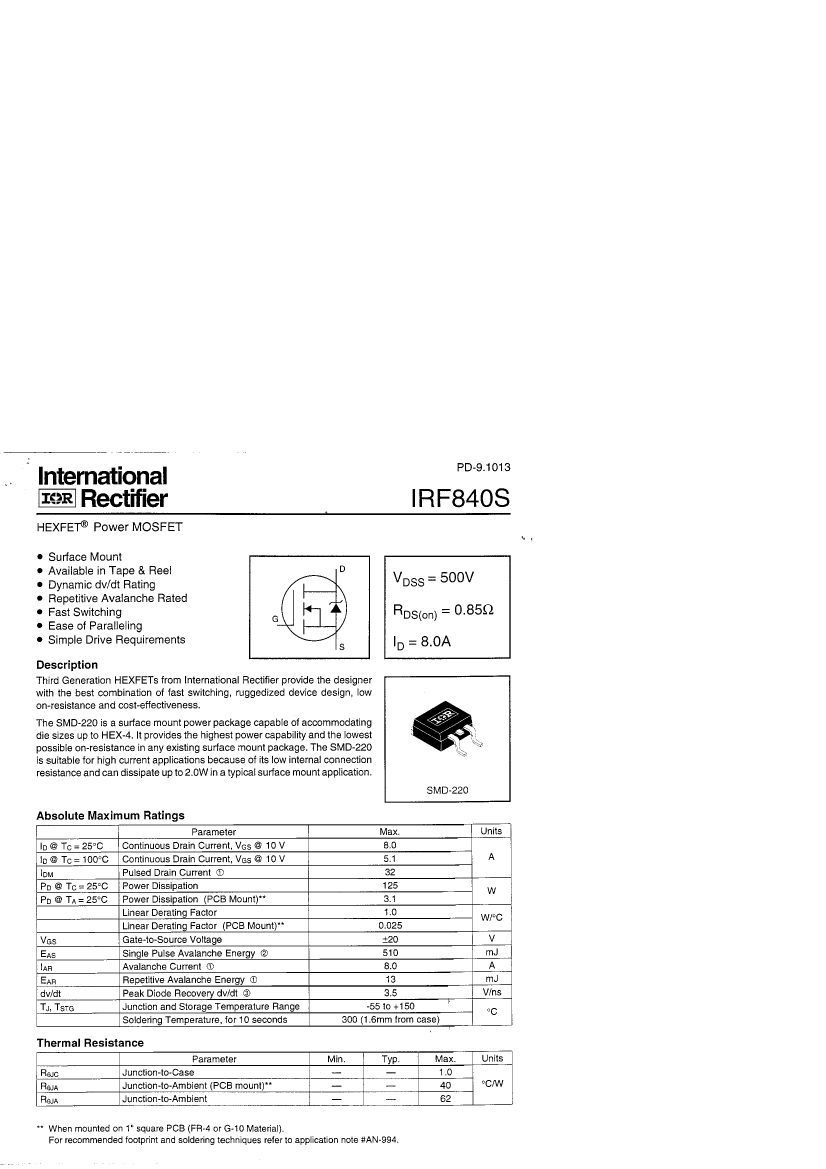

IRF840STRR

Description
MOSFET N-CH 500V 8A D2PAK
CategoryDiscrete semiconductor    The transistor
File Size173KB,6 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric Compare View All

IRF840STRR Online Shopping

Suppliers Part Number Price MOQ In stock
IRF840STRR - - View Buy Now

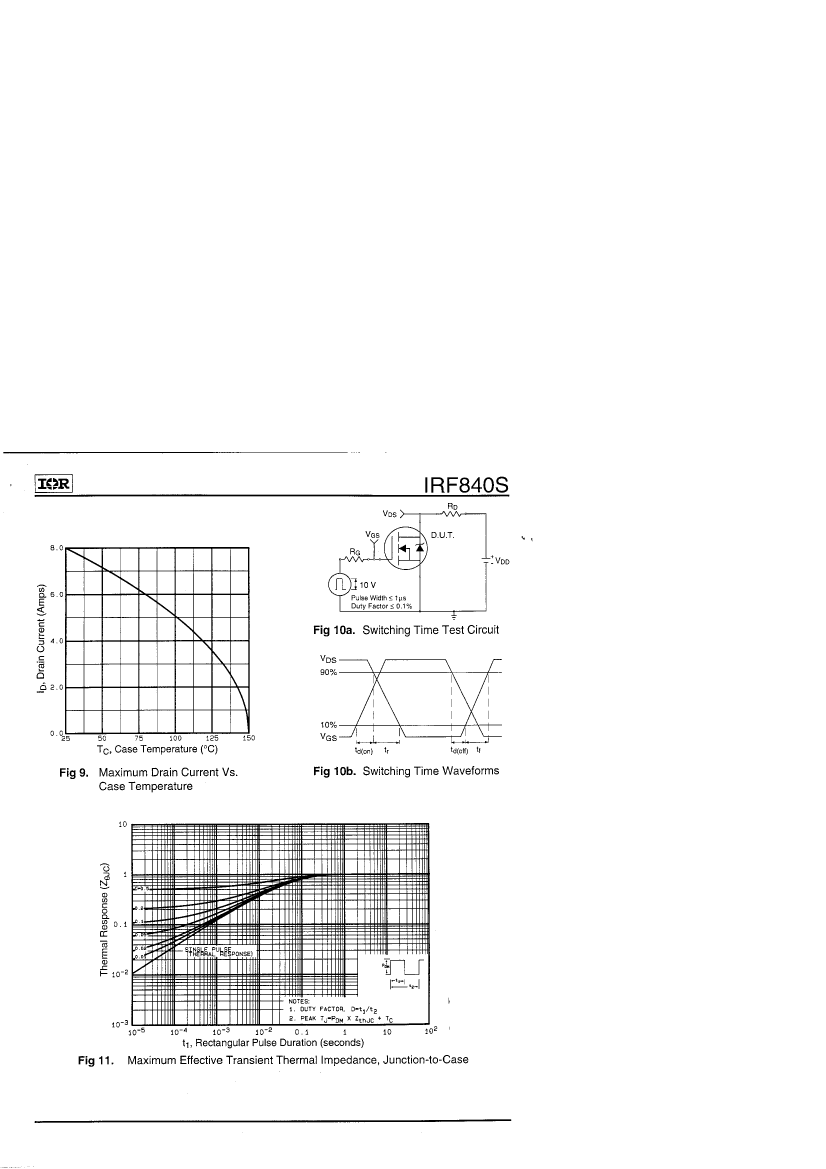

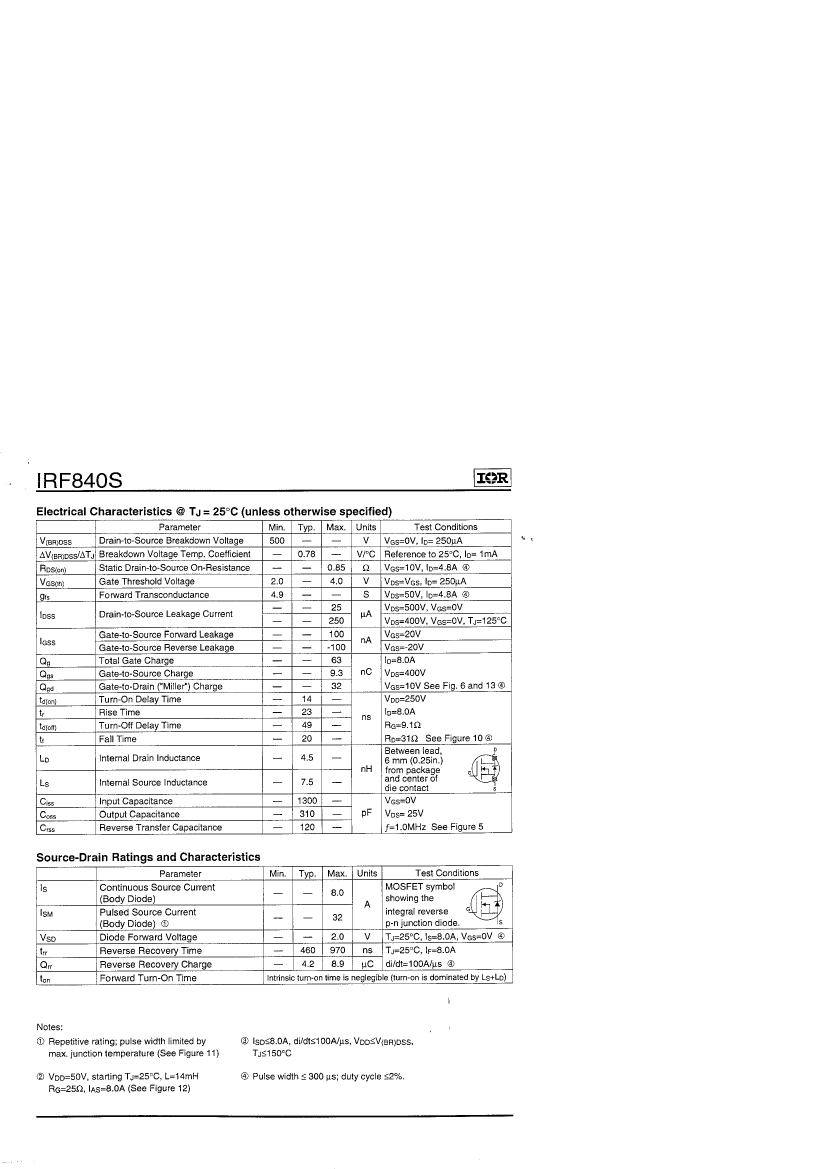

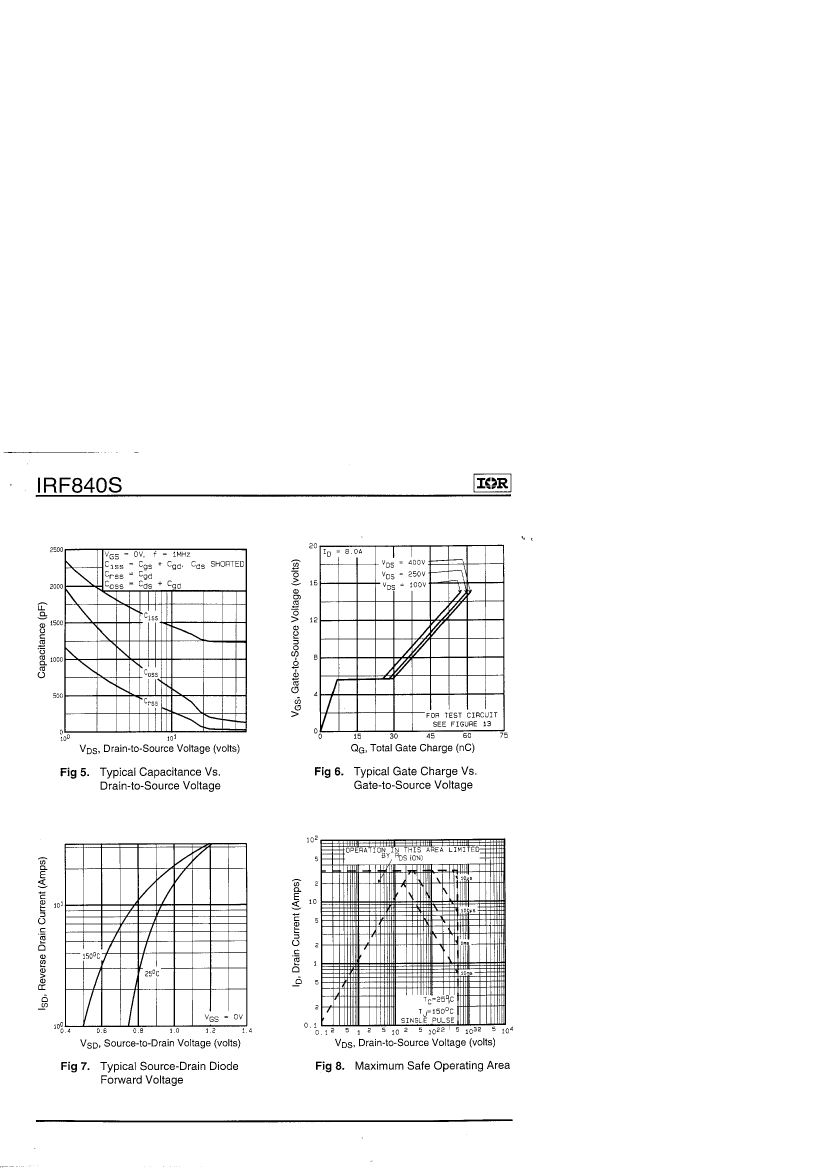

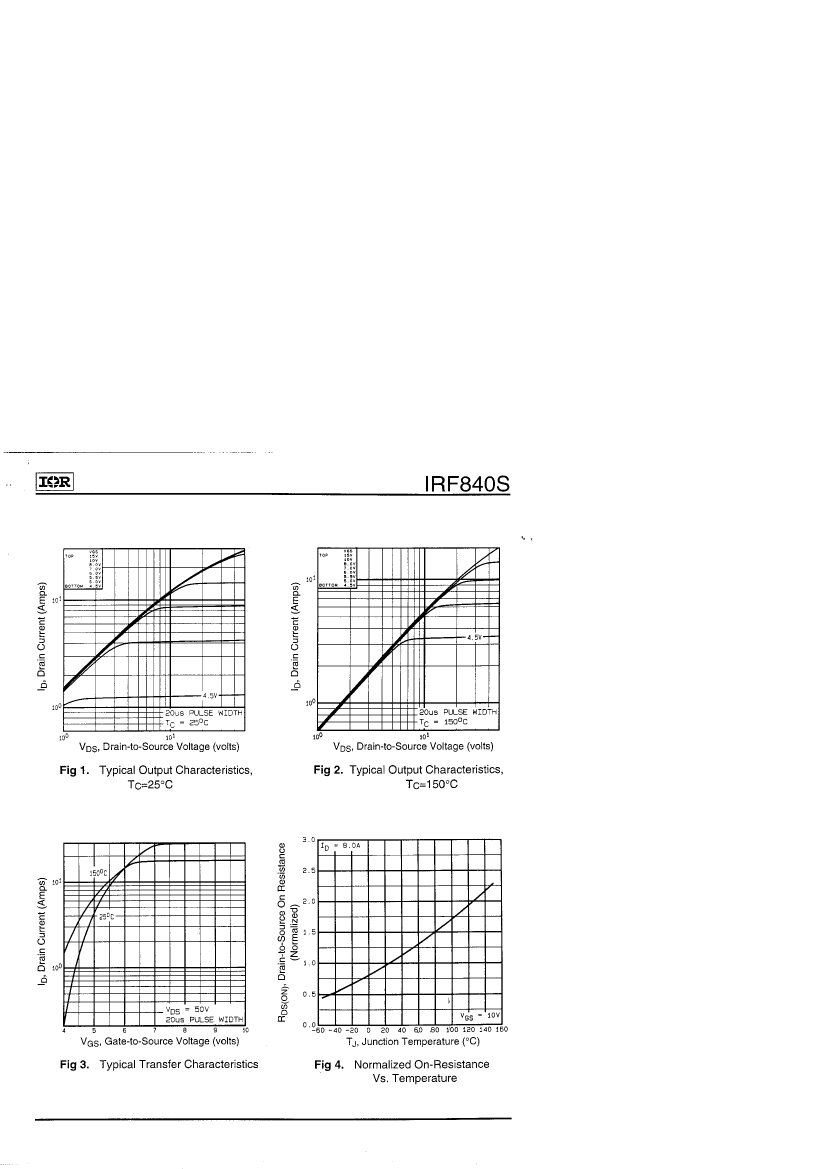

IRF840STRR Overview

MOSFET N-CH 500V 8A D2PAK

IRF840STRR Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
Parts packaging codeD2PAK
package instructionSMALL OUTLINE, R-PSSO-G2
Contacts4
Reach Compliance Codecompliant
Shell connectionDRAIN
ConfigurationSINGLE
Minimum drain-source breakdown voltage500 V
Maximum drain current (ID)8 A
Maximum drain-source on-resistance0.85 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-263AB
JESD-30 codeR-PSSO-G2
JESD-609 codee0
Number of components1
Number of terminals2
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum power consumption environment125 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1

IRF840STRR Related Products

IRF840STRR IRF840S
Description MOSFET N-CH 500V 8A D2PAK 8 A, 500 V, 0.85 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-263AB
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon )
Parts packaging code D2PAK D2PAK
package instruction SMALL OUTLINE, R-PSSO-G2 SMALL OUTLINE, R-PSSO-G2
Contacts 4 4
Reach Compliance Code compliant compliant
Shell connection DRAIN DRAIN
Configuration SINGLE SINGLE
Minimum drain-source breakdown voltage 500 V 500 V
Maximum drain current (ID) 8 A 8 A
Maximum drain-source on-resistance 0.85 Ω 0.85 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code TO-263AB TO-263AB
JESD-30 code R-PSSO-G2 R-PSSO-G2
JESD-609 code e0 e0
Number of components 1 1
Number of terminals 2 2
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Polarity/channel type N-CHANNEL N-CHANNEL
Maximum power consumption environment 125 W 125 W
Certification status Not Qualified Not Qualified
surface mount YES YES
Terminal surface TIN LEAD Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
Base Number Matches 1 1
