8077-3

Description
Type F Right Angle Female for Daughter Cards
File Size132KB,1 Pages
ManufacturerAVX
Download Datasheet View All

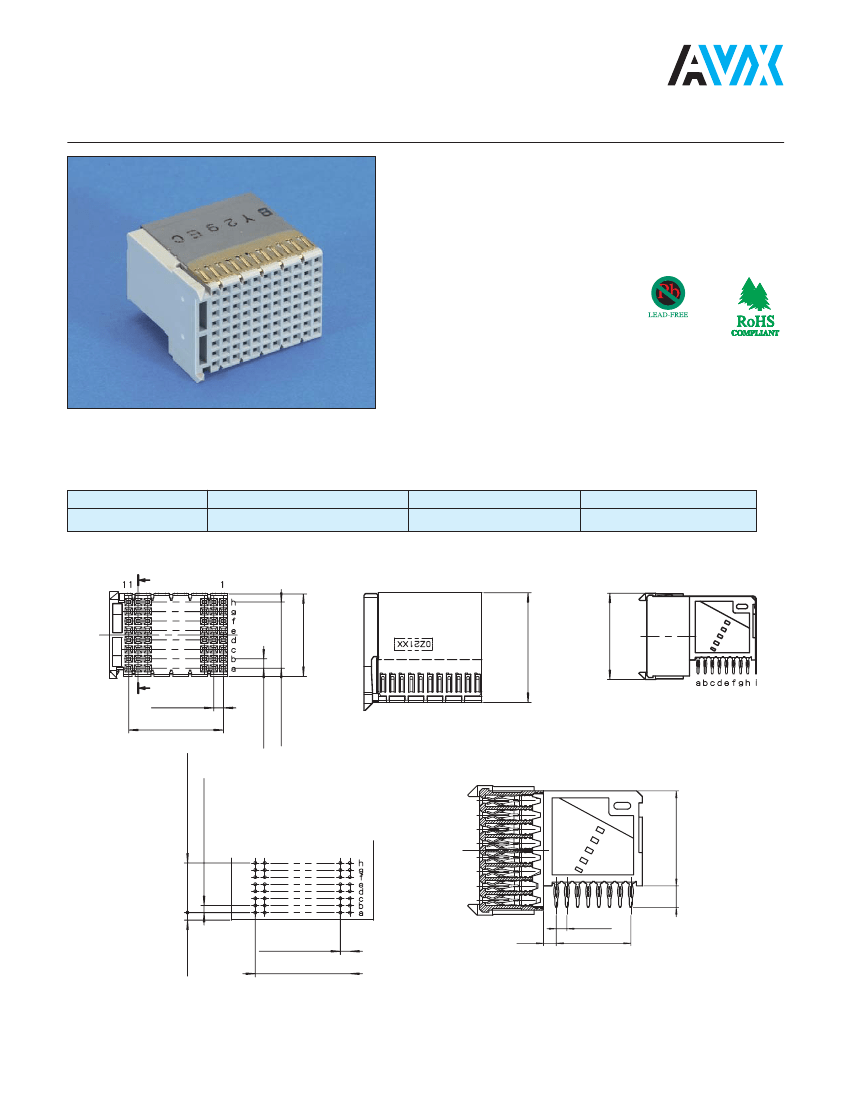

8077-3 Overview

Type F Right Angle Female for Daughter Cards

Type F Right Angle Female
for Daughter Cards
Series 8077
88 contacts in a 8 x 11 position configuration
Designed for gas tight press-fit installation
Available with or without upper ground return shield
This connector can be used by itself or in conjunction with a Type
D connector
• Should be used in end positions only
LEAD-FREE COMPATIBLE
COMPONENT
27 8077 088 001 863+
27 8077 088 011 863+
Plating Code
863
= Type F Right Angle Female without top shield
= Type F Right Angle Female with top shield
Contact Area
0.76µm min. Au
Press-fit Area
1.5-3.0µm Sn
Under Coat
1.2-3.0µm Ni
X
2.0 TYP.
2 x 10 = 20.0
1.5 x 7 = 10.5
±0.1
1.5
±0.1
TYP.
2.0 TYP.
2 x 7 = 14.0
23.15
18.25
17.4
1.5 MAX.
1.5 TYP.
2.0
±0.1
TYP.
2 x 10 = 20.0
±0.1
1.8
1.5 x 7 = 10.5
RECOMMENDED P.C. BOARD LAYOUT
(COMPONENT SIDE)
24
3.0
13.4
