80D
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Snap-In
FEATURES
•
High ripple capability
•
Molded cover available in 2 and 3 terminal
design with standoffs
Pb-free
Available
Fig.1 Component Outlines
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
ØD x L in mm
Operating temperature
Rated capacitance
range, C
R
Tolerance on C
R
Rated voltage range, U
R
Termination
VALUE
0.866" x 0.984" (22.0 x 25.0)
to 1.38" x 3.15" (35.0 x 80.0)
- 40 °C to + 85 °C
82 µF to 56 000 µF
- 10 %, + 30 %
6.3 WVDC to 250 WVDC
Snap mount or 2 and 3
terminal straight leads
2000 h:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.5 x initial
specified limit.
Δ
DCL
≤
initial
specified limit
500 h:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.3 x initial
specified limit.
Δ
DCL
≤
2 x initial
specified limit
I = K cv
DC leakage current
K = 4.0 at + 25 °C
I in µA, C in µF, V in Volts
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+ 55 °C
+ 65 °C
+ 75 °C
+ 85 °C
FREQUENCY (Hz)
WVDC
0 - 49
50 - 199
200 - 250
50 TO 60
0.85
0.83
0.80
300 TO 1000
1.10
1.15
1.30
1000 AND
UP
1.15
1.20
1.40
MULTIPLIERS
2.0
1.7
1.4
1.0
Life validation test
at 85°C
ESL (TYPICAL VALUES AT 1 MHz TO 10 MHz)
Nominal
Diameter
Typical
ESL (nH)
0.866
(22.0)
6.0
0.984
(25.0)
8.0
1.18
(30.0)
10.0
1.38
(35.0)
12.0
Shelf life at 85°C
DIMENSIONS
in inches (millimeters)
CASE
CODE
HA
HB
HD
JA
JB
JC
JD
JE
KA
KB
www.vishay.com
218
DIAMETER
D + 0.039 - 0 (+1.0 - 0)
0.87 (22.0)
0.87 (22.0)
0.87 (22.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.18 (30.0)
1.18 (30.0)
LENGTH
L ± 0.079 (2.0)
1.00 (25.0)
1.18 (30.0)
1.57 (40.0)
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
1.00 (25.0)
1.18 (30.0)
For technical questions, contact: aluminumcaps4@vishay.com
Document Number: 42060
Revision: 27-Aug-08
CASE
CODE
KC
KD
KE
MB
MC
MD
ME
MF
MG
DIAMETER
D + 0.039 - 0 (+ 1.0 - 0)
1.18 (30.0)
1.18 (30.0)
1.18 (30.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
LENGTH
L ± 0.079 (2.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
2.50 (63.0)
3.18 (80.0)
80D
Aluminum Capacitors
+ 85 °C, Snap-In
DIMENSIONS
in inches (millimeters)

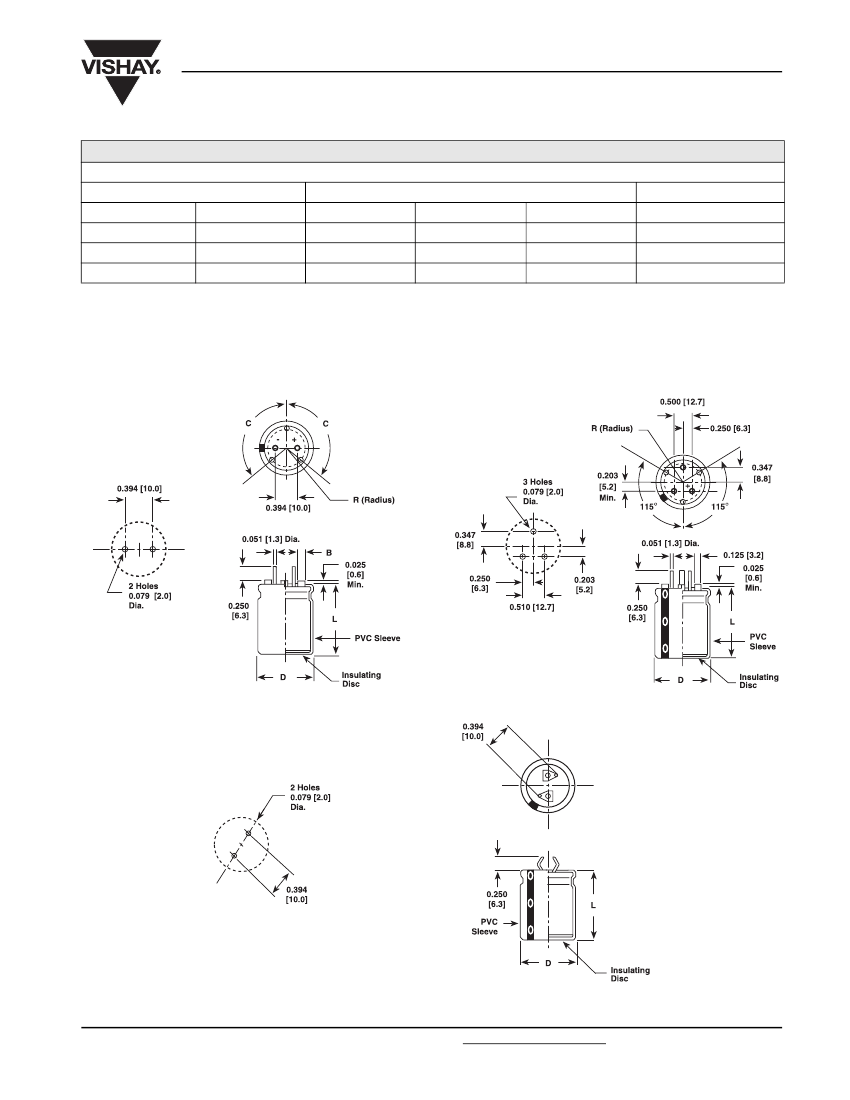

CIRCUIT BOARD MOUNT TERMINAL DIMENSIONS
(1)
DIAMETER
D
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
CASE CODE
J
K
M
B
0.093 (2.4)
0.125 (2.3)
0.125 (3.2)
STYLE A
R
0.301 (7.6)
0.363 (9.2)
0.458 (11.6)
C
140°
120°
120°
STYLE B
R
N/A
0.391 (9.9)
(2)
0.458 (11.6)
(2)
Vishay Sprague
Notes
(1)
Style A and B not available in 0.866" (22.0mm) diameter units
(2)
Pin-type molded cover available on 80D/82D through 450 V. For 81D, only up through 250 V.
DIMENSIONAL AND AVAILABLE FORMS
Style A
Style B
Style D
Document Number: 42060
Revision: 27-Aug-08
For technical questions, contact: aluminumcaps4@vishay.com
www.vishay.com
219
80D
Vishay Sprague
ORDERING EXAMPLE
Electrolytic capacitor 80D series:
80D 122 P 200 ME 2 D E3
Aluminum Capacitors
+ 85 °C, Snap-In
DESCRIPTION
CODE
80D
122
P
200
MA
2
D
E3
EXPLANATION
product type
capacitance value (1200 µF)
tolerance (P = - 10 %/+ 30 %)
voltage rating at 85 °C (200 V)
can size (see dimensions table)
pvc insulating sleeve
terminal style (D = 2 pin snap-in)
RoHS compliant
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE (µF)
PART NUMBER
NOMINAL CASE SIZE
DxL
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.18 (22.0 x 30.0)
0.984 x 1.18 (25.0 x 30.0)
1.18 x 0.984 (30.0 x 25.0)
0.984 x 1.38 (25.0 x 35.0)
0.984 x 1.97 (25.0 x 50.0)
1.18 x 1.97 (30.0 x 50.0)
1.38 x 1.97 (35.0 x 50.0)
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.18 (22.0 x 30.0)
0.984 x 1.18 (25.0 x 30.0)
1.18 x 1.18 (30.0 x 30.0)
0.984 x 1.97 (25.0 x 50.0)
1.38 x 1.18 (35.0 x 30.0)
1.18 x 1.97 (30.0 x 50.0)
1.38 x 1.97 (35.0 x 50.0)
MAX. ESR
120 H
Z
10 kH
Z
to 40 kH
Z
113.0
85.0
73.0
91.0
59.0
37.0
35.0
19.0
120.0
90.0
76.0
71.0
39.0
38.0
36.0
19.0
99.0
74.0
65.0
84.0
53.0
33.0
32.0
17.0
99.0
74.0
65.0
63.0
33.0
33.0
32.0
17.0
74.0
-
51.0
27.0
27.0
17.0
99.0
74.0
48.0
42.0
63.0
41.0
32.0
MAX. RIPPLE at + 85°C (A)
120 H
Z
2.5
3.0
3.3
2.8
3.9
5.6
5.8
9.4
2.4
2.9
3.2
3.4
5.4
5.5
5.7
9.1
2.7
-
3.8
6.2
6.2
8.8
2.8
2.4
3.4
3.9
3.1
4.3
5.3
10 kH
Z
to 40 kH
Z
2.8
3.4
3.6
3.0
4.2
6.0
6.1
10.0
2.8
3.4
3.6
3.6
6.0
6.2
6.1
10.0
3.4
-
4.2
7.2
7.2
10.0
2.0
3.4
4.7
4.9
3.6
4.9
6.1
16 WVDC at + 85 °C, SURGE = 20 V
3900.0
5600.0
8200.0
8200.0
(1)
80D392P016HA2D
80D562P016HB2D
80D822P016JB2D
80D822P016KA2D
80D103P016JC2D
80D153P016JE2D
80D223P016KE2D
80D333P016ME2D
80D272P025HA2D
80D332P025HB2D
80D427P025JB2D
80D682P025KB2D
80D103P025JE2D
80D103P025MB2D
80D153P025KE2D
80D223P025ME2D
80D332P035HB2D
80D472P035KB2D
80D682P035KC2D
80D103P035MC2D
80D123P035KE2D
80D153P035ME2D
80D122P050HA2D
80D152P050HB2D
80D222P050HD2D
80D332P050JD2D
80D332P050KB2D
80D472P050KD2D
80D682P050KE2D
10 000.0
(1)
15 000.0
(1)
22 000.0
33 000.0
(1)
2700.0
(1)
3300.0
(1)
4700.0
6800.0
(1)
25 WVDC at + 85 °C, SURGE = 30 V
10 000.0
(1)
10 000.0
(1)
15 000.0
(1)
22 000.0
(1)
3300.0
4700.0
(1)
6800.0
(1)
10 000.0
(1)
12 000.0
(1)
15 000.0
(1)
1200.0
(1)
1500.0
2200.0
(1)
35 WVDC at + 85 °C, SURGE = 44 V
0.866 x 1.18 (22.0 x 30.0)
96.0
1.18 x 1.18 (30.0 x 30.0)
1.18 x 1.38 (30.0 x 35.0)
1.38 x 1.38 (35.0 x 35.0)
1.38 x 1.38 (35.0 x 35.0)
1.38 x 1.97 (35.0 x 35.0)
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.18 (22.0 x 30.0)
0.866 x 1.57 (22.0 x 40.0)
0.984 x 1.57 (25.0 x 40.0)
1.18 x 1.18 (30.0 x 30.0)
1.18 x 1.57 (30.0 x 40.0)
1.18 x 1.97 (30.0 x 50.0)
-
60.0
33.0
33.0
20.0
144.0
108.0
69.0
57.0
79.0
51.0
40.0
50 WVDC at + 85 °C, SURGE = 63 V
3300.0
(1)
3300.0
(1)
4700.0
(1)
6800.0
(1)
www.vishay.com
220
For technical questions, contact: aluminumcaps4@vishay.com
Document Number: 42060
Revision: 27-Aug-08
80D
Aluminum Capacitors
+ 85 °C, Snap-In
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE (µF)
PART NUMBER
NOMINAL CASE SIZE
DxL
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.18 (22.0 x 30.0)
0.984 x 1.18 (25.0 x 30.0)
1.18 x 1.18 (30.0 x 30.0)
1.38 x 1.18 (35.0 x 30.0)
1.18 x 1.97 (30.0 x 50.0)
1.38 x 1.97 (35.0 x 50.0)
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.18 (22.0 x 30.0)
0.984 x 1.18 (25.0 x 30.0)
1.18 x 1.18 (30.0 x 30.0)
0.984 x 1.97 (25.0 x 25.0)
1.18 x 1.97 (30.0 x 50.0)
1.38 x 1.97 (35.0 x 50.0)
0.866 x 0.984 (22.0 x 25.0)
0.984 x 0.984 (25.0 x 25.0)
1.18 x 0.984 (30.0 x 25.0)
1.18 x 1.38 (30.0 x 35.0)
1.18 x 1.57 (30.0 x 40.0)
1.18 x 1.57 (30.0 x 40.0)
1.38 x 1.97 (35.0 x 35.0)
1.38 x 1.97 (35.0 x 50.0)
1.38 x 1.97 (35.0 x 50.0)
0.984 x 0.984 (25.0 x 25.0)
0.984 x 1.18 (25.0 x 30.0)
0.984 x 1.57 (25.0 x 40.0)
0.984 x 1.97 (25.0 x 50.0)
1.18 x 1.97 (30.0 x 50.0)
1.38 x 1.97 (35.0 x 50.0)
MAX. ESR
120 H
Z
10 kH
Z
to 40 kH
Z
132.0
99.0
82.0
72.0
40.0
36.0
21.0
241.0
179.0
139.0
111.0
68.0
55.0
50.0
1057.0
660.0
460.0
278.0
220.0
248.0
130.0
144.0
141.0
720.0
541.0
343.0
263.0
185.0
191.0
82.0
62.0
55.0
54.0
28.0
28.0
15.0
138.0
103.0
85.0
74.0
42.0
37.0
37.0
505.0
375.0
272.0
165.0
131.0
127.0
82.0
81.0
75.0
377.0
284.0
182.0
140.0
101.0
81.0
MAX. RIPPLE at + 85°C (A)
120 H
Z
2.0
2.4
2.8
3.2
5.0
5.4
8.3
1.5
1.8
2.2
2.7
3.9
4.7
5.2
0.75
1.3
1.7
2.4
2.8
2.1
4.3
3.4
3.4
1.1
1.4
2.0
2.5
3.2
4.0
10 kH
Z
to 40 kH
Z
3.0
3.6
3.8
3.9
6.6
6.4
10.0
2.7
3.3
3.5
3.7
5.9
6.2
6.2
2.2
3.2
3.6
4.9
5.7
4.7
7.4
6.6
6.6
3.2
3.8
5.2
6.3
7.0
7.4
Vishay Sprague
63 WVDC at + 85 °C, SURGE = 79 V
820.0
1200.0
(1)
1500.0
2200.0
3300.0
(1)
4700.0
(1)
6800.0
(1)
390.0
560.0
680.0
1000.0
1500.0
2200.0
3300.0
100.0
150.0
220.0
(1)
330.0
(1)
470.0
(1)
680.0
820.0
(1)
1000.0
(1)
1200.0
(1)
100.0
(1)
150.0
220.0
(1)
330.0
470.0
680.0
(1)
80D821P063HA2D
80D122P063HB2D
80D152P063JB2D
80D222P063KB2D
80D332P063MB2D
80D472P063KE2D
80D682P063ME2D
80D391P100HA2D
80D561P100HB2D
80D681P100JB2D
80D102P100KB2D
80D152P100JE2D
80D222P100KE2D
80D332P100ME2D
80D101P200HA2D
80D151P200JA2D
80D221P200KA2D
80D331P200KC2D
80D471P200KD2D
80D681P200KD2D
80D821P200ME2D
80D102P200ME2D
80D122P200ME2D
80D101P250JA2D
80D151P250JB2D
80D221P250JD2D
80D331P250JE2D
80D471P250KE2D
80D681P250ME2D
100 WVDC at + 85 °C, SURGE = 125 V
200 WVDC at + 85 °C, SURGE = 250 V
250 WVDC at + 85 °C, SURGE = 300 V
Note
(1)
These ratings are normally stocked.
Some Inventory may include PVC sleeve with resin end seal (5D).
Additional Part Numbers normally found in distribution inventory include:
80D102P050HA2D
80D102P063HB2D
80D102P100JD2D
80D102P200MD2D
80D103P035KE2D
80D123P016KB2D
80D152P050JA2D
80D153P016MB2D
80D182P035HA2D
80D222P035HB2D
80D222P050KA2D
80D222P063JD2D
80D222P080JE2D
80D223P010MB2D
80D272P035HB2D
80D272P035JA2D
80D332P063JE2D
80D333P010KE2D
80D391P200MB2D
80D392P050JE2D
80D472P050JC2D
80D472P050JE2D
80D472P050MB2D
80D681P200MD2D
80D682P035JE2D
80D682P035MB2D
80D682P050MD2D
80D820P250HA2D
80D822P025JD2D
80D822P035MB2D
80D822P050ME2D
Other capacitance values are available on request. Call
for a quotation for price and delivery.
Document Number: 42060
Revision: 27-Aug-08
For technical questions, contact: aluminumcaps4@vishay.com
www.vishay.com
221
Legal Disclaimer Notice
Vishay
Disclaimer
All product specifications and data are subject to change without notice.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf
(collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein
or in any other disclosure relating to any product.
Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any
information provided herein to the maximum extent permitted by law. The product specifications do not expand or
otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed
therein, which apply to these products.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Vishay.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless
otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such
applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting
from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding
products designed for such applications.
Product names and markings noted herein may be trademarks of their respective owners.
Document Number: 91000
Revision: 18-Jul-08
www.vishay.com
1
Embedded System
京公网安备 11010802033920号
EEWORLD
