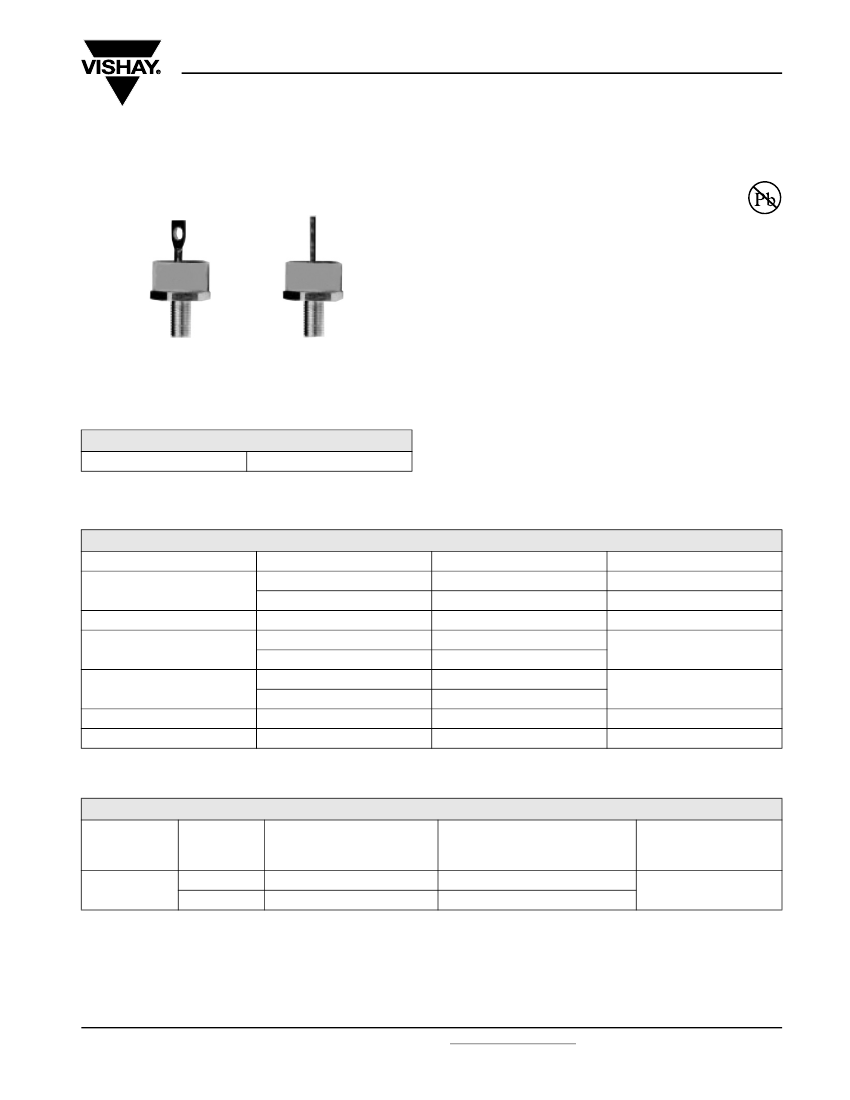

80PF(R)...(W) High Voltage Series
Vishay High Power Products
Standard Recovery Diodes
Generation 2 DO-5 (Stud Version), 80 A
FEATURES
80PF(R)...
80PF(R)...W
• High surge current capability
• Designed for a wide range of applications
• Stud cathode and stud anode version
• Wire version available
• Low thermal resistance
• RoHS compliant
RoHS
COMPLIANT
DO-203AB (DO-5)
DO-203AB (DO-5)
• Designed and qualified for multiple level
TYPICAL APPLICATIONS
• Converters
PRODUCT SUMMARY
I
F(AV)
80 A
• Power supplies
• Machine tool controls
• Welding
• Any high voltage input rectification bridge
MAJOR RATINGS AND CHARACTERISTICS
PARAMETER
I
F(AV)
I
F(RMS)
I
FSM
I
2
t
V
RRM
T
J
50 Hz
60 Hz
50 Hz
60 Hz
Range
TEST CONDITIONS
VALUES
80
T
C
123
126
1200
1250
7100
6450
1400 to 1600
- 55 to 150
UNITS
A
°C
A
A
A
2
s
V
°C
ELECTRICAL SPECIFICATIONS
VOLTAGE RATINGS
TYPE
NUMBER
80PF(R)...(W)
VOLTAGE
CODE
140
160
V
RRM
, MAXIMUM REPETITIVE
PEAK REVERSE VOLTAGE
V
1400
1600
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
1650
1900
I
RRM
MAXIMUM
AT T
J
= 150 °C
mA
4.5
Document Number: 93527
Revision: 01-Oct-08
For technical questions, contact: ind-modules@vishay.com
www.vishay.com
1
80PF(R)...(W) High Voltage Series
Vishay High Power Products
Standard Recovery Diodes
Generation 2 DO-5 (Stud Version), 80 A
FORWARD CONDUCTION
PARAMETER
Maximum average forward current
at case temperature
Maximum RMS forward current
SYMBOL
I
F(AV)
I
F(RMS)
t = 10 ms
Maximum peak, one cycle forward,
non-repetitive surge current
I
FSM
t = 8.3 ms
t = 10 ms
t = 8.3 ms
t = 10 ms
Maximum I
2
t for fusing
I
2
t
t = 8.3 ms
t = 10 ms
t = 8.3 ms
Maximum I
2
√t
for fusing
Low level value of threshold voltage
Low level value of forward slope resistance
Maximum forward voltage drop
I
2
√t
V
F(TO)
r
f
V
FM
No voltage
reapplied
100 % V
RRM
reapplied
No voltage
reapplied
100 % V
RRM
reapplied
TEST CONDITIONS
180° conduction, half sine wave
VALUES
80
123
126
1200
1250
1000
Sinusoidal half wave,
initial T
J
= 150 °C
1050
7100
6450
5000
4550
71 000
0.73
3.0
1.46
A
2
√s
V
mΩ
V
A
2
s
A
UNITS
A
°C
A
t = 0.1 to 10 ms, no voltage reapplied
(16.7 % x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
maximum
(16.7 % x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
maximum
I
pk
= 220 A, T
J
= 25 °C, t
p
= 400 µs rectangular wave
THERMAL AND MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and
storage temperature range
Maximum thermal resistance,
junction to case
Thermal resistance,
case to heatsink
SYMBOL
T
J
, T
Stg
R
thJC
R
thCS
DC operation
Mounting surface, smooth, flat and greased
Tighting on nut
(1)
Not lubricated threads
Tighting on hexagon
(2)
Lubricated threads
TEST CONDITIONS
VALUES
- 55 to 150
0.30
K/W
0.25
3.4
+ 0 - 10 %
(30)
2.3
+ 0 - 10 %
(20)
15.8
0.56
See dimensions - link at the end of datasheet
DO-203AB (DO-5)
UNITS
°C
Allowable mounting torque
N·m
(lbf · in)
g
oz.
Approximate weight
Case style
Notes
(1)
As general recommendation we suggest to tight on hexagon and not on nut
(2)
Torque must be appliable only to hexagon and not to plastic structure
www.vishay.com
2
For technical questions, contact: ind-modules@vishay.com
Document Number: 93527
Revision: 01-Oct-08
80PF(R)...(W) High Voltage Series
Standard Recovery Diodes
Vishay High Power Products
Generation 2 DO-5 (Stud Version), 80 A
ΔR
thJC
CONDUCTION
CONDUCTION ANGLE
180°
120°
90°
60°
30°
SINUSOIDAL CONDUCTION
0.14
0.16
0.21
0.30
0.50
RECTANGULAR CONDUCTION
0.10
0.17
0.22
0.31
0.50
T
J
= T
J
maximum
K/W
TEST CONDITIONS
UNITS
Note
• The table above shows the increment of thermal resistance R
thJC
when devices operate at different conduction angles than DC
Peak Half Sine Wave Forward Current (A)
160
Maximum Allowable Case Temperature (°C)
1200
1100
1000
900
800
700
600
500
400
300
200
0.01
150
80PF(R) Series
140 to 160
RthJC = 0.3 K/W
Maximum Non Repetitive Surge Current
Versus Pulse Train Duration.
Initial T
J
= T
J
Max.
No Voltage Reapplied
Rated V
RRM
Reapplied
140
180° Sine
130
120
80PF(R) Series
70HF(R) Series
140 to 160
0.1
Pulse Train Duration (s)
1
110
0
10
20
30
40
50
60
70
80
90
Average Forward Current (A)
Fig. 1 - Current Ratings Characteristics
Fig. 3 - Maximum Non-Repetitive Surge Current
Peak Half Sine Wave Forward Current (A)
1100
1000
900
800
700
600
500
400
300
1
Instantaneous Forward Current (A)
At Any Rated Load Condition And With
Rated V
RRM
Applied Following Surge.
Initial T
J
= T
J
Max.
@ 60 Hz 0.0083 s
@ 50 Hz 0.0100 s
1000
Tj = 25°C
100
Tj = Tj Max
10
80PF(R) Series
70HF(R) Series
140 to 160
10
100
70HF(R) Series
80PF(R) Series
(140 to 160)
140 to 160
1
0
0.5 1 1.5 2 2.5 3 3.5
Instantaneous Forward Voltage (V)
4
Number Of Equal Amplitude Half Cycle Current Pulses (N)
Fig. 2 - Maximum Non-Repetitive Surge Current
Fig. 4 - Forward Voltage Drop Characteristics
Document Number: 93527
Revision: 01-Oct-08
For technical questions, contact: ind-modules@vishay.com
www.vishay.com
3
80PF(R)...(W) High Voltage Series
Vishay High Power Products
Standard Recovery Diodes
Generation 2 DO-5 (Stud Version), 80 A
1
Steady State Value
RthJC = 0.3 K/W
(DC Operation)
Transient Thermal Impedance Z
thJC
(K/W)
0.1
80PF(R) Series
80PF(R) Series
140 to 160
0.01
0.0001 0.001
0.01
0.1
1
10
Square Wave Pulse Duration (s)
Fig. 5 - Thermal Impedance Z
thJC
Characteristics
ORDERING INFORMATION TABLE
Device code
80
1
1
2
3
4
5
PF
2
-
-
-
-
-
R
3
160
4
W
5
80 = Standard device
PF = Plastic package
None = Stud normal polarity (cathode to stud)
R = Stud reverse polarity (anode to stud)
Voltage code x 10 = V
RRM
(see Voltage Ratings table)
None = Standard terminal
(see dimensions for 80PF(R)... - link at the end of datasheet)
W = Wire terminal
(see dimensions for 80PF(R)...W - link at the end of datasheet)
LINKS TO RELATED DOCUMENTS
Dimensions
http://www.vishay.com/doc?95345
www.vishay.com
4
For technical questions, contact: ind-modules@vishay.com
Document Number: 93527
Revision: 01-Oct-08
