82DA
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Snap-In, General Purpose
FEATURES
•
Maximum CV
Pb-free
•
General purpose design
•
Wide voltage range
Available
•
Molded cover available in 2 or 3 terminal design with
standoffs
•
Replaces type 82D
Fig.1 Component Outlines
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
Ø D x L in inches (mm)
Operating temperature
Rated capacitance
range, C
R
Tolerance on C
R
Rated voltage range,
U
R
Termination
Life validation test
at 85 °C
VALUE
0.87 x 1.00 (22.0 x 25.0)
to 1.57 x 3.18 (40.0 x 80.0)
- 40 °C to + 85 °C
33 µF to 270 000 µF
± 20 %
6.3 WVDC to 500 WVDC
Snap-in
2000 h:
ΔCAP ≤
15 % from initial
measurement.
ΔESR ≤
1.5 x initial
specified limit.
ΔDCL ≤
initial specified
limit
500 h:
ΔCAP ≤
15 % from initial
measurement.
ΔESR ≤
1.3 x initial
specified limit.
ΔDCL ≤
2 x initial
specified limit
I = K CV
K = 4.0 at + 25 °C
I in µA, C in µF, V in Volts
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+ 55 °C
+ 65 °C
+ 75 °C
+ 85 °C
FREQUENCY (Hz)
WVDC
16 to 49
50 to 199
200 to 400
50 TO 60
0.85
0.83
0.80
300 TO 1000
1.10
1.15
1.30
1000 AND UP
1.15
1.20
1.40
MULTIPLIERS
2.0
1.7
1.4
1.0
Shelf life at 85 °C
DC leakage current
5 min charge time

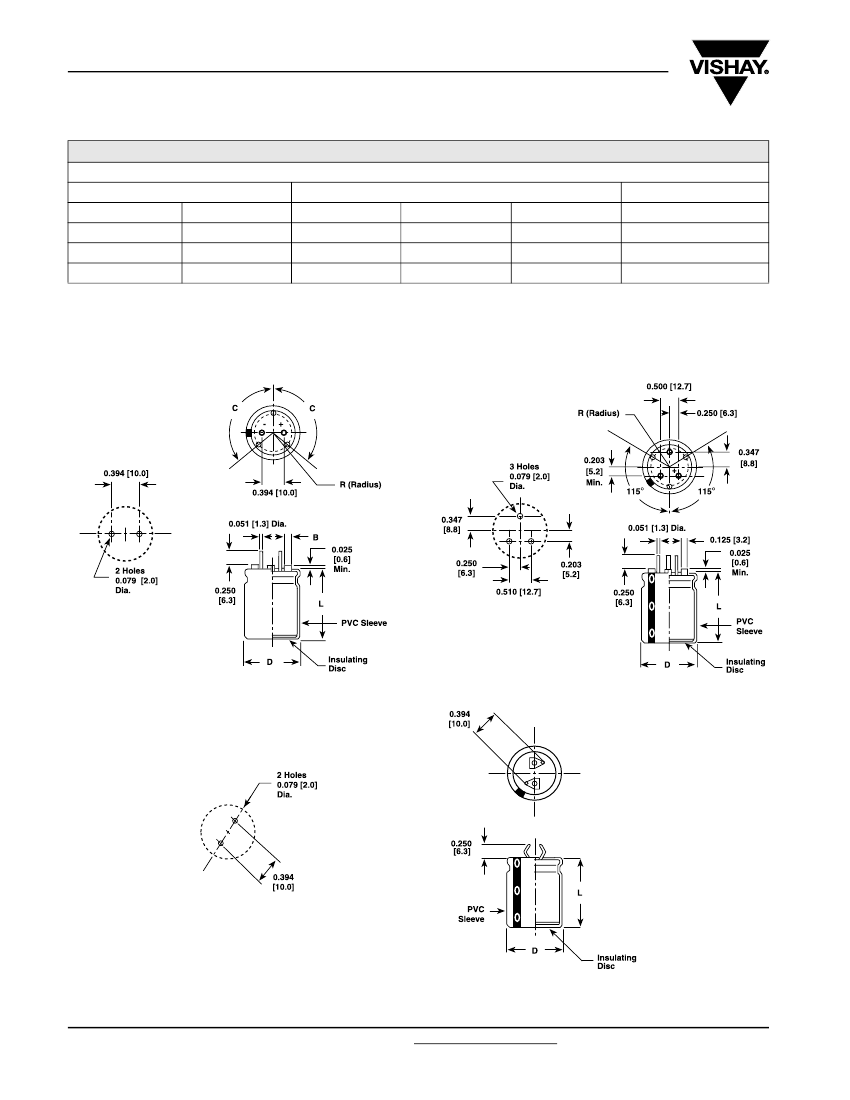

DIMENSIONS
in inches (millimeters)
DIAMETER
CASE
CODE
HA
HB
HD
JA
JB
JC
JD
JE
KA
KB
KC
KD
KE
D + 0.04 - 0 (+ 1.0 - 0)
0.87 (22.0)
0.87 (22.0)
0.87 (22.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.18 (30.0)
1.18 (30.0)
1.18 (30.0)
1.18 (30.0)
1.18 (30.0)
LENGTH
L ± 0.08 (2.0)
1.00 (25.0)
1.18 (30.0)
1.57 (40.0)
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
STYLE 2
TYPICAL
WEIGHT
(g)
16.0
19.0
24.0
20.0
24.0
27.0
31.0
38.0
30.0
35.0
39.0
44.0
53.0
DIAMETER
CASE
CODE
MB
MC
MD
ME
MF
MG
NA
NB
NC
ND
NE
NF
NG
D + 0.04 - 0 (+ 1.0 - 0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
LENGTH
L ± 0.08 (2.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
2.50 (63.0)
3.18 (80.0)
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
2.50 (63.0)
3.18 (80.0)
STYLE 2
TYPICAL
WEIGHT
(g)
48.0
54.0
61.0
74.0
91.0
113.0
48.0
58.0
66.0
81.0
103.0
128.0
183.0
www.vishay.com
227
Document Number: 42064
Revision: 29-Aug-08
For technical questions, contact: aluminumcaps4@vishay.com
82DA
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Snap-In, General Purpose
DIMENSIONS
in inches (millimeters)
CIRCUIT BOARD MOUNT TERMINAL DIMENSIONS
(1)
DIAMETER
D
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
CASE CODE
J
K
M
B
0.093 (2.4)
0.125 (3.2)
0.125 (3.2)
STYLE A
R
0.301 (7.6)
0.363 (9.2)
0.458 (11.6)
C
140°
120°
120°
STYLE B
R
N/A
0.391 (9.9)
0.458 (11.6)
Note
(1)
Style A and B not available in 0.87" (22.0 mm) diameter units
DIMENSIONS AND AVAILABLE FORMS
Style A
Style B
Style D
www.vishay.com
228
For technical questions, contact: aluminumcaps4@vishay.com
Document Number: 42064
Revision: 29-Aug-08
82DA
Aluminum Capacitors
+ 85 °C, Snap-In, General Purpose

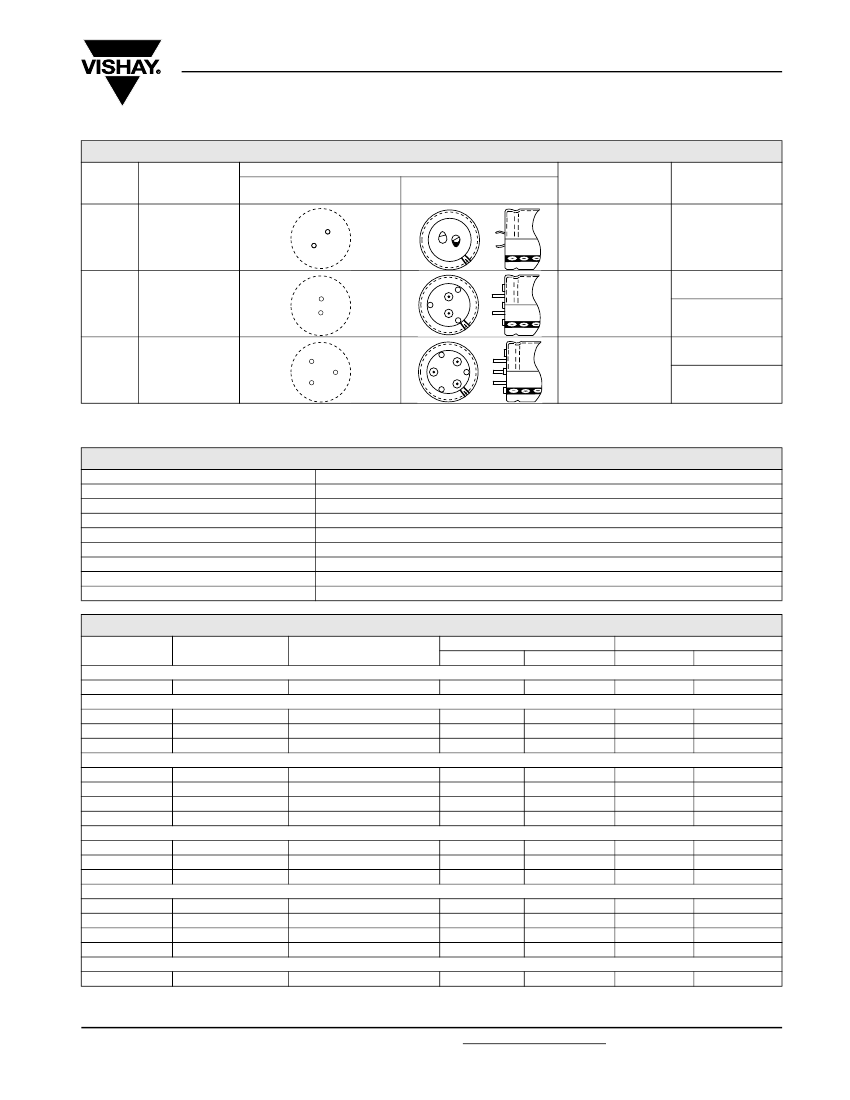

TERMINAL CONFIGURATION
(numbers in brackets indicate millimeters)
LEAD
CODE
DESCRIPTION
OUTLINE DRAWINGS
MOUNTING
TERMINAL
CONFIGURATION
CONFIGURATION
AVAILABLE
DIAMETERS
0.87 (22.0) - H
0.98 (25.0) - J
1.18 (30.0) - K
1.38 (35.0) - M
0.98 (25.0) - J
1.18 (30.0) - K
1.38 (35.0) - M
AVAILABLE
VOLTAGES AND
TYPES
All voltages
81D, 81DA
82D, 82DA
All voltages
82D, 82DA
V
≤
250 V
DC
81D, 81DA
All voltages
82D, 82DA
V
≤
250 V
DC
81D, 81DA
Vishay Sprague
D
Standard
2 pin snap-in
A
2 straight wire lead
molded cover with
standoffs
+
B
3 straight wire lead
molded cover with
standoffs
+
1.18 (30.0) - K
1.38 (35.0) - M
ORDERING EXAMPLE
Electrolytic capacitor 82DA series:
82DA 222 M 050 HA 2 D E3
EXPLANATION
Product type
Capacitance value (2200 µF)
Tolerance (M = ± 20 %)
Voltage rating at 85 °C (50 V)
Can size (see dimensions table)
PVC insulating sleeve
Terminal style (D = 2 pin snap-in)
RoHS compliant
DESCRIPTION
CODE
82DA
222
M
050
HA
2
D
E3
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(µF)
15 000.0
6800.0
6800.0
10 000.0
2700.0
4700.0
6800.0
10 000.0
2200.0
3300.0
6800.0
330.0
820.0
1000.0
1200.0
220.0
PART NUMBER
82DA153M016KA2D
82DA682M025HB2D
82DA682M025JA2D
82DA103M025KA2D
82DA272M035HA2D
82DA472M035JA2D
82DA682M035KA2D
82DA103M035KB2D
82DA222M050HA2D
82DA332M050HB2D
82DA682M050JD2D
82DA331M200JB2D
82DA821M200KD2D
82DA102M200KE2D
82DA122M200MD2D
82DA221M250HD2D
MAX. ESR at 25 °C (mΩ)
NOMINAL CASE SIZE
DxL
20 to 40 kH
Z
120 H
Z
16 WVDC at + 85 °C, SURGE = 20 V
1.181 x 0.984 (30.0 x 25.0)
67.7
54.0
25 WVDC at + 85 °C, SURGE = 30 V
0.866 x 1.181 (22.0 x 30.0)
73.5
56.1
0.984 x 0.984 (25.0 x 25.0)
83.8
60.0
1.181 x 0.984 (30.0 x 25.0)
71.0
54.0
35 WVDC at + 85 °C, SURGE = 40 V
0.866 x 0.984 (22.0 x 25.0)
120.0
87.4
0.984 x 0.984 (25.0 x 25.0)
89.0
62.0
1.181 x 0.984 (30.0 x 25.0)
75.0
540.0
1.181 x 1.181 (30.0 x 30.0)
57.0
41.0
50 WVDC at + 85 °C, SURGE = 63 V
0.866 x 0.984 (22.0 x 25.0)
115.0
76.0
0.866 x 1.181 (22.0 x 30.0)
86.0
57.0
0.984 x 1.575 (25.0 x 40.0)
47.0
31.0
200 WVDC at + 85 °C, SURGE = 250 V
0.984 x 1.181 (25.0 x 30.0)
401.0
191.0
1.181 x 1.575 (30.0 x 40.0)
180.0
87.0
1.181 x 1.969 (30.0 x 50.0)
142.0
67.0
1.378 x 1.575 (35.0 x 40.0)
147.0
74.0
250 WVDC at + 85 °C, SURGE = 300 V
0.866 x 1.575 (22.0 x 40.0)
558.0
166.0
MAX. RIPPLE at + 85 °C (A)
120 H
Z
20 to 40 kH
Z
3.07
2.57
2.48
3.00
1.91
2.42
2.92
3.60
1.94
2.38
3.91
1.28
2.36
2.89
2.89
1.12
3.47
2.94
2.93
3.47
2.24
2.86
3.42
4.20
2.39
2.92
4.96
1.86
3.41
4.22
4.06
2.12
Note
• Other ratings and voltages available on special order
Document Number: 42064
Revision: 29-Aug-08
For technical questions, contact: aluminumcaps4@vishay.com
www.vishay.com
229
