VISHAY
Vishay Semiconductors
Tape and Reel Standards
Package
10´´ tape & reel
Quantity / Reel
SOD57
SOD64
DO204AP(G1)
G3
G4
5.000
2.500
4.500
1.600
2.000
Available Packaging
13´´ tape & reel
Quantity / Reel
Ammo Pack #1
Quantity / Box
5.000
2.500
3.000
1.000
2.000
Ammo Pack #2
Quantity / Box

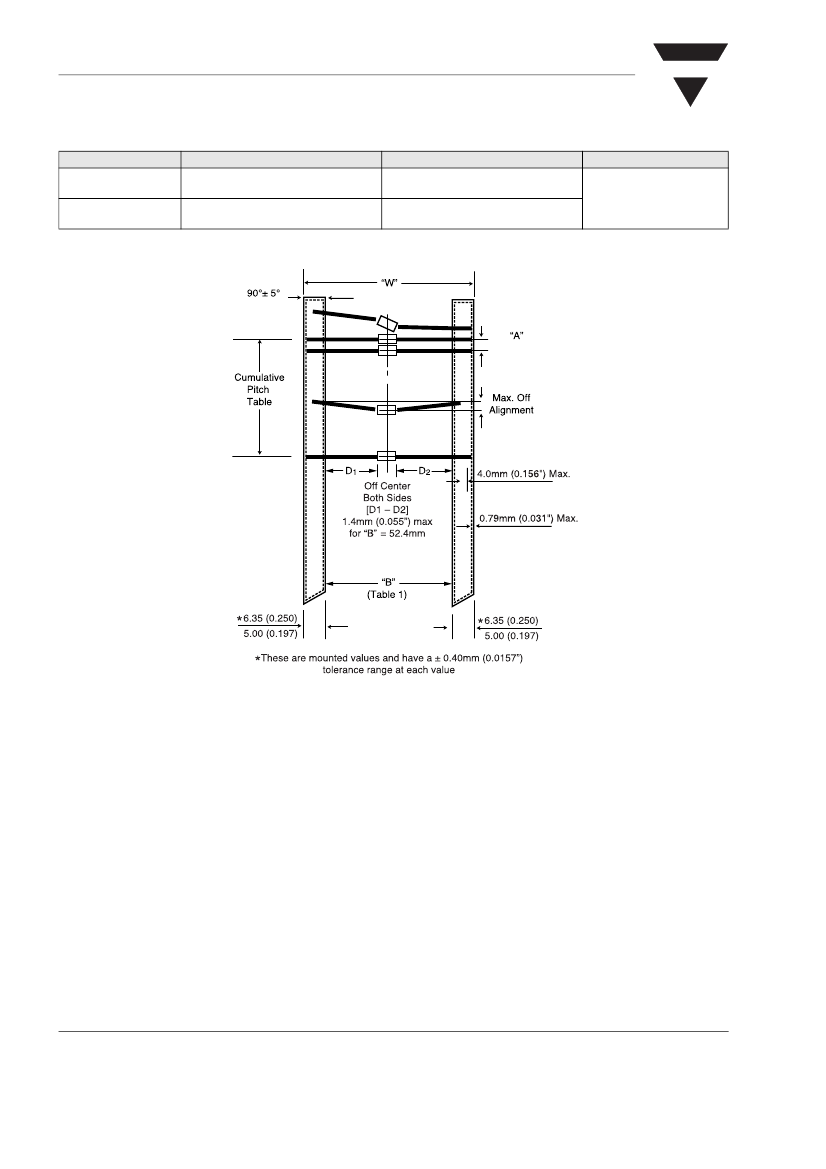

Taping Specifications SOD57 and SOD64 Package
Description
Component Pitch
Inside Tape Spacing
Lead to Lead Eccentricity
Lead Extension
Lead Bending
Cumulative Pitch
Exposed Adhesive
Tape Width
Tape Leader
Empty Spaces
Polarity Marking
Symbol
A
B
ID1-D2I
K
M
P
S
T
Beginning and end of reel or ammo pack.
Consecutive missing components not allowed
All polarized components shall be oriented in the same direction.
The cathode tape shall be colored, and anode tape shall be white or light beige.
Specification (mm)
5.0
±
0.5
52 + 2 mm - 1 mm
1.4 max
0
1.2 max
2.0 per 10 pitch
0.8 max
6.0
±
0.4
300.0 min
< 0.1 %
0.8 (0.031) max.
|D
1
– D
2
| = 1.4 (0.055) max.
D
1
D
2
K
A
P
S
0.8
(0.031)
max.
E
B
6.0 ± 0.4
(0.236 ± 0.0157)
W
Dimensions A, M, K, P, S and T apply to both sides
15802
T
Figure 1.
Document Number 84068
Rev. 7, 07-Jan-03
www.vishay.com
1
VISHAY
Vishay Semiconductors
Taping Specification DO204AP(G1), G3 and G4 Packages
Package
DO204AP(G1)
G3, G4
Component Spacing ‘‘A‘‘ (Lead to Lead)
5.0 mm + 0.5 mm
(0.197‘‘
±
0.020‘‘)
10 mm + 0.5 mm
(0.394‘‘
±
0.020‘‘)
Inside Tape Spacing‘‘B“
52.4 mm + 1.5 mm/ - 0.4 mm
(2.062‘‘ + 0.059‘‘/ - 0.016‘‘)
52.4 mm + 1.5 mm/ - 0.4 mm
(2.062‘‘ + 0.059‘‘/ - 0.016‘‘)
Cumulative Pitch Tolerance
Not to Exceed
1.5 mm (0.059‘‘) over 6
Consecutive
Components
(< 68.2 mm)
< 1.2 mm
16959
Figure 2.
www.vishay.com
2
Document Number 84068
Rev. 7, 07-Jan-03
VISHAY
Vishay Semiconductors

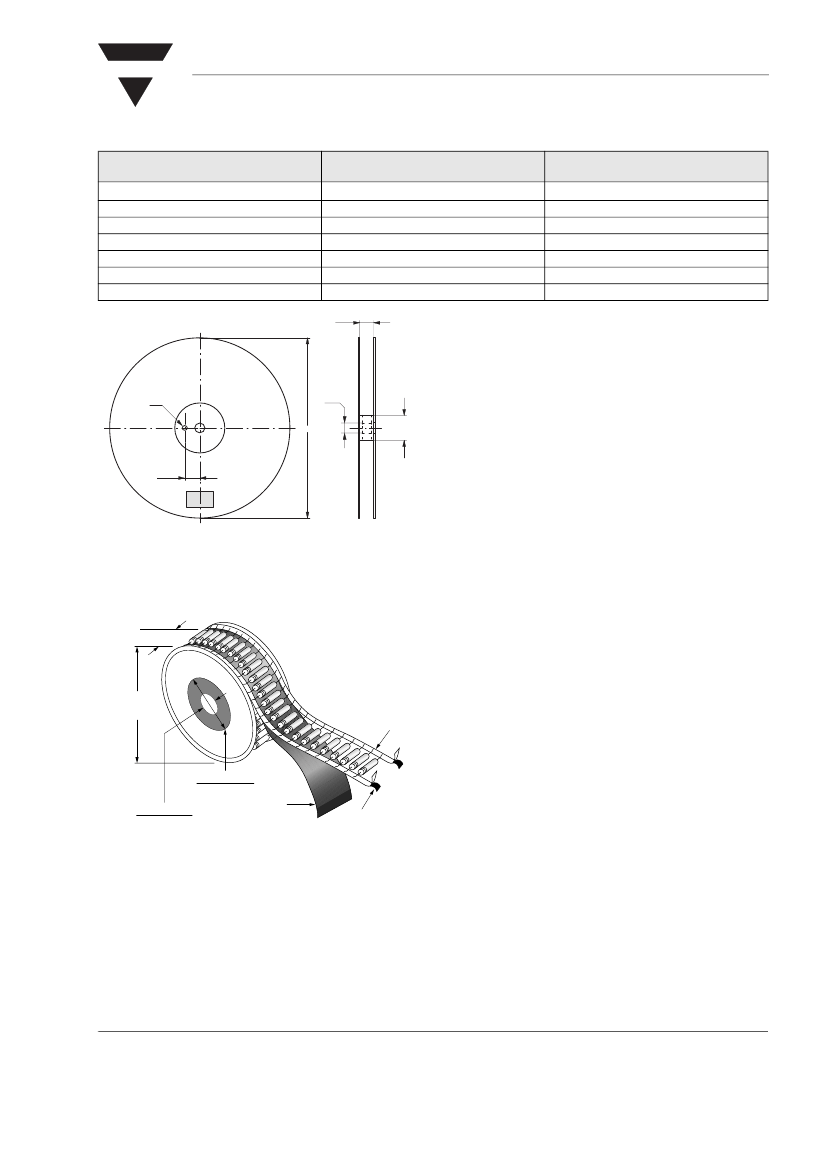

10‘‘ Reel Specification (SOD57 and SOD64 Packages)
Description
Arbor Hole Diameter
Reel Diameter
Drive Hole Diameter
Reel Width
Drive / Arbor Hole Spacing
Core Material
Reel Material
W
1
Symbol
D
0
D2
D3
W1
W2
Reel Size
10‘‘
30
±
1 mm
250
±
2 mm
10
±
1 mm
68
±
1 mm
27.5
±
1 mm
Plastic
Plastic
D
3
D
0
D
2
D
1
W
2
15 801
Figure 3.
13‘‘ Reel Specification (DO204AP(G1), G3 and G4 Packages)
C
13.0 Inch/
330 mm
Anode Lead
White Tape
91.9 (3.62) Dia.
50.8 (2.00) Dia.
38.1 (1.50) Dia.
14.3 (0.56) Dia.
Kraft
Paper
Cathode Lead
Colored Tape
16960
Figure 4.
Document Number 84068
Rev. 7, 07-Jan-03
www.vishay.com
3
VISHAY
Vishay Semiconductors
Ammopack #1 Specification (SOD57 and SOD64 Packages) (Figure 5. )
Description
Length
Width
Height
Material: corrugated board (neutral)
Symbol
Inches
A
B
C
10.25 ± 0.2
2.75
±
0.2
5.75
±
0.65
Specification
Millimeters
260
±
5.0
70
±
5.0
146
±
16.0
15800
A
C
Inspection hole
(both sides)
B
Figure 5.
Ammopack #2 Specification (DO204AP(G1), G3 and G4 Packages) ( Figure 6. )
Dimension ‘‘A‘‘
10.0‘‘
(255 mm)
Dimension ‘‘B‘‘
3.15‘‘
(80 mm)
Dimension ‘‘C‘‘
4.53‘‘
(115 mm)
C
A
B
16956
Figure 6.
www.vishay.com
4
Document Number 84068
Rev. 7, 07-Jan-03
VISHAY
Vishay Semiconductors

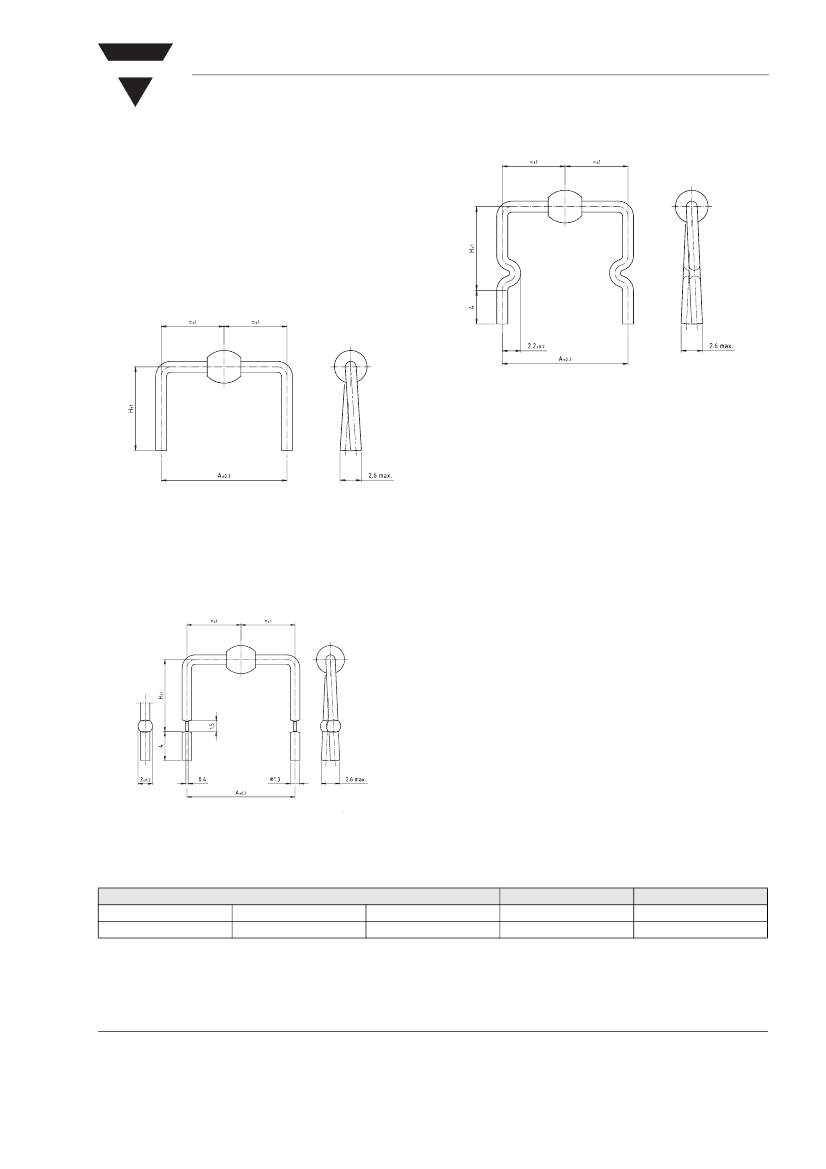

Preformed Leads (SOD64 Packages)
Some types of automatic insertion machines have
problems in bending the relatively thick leads of
SOD64 Sinterglass Diodes. To overcome this, our
diodes can be ordered with preformed leads as fol-
lows. Preformed Sinterglass Diodes are shipped in
bulk.
SUFFIX RA
SUFFIX RAS
Figure 9.
Figure 7.
SUFFIX RAP
Figure 8.
Common bending version:
Suffix
RA 15/10
RA 17.5/ 10
RAS 15/10
RAS 17.5/ 10
RAP 15/10
RAP 17.5/ 10
A (mm)
15
17.5
H (mm)
10
10
Other bending versions are available on request.
Document Number 84068
Rev. 7, 07-Jan-03
www.vishay.com
5
