FEATURES AND SPECIFICATIONS
Nano-C
PCB Mount Receptacles
84589
Maximize PCB Real Estate With Molex’s
Nano-C PCB Mount Receptacles
Nano-C PCB mount receptacles are ideal for use in
applications such as medical and consumer electronics
where space is a premium and low weight is desired.
The receptacles ensure an easy interface with existing
Nano-C cordsets.
Designed to meet IP 67 and NEMA 6P ratings, Nano-C
receptacles protect against the ingress of water and
solid contaminants. These receptacles utilize M8
threads, providing maximum use of PCB space, and all
are available in straight and right angle
configurations.
Features and Benefits
I
IP 67 and NEMA 6P ratings ensure water and dust
tight for functional integrity
I
High-temperature thermoplastic housing withstands
lead-free processing
I
Compatible with both coupling ring and snap-lock
versions allows flexibility for end-user
I
M8 thread size provides small package size
maximizing use of PCB real estate
I
Metal latches plug into PCB reducing strain on PC
tails and solder joints

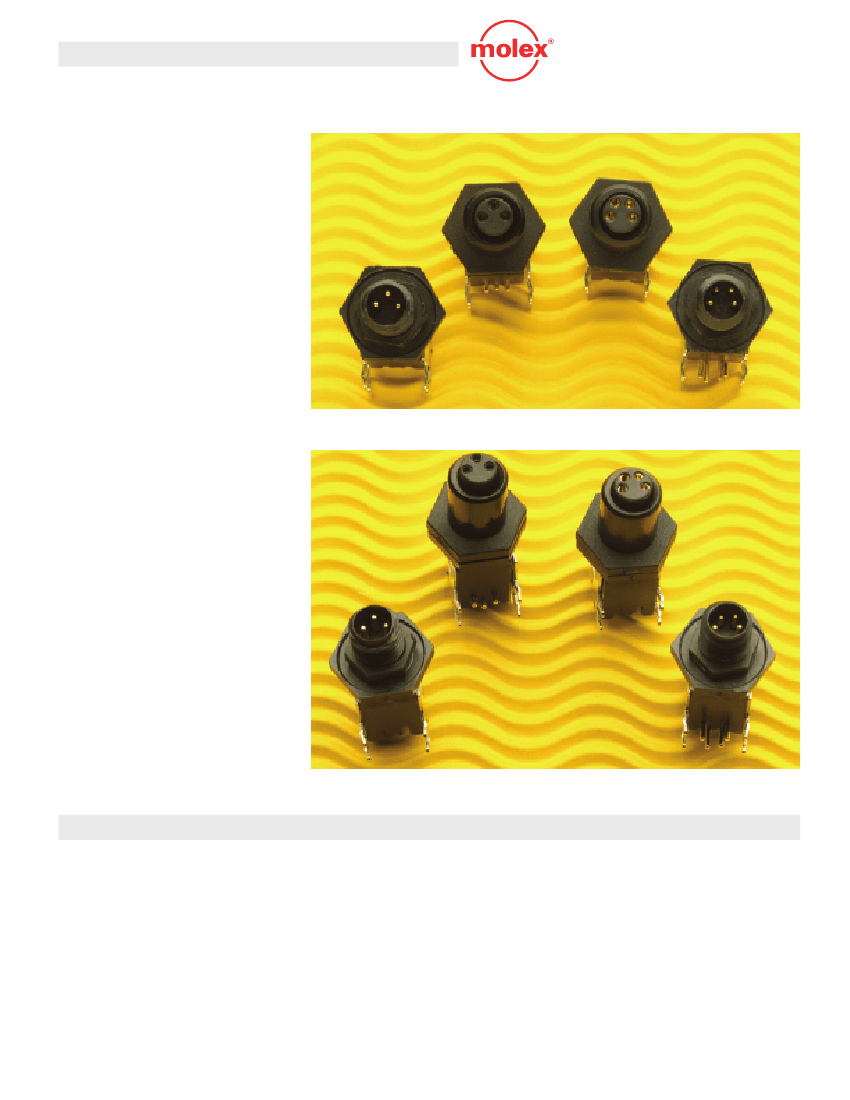

PCB mount Nano-C receptacles
(left-to-right: 3-circuit male, 3-circuit female, 4-circuit female, 4-circuit male)
Metal latch plugs into PCB for increased board retention
SPECIFICATIONS
Reference Information
Packaging: Bag
Mates With: Nano-C cordsets, Series 84592
Designed In: Inches
Electrical
Voltage: 125V AC
Current: 4.0A (3-circuit)
2.0A (4-circuit)
Dielectric Withstanding Voltage: 7500V DC min.
Insulation Resistance: 500 Megohms min.
Mechanical
Cable Retention: 9.07 kg. (20 lbs.)
Lock-Nut Tightening Torque: 0.79N-m (7 in-lbs.)
Mating Cable Torque: 0.56 N-M (5 in-lbs.)
Physical
Receptacle (male and female): Nylon 6/6 (black)
Lock Nut (male and female): Nylon 6/6 (black)
Contact (pin and socket): Brass Alloy
(70 Copper/30 Zinc)
Contact Plating: Gold
Support Bracket: Brass
Support Bracket Plating: Tin
O-Ring: Rubber
Operating Temperature: -40 to +80°C
(-40 to +176°F)
APPLICATIONS
Nano-C
PCB Mount Receptacles
I
Restaurant Equipment
I
Medical Equipment
- Glucose meters
I
Consumer Electronics
- GPS equipment
- Hand-held electronics
84589
I
Factory Equipment
- Pressure and temperature monitors
ORDERING INFORMATION
Circuits
3
4
Order No.
Male
84589-0003
84589-0007
84589-0004
84589-0008
Female
84589-0001
84589-0005
84589-0002
84589-0006
Description
Straight
Right Angle
Straight
Right Angle
Americas Headquarters
Lisle, Illinois 60532 U.S.A.
1-800-78MOLEX
amerinfo@molex.com
Far East North Headquarters
Yamato, Kanagawa, Japan
81-462-65-2324
feninfo@molex.com
Far East South Headquarters
Jurong, Singapore
65-6-268-6868
fesinfo@molex.com
European Headquarters
Munich, Germany
49-89-413092-0
eurinfo@molex.com
Corporate Headquarters
2222 Wellington Ct.
Lisle, IL 60532 U.S.A.
630-969-4550
Fax:630-969-1352
Visit our Web site at http://www.molex.com/ind/nano-c.html
Order No. USA-282
Printed in USA/2.5K/JI/JI/2005.01
©2005, Molex
