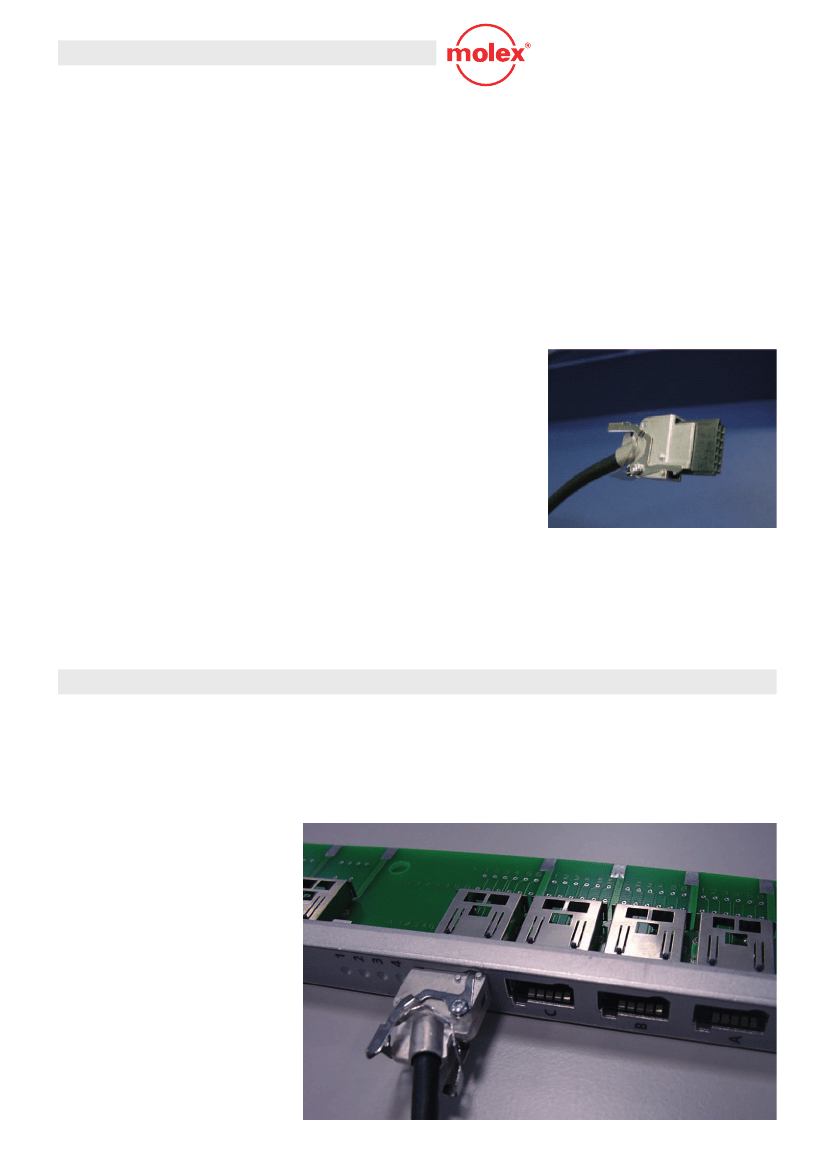

Low Profile EMILY
™
Front I/O Connector System combines SMT Pick & Place Board Connectors
with shallow positive lock Cable Connectors
EMILY
™
connectors were designed in cooperation with a major telecom equipment manufacturer. The
requirement was to combine Signal (6
i
622 Mbps or 4
i
1.2 Mbps), Hybrid (4 controls plus 2
i
5 A), and
Power (2
i
25 A) requirements in one connector system which allows fully automated production of daughter
cards (SMT Pick & Place) in a high density shelf system with 15 mm board-to-board spacing. Board connectors
come in tape & reel packaging for fully automated production. Cable connectors use fully EMI proof die casted
shells with a positive latching system for easy installation.
2.00 mm (.079") Pitch
EMILY
™
Low Profile Cable Connector
Front I/O – EMI proof
85372
EMILY
™
Signal
Cable Assemblies
Features and Benefits
■
Low profile, for use with 15 mm front-panel
■
2.00 mm
i
2.00 mm grid spacing
■
Complete connector family including Signal,
Hybrid and Power
■
Full EMI shielding by rugged diecast housing
■
Polarized mating face
■
Cable outlet up- or down-wards
■
Latching device for secure mating
■
Unlock without tool
■

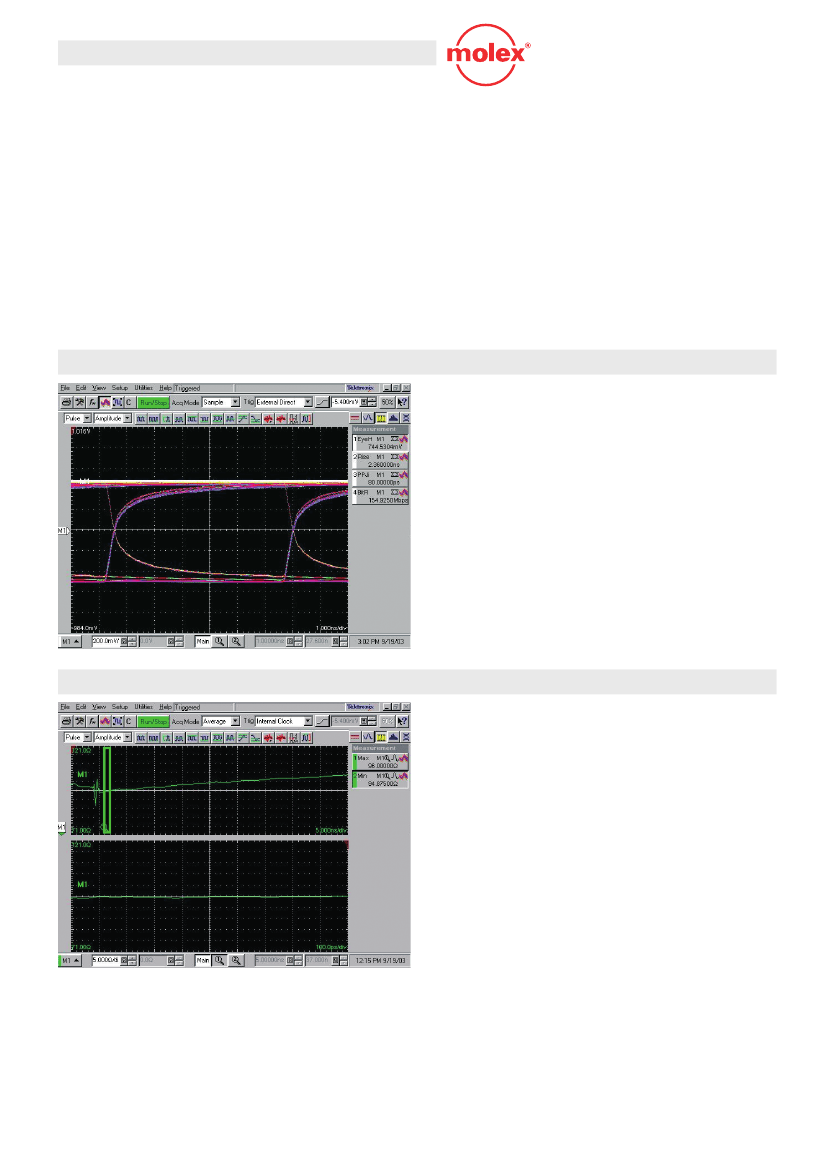

Data rates up to 622 Mbps
■
Cable pull is secured by locking system to front
panel; no stress on solder joints
■
Accommodates STP (Shielded Twisted-Pair) Cable,
AWG 30
■
Standard cable impedances ranging from 100
Ω
to 120
Ω
APPLICATIONS
■
Base Stations
■
Switching equipment
■
Box-to-Box high speed links
■
DC Power supplies
■
Fan units
■
Industrial Controls
■
Sensors & Motion Devices
■
Medial Equipment
SPECIFICATIONS
2.00 mm (.079") Pitch
EMILY
™
Low Profile Cable Connector
Front I/O – EMI proof
Mechanical
Wire Pull-Out Force: 100 N min
Mating Force: 0.6 N max/contact
Unmating Force locked: >120 N
Unmating Force: 0.1 N min/contact
Durability: 200 cycles
Physical
Housing: glass-filled Liquid Crystal
Polymer, UL 94V-0
Contact: CuSn Alloy
Plating: Selective Gold plating 0.76 µm min.
Operating Temperature: –20 to +85 °C
max. Operating Temperature: –20 °C to +70 °C
Reference Information
Product Specification: PS 85372-001
Packaging: bag/box
Mates with: 85349
Designed in: Millimeters
Electrical
Voltage: 30 Vrms
Current: 0.5 A/contact
Contact Resistance: 35 milliohms max/contact
Dielectric Withstanding Voltage: 500 Vrms
Insulation Resistance: 5000 Megaohms min.
85372
EMILY
™
Signal
Cable Assemblies
ORDERING INFORMATION AND DIMENSIONS
Circuits
Loaded Contacts
No. of Signals
Order No.
Decription
12
12
6x622/4x1.2
85372-xxxx
EMILY Signal Cable Assemblies

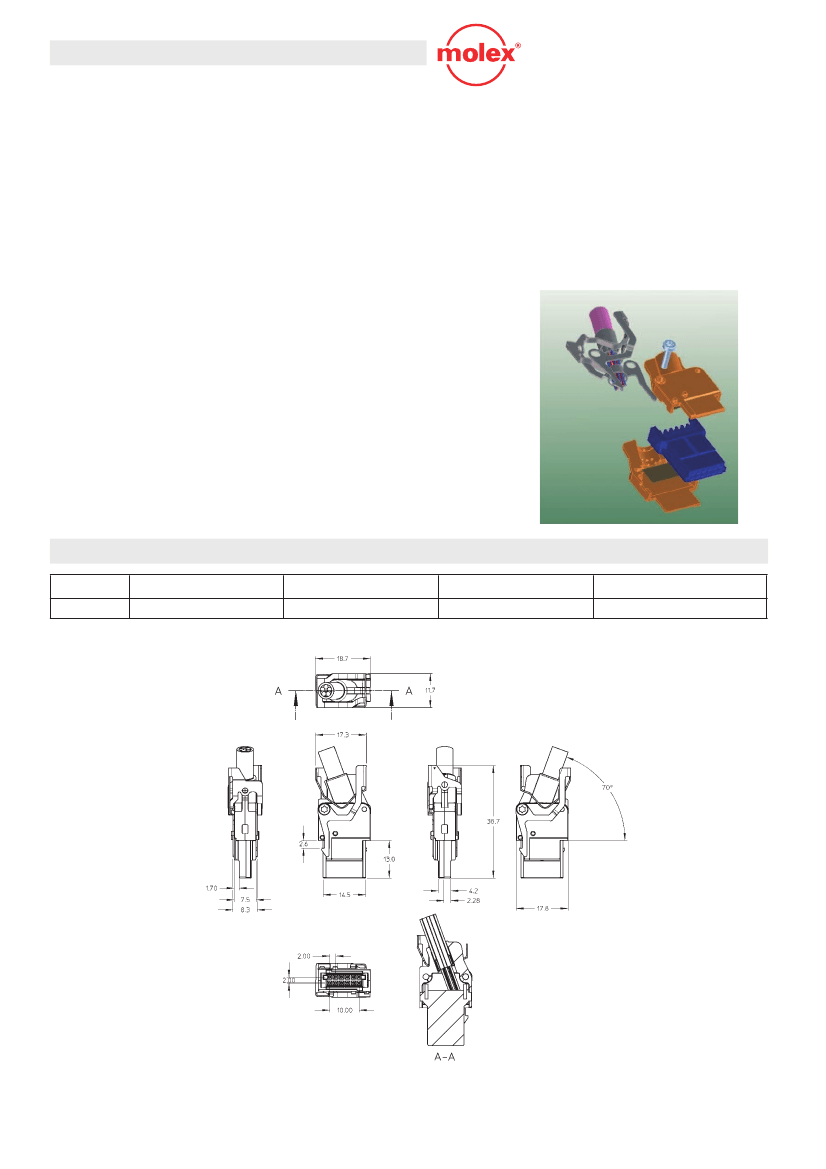

Dimensions Signal Connector 85372-xxxx
