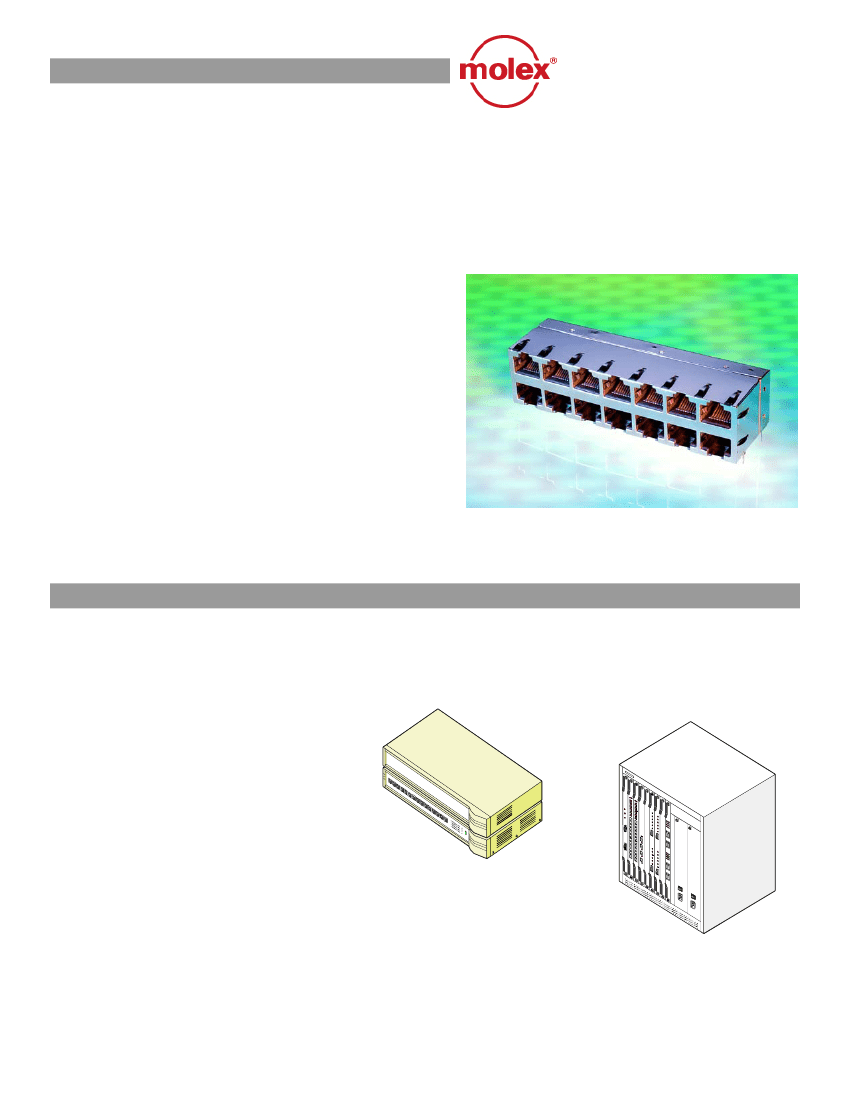

Molex‘s new HyperJack 1000 is designed for Ethernet 1000 BaseT applications such
as switches, hubs and line cards. Due to its unique modular housing design the
product can be offered in various port configurations, from 1/ 1 to 12/12. The product
is compliant with IEEE802.3, FFC 68 and IEC 603-7. LED integration is prepared and
will be released soon.
HyperJack
TM
1000
(Gigabit) stacked
85572
Features and Benefits
•
•
The integrated magnetics provide a high signal integrity
Standard offer is 8 core solution with various configurations depending
on the PHY.
12 core solution is an option.
The unique modular housing design allows to offer port configurations
from 1/1,2/2, 3/3...to 12/12.
Excellent EMI/RFI performance due to high shield effectivness and
special magnetic configuration
The IEEE 802.3 compliance assures Ethernet 10/100 backwards
compatibility
Industry standard footprint
•
•
•
•
Markets and Applications
•
•
•
•
•
Telecom and Networking
Adapter cards
Enterprise switch
Hub
Line cards
Reference Information
Packaging: Trays in boxes
UL File No.: pending
CSA File No.: pending
Mates With: FCC 68.5 plugs, Molex
85568, 9043, 90075 series
Electrical
Current: 350 miliamps max
Contact Resistance: 20 miliohms
Dielectric Withstanding Voltage: 2250
Volt DC, 60 sec.
Insertion loss: -1.20 dB
Return loss: 18 dB
Crosstalk: -40 dB
Common Mode Rejection: -30 dB
Physical
Housing: Thermoplast UL 94-V0
Contact: Gold over Nickel
Underplating: Ni
Shield: Brass Ni plated
Durability: 750 cycles
Environmental
Operating Temperature: 0°C to +70°C

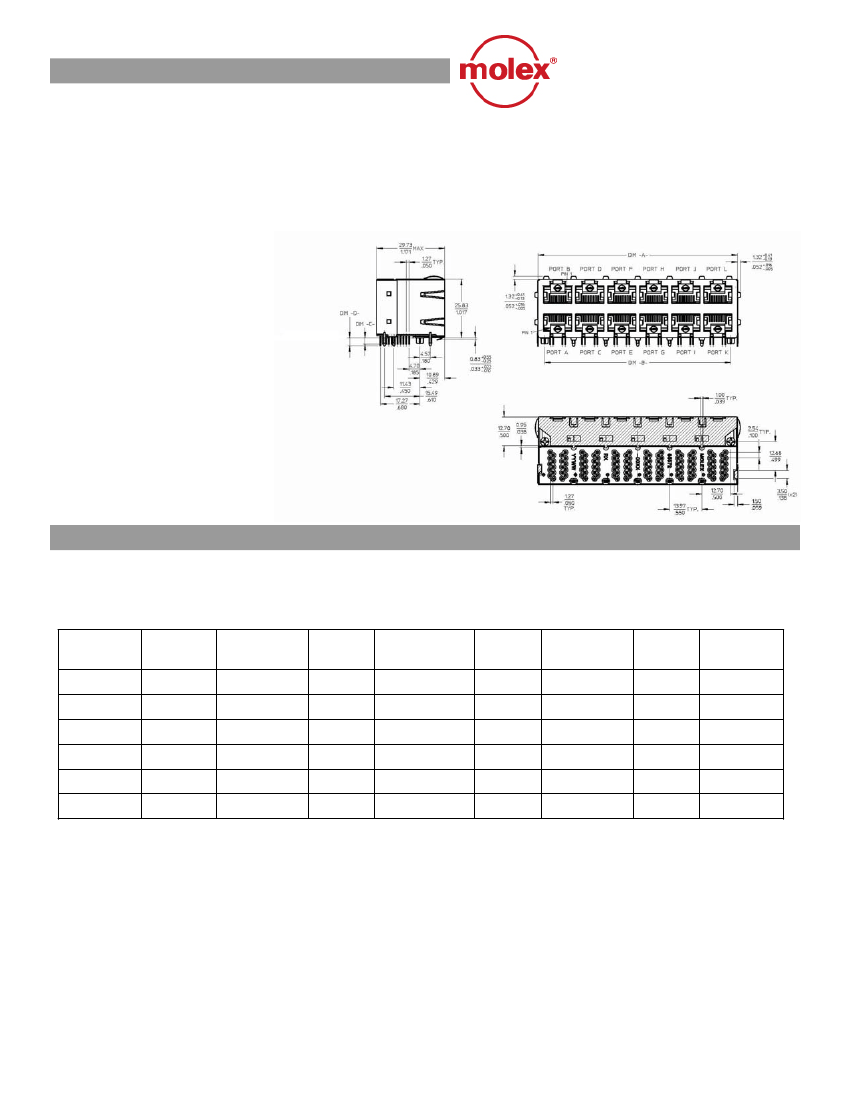

HyperJack
TM
1000
(Gigabit) stacked
85572
Part Number
85572-0114
85572-0115
85572-0118
85572-0119
85572-0122
85572-0123
Number of
Ports
1/1
1/1
5/5
5/5
9/9
9/9
Part Number
85572-0102
85572-0103
85572-0106
85572-0107
85572-0110
85572-0111
Number
of ports
2/2
2/2
6/6
6/6
10/10
10/10
Part Number
85572-0116
85572-0117
85572-0120
85572-0121
85572-0124
85572-0125
Number
of ports
3/3
3/3
7/7
7/7
11/11
11/11
Part Number
85572-0104
85572-0105
85572-0108
85572-0109
85572-0112
85572-0113
Number
of ports
4/4
4/4
8/8
8/8
12/12
12/12
Solder tail
length
4.00 mm
2.70 mm
4.00 mm
2.70 mm
4.00 mm
2.70 mm
