85576-0020: DescriptionHyperJackTM 1000 (Gigabit) stacked In Line Power; File Size217KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

85576-0020 Overview

HyperJackTM 1000 (Gigabit) stacked In Line Power

Preview

Download Datasheet

View All

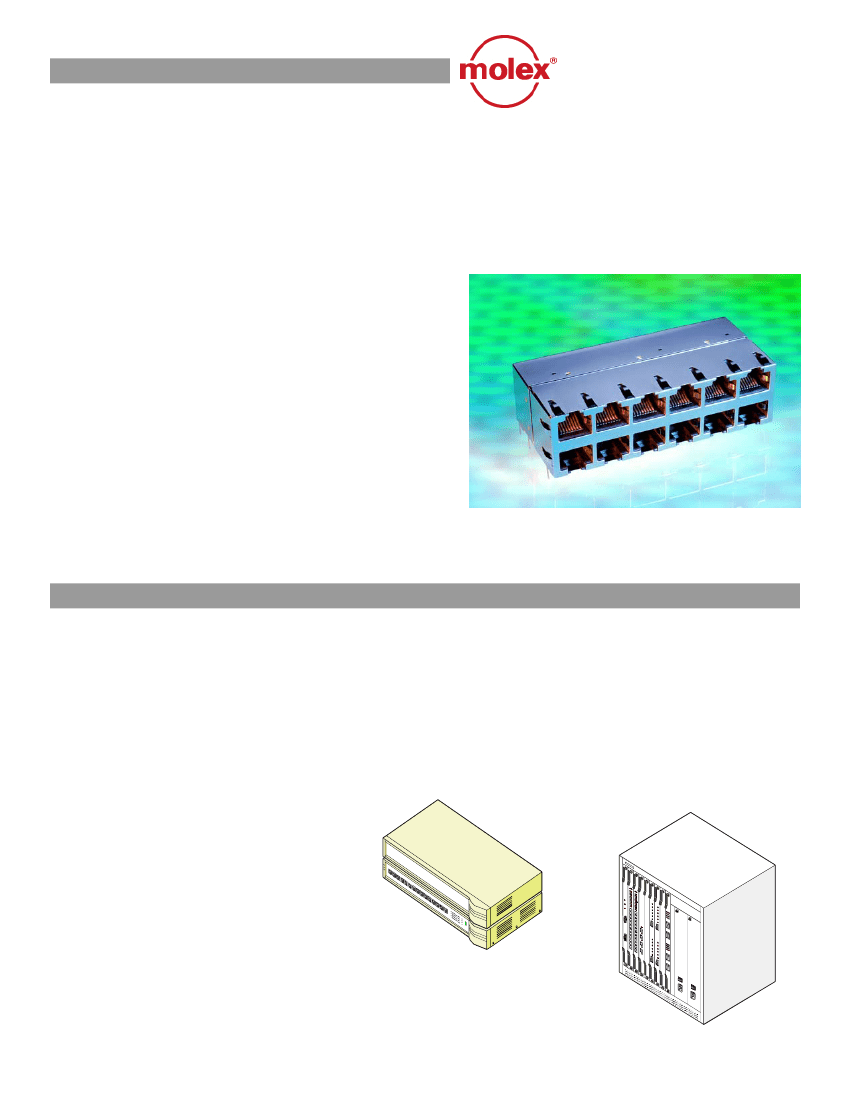

Molex‘s new HyperJack 1000 In Line Power is designed for Ethernet 1000 BaseT

applications such as switches, hubs and line cards which support Power over

Ethernet (PoE). The product is compliant with IEEE 802.3 af and allows a powered

device to draw up to 12.95 W. Due to its unique modular housing design the product

can be offered in various port configurations, from 1/ 1 to 12/12. The product is

compliant with FFC 68 and IEC 603-7. LED integration is prepared and will be

released soon.

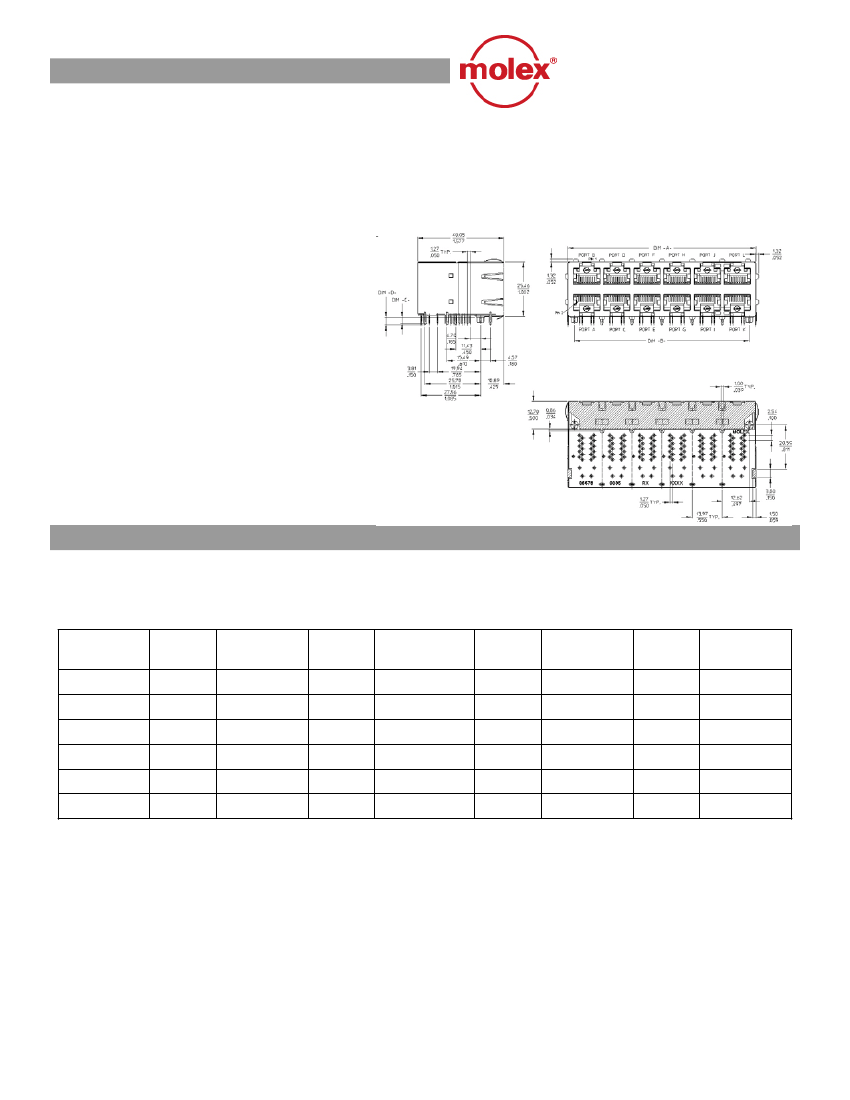

HyperJack

1000

(Gigabit) stacked

In Line Power

85576

Features and Benefits

•

IEEE 802.3 af compliance enables to run Power over Ethernet over the

two extra pins.

The integrated magnetics provide a high signal integrity

Standard offer is 8 core solution with various configurations depending

on the PHY. 12 core solution is an option.

The unique modular housing design allows to offer port configurations

from 1/1,2/2, 3/3... 12/12.

Excellent EMV performance due to high shield effectivness and special

magnetic configuration

Industry standard footprint

Markets and Applications

•

Telecom and Networking equipment with PoE function

Ethernet adapter cards

Enterprise switch

Hub

Line cards
