IntroductIon
HyperJack™ poe+
Integrated connector
Module
85719
12-port 2x6 Ganged
Modular Jacks with
leds
Molex leads the market with the first PoE+ Integrated Connector Module
Power over Ethernet (PoE) is a technology that
defines the transmission of both data and power to
networked devices over a standard ethernet cable,
eliminating the need for separate power supplies.
PoE+ is the new IEEE 802.3at Power over Ethernet
standard. It provides the opportunity for switch
makers to increase port-power output to 30 watts and
will supersede the existing 15 watt 802.3af standard.
The specification of this new 802.3at standard is
backward compatible, supporting legacy 802.3af
devices.

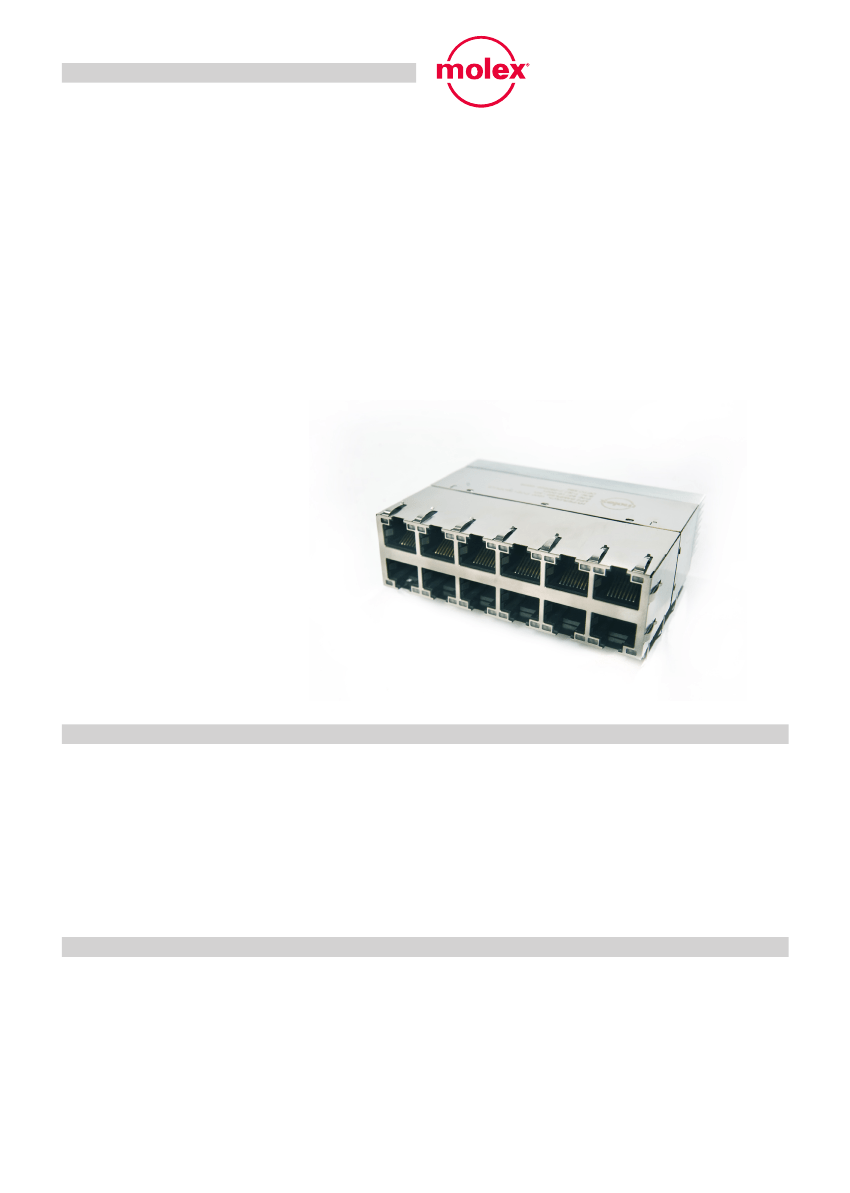

Molex has developed the HyperJack PoE+ Integrated
Connector Module (ICM) in a 2x6 configuration.
Based on the RJ-45 jack, the ICM has integrated
PoE+ controller silicon to manage and deliver 30
watt Power over Ethernet. This is coupled with Gigabit
PoE+ magnetics, thermal management and a high
level of protection against electro static discharge
(ESD), electrical fast transient (EFT) and electro
magnetic interference (EMI). PoE+ according to the
IEEE standard requires Cat5 cable or higher.
The Molex PoE+ ICM complies to PoTec V2.0 with a
standardized footprint and register set, allowing for
simple drop-in upgrades and product expansion.
The Integrated Module provides the customer with
flexible port configurations and a fast migration
path from non-PoE to fully integrated PoE+ designs.
Simply provide a 51-56V and 3.3V power supply to
automatically manage and control power to connected
Ethernet devices such as voice over internet protocol
(VOIP) phones, wireless access points and security
cameras. Extra management can be achieved through
I²C communication.
Features and BeneFIts
Fully integrated design
Gigabit Ethernet magnetics
Low power consumption 30W PoE+ controller
silicon
Protection circuitry
2 Bi-color light emitting diodes (LED’s) per port
Capability to indicate up to 8 operating states
Thermally optimized design with excellent heat
dissipation
IEEE802.3at (draft) and PoETec V2.0 (draft)
compliant
Fast time to market by using a drop-in solution
to add PoE+ technology to a customers switch
High-speed data transfer to 1000BASE-T
Increased range of PoE+ powered devices
Sophisticated protection against various
external disturbances: ESD, EFT, EMI
Provides 0 to 70°C operating temperature
rating
PoE+ technology in an industry standard
footprint
Auto, semi-auto and manual mode capability
Markets and applIcatIons
Networking equipment with PoE function to
support IP phones, security cameras, wireless
access points, sensors and actuators, card
readers and vision systems
- Gigabit Ethernet Switches
- Routers
- Hubs
- Midspans
I ndustrial Ethernet Applications
- Switches and Routers
specIFIcatIons
HyperJack™ poe+
Integrated connector
Module
PoE Output Power
Power: 30W per port supplied over RJ-45 contacts 1
and 2 (-) and 3 and 6 (+)
All PoE+ parameters according to IEEE802.3at
LEDs
Connection: Bi-polar
Colors: Green and reddish orange
Forward voltage: 2.4V max at 20mA
Reference Information
Packaging: PK-85719-001
cTUVus: CU72090061.01
Mates with: Plugs according to IEC 60603-7
(series 95043, 44915, 85568)
Designed-In: Millimeters
Electrical
Hipot isolation: 2250.0V DC
OCL: 350µH at 24.0mA min.
Insertion loss: -0.8dB at 100 MHz (typical)
Return loss: -13.5dB at 100 MHz (typical)
NEXT: - 33dB at 100MHz (typical)
CMR: -40dB at 100 MHz (typical)
Input voltage: 51.0 to 56.0V
Mechanical
Connector insertion and removal force:
20N (4.5 lbf)
Locking force: 50N (11 lbf) min.
Durability: 750 cycles
Physical
Housing: Thermoplastic UL94V-0, black
Contact: Phosphor bronze
Plating
Contact Area: Gold (Au)
Solder Tail Area: Tin (Sn)
Underplating: Nickel (Ni)
PCB Thickness: 3.56 mm (.140")
Ambient Operating Temperature: 0 to +70°C
85719
12-port 2x6 Ganged
Modular Jacks with
leds
orderInG InForMatIon
Order No.
85719-0001
Protocol
PoE+
Ports
12
Power per Port
30 Watt
Plant No. for Samples
6201
