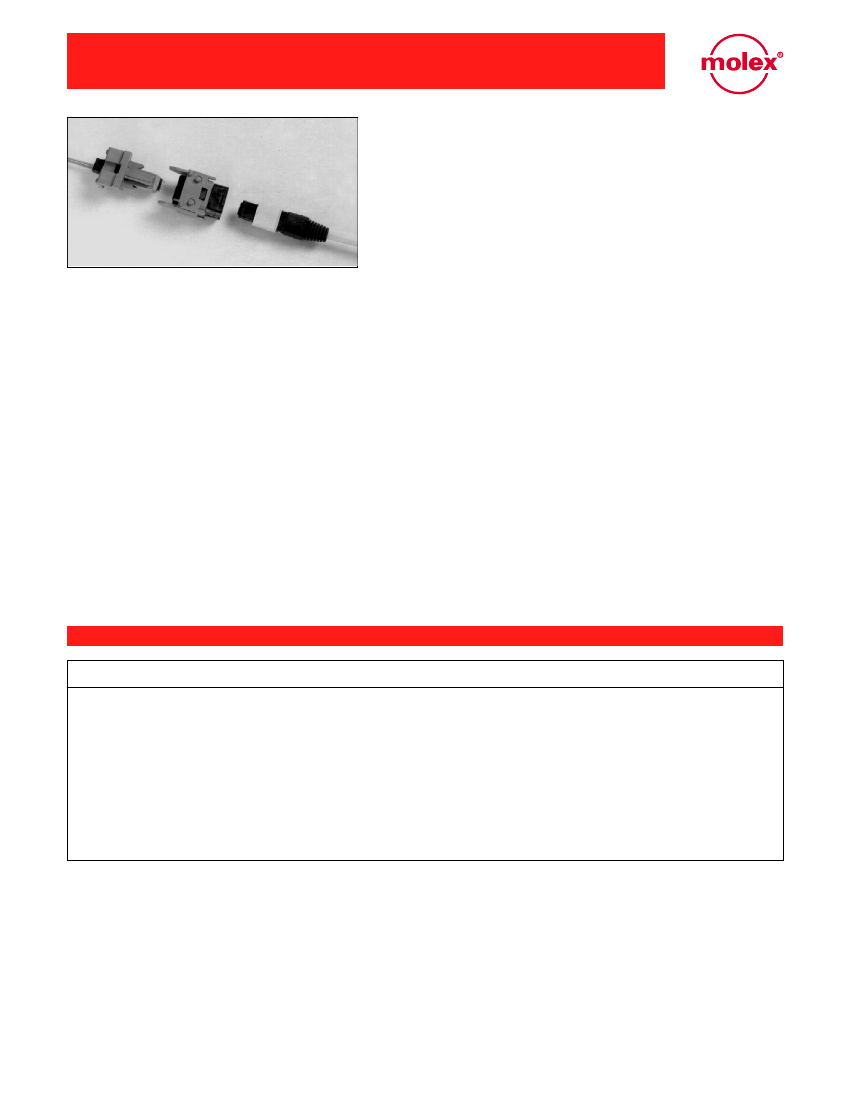

MTP Backplane Interconnect System (BMTP)
Features & Benefits
•
Patented dual shutter design for
•
•
dust and eye safety protection
Singlemode and multimode
compatible
Integrates with HDM electrical
connector system
Telcordia GR-1435-core compliant
X, Y, and Z axis
Compatible with optical flex circuit
technology
Utilizes standard MTP* connector
as user interface
Applications
•
High density blind mate
interconnect for data and
telecommunication systems
•
•
•
•
Generous mechanical float in the
•
•
Integrated optical and HDM
electrical systems
Total optical backplane solution
when used with the Molex
FlexPlane
TM
optical flex circuit
The Molex Backplane MTP (BMTP) interconnect system is designed to offer an industry standard user interface with the
versatility of a blind mating card edge connector. Based on the NTT MT ferrule and MTP push-pull ribbon fiber connector, the
BMTP interconnect is a high density solution for today's space constrained fiber optic systems.
The BMTP is Telcordia GR-1435-CORE compliant and is also designed to be compatible within the Molex High Density Metric
(HDM) electrical backplane interconnect system. The BMTP system utilizes units which contain 1 MT ferrule and 1 MTP
connector interface. Units can be ganged together within the HDM stiffener bar along with robust single or dual stainless steel
guide pins, offering single unit insertion for ease of manufacturing. BMTP units can also be used as stand alone press fits
and/or screw mounting to the card edge.
The BMTP can be configured for either multimode or singlemode ribbon fiber by simply using the appropriate MT ferrule and
MTP connector. The system also supports the MTP gold high performance MT ferrule technology which offers improved
singlemode performance. The BMTP interconnect can be incorporated into a total optical backplane solution when used in
combination with optical flex circuitry.
*MTP is a registered trademark of US Conec Ltd.
Performance and Specifications
Characteristics
Insertion Loss:
9/125µm SM fiber
62.5/125µm MM fiber
Return Loss:
Singlemode
Temperature Range
Durability
Units
Min.
Avg.
Max.
Comments
dB
dB
-
-
.35
.3
1.0
1.0
-
-
dB
ºC
dB
-
-40
-
-
-
-
< 60
+80
<0.2
Angle polish
42 cycles
200 mate/unmate cycles
PRELIMINARY
MOLEX FIBER OPTICS DIVISION
5224 Katrine Avenue, Downers Grove, IL 60515 / Tel: 800-A1-FIBER or (630) 512-8787 Web: www.molex.com/fiber
MTP Backplane Interconnect System (BMTP)

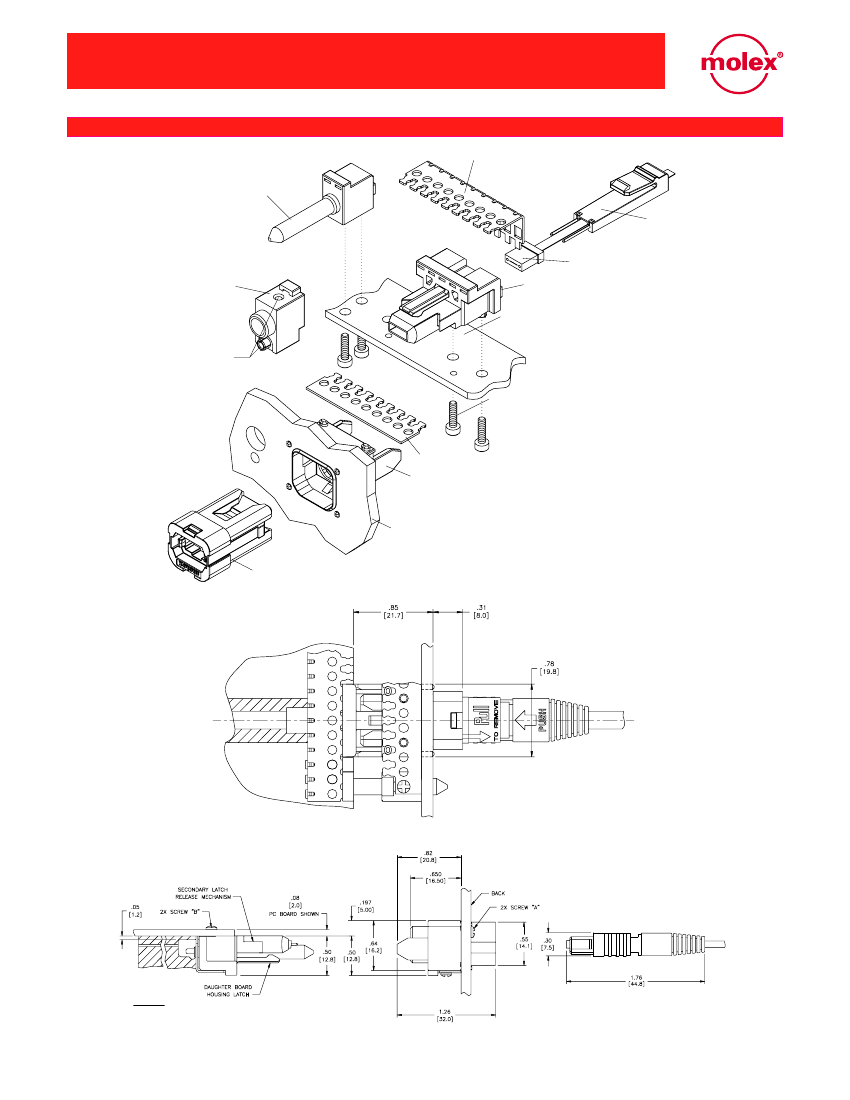

Mechanical Dimensions
HDM OPTIONAL STIFFINER/CARRIER BAR
BMTP System
OPTIONAL REVERSE
ALIGNMENT PIN
MT FERRULE PIN HOLDER
2-12 FIBER SM/MM, MT FERRULE
OPTIONAL ALIGNMENT
PIN RECEPTACLE
PRESS-FIT DAUGHTER BOARD HOUSING
DAUGHTER BOARD
MOUNTING HOLES
FOR SELF-TAPPING
2-32 SCREWS
OPTIONAL SELF-TAPPING 2-32 SCREWS
OPTIONAL STIFFINER/CARRIER BAR
PRESS-FIT MOTHER BOARD HOUSING
MOTHER BOARD
MTP AUTOMATIC SHUTTERED BACKPLANE ADAPTER ASSEMBLY
BMTP Mated Dimensions
BMTP Unmated Dimensions
All dimensions in INCHES
mm
MTP Backplane Interconnect System (BMTP)
Standard Part Numbers
Order Number
86086-5200
86186-5000
86186-0020
86087-5202
Description
BMTP daughter board card parts kit, single position
BMTP mother board parts kit, single position, internal shutter
BMTP automatic shuttered adapter
MT ferrule pin holder
86001-0117 Rev. 1
USA/30MFO/2000.09
©2000, Molex
Molex reserves the right to make any changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application.
