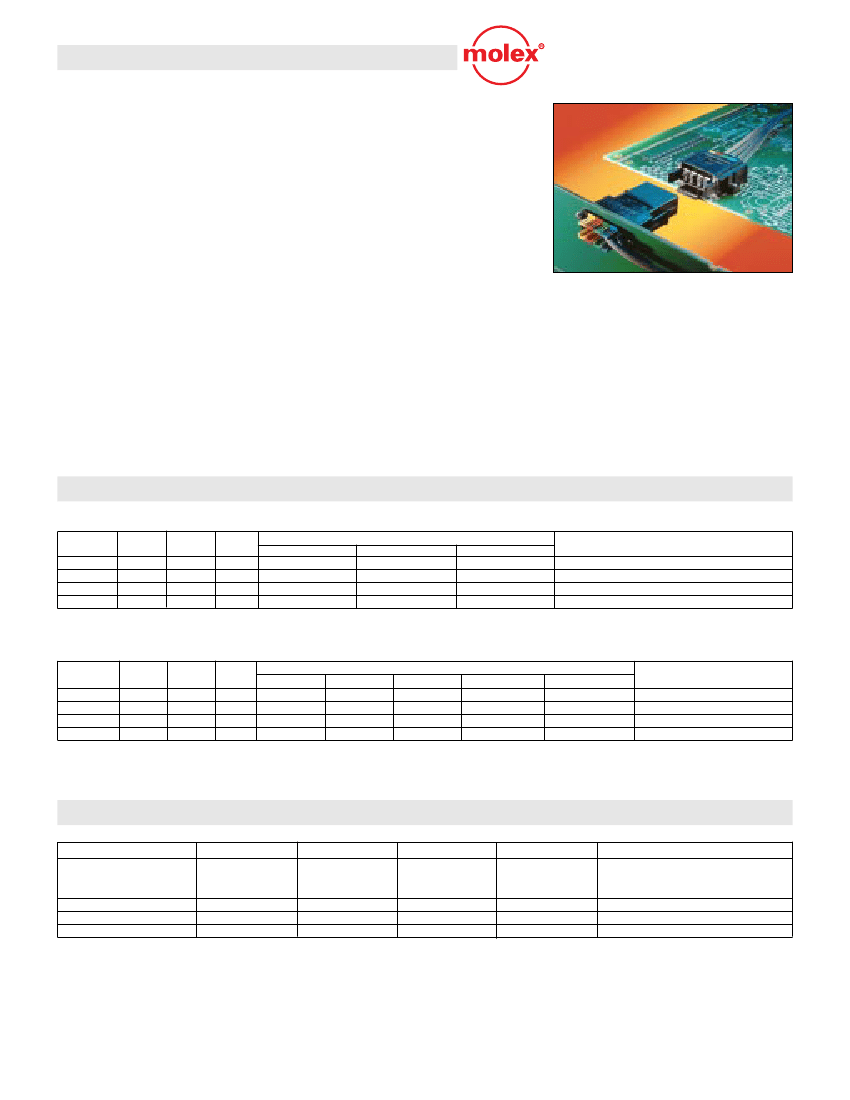

FEATURES AND SPECIFICATIONS
Features and Benefits
Reference Information
■
Utilizes standard MT ferrule as the optical interface
Mounting Style: Rivet or Screw
Housing: UL V-0
providing up to 96 fiber interconnects
■
Patented dual shutter design for dust and eye safety
protection
■
Generous mechanical float in the horizontal axis (X),
vertical axis (Y), and depth axis (Z)
■
Compatible with Molex's FlexPlane
TM
optical flex circuit
technology
■
Removable alignment pins allow complete cleaning of the
male MT ferrule end face
HBMT
TM
MT High Density
Backplane Interconnect System
With the versatility of an edge card connector, the HBMT
TM
MT
High Density Backplane provides a smooth transition from pc
board components to the backplane. Utilizing a standard MT
ferrule as the optical interface, the HBMT provides up to 96
fiber interconnects. It is ideal for connecting backplanes and
cross connect systems in computing equipment,
telecommunication equipment including transmitters, switches,
multiplexers and demultiplexers. Together with Molex’s
FlexPlane Optical Flex Circuitry System, the High Density
Backplane MT provides a total optical backplane solution.
The Molex Backplane MT features a blind-mate interface for
easy insertion, removal and exchange of the daughter card
without disrupting the input/output ports or associated
cabling. It is designed to meet the requirements of Telcordia
GR-1435-CORE. This backplane system has a low-profile
6.00mm (.236") backplane fiber and a 14.80mm (.583")
maximum height, ensuring compatability with 20.00mm
(.787") card spacing and European ETSI rack standards.
The HBMT uses a single housing that can contain up to four
MT ferrules and can be configured for either multimode or
single mode ribbon fiber. The system also supports the MT
low loss and 24 fiber MT ferrule technology, offering
improved performance and density. RJ-45 mechanical
latching provides easy insertion of individual terminated MT
ferrules. A patented dual shutter design offers dust and eye
safety protection.
ORDERING INFORMATION

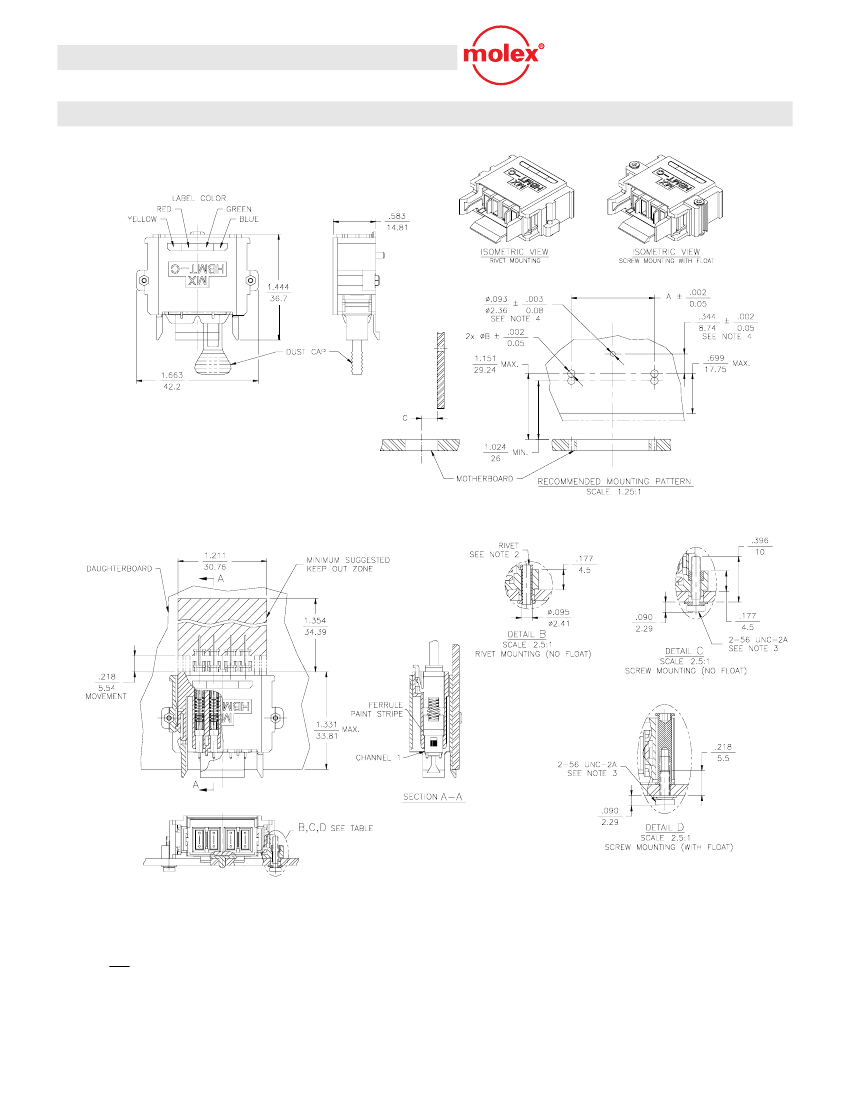

HBMT Daughtercard Connectors
Part No.
86105-0100
86105-1100
86105-2100
86105-2300
Mounting
Rivet
Screw
Screw
Screw
Float
No
No
Yes
Yes
Plating
No
No
No
Yes
1.457”
1.457”
1.497”
1.497”
A
(37.00mm)
(37.00mm)
(38.00mm)
(38.00mm)
Dimensions
B
0.135” (3.43mm)
0.135” (3.43mm)
0.090” (2.29mm)
0.090” (2.29mm)
0.275”
0.275”
0.295”
0.295”
C
(6.98mm)
(6.98mm)
(7.49mm)
(7.49mm)
Mates With
86105-0000, 86105-1000
86105-0000, 86105-1000
86105-0000, 86105-1000, 86105-2000
86105-2200

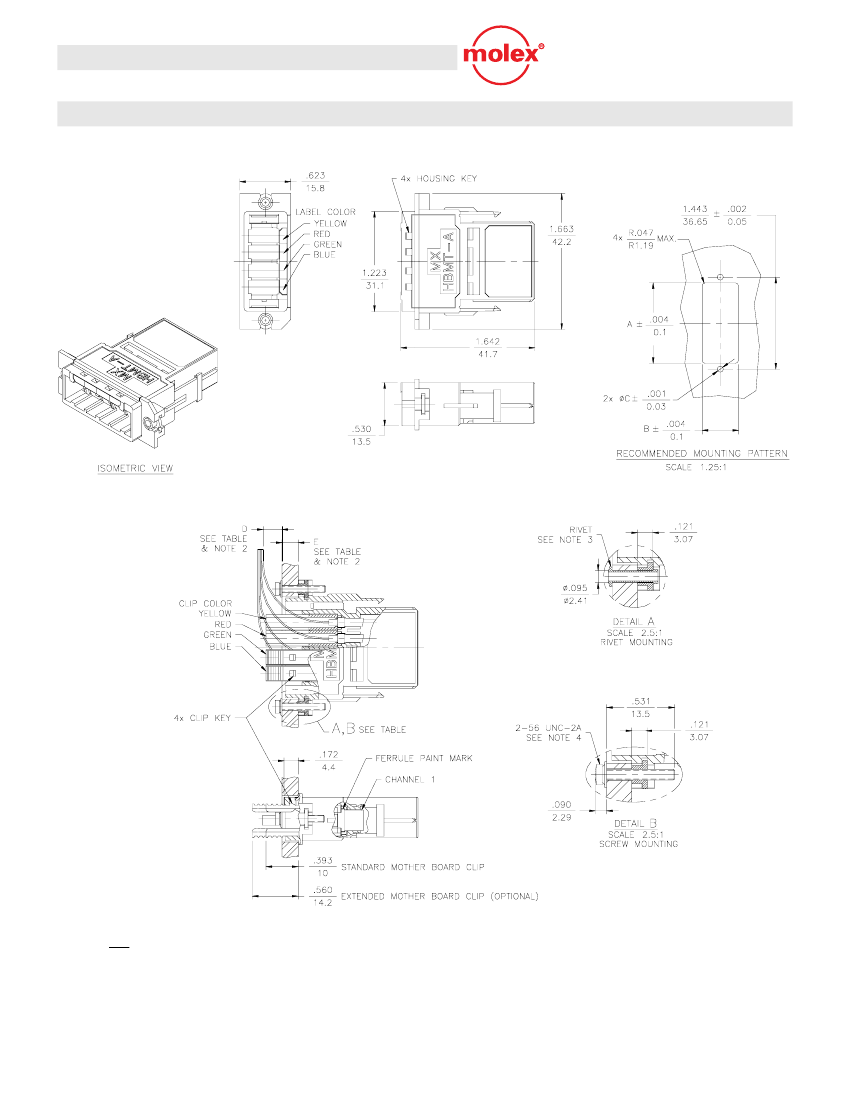

HBMT Backplane Adapters
Part No.
86105-0000
86105-1000
86105-2000
86105-2200
Mounting
Rivet
Screw
Screw
Screw
Float
Yes
Yes
No
No
Plating
No
No
No
Yes
1.263”
1.263”
1.233”
1.233”
A
(32.08mm)
(32.08mm)
(31.32mm)
(31.32mm)
0.570”
0.570”
0.540”
0.540”
B
(14.48mm)
(14.48mm)
(13.72mm)
(13.72mm)
0.095”
0.090”
0.090”
0.090”
Dimensions
C
D When E < 0.158mm (4”) D When E
≥
0.158mm (4”)
(2.41mm)
0.367” (9.32mm)-E
0.209” (5.31mm)
(2.29mm)
0.417” (10.59mm)-E
0.259” (6.58mm)
(2.29mm)
0.417” (10.59mm)-E
0.259” (6.58mm)
(2.29mm)
0.417” (10.59mm)-E
0.259” (6.58mm)
Mates With
86105-0100, 86105-1100, 86105-2100
86105-0100, 86105-1100, 86105-2100
86105-2100
86105-2300
OPTICAL PERFORMANCE SPECIFICATIONS
Characteristics
Insertion Loss:
9/125 m Singlemode Fiber
62.5/125 m Multimode Fiber
9/125 m Enhanced Singlemode 8 Fiber
Return Loss: Singlemode
Temperature Range
Durability
Units
dB
dB
dB
dB
°C
dB
Minimum
Average
0.35
0.3
0.14
-40
Maximum
0.75
0.75
0.45
<60
+80
<0.2
Comments
Angle Polish
40 Cycles, 0.05 dB Maximum Change
1000 Mate/Unmate Cycles
Molex reserves the right to make any changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application.
1
MOLEX FIBER OPTICS DIVISION
5224 Katrine Avenue, Downers Grove, IL 60515 / Tel: 800-A1-FIBER or (630) 512-8787 Web: www.molex.com/fiber
