External-thread DIN Valve Connectors, with unsurpassed
IP67 sealing properties and superior cable retention,
increase performance, simplify manufacturing processes,
reduce inventory and lower applied costs for hydraulic,
pneumatic and electromagnetic devices
Brad
®
mPm
®
DIN valve connectors conform to industry standard EN
175301-803 (formerly DIN 43650); the standard for a series of electrical
connectors which are commonly used with solenoid valves, especially those
used on valves in hydraulics and pneumatics.
Molex’s field-attachable, external-nut design is mechanically superior
to traditional internal-nut DIN Valve connectors, achieving greater cable
retention and improved sealing to IP67.
For additional information visit: www.molex.com/link/dinvalve.html
Brad
®
mPm
®
DIN
Valve Connectors
External Thread,
Field Attachable
DIN Form
121201
121207
121202
121208
121203
121209
121204
121210
121205
121211
A
A + Circuit
Industrial
Industrial + Circuit
B
B + Circuit
C
C + Circuit
Micro
Micro + Circuit
Features and Benefits
Ergonomic external-nut design
Provides greater and consistent
torque for more uniform seal
between connector and cable
20% greater cable-retention force
over internal-nut designs for
increased reliability
Improved sealing from IP65
One size fits all; cost savings
achieved through inventory
reduction
Built-in circuit protection and LED
indicators to meet a wide range of
customer design requirements
IP67-rated when mated
Each connector accommodates PG9,
PG11 cable, up to 9.00mm outer
diameter
Standard circuitry options available
include LED and bi-polar LED
indicators, blocking diodes and
voltage-dependent resistors (VDRs)
Internal volume of Form C housing
increased by 30% with no change to
external dimensions of connector
Three packaging options to meet
customer requirements, includes
‘ready-to-use’ un-mounted (dis-
assembled) condition
Plus / minus screw head on terminal
Improves handling, wire routing and
speed of assembly over internal-nut
version
Unmounted packaging reduces
labour time and associated costs
External Thread mPm
®
DIN Valve Connectors
Enables use of air tools in volume
production and screwdriver can
be used by the installer in a field
application
Globally saleable. UL listing covers
sale in America and Canada

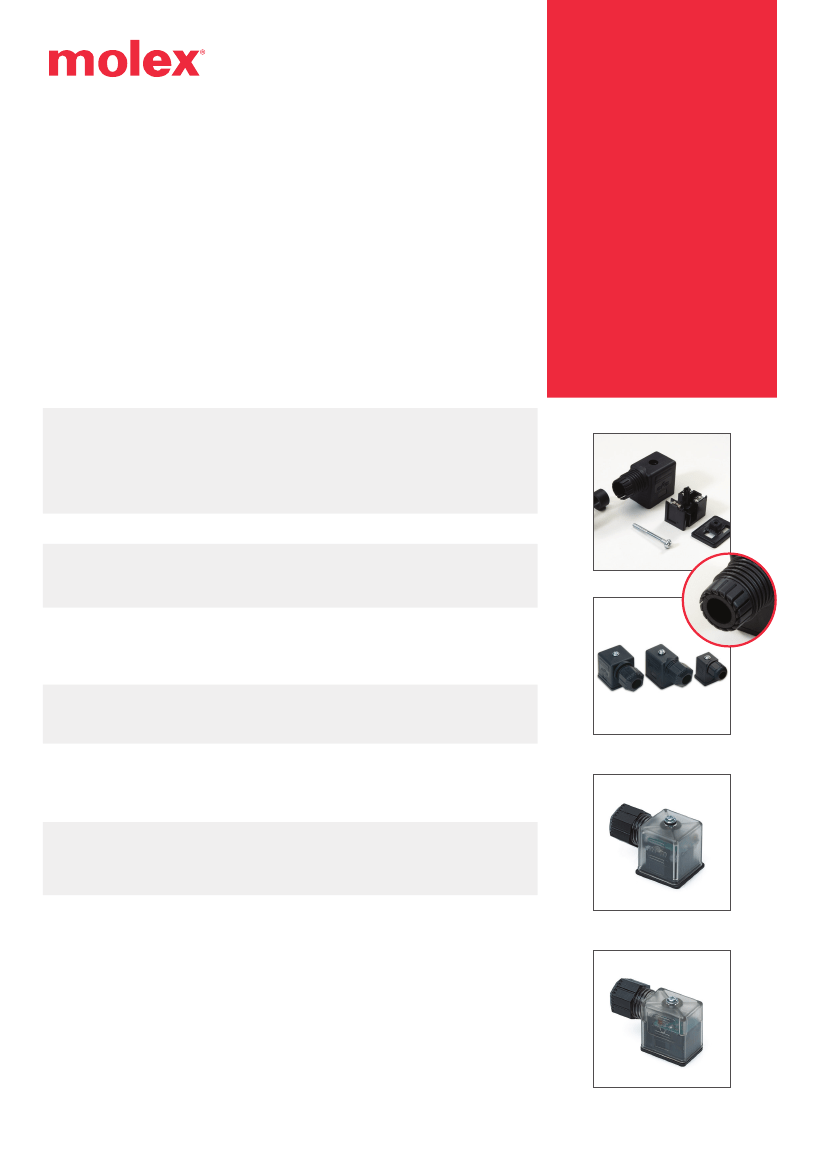

DIN Form A with Circuitry
Available UL listed: UL file number
E218123
DINForm B / Industrial with Circuitry
Applications
Industrial
Valve Manufacturers:
Pneumatic valves
(air under pressure)
Hydraulic valves
(oil under pressure)
Solenoid valves
Pressure switches
Proximity switches
Limit switches
Transducers
Level sensors
Low energy motors
Factory automation
Complex machine builders
Commercial vehicle
Garbage / refuse and cleaning
trucks
Construction vehicles
On-vehicle crane and lifting
equipment
Mining machinery
Farm machinery and tractors
Forklift trucks
Telecom
Power supplies
Home appliance
HVAC
Ironing machines
Vending machines
Other
All markets where signal and
power connections are required to
perform in rugged environments
Brad
®
mPm
®
DIN
Valve Connectors
External Thread,
Field Attachable
Hydraulics in construction equipment
Hydraulics in refuse trucks
Specifications
REFERENCE INFORMATION
Packaging: Single pack or bulk
components
UL File No.: E218123
RoHS: Yes
Halogen Free: Yes
Glow Wire Compliant: Available
Protection class: IP67 EN60529
RoHS: Compliant by Exemption
Glow Wire Compliant: Yes
ELECTRICAL
Voltage (max.): 250V AC
300V DC
Current (max.): 16.0A
Contact Resistance:
≤ 4 milliohms max.
Insulation Resistance:
100 Megaohms min.
Max. conductor:
1.50mm² / 16 AWG
MECHANICAL
Insertion and Withdrawal Force:
2 + PE ≤ 60N
3 + PE ≤ 80N
Durability (min.): 50 cycles
PHYSICAL
Housing: Glass Filled Polyamide
Contact: Yellow Brass (Cu)
Plating: Silver (Ag)
PCB Thickness: 0.90mm
Operating Temperature -
Gasket material:
Nitrile Rubber (NBR):
-40 to +90°C
Silicone: -40 to +125°C
Cable Range:
Outer diameter:
Form A, B, Industrial =
4.00 to 9.00mm
Form C, Micro =
3.00 to 5.50mm
Contact Distance:
Form A: 18.00mm
Form Industrial: 11.00mm
Form B: 10.00mm
Form C: 8.00mm
Form Micro: 9.40mm
Pressure valves
Forklift truck
Ordering Information
CONNECTORS wITH CIRCuIT
DIN Form
C
C
C
C
C
C
MICRO
MICRO
MICRO
MICRO
MICRO
MICRO
Order No.
121210-0042
Engineering No.
S25200TC4H0T
Packaging
Type
Single Bag
Bulk Pack
Bulk Pack
Single Bag
Bulk Pack
Bulk Pack
Single Bag
Bulk Pack
Bulk Pack
Single Bag
Bulk Pack
Bulk Pack
Mounting
Brad
®
mPm
®
DIN
Valve Connectors
External Thread,
Field Attachable
No. of Poles Circuitry*
Voltage
Led
Colour†
121210-0192 S25200TC4H0TCN
121210-0342 S25200TC4H2TSN
121210-0045
S25200TC4M0T
Unmounted
Mounted
Unmounted
Mounted
Unmounted
Mounted
Unmounted
Mounted
24V
121210-0195 S25200TC4M0TCN
121210-0345 S25200TC4M2TSN
121211-0042
S29200TC4H0T
230V
Yellow
2+
Ground
C4
24V
121211-0192 S29200TC4H0TCN
121211-0342 S29200TC4H2TSN
121211-0045
S29200TC4M0T
121211-0195 S29200TC4M0TCN
121211-0345 S29200TC4M2TSN
230V
*Circuitry - please refer to schematic diagrams on page 10 or Sales Drawings for details
†LED colours – please refer to Sales Drawing for full range available
The part numbers listed in this datasheet represent a snapshot of the range available.
For part numbers and configurations not listed please refer to molex.com or contact
your local Molex representative.
www.molex.com/link/dinvalve.html
Order No. 987650-4886 Rev. 1
Printed in EUR/GF/2013.01
©2013 Molex
