86275-0008

Description
High Density MT Cable Assemblies
CategoryThe connector    The connector
File Size154KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

86275-0008 Overview

High Density MT Cable Assemblies

86275-0008 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
Connector typeINTERCONNECTION DEVICE
Base Number Matches1

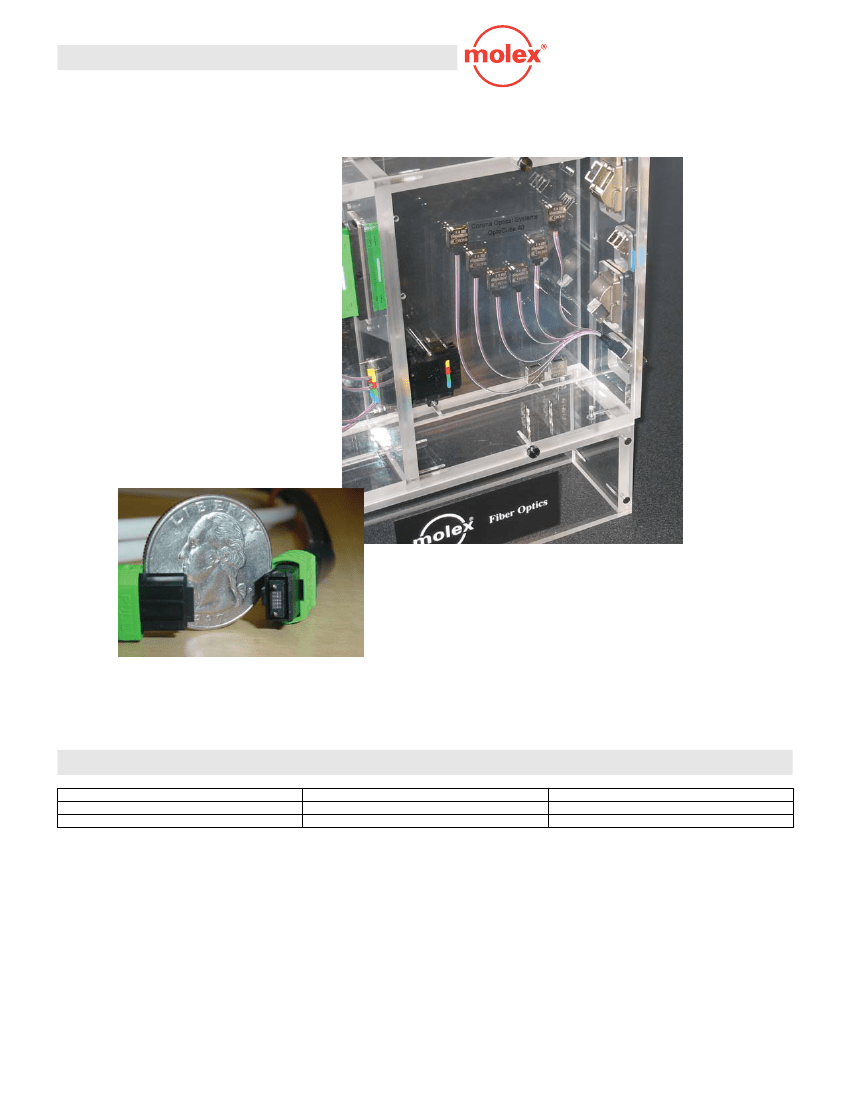

High-Density MT Ferrule Optical Cable Assemblies Extend Space and Cost
Savings Up to 72 Fibers
With the addition of the High Density MT (HDMT) ferrule optical cable assembly line, Molex further strengthens
its position as a leader in optical backplane and front panel interconnect solutions. These cable assemblies offer
multiple space-saving options on the front panel by using the 72-fiber MT ferrule in the industry standard MTP*
connector, as well as high-density panel-mount Array connectors. In addition, by incorporating the HDMT
ferrule in the HBMT™ backplane interconnect, customers can benefit from the highest-density blind-mate
interface in the industry.
These HDMT ferrules extend the capabilities of traditional MT-style connectors beyond 12 and 24 fibers, making
configurations up to 72 fibers possible. Molex has developed termination and polishing capabilities achieving
insertion-loss levels that are comparable to those of 24-fiber terminations.
This significant increase in fibers in a single connector offers considerable space savings, along with reduced
installation time and cost. Molex is developing flexible ruggedized trunk cabling solutions that utilize the HDMT
ferrules, which are designed to reduce fiber installation costs in central offices and data center applications. Low
profile, high fiber count trunk cables streamline the routing of the trunk cables and reduce the number of fiber
pulls.
Features and Benefits
Up to 72 fibers in the traditional MT Ferrule
footprint increases density without increasing
front panel real-estate
Standard MPO/MTP connector interface ensures
industry compatibility
Optical Insertion Loss below 1.0dB across all 72
channels meets industry expectations
Bare ribbon breakouts ensure smooth transition
from 12-fiber transceivers to 72-fiber MTP on the
front panel
Jacketed 72-fiber cable assemblies are capable of
rugged chassis-to-chassis interconnects
High Density MT
Cable Assemblies
86275
SPECIFICATIONS
High Density MT Connector Comparison
Connector Type
Maximum No. of Fibers
No. of Ports
Density Per Connector
MTP
HBMT
Array
72
36
36
1
4
8
72
144
288
Reference Information
Packaging: Custom per assembly
Mates with: MPO/MTP connectors and MPO transceiver
interfaces
Optical
Insertion Loss (IL):
Multimode 50/125µm 0.35dB Typ, <1.0dB Max
Multimode 62.5/125µm 0.40dB Typ, <1.0dB Max
Singlemode is not available
Mechanical
Durability: <0.3dB over 200 cycles
Physical
Connector Housing: PBT (V0)
Spring Push: PEI (V0)
Pin Holder: SS 400
Spring: SS 304
Crimp Ring: Brass
Boot: TPE (V0)
Dust Cap: TPE (V0)
Ferrule: MM is Thermoset
Operating Temperature: -40°C to +85°C

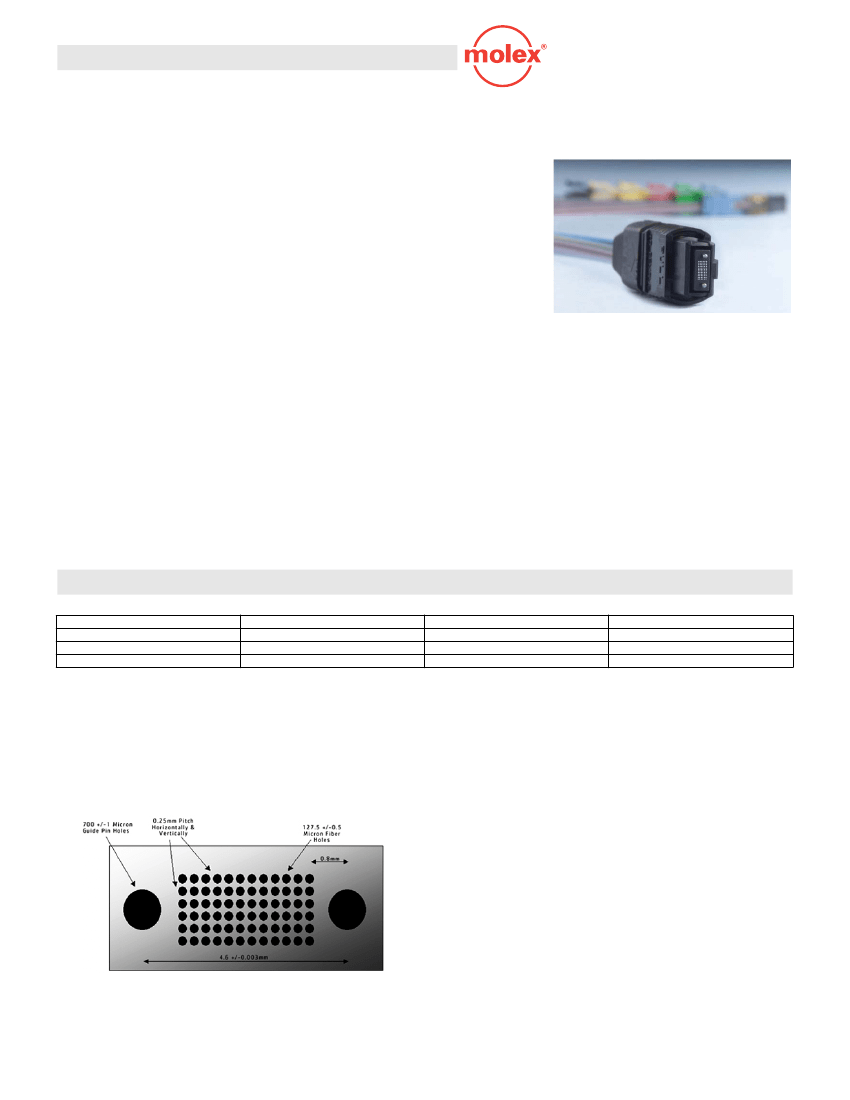

High Density MT Interface Details
*MTP is a registered trademark of US Conec Ltd.

86275-0008 Related Products

86275-0008 86275 86275-0009
Description High Density MT Cable Assemblies High Density MT Cable Assemblies High Density MT Cable Assemblies
Maker Molex - Molex
Reach Compliance Code unknow - unknow
Connector type INTERCONNECTION DEVICE - INTERCONNECTION DEVICE
