FEATURES AND SPECIFICATIONS

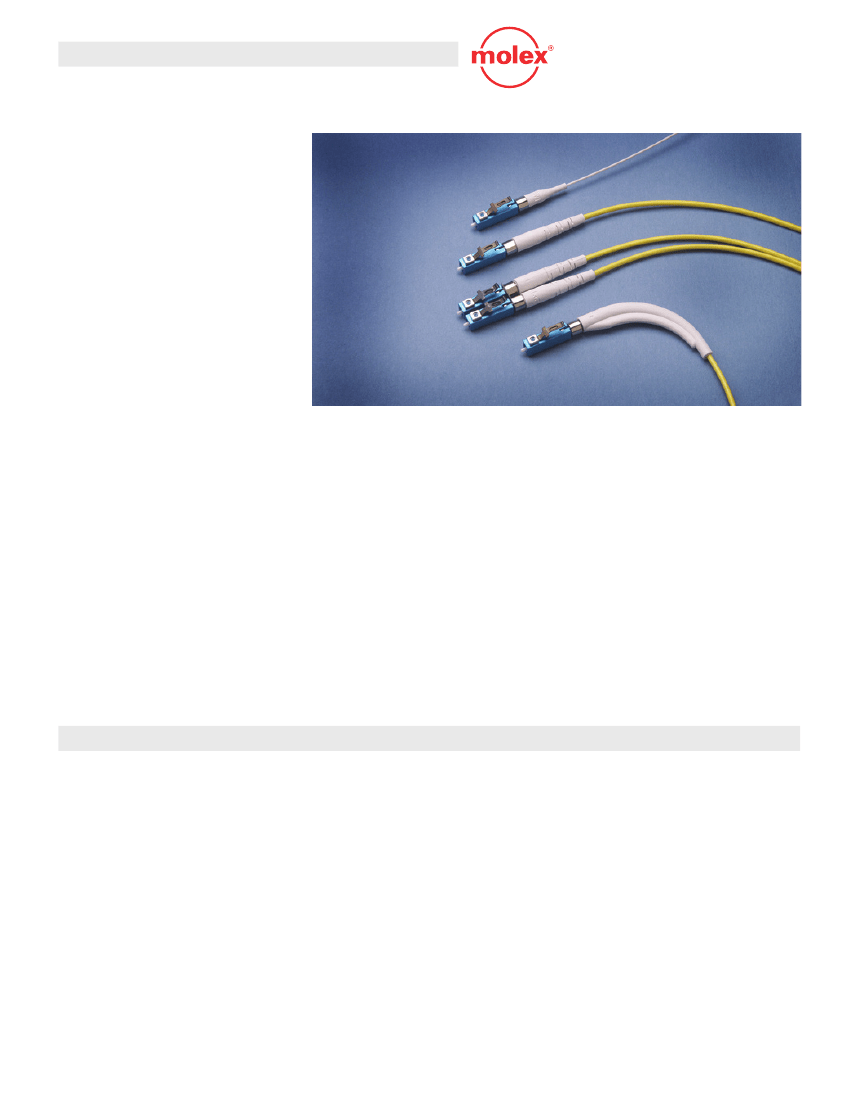

LC2

Metallic Optical Connectors

86387

Take LC2 where no optical SFF connector has

gone before, in harsh environments

Innovatively designed LC2 connectors are a

ruggedized, all-metal-housed version of the familiar

LC Small Form Factor optical connectors. Molex’s LC2

connectors incorporate the ceramic ferrule based,

LumaCore™ optical terminus technology. The LC2

connector is 100% compatible with the industry

standard LC connectors and adapters. The terminus is

designed to achieve superior optical performance in a

durable housing.

Molex’s LC2 connectors provide a high-performance,

discrete-fiber termination solution for use in equipment

designed for severe environments, including military

COTS, aviation and aerospace applications. The

LC2 connectors are capable of continuous operating

temperatures of 135°C with short term temperatures

of up to 150°C when used with high temperature

optical fibers. Using Molex’s LumaCore technology, LC2

connectors are complimentary to other field proven

LumaCore based products.

Features and Benefits

All metal housing provides a robust connector

housing which resists breakage; includes durable

stainless steel latches clips

1.25mm (.049”) LumaCore terminus includes a

high-performance Ceramic ferrule with hex register

tuning, available for singlemode, multimode and

angle-polish applications

Removable connector housing enables direct

inspection of fiber bonding areas and replacement

of connector body components without fiber

re-termination

The LC2 connector provides a color-coded, anodized-

aluminum housing with a stainless-steel latching

mechanism to ensure optimal LC performance in

harsh mechanical and environmental environments.

In addition, the housings can be removed as needed

without disruption of the terminus tuning or crimped

cable jacketing. When terminated, LC2 connectors

meet a minimum of all the dimensional and

performance requirements of Telcordia GR-326-CORE

and TTIA/EIA-604-10a (FOCIS-10).

Multiple boot styles support many cable sizes and

applications including including 900µm, 1.20mm

(.047”), 1.60mm (.063”), 1.80mm (.070”)

and 2.00mm (.079”) as well as 45 and 90°

configurations

FEATURES AND SPECIFICATIONS

Reference Information

Packaging: Bag

Mates With: Standard LC adapters

Series 106124, 106125, 106126, 106127, 106115

Designed In: Inches

Mechanical

Durability: Minimum 200 mate/demate cycles

Physical

Housing: Anodized Aluminum

Ferrule: Zirconia Ceramic

Operating Temperature: -40 to +135°C
