501844-1012 datasheet, PDF - EEWORLD Datasheet

501844-1012: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Straight, 0.079 inch Pitch, Solder Terminal, Locking, Red Insulator, Plug,; CategoryThe connector The connector; File Size111KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

501844-1012 Overview

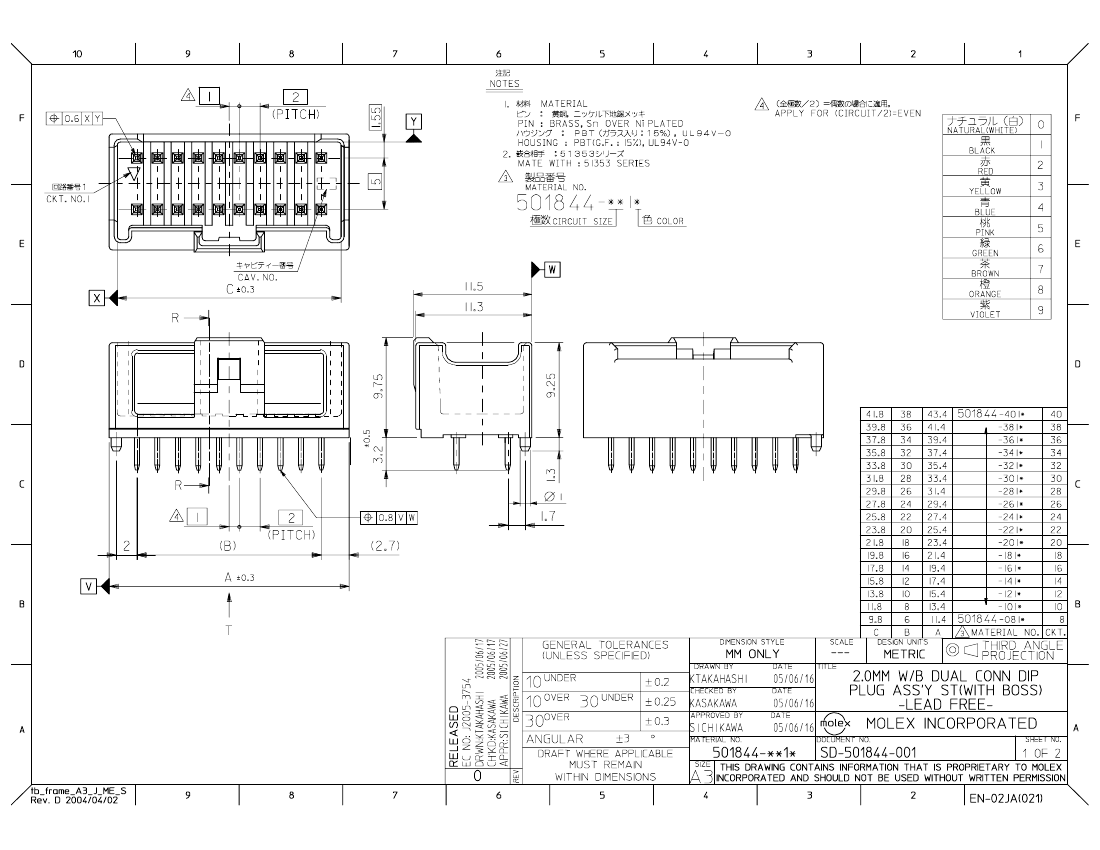

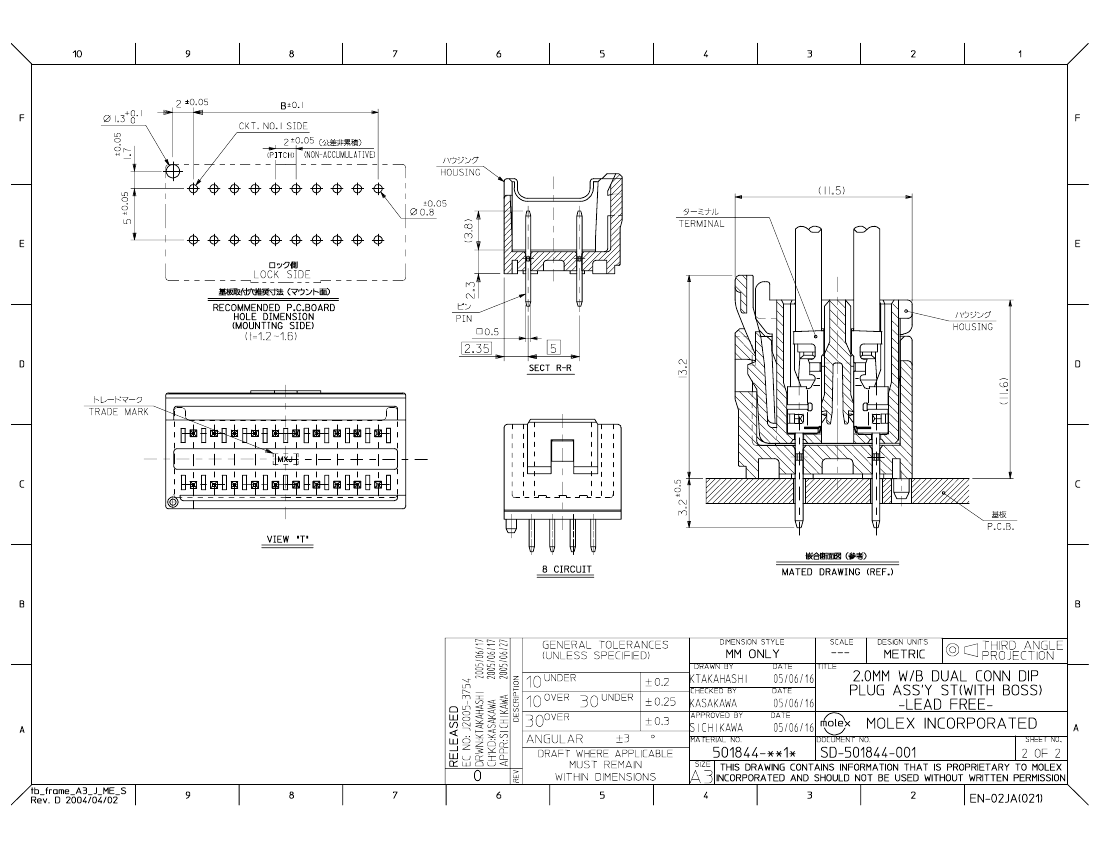

Board Connector, 10 Contact(s), 2 Row(s), Straight, 0.079 inch Pitch, Solder Terminal, Locking, Red Insulator, Plug,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Board mount options	PEG
body width	0.453 inch
subject depth	0.384 inch
body length	0.528 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	501844
Plug contact pitch	0.079 inch
Match contact row spacing	0.197 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	10
