86389-0001 Overview

Optical Military Cable Assemblies

86389-0001 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Optical Military Cable

Assemblies

86389 Series

Molex Now Competes in the Military and

Aerospace Sectors With Optical 38999,

28876 and ARINC COTS Assemblies

Molex now offers Military 38999 and 28876 style

circular connector cable assemblies and ARINC 400 and

600 style avionic assemblies. With 15 years of fiber

optics experience, Molex can meet the demanding

requirements of the military and aerospace

environments with proven capabilities from design to

production.

These rugged connectors can be terminated to both

single-fiber and ribbon cable. They are ideal for use in

avionics, flight control equipment, mobile tactical field

command platforms, Electro Magnetic Interference

(EMI) sensitive equipment, security devices and harsh

environment applications.

Molex provides these Commercial Off-The-Shelf (COTS)

optical cabling and connector components to provide

cost-effective and short lead-time solutions. Array cable

assemblies, EMI adapters, flexible circuitry, backplane

systems and standard connectors (FC, LC, MT, MTP, SC

and ST) are all available.

38999

28876

ARINC 400 and 600

Features and Benefits

Advanced termination processes provide exceptional

performance in ferrule endface geometry

Custom or standard assemblies are available which

provide customer options

Assemblies are factory polished, tested and

serialized which ensures high performance

assemblies with traceability function

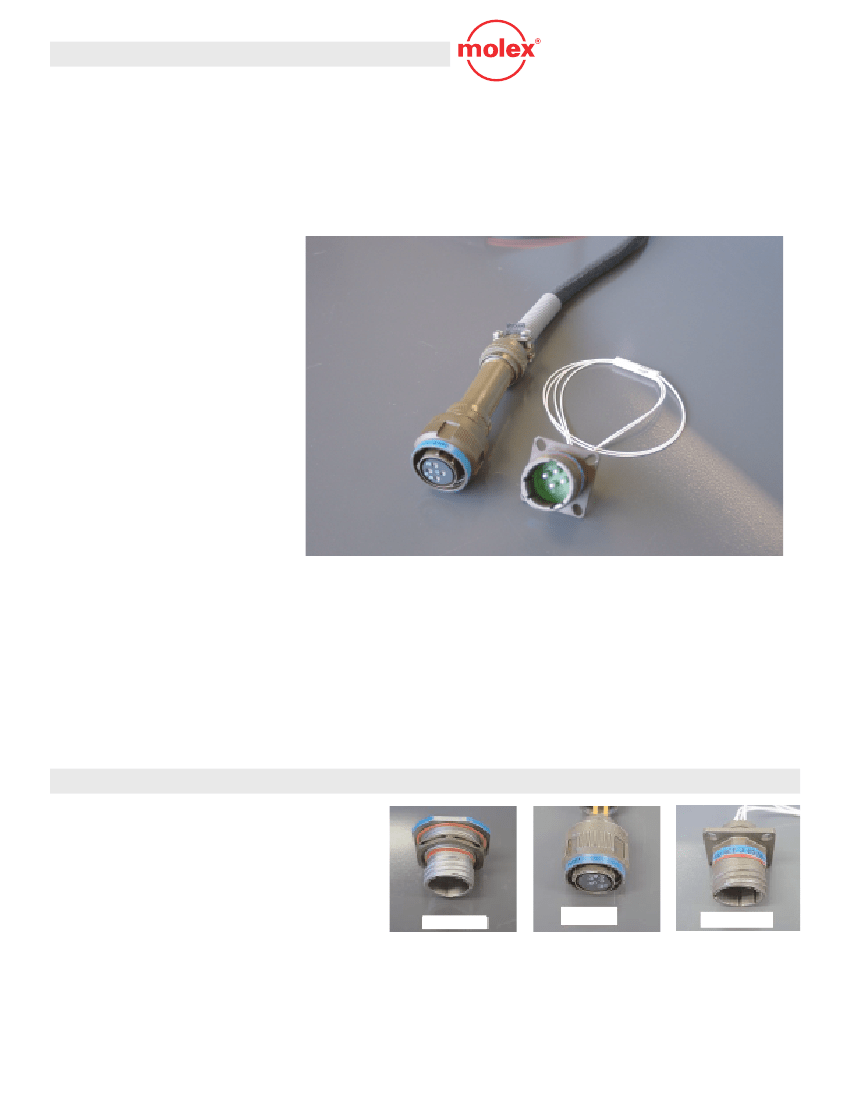

38999 cable assemblies shown

SPECIFICATIONS

Reference Information

Designed In: Millimeters

Optical

Insertion Loss: <0.5dB per channel

Physical

Ferrules: 29504 approved termini (ferrules)

Mode: Singlemode or Multi-mode

Body Styles: Jam Nut, Plug or Wall Mount

Ferrule Groupings: Many versions available

Cable Length: Custom

Jam Nut Type

Plug Type

Wallmount Type
