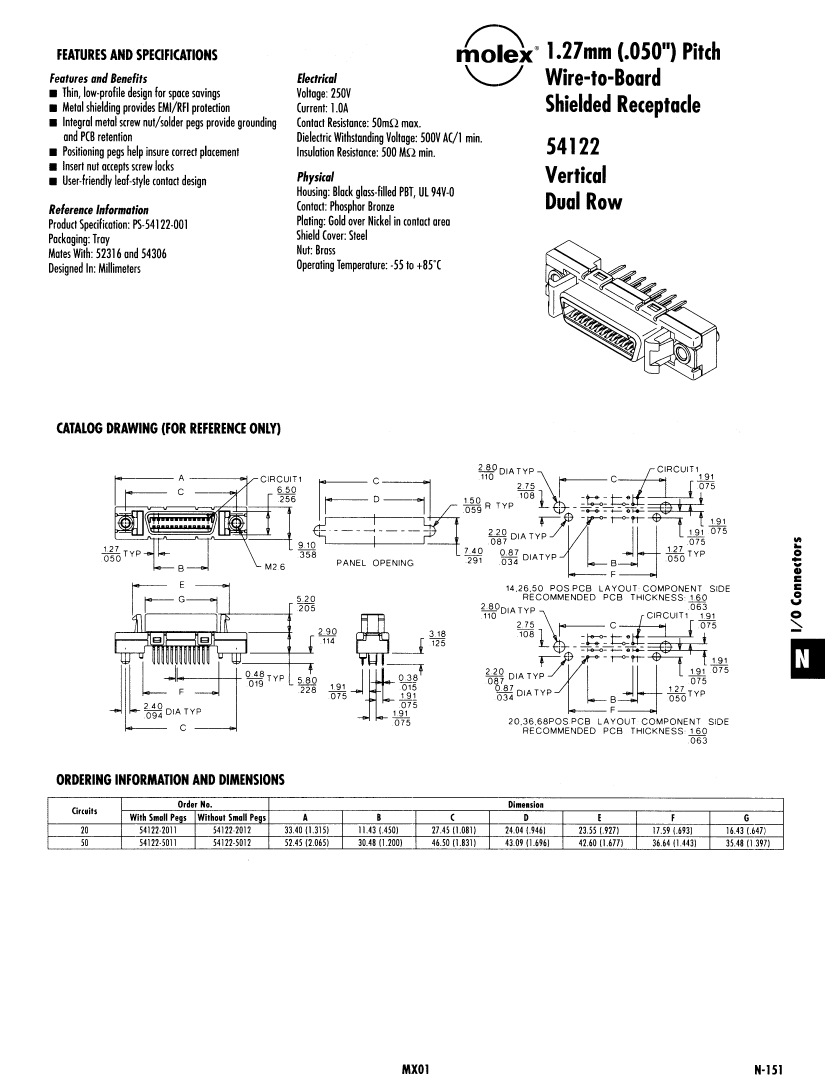

Preview

54122-5011: DescriptionTelecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, M2.6x0.45, Receptacle; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54122-5011 Overview

Telecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, M2.6x0.45, Receptacle

54122-5011 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	EMI/RFI SHIELDED, LOW PROFILE
body width	0.358 inch
subject depth	0.228 inch
body length	2.065 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M2.6X0.45
Installation option 2	LATCHING
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	12u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

54122-5011 Related Products

	54122-5011	54122-2011	54122-2012	54122-5012
Description	Telecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, M2.6x0.45, Receptacle	Telecom and Datacom Connector, 20 Contact(s), Female, Straight, Solder Terminal, Receptacle	Telecom and Datacom Connector, 20 Contact(s), Female, Straight, Solder Terminal, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, M2.6x0.45, Receptacle
Reach Compliance Code	unknow	unknow	unknown	unknow
Other features	EMI/RFI SHIELDED, LOW PROFILE	EMI/RFI SHIELDED, LOW PROFILE	EMI/RFI SHIELDED, LOW PROFILE	EMI/RFI SHIELDED, LOW PROFILE
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	20	20	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	incompatible	-	incompatible	incompatible
Maker	Molex	-	Molex	Molex
ECCN code	EAR99	-	EAR99	EAR99
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
