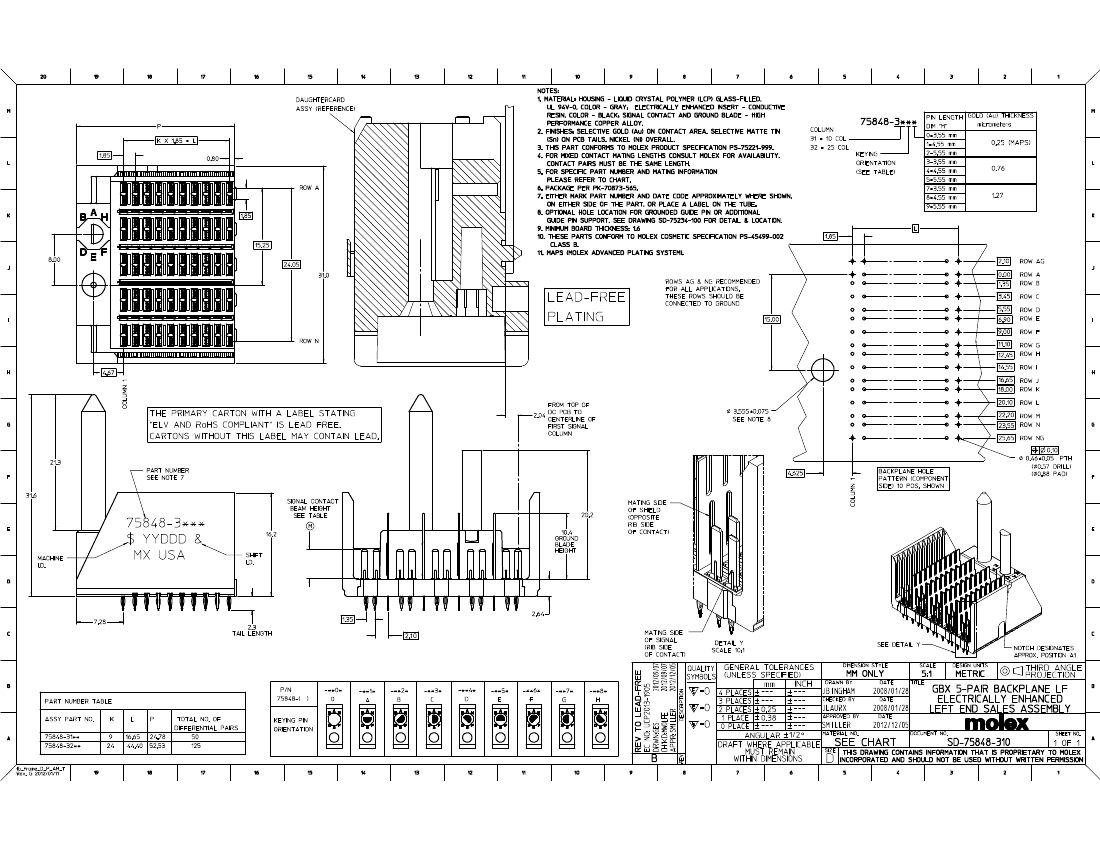

Board Connector, 140 Contact(s), 14 Row(s), Male, Straight, 0.073 inch Pitch, Solder Terminal, Locking, Gray Insulator
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknow |
| body width | 1.22 inch |
| subject depth | 0.638 inch |
| body length | 0.976 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Dielectric withstand voltage | 1050VAC V |
| Durability | 200 Cycles |
| Insulation resistance | 1000000000 Ω |
| Insulator color | GRAY |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Manufacturer's serial number | 75848 |
| Plug contact pitch | 0.073 inch |
| Match contact row spacing | 0.073 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 16 |
| Number of rows loaded | 14 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.091 inch |
| Terminal pitch | 1.8542 mm |
| Termination type | SOLDER |
| Total number of contacts | 140 |
| 75848-3101 | 0758483255 | 75848-3221 | 75848-3215 | 75848-3289 | |
|---|---|---|---|---|---|
| Description | Board Connector, 140 Contact(s), 14 Row(s), Male, Straight, 0.073 inch Pitch, Solder Terminal, Locking, Gray Insulator | conn header 5pr 25col left EE BP | Board Connector, 350 Contact(s), 14 Row(s), Male, Straight, 0.073 inch Pitch, Solder Terminal, Locking, Gray Insulator | Board Connector, 350 Contact(s), 14 Row(s), Male, Straight, 0.073 inch Pitch, Solder Terminal, Locking, Gray Insulator | Board Connector, 350 Contact(s), 14 Row(s), Male, Straight, 0.073 inch Pitch, Solder Terminal, Locking, Gray Insulator |
| Maker | Molex | - | Molex | Molex | Molex |
| Reach Compliance Code | unknow | - | unknown | unknown | unknown |
| body width | 1.22 inch | - | 1.22 inch | 1.22 inch | 1.22 inch |
| subject depth | 0.638 inch | - | 0.638 inch | 0.638 inch | 0.638 inch |
| body length | 0.976 inch | - | 2.068 inch | 2.068 inch | 2.068 inch |
| Connector type | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | - | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL | - | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact point gender | MALE | - | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | - | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 10 mΩ | - | 10 mΩ | 10 mΩ | 10 mΩ |
| Dielectric withstand voltage | 1050VAC V | - | 1050VAC V | 1050VAC V | 1050VAC V |
| Durability | 200 Cycles | - | 200 Cycles | 200 Cycles | 200 Cycles |
| Insulation resistance | 1000000000 Ω | - | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | GRAY | - | GRAY | GRAY | GRAY |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | - | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Manufacturer's serial number | 75848 | - | 75848 | 75848 | 75848 |
| Plug contact pitch | 0.073 inch | - | 0.073 inch | 0.073 inch | 0.073 inch |
| Match contact row spacing | 0.073 inch | - | 0.073 inch | 0.073 inch | 0.073 inch |
| Installation option 1 | LOCKING | - | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | - | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | - | BOARD | BOARD | BOARD |
| Number of connectors | ONE | - | ONE | ONE | ONE |
| PCB row number | 16 | - | 16 | 16 | 16 |
| Number of rows loaded | 14 | - | 14 | 14 | 14 |
| Maximum operating temperature | 85 °C | - | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | - | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| polarization key | POLARIZED HOUSING | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1 A | - | 1 A | 1 A | 1 A |
| Guideline | UL | - | UL | UL | UL |
| reliability | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.091 inch | - | 0.091 inch | 0.091 inch | 0.091 inch |
| Terminal pitch | 1.8542 mm | - | 1.8542 mm | 1.8542 mm | 1.8542 mm |
| Termination type | SOLDER | - | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 140 | - | 350 | 350 | 350 |
| Base Number Matches | - | - | 1 | 1 | 1 |
