MS6130-55PC: DescriptionDual-Port SRAM, 1KX8, 55ns, CMOS, PDIP48, 0.600 INCH, PLASTIC, DIP-48; Categorystorage storage; File Size219KB，10 Pages; ManufacturerMosel Vitelic Corporation ( MVC ); Websitehttp://www.moselvitelic.com

Download Datasheet Parametric Compare View All

MS6130-55PC Overview

Dual-Port SRAM, 1KX8, 55ns, CMOS, PDIP48, 0.600 INCH, PLASTIC, DIP-48

MS6130-55PC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mosel Vitelic Corporation ( MVC )
Parts packaging code	DIP
package instruction	DIP, DIP48,.6
Contacts	48
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	55 ns
I/O type	COMMON
JESD-30 code	R-PDIP-T48
JESD-609 code	e0
length	49.4665 mm
memory density	8192 bi
Memory IC Type	DUAL-PORT SRAM
memory width	8
Number of functions	1
Number of ports	2
Number of terminals	48
word count	1024 words
character code	1000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP48,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum standby current	0.0005 A
Minimum standby current	4.5 V
Maximum slew rate	0.17 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

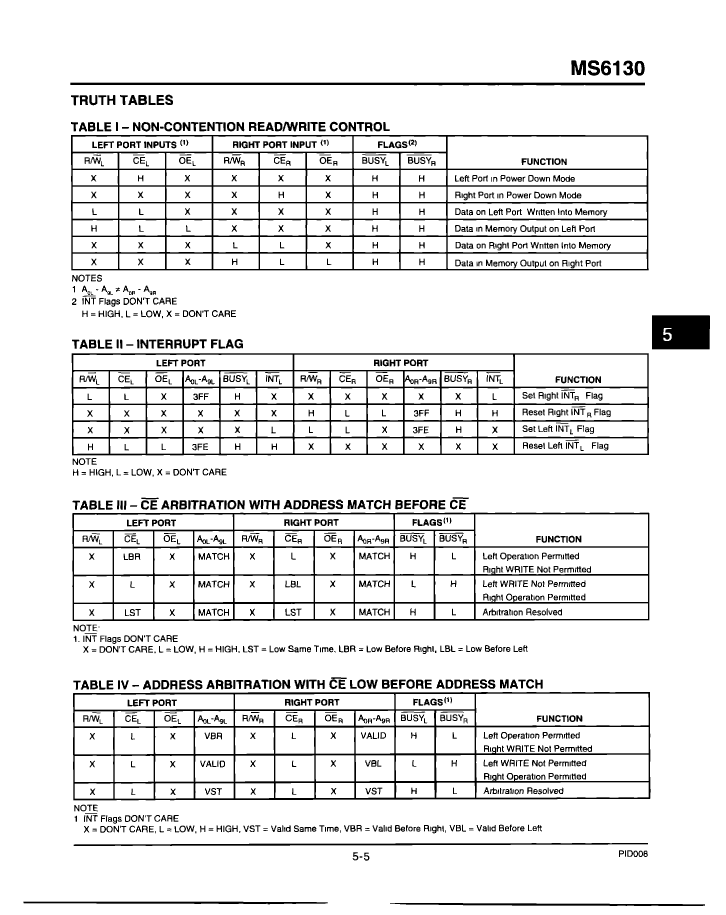

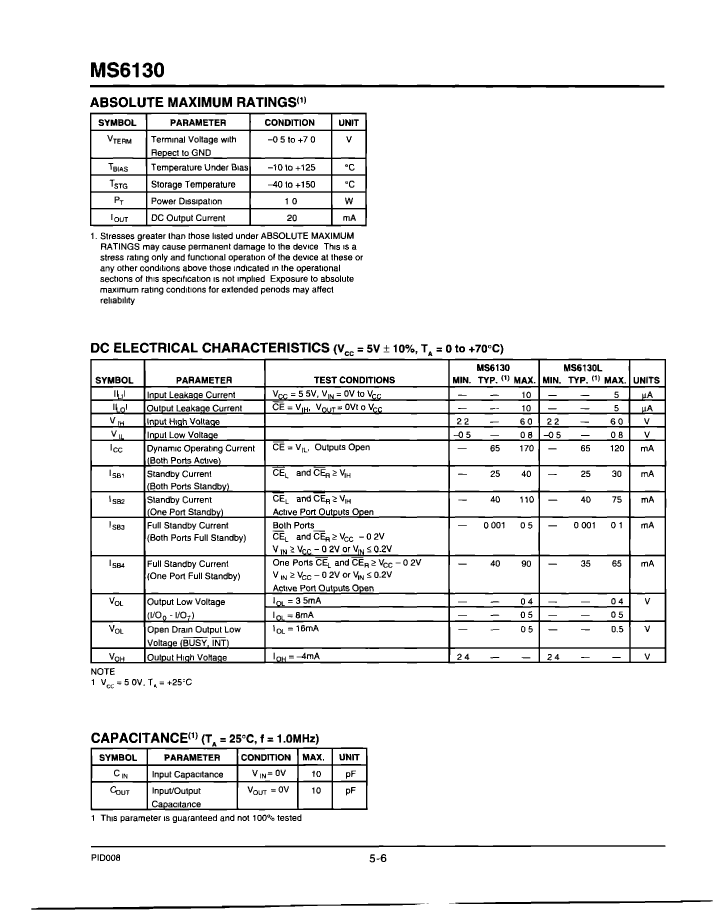

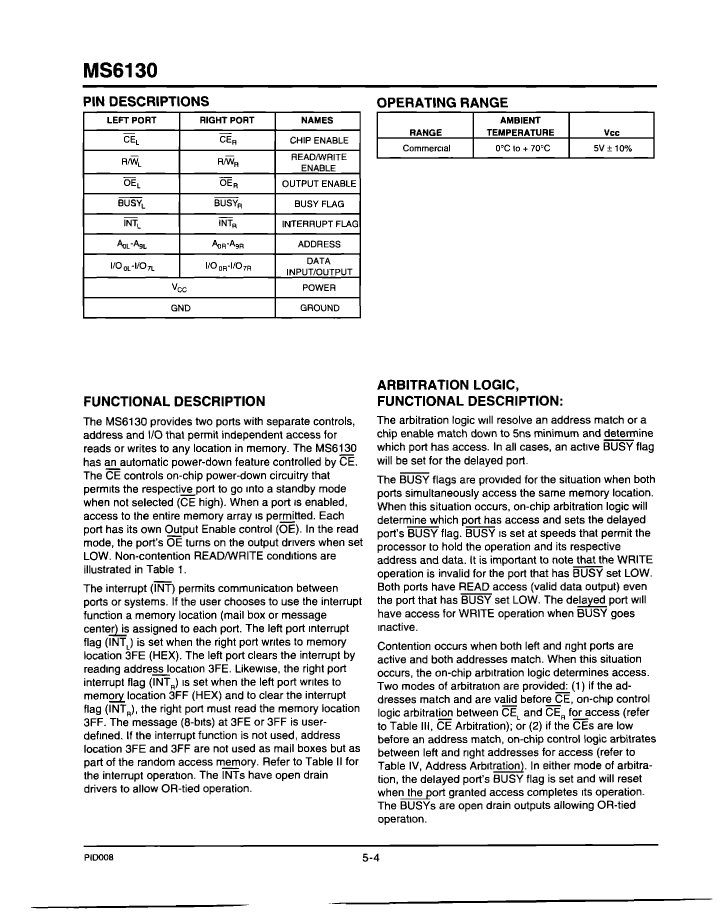

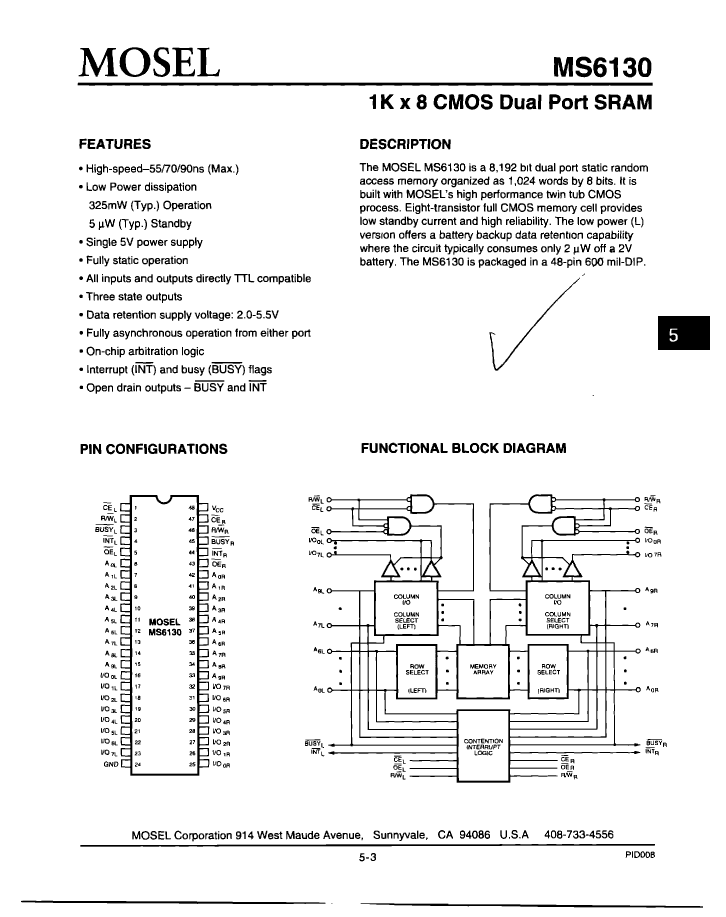

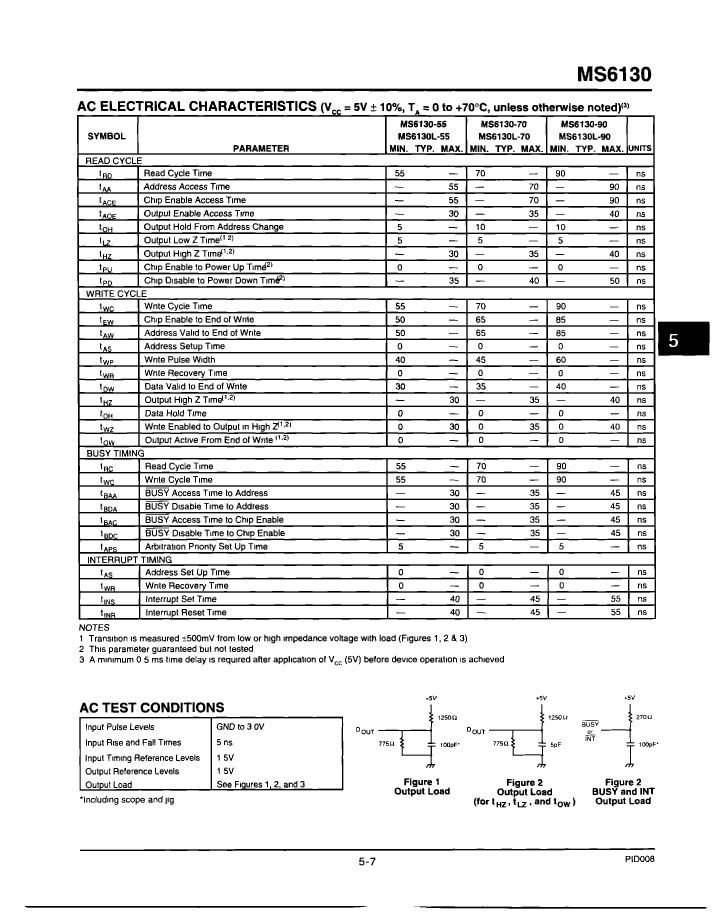

Preview

Download Datasheet

View All

MS6130-55PC Related Products

	MS6130-55PC	MS6130-70PC	MS6130L-90PC	MS6130L-70PC	MS6130-90PC	MS6130L-55PC
Description	Dual-Port SRAM, 1KX8, 55ns, CMOS, PDIP48, 0.600 INCH, PLASTIC, DIP-48	Dual-Port SRAM, 1KX8, 70ns, CMOS, PDIP48, 0.600 INCH, PLASTIC, DIP-48	Dual-Port SRAM, 1KX8, 90ns, CMOS, PDIP48, 0.600 INCH, PLASTIC, DIP-48	Dual-Port SRAM, 1KX8, 70ns, CMOS, PDIP48, 0.600 INCH, PLASTIC, DIP-48	Dual-Port SRAM, 1KX8, 90ns, CMOS, PDIP48, 0.600 INCH, PLASTIC, DIP-48	Dual-Port SRAM, 1KX8, 55ns, CMOS, PDIP48, 0.600 INCH, PLASTIC, DIP-48
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6
Contacts	48	48	48	48	48	48
Reach Compliance Code	unknow	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	55 ns	70 ns	90 ns	70 ns	90 ns	55 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDIP-T48	R-PDIP-T48	R-PDIP-T48	R-PDIP-T48	R-PDIP-T48	R-PDIP-T48
JESD-609 code	e0	e0	e0	e0	e0	e0
length	49.4665 mm	49.4665 mm	49.4665 mm	49.4665 mm	49.4665 mm	49.4665 mm
memory density	8192 bi	8192 bit	8192 bit	8192 bit	8192 bi	8192 bi
Memory IC Type	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	48	48	48	48	48	48
word count	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words
character code	1000	1000	1000	1000	1000	1000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1KX8	1KX8	1KX8	1KX8	1KX8	1KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP48,.6	DIP48,.6	DIP48,.6	DIP48,.6	DIP48,.6	DIP48,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum standby current	0.0005 A	0.0005 A	0.00002 A	0.00002 A	0.0005 A	0.00002 A
Minimum standby current	4.5 V	4.5 V	2 V	2 V	4.5 V	2 V
Maximum slew rate	0.17 mA	0.17 mA	0.12 mA	0.12 mA	0.17 mA	0.12 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
