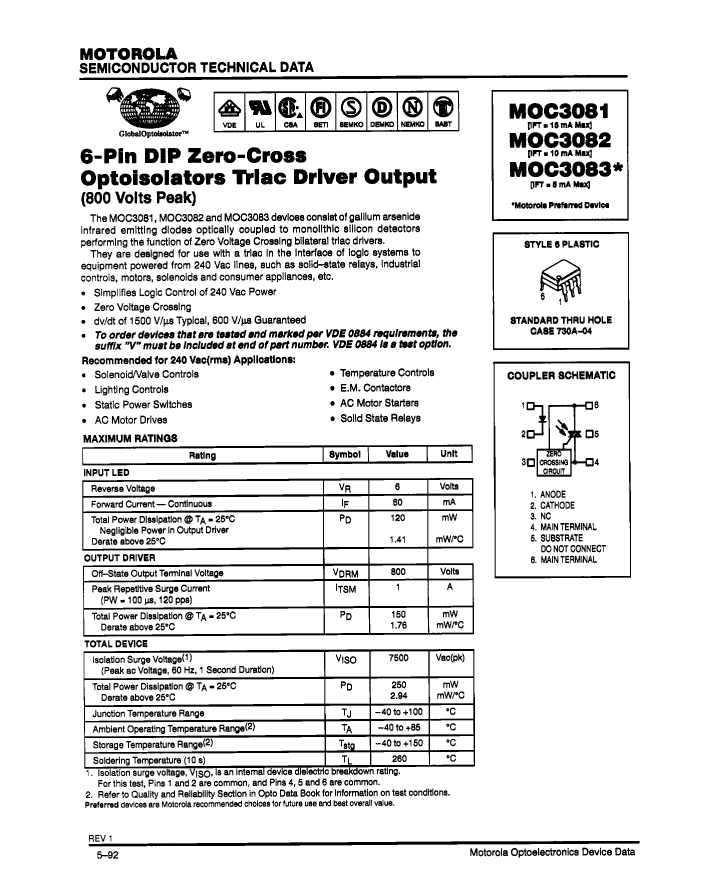

MOC3081S datasheet, PDF - EEWORLD Datasheet

MOC3081S: DescriptionTriac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size131KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

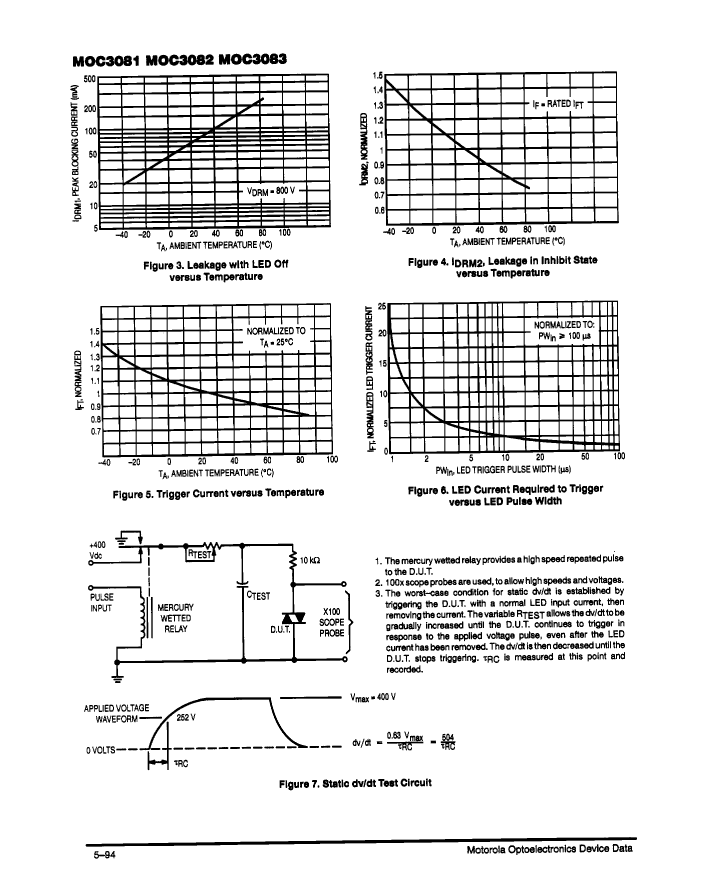

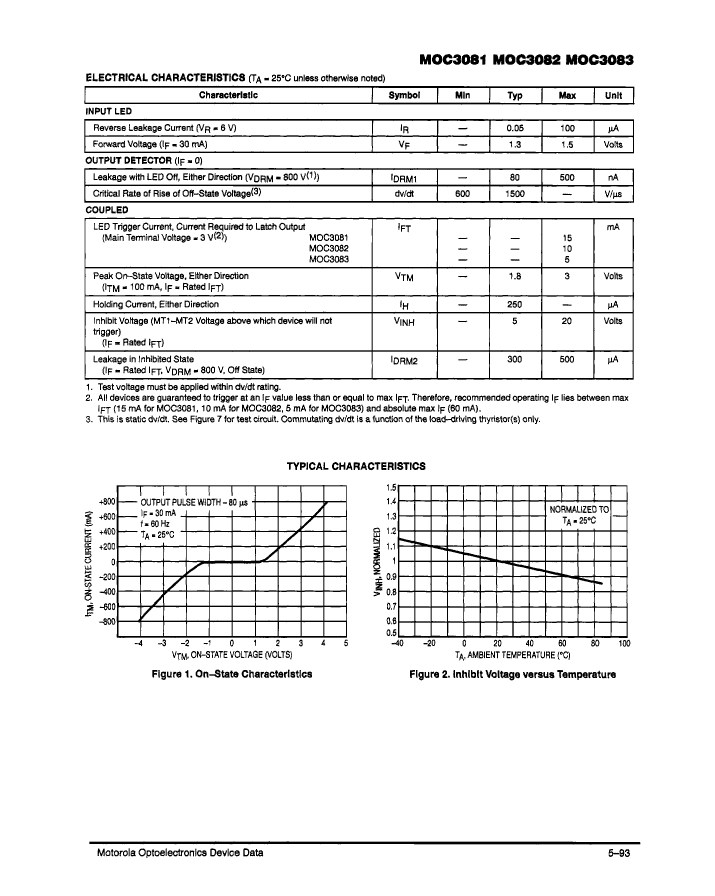

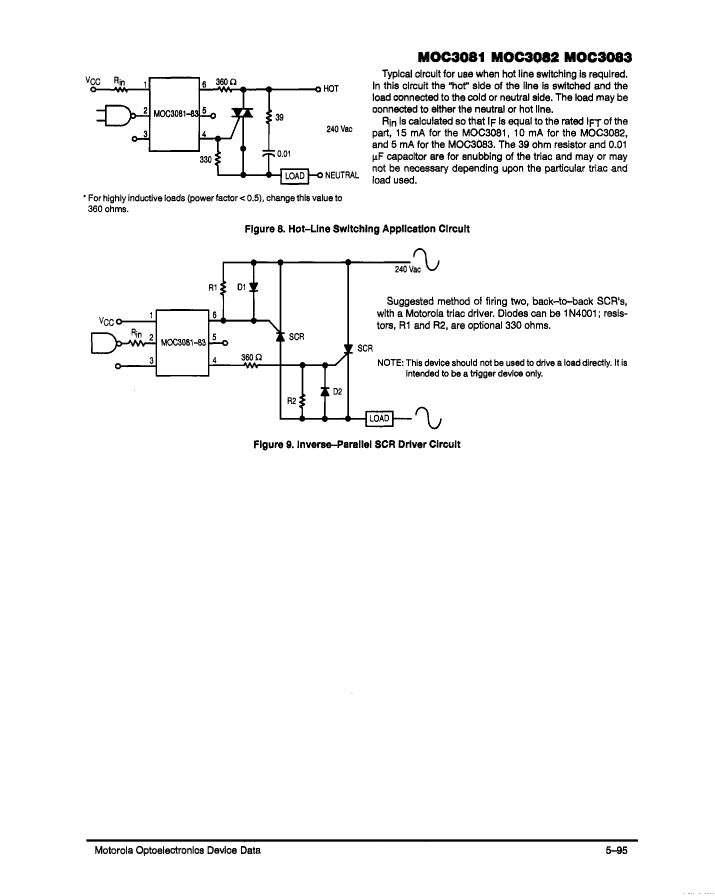

MOC3081S Overview

Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, PLASTIC, DIP-6

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	PLASTIC, DIP-6
Reach Compliance Code	unknow
Other features	UL RECOGNIZED, LOGIC COMPATIBLE
Configuration	SINGLE
Maximum forward current	0.06 A
Maximum input trigger current	0.015 A
Nominal input trigger current	15 mA
Maximum insulation voltage	7500 V
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of components	1
Maximum on-state current	0.1 A
Maximum on-state voltage	3 V
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Minimum off-state peak voltage	800 V
Peak surge current	1 A
Off-state repetitive peak voltage	800 V
Maximum reverse leakage current	0.0001 A
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
