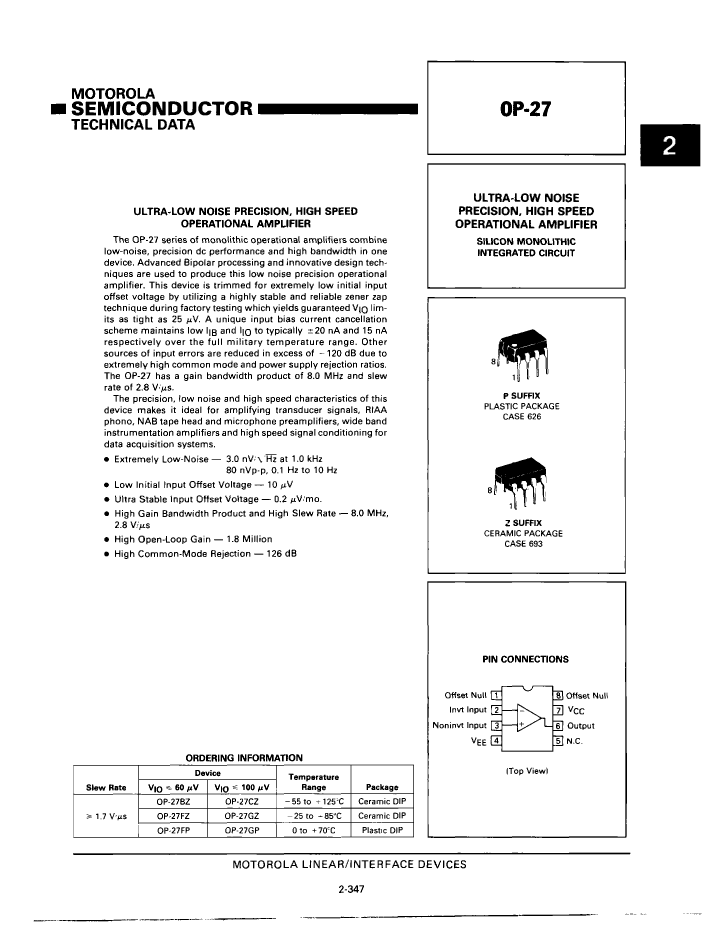

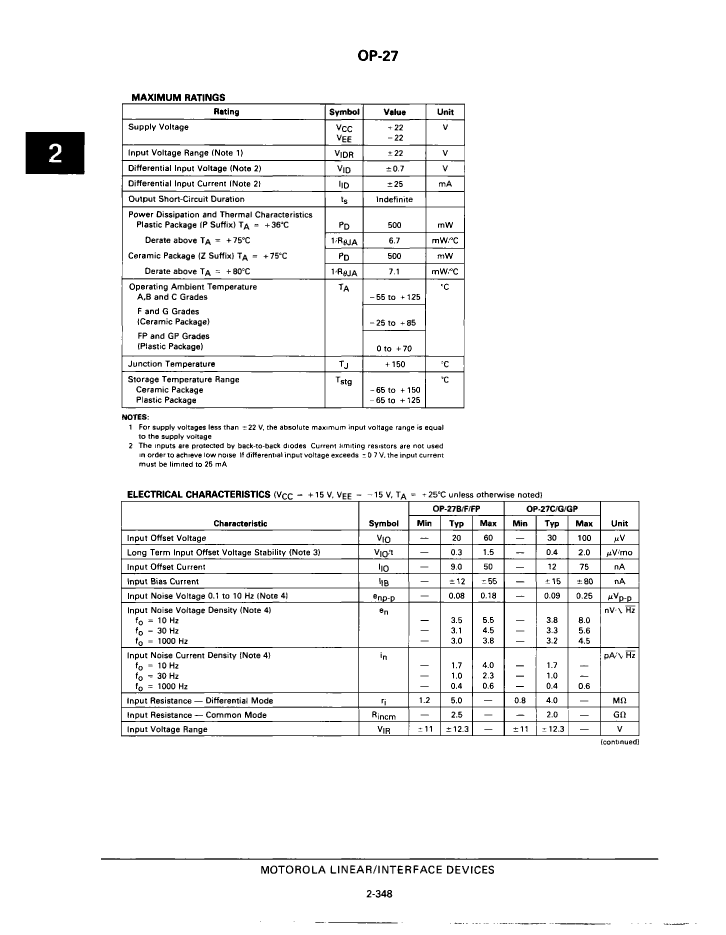

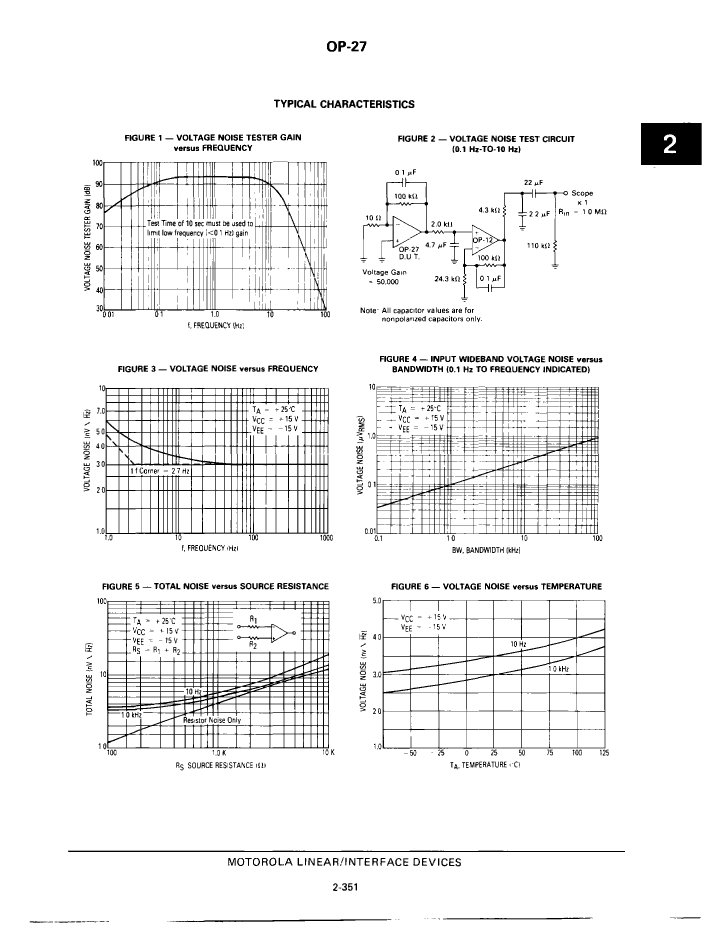

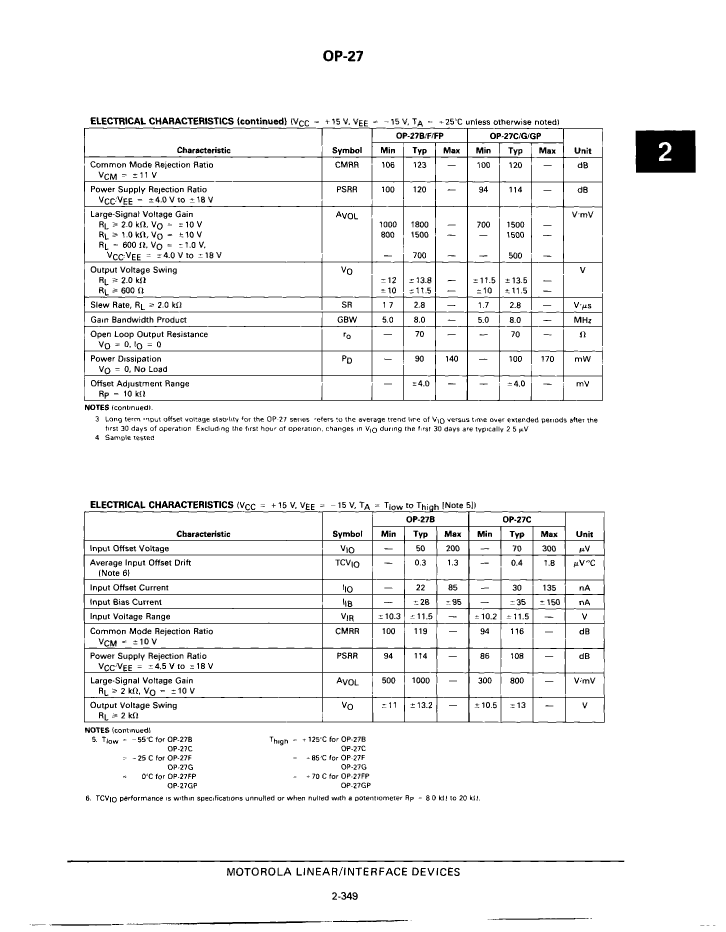

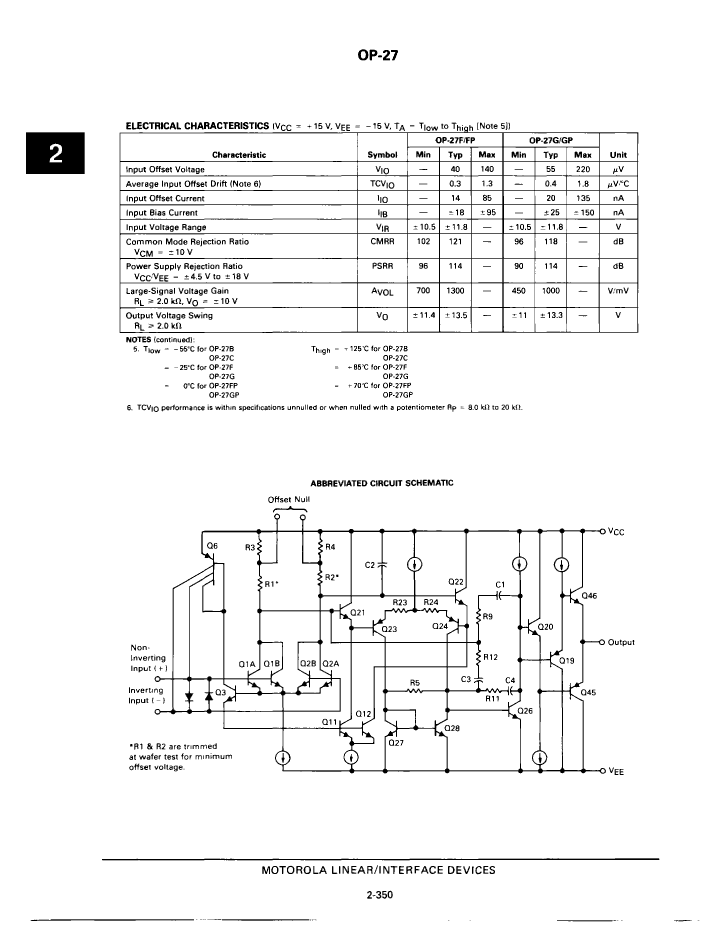

OP-AMP, 220uV OFFSET-MAX, 8MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8
| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 8 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.15 µA |
| Nominal Common Mode Rejection Ratio | 118 dB |
| Maximum input offset voltage | 220 µV |
| JESD-30 code | R-PDIP-T8 |
| length | 9.78 mm |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 4.45 mm |
| Nominal slew rate | 2.8 V/us |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 8000 kHz |
| width | 7.62 mm |
| OP-27GP | OP-27BZ | OP-27CZ | OP-27FZ | OP-27GZ | |
|---|---|---|---|---|---|
| Description | OP-AMP, 220uV OFFSET-MAX, 8MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8 | OP-AMP, 200uV OFFSET-MAX, 8MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8 | OP-AMP, 300uV OFFSET-MAX, 8MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8 | OP-AMP, 140uV OFFSET-MAX, 8MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8 | OP-AMP, 220uV OFFSET-MAX, 8MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP |
| package instruction | DIP, | DIP, | DIP, | DIP, | DIP, |
| Contacts | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | unknow | unknown | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.15 µA | 0.095 µA | 0.15 µA | 0.095 µA | 0.15 µA |
| Nominal Common Mode Rejection Ratio | 118 dB | 119 dB | 116 dB | 121 dB | 118 dB |
| Maximum input offset voltage | 220 µV | 200 µV | 300 µV | 140 µV | 220 µV |
| JESD-30 code | R-PDIP-T8 | R-CDIP-T8 | R-CDIP-T8 | R-CDIP-T8 | R-CDIP-T8 |
| length | 9.78 mm | 10.415 mm | 10.415 mm | 10.415 mm | 10.415 mm |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 125 °C | 125 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | -25 °C | -25 °C |
| Package body material | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.45 mm | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm |
| Nominal slew rate | 2.8 V/us | 2.8 V/us | 2.8 V/us | 2.8 V/us | 2.8 V/us |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | MILITARY | MILITARY | OTHER | OTHER |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 8000 kHz | 8000 kHz | 8000 kHz | 8000 kHz | 8000 kHz |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm |
