87715-3102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87715-3102

87715-3102: Description64 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER; CategoryThe connector The connector; File Size550KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87715-3102 Overview

64 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER

87715-3102 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	compliant
Other features	PANEL MOUNTABLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	87715
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

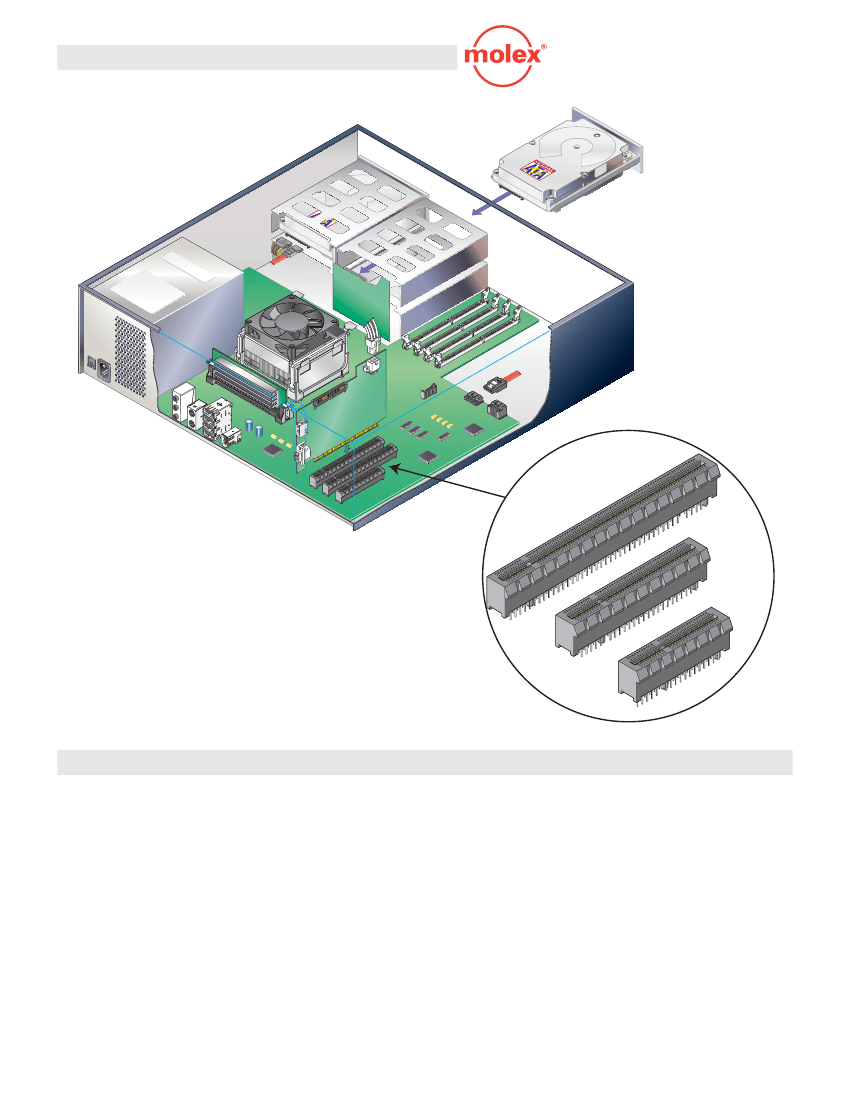

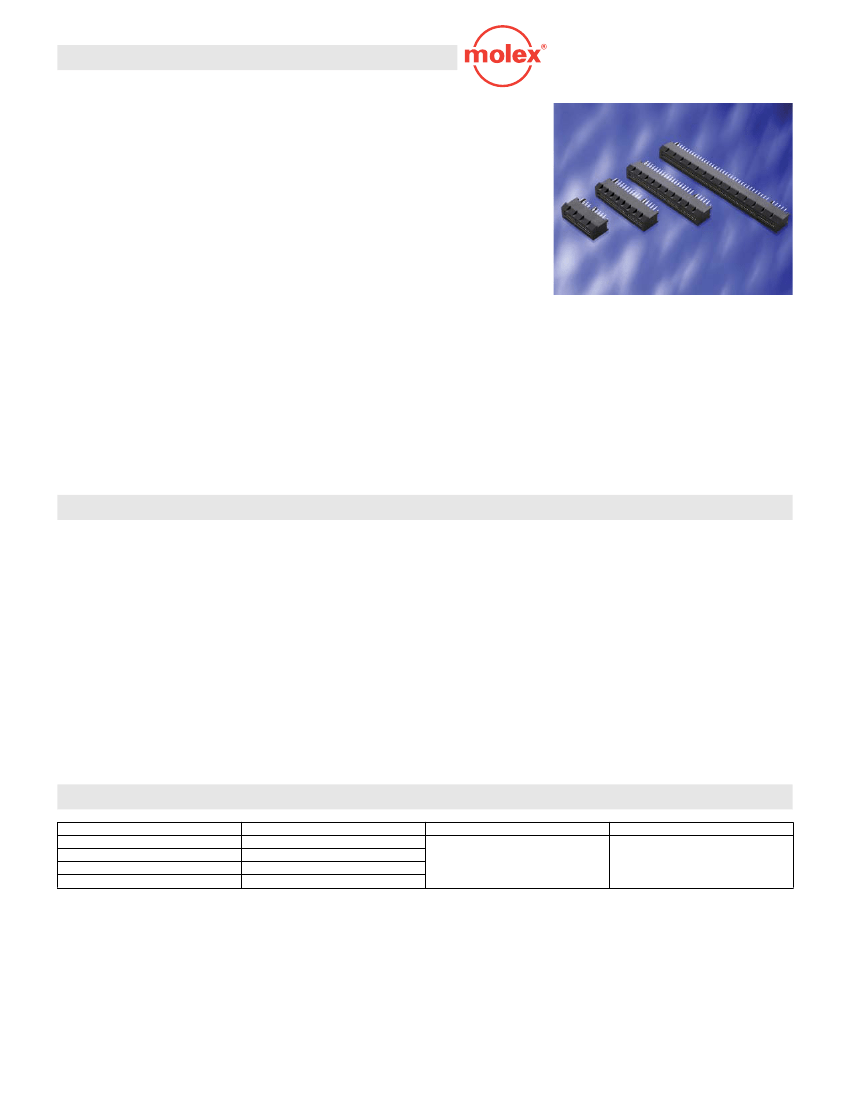

PCI Express*

PCI Express increases signaling speed and bandwidth of the PCI interface for today’s

desktop and server applications.

PCI Express is a third generation I/O architecture. PCI-SIG recently released the PCI Express

speciﬁcation to move the PCI interface to faster signaling speeds and provide greater bandwidth. PCI

Express incorporates point-to-point signaling using low voltage differential pairs operating at 2.5

Gbps each direction. This version of PCI Express is expected to be used in desktop PCs, workstations

and servers.

PCI Express provides scaleable bandwidth. A 1-lane (1X) connector can support many of the

conventional PCI functions found in client systems, while a 16-lane (16X) connector provides the

bandwidth needed for supporting graphics processing, InﬁniBand† and 10G Fibre Channel.

Features and Beneﬁts

■

Complies with the PCI-SIG speciﬁcation for

seamless desktop PCI Express

implementation

■

Supports 2.5 Gbps data transfer for faster

signaling

■

Scaleable design maximizes card

interoperability, allowing customers to plug

add-in cards of smaller or equal bandwidth

into the edgecard connector

■

Enable hotswap add-in cards for plug-and-

play applications

Simple through hole layout for easy PCB

processing

SPECIFICATIONS

Reference Information

Product Specification: PS-87715-200

Packaging: Tray

Use with: PCI Express add-in cards

Designed in: Millimeters

Electrical

Voltage: 50V AC (RMS)/DC

Current: 1.1A per pin

Contact Resistance: Initial - 30 milliohms max.

Change over life - 10 milliohms max.

Dielectric Withstanding Voltage: 500V DC

Insulation Resistance: 1000 Megohms min.

Mechanical

Card Insertion Force: 1.15N max. per contact pair

Card Withdrawal Force: 0.15N min. per contact pair

Contact Retention to Housing: 5N min.

Durability: 50 cycles

Physical

Housing: Nylon, UL 94V-O, various colors

Contact: Phosphor Bronze

Plating: Contact Area - Gold Flash, 15µ" or 30µ" Gold

PC Tail Area - Tin Lead

Resistance to Solder Heats: Connector on applicable PCB

can float on molten solder at +260°C for ten

seconds

Operating Temperature: +15 to +85° C

ORDERING INFORMATION

Order No.

Description

PC Tail

Plating

87715-3002

87715-3102

87715-3202

87715-3302

* PCI Express is a trademark of PCI-SIG

†InﬁniBand is a trademark of the InﬁnBand (TM) Trade Association

1-lane PCI Express Edgecard

4-lane PCI Express Edgecard

8-lane PCI Express Edgecard

16-lane PCI Express Edgecard

2.54mm (.100")

15µ" Gold

87715-3102 Related Products

	87715-3102	87715-3002	87715-3202	87715-3302
Description	64 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	36 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	98 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	164 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER
Is it Rohs certified?	incompatible	incompatible	conform to	conform to
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	compli	unknown	unknown
Other features	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)	GOLD (15) OVER NICKEL (50)	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	87715	87715	87715	87715
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	64	36	98	164
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	-	1	1
