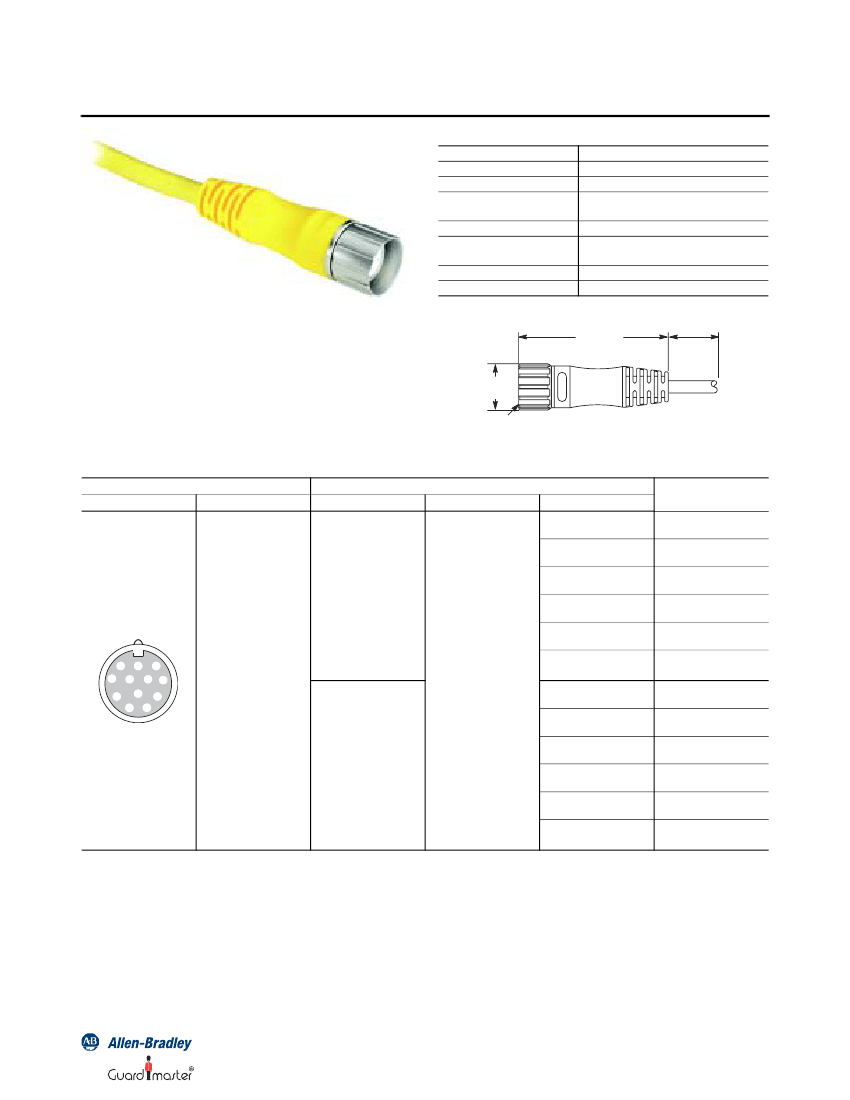

M23 Style, 12-Pin Cordset
Specifications
Coupling Nut
Connector
Contacts
Cable
Cable Approvals
Cable O.D.
Enclosure Rating
Temperature
Nickel–plated brass
Molded oil–resistant PUR
Gold–plated palladium/nickel
Oil resistant yellow PVC jacket, 18AWG
conductors, 60V
UL recognized and CSA certified
9/c: 9.3mm (0.37)
12/c: 10mm (0.41in)
IP67, NEMA 6P
-20°C to +80°C (-4°F to +176°F)
Approximate Dimensions—mm (inches)
Features
• 12-pin configuration for SafeShield light curtains and other
applications
• 12 conductor and 9 conductor versions
• Highly visible yellow PVC jacket offers good oil and chemical
resistance
26.2
(1.03) Dia.
M23 x 1
Internal Threads
Dimensions are approximate. Illustrations are not drawn to scale.
Cable
Wire Colour
1 Brown
2 Blue
3 Grey
4 Pink
5 Red
6 Yellow
7 White
8 Red/Blue
9 Black
10 Violet
11 Grey/Pink
12 Green
1 Brown
2 NA
3 Blue
4 White
5 NA
6 Green
7 Yellow
8 Grey
9 Pink
10 Red
11 NA
12 Green/Yellow
Wire Rating
Length—m (ft)
2 (6.5)
5 (16.4)
10 (32.8)
15 (49.2)
20 (65.6)
18AWG
60V
4A
30 (98.4)
2 (6.5)
5 (16.4)
10 (32.8)
15 (49.2)
20 (65.6)
30 (98.4)
Catalogue Number
889M-F12AH-2
889M-F12AH-5
889M-F12AH-10
889M-F12AH-15
889M-F12AH-20
889M-F12AH-30
889M-F12X9AE-2
889M-F12X9AE-5
889M-F12X9AE-10
889M-F12X9AE-15
889M-F12X9AE-20
889M-F12X9AE-30
85 (3.35)
Length
Product Selection
Female Connector
Face View of Female
Connector Style
1
2
3
4
10
9
11
5
8
12 7
6
Straight
15-13
