JWM22BCA-A

Description
High Inrush 10 & 16 AMP Rocker; Status: Active; Poles: DPDT; Circuits: On-On; Current Rating: 10A (AC); Rating (AC): 125V; Actuator Type: Concave (Curved); Actuator Cap Color: Red; Actuator Marking: No Marking; Mounting Type: Panel Mount, Snap-In; Termination Style: Solder, Quick Connect - 0.110\" (2.8mm); ingress protection: Dust Proof; Features: Epoxy Sealed Terminals; panel cutout dimensions: Rectangular - 24.00mm x 15.40mm; Rating: 10; Illumination: Non-Illuminated
CategoryMechanical and electronic products    switch
File Size815KB,9 Pages
ManufacturerNDK
Websitehttp://www.ndk.com/en/
Environmental Compliance
Download Datasheet Parametric View All

JWM22BCA-A Online Shopping

Suppliers Part Number Price MOQ In stock
JWM22BCA-A - - View Buy Now

JWM22BCA-A Overview

High Inrush 10 & 16 AMP Rocker; Status: Active; Poles: DPDT; Circuits: On-On; Current Rating: 10A (AC); Rating (AC): 125V; Actuator Type: Concave (Curved); Actuator Cap Color: Red; Actuator Marking: No Marking; Mounting Type: Panel Mount, Snap-In; Termination Style: Solder, Quick Connect - 0.110\" (2.8mm); ingress protection: Dust Proof; Features: Epoxy Sealed Terminals; panel cutout dimensions: Rectangular - 24.00mm x 15.40mm; Rating: 10; Illumination: Non-Illuminated

JWM22BCA-A Parametric

Parameter NameAttribute value
Brand NameNKK Switches
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNDK
Reach Compliance Codecompli
ECCN codeEAR99
Actuator angle26 deg
Actuator length0.283 inch
Actuator typeROCKER
Other featuresTV5 RATING
body width15.3924 mm
Body colorBLACK
body height33.5788 mm
Body length or diameter22.606 mm
center contact materialSILVER ALLOY
Center contact platingSILVER
Contact (AC) maximum rated R load10A@250VAC
Maximum contact current (AC)10 A
Contact functionON-ON
Contact resistance0.01 mΩ
Maximum contact voltage (AC)250 V
Dielectric withstand voltage2000VAC V
Electrical life25000 Cycle(s)
End contact materialSILVER ALLOY
End contact platingSILVER
Shell materialPOLYAMIDE
Insulation resistance1000000000 Ω
JESD-609 codee4
Manufacturer's serial numberJW
Installation featuresPANEL MOUNT
Maximum operating temperature70 °C
Minimum operating temperature-25 °C
sealEPOXY
SolderabilityHAND
surface mountNO
Switch actionHORIZONTAL
switch functionDPDT
Switch typeROCKER SWITCH
Terminal surfaceSilver (Ag)
Terminal length0.295 inch
Terminal materialBRASS
Termination typeSOLDER LUG
Series JW
Toggles

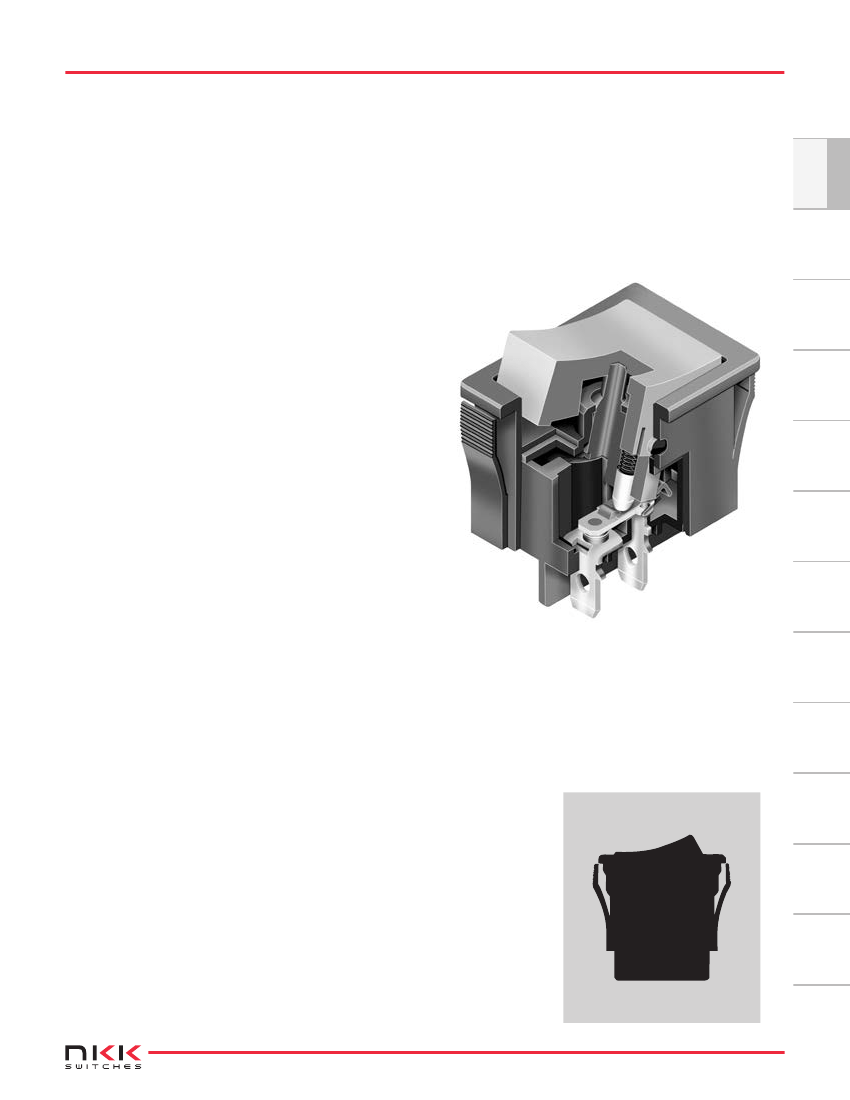

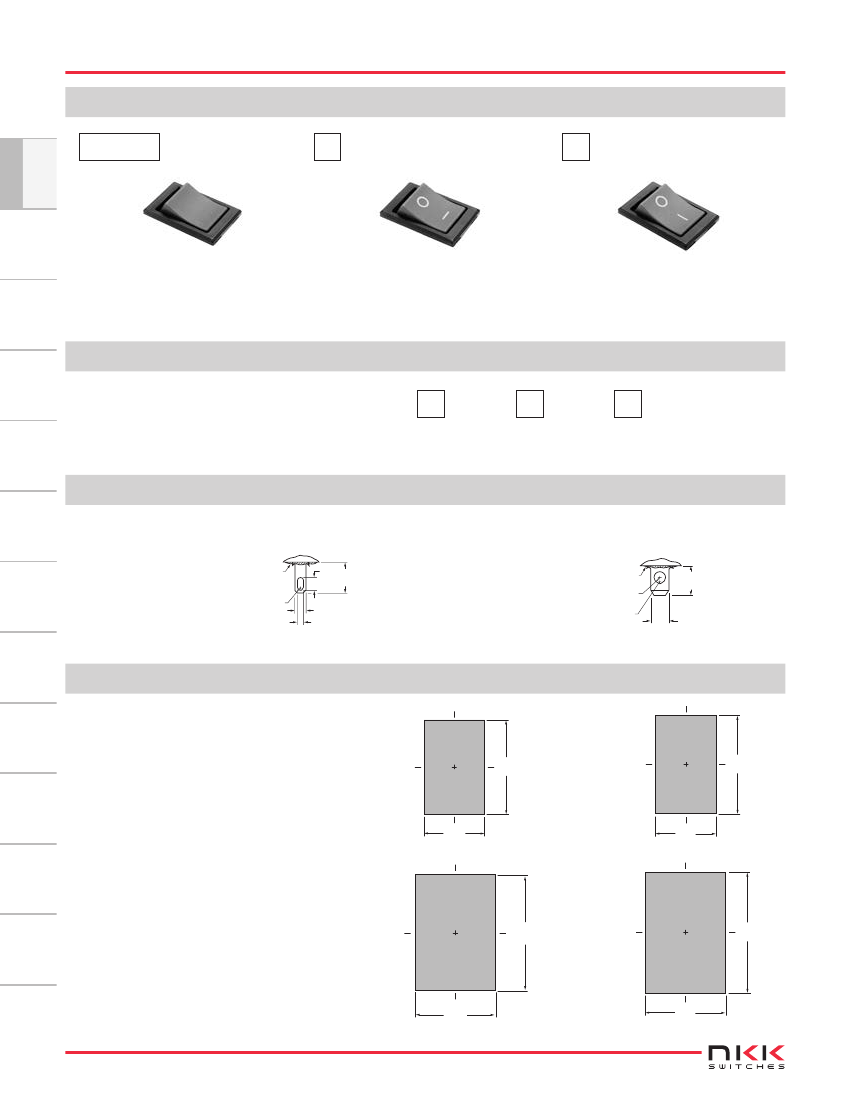

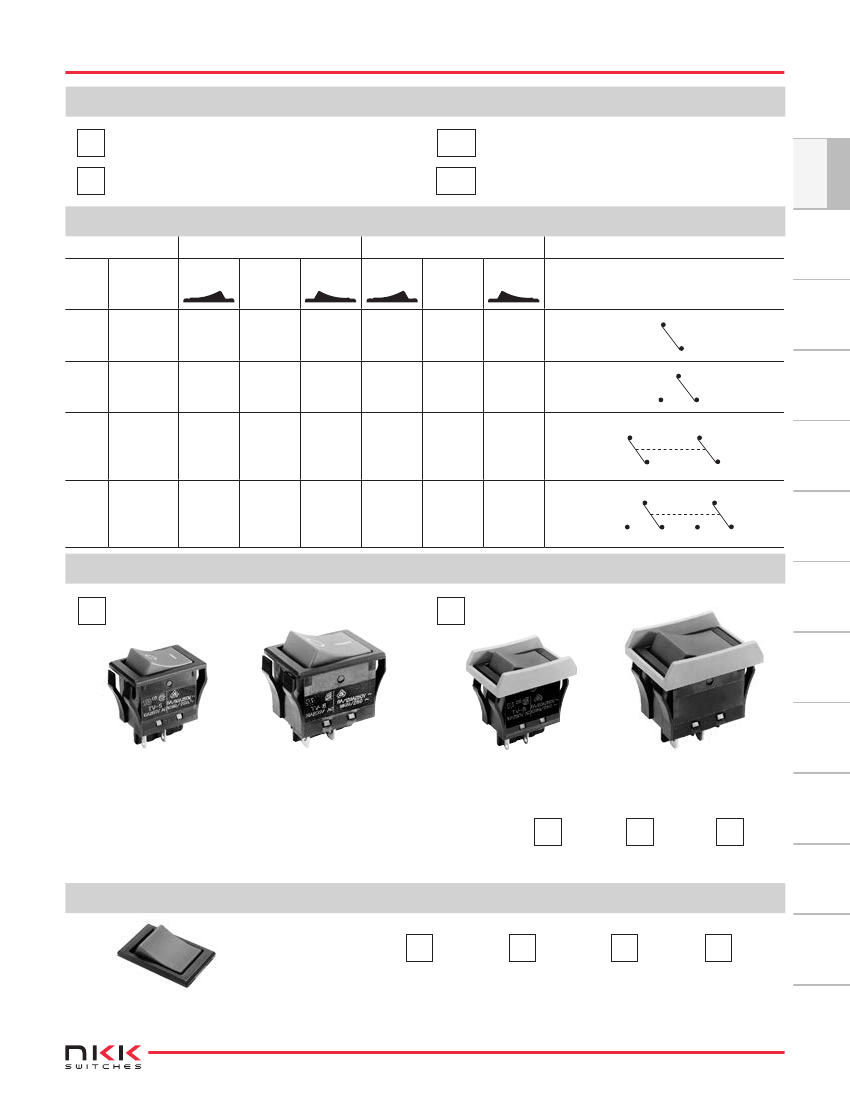

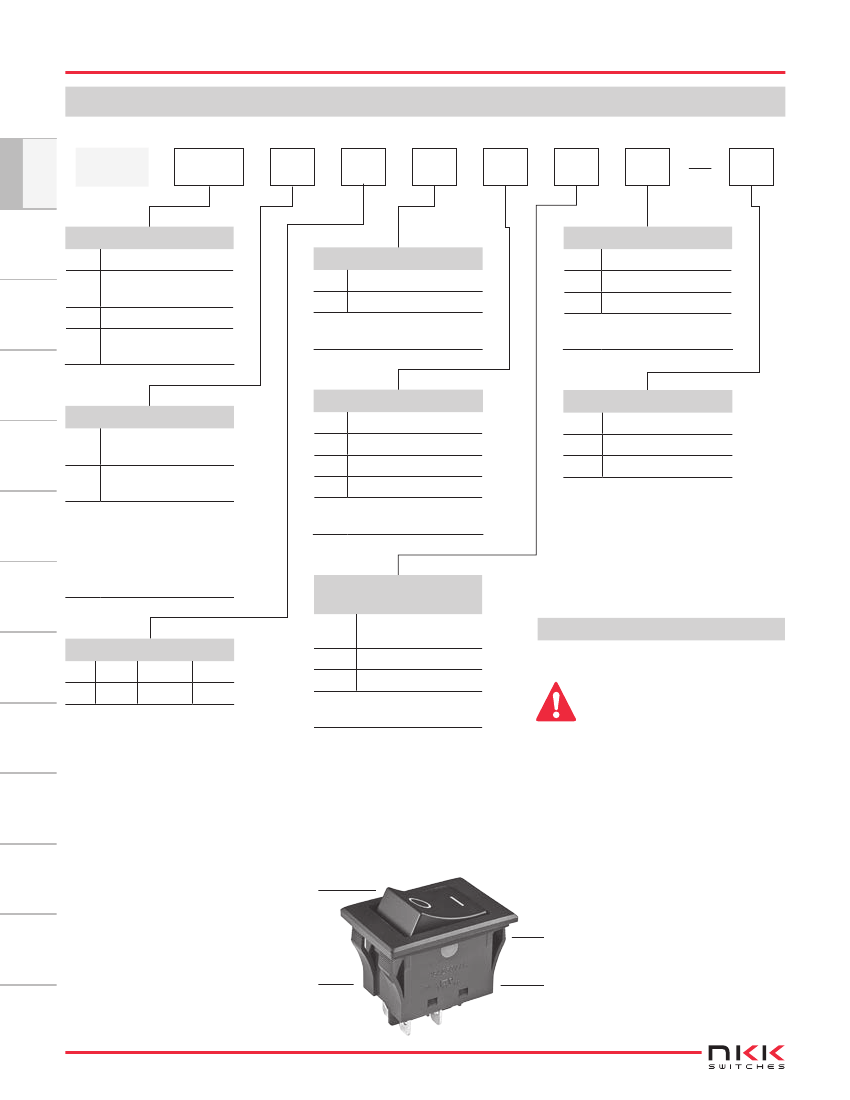

High Inrush 10 & 16 Amp Rockers
General
Specifications
B
Electrical Capacity (Resistive Load)
Power Level:
10A
@ 125/250V AC for JWM & JWMW models; 10A @ 30V DC for JWMW;
16A @ 125/250V AC for JWL & JWLW models; 5A @ 72V DC for telecommunication applications
10 milliohms maximum for JWM & JWMW; 20 milliohms maximum for JWL & JWLW
1,000 megohms minimum @ 500V DC
2,000V AC minimum between contacts for 1 minute minimum;
4,000V AC minimum between contacts & case for 1 minute minimum
25,000 operations minimum
25,000 operations minimum
JWM & JWMW Single Pole 3.92N & Double Pole 7.84N
JWL Single Pole 5.00N & Double Pole 10.00N; JWLW Double Pole 10.00N
26°
Polyphenylene ether (UL94V-0)
Polyamide (UL94V-0)
Polyphenylene sulfide (UL94V-0)
Melamine (UL94V-0)
Contacts:
JWM & JWMW: Silver alloy with silver plating
JWL & JWLW: Silver alloy plus copper with
silver plating
Brass with silver plating
Rockers
Other Ratings
Pushbuttons
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Programmable Illuminated PB
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Angle of Throw:
Materials & Finishes
Keylocks
Rocker:
Housing/Frame & Barrier:
Interior Seal for JWM & JWL:
Case/Base:
Operating Temperature Range:
Humidity:
Vibration:
Shock:
Sealing:
Terminals:
Environmental Data
–25°C through +70°C (–13°F through +158°F) for JWM & JWL;
–25°C through +85°C (–13°F through +185°F) for panel seal JWMW & JWLW models
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
IP67 of IEC60529 standard for panel seal JWMW & JWLW models; dust resistant inner seal for others
Manual Soldering: See Profile A in Supplement section.
UL94V-0 for rocker, housing, seal & case/base of JWL, JWM, JWMW & JWLW models
JWM (TV-5) Overload Test @ 120V AC for 50 operations:
Steady State Current (rms) 7.5A; Minimum Inrush Current (peak) 111A.
JWM (TV-5) Endurance Test @ 120V AC for 25,000 operations:
Steady State Current (rms) 5A; Minimum Inrush Current (peak) 78A.
JWL (TV-8) Overload Test @ 120V AC for 50 operations:
Steady State Current (rms) 12A; Minimum Inrush Current (peak) 163A.
JWL (TV-8) Endurance Test @ 120V AC for 25,000 operations:
Steady State Current (rms) 8A; Minimum Inrush Current (peak) 117A.
File No. E44145
JWM & JWMW models recognized at 10A @ 250V AC.
JWMW recognized at 10A @ 30V DC.
JWL & JWLW models recognized at 16A @ 250V AC; JWL at 5A @ 72V DC.
Models below recognized only when ordered with marking on switch.
JWMW: add “/U” to end of part number to order UL mark on switch; add “/CUL” to end of part
number to order cULus mark on switch.
JWL: add “/U-DC” to end of part number to request UL rating on DC rated switch.
Rotaries
Slides
Installation
Soldering Time & Temperature:
Flammability Standards:
TV Ratings for UL & CSA:
Standards & Certifications
Tactiles
Tilt
Indicators
Touch
UL:
Accessories
CSA:
VDE:
Supplement
File No. 023535_0_000
JWM & JWMW models certified at 10A @ 250V AC; JWL models certified at 16A @ 250V AC
License No. 115674
JWM models approved at steady state 5A, inrush 80A, resistive 10A, & motor load 6A all at
250V AC; JWL models approved at steady state inrush 128A, resistive 16A, & motor load 8A
all at 250V AC.
Note: JWM & JWL Double Pole, Single Throw models approved only with the international
ON-OFF symbols on the actuator.
www.nkkswitches.com
8/3/17
B40
