890-009-15PA1-BRT2J datasheet, PDF

890-008 and -009

Series 89 Nanominiature Connectors

Single Row Right Angle Printed Circuit Board

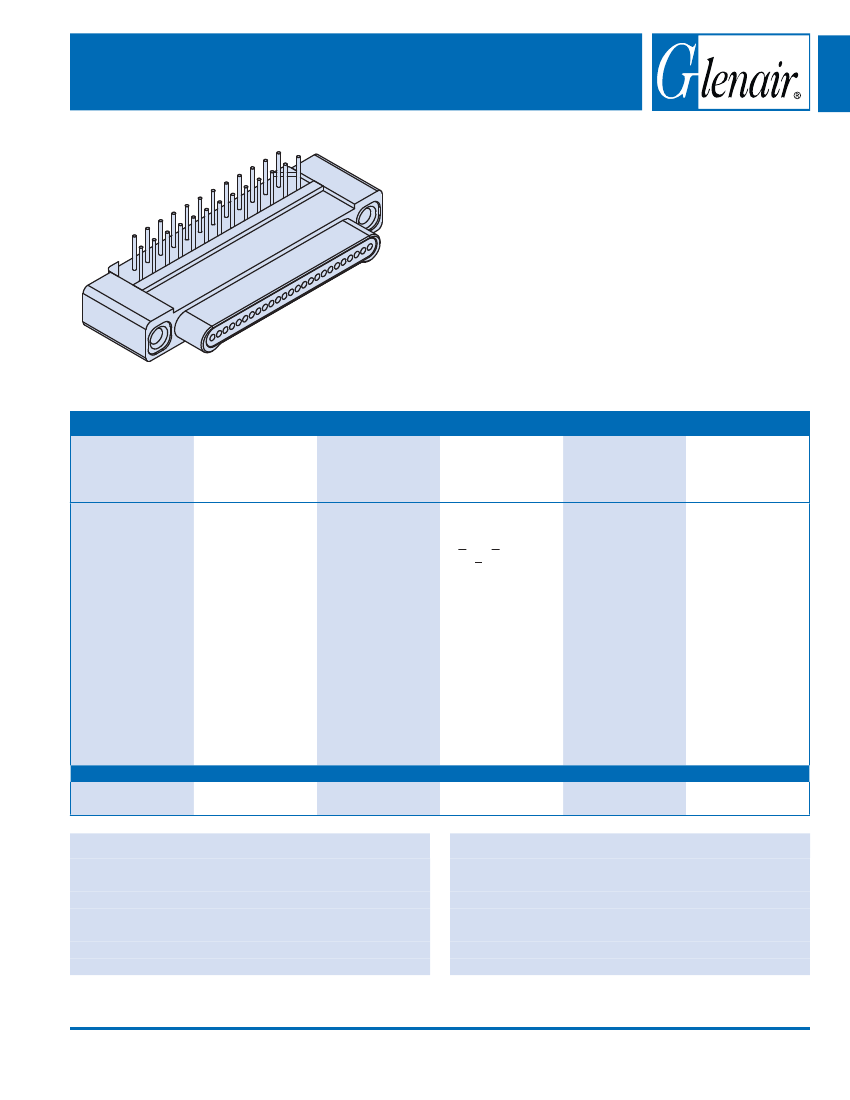

Right Angle Thru Hole PCB Nano Connectors

feature

gold alloy TwistPin contacts. These nanomimiature

connectors offer premium performance and reliability

for demanding applications. Available with #0-80 female

threads, or with jackscrews for use with ﬂexible circuits.

Pre-Tinned PC Tails

are coated with Sn63Pb37 tin-lead

for excellent solderability.

Choose Aluminum, Titanium or Stainless Steel Shells

in seven layouts from 9 to 51 contacts. Complies to the

requirements of MIL-DTL-32139. These connectors are

intermateable with any corresponding Glenair Series 890

single row metal shell nanominiature connector.

HOW TO ORDER RIGHT ANGLE PCB CONNECTORS

Series

Insert

Arrangement/

Contact Type

Plugs (890-008)

Shell Material

and Finish

Termination Type

PC Tail Length

Hardware

890-008

Plug, Pin Contacts,

Single Row, Right

Angle Thru-Hole PCB

Nanominiature

9P

15P

21P

25P

31P

37P

51P

Receptacles (890-009)

A1

Aluminum Shell,

Cadmium Plating

BRT

”Board

Right

Angle

Thru-Hole”

1

.110 Inch (2.79 mm)

J

Jackscrew, #0-80

T

2

.172 Inch (4.37 mm)

#0-80

Female Thread

A2

Aluminum Shell,

Electroless Nickel

Plating

890-009

Receptacle, Socket

Contacts, Single Row,

Right Angle Thru-Hole

PCB Nanominiature

9S

15S

21S

25S

31S

37S

51S

T

Titanium Shell,

Unplated

S

Stainless Steel Shell,

Passivated

Sample Part Number

890-008

– 51P

A2

– BRT

1

T

MATERIALS AND FINISHES

Connector Shell

Insulator

Contacts

Hardware

PC Tails

PCB Trays

Encapsulant

See Ordering Information

Liquid Crystal Polymer (LCP),30% Glass-Filled

Gold Alloy, Unplated

300 Series Stainless Steel

#30 (.010 Dia.) Copper Wire, Solder Dipped

Liquid Crystal Polymer (LCP) or Epoxy

Epoxy

SPECIFICATIONS

Durability

Current Rating

Voltage Rating (DWV)

Insulation Resistance

Operating Temperature

Contact Resistance

Thermal Vacuum Outgassing

200 Cycles Minimum

1 AMP Maximum

300 VAC RMS Sea Level

5000 Megohms Minimum

-55° C. to +125° C.

71 mV. @1 AMP #30 AWG Wire

1.0% Max TML, 0.1% Max. VCM

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

23

E-Mail: sales@glenair.com

Single Row

Connectors

890-008 and -009

Series 89 Nanominiature Connectors

Single Row Right Angle Printed Circuit Board

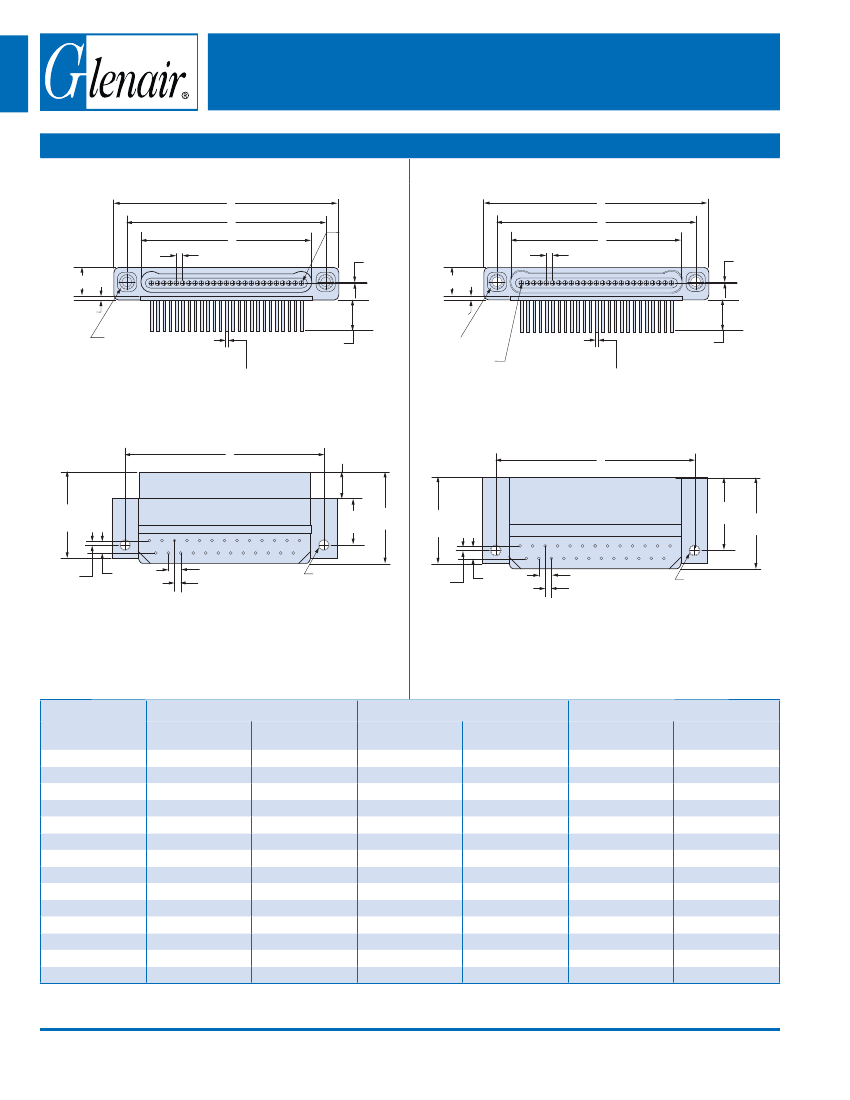

SINGLE ROW NANO RIGHT ANGLE PCB DIMENSIONS

Plug (Pin) Connectors

A

B

C

.025 (0.64) TYP

.115 (2.92)

.015 (0.38)

#0-80 UNF-2B, 2X

LEAD LENGTH

± .015 (0.38)

.010 (0.25)

PIN 1

.005

(0.13)

.115 (2.92)

.015 (0.38)

#0-80 UNF-2B, 2

SOCKET #1

Single Row

Connectors

B

.345

(8.76)

.018

(0.46)

.050

(1.27)

.050 (1.27)

.025 (0.64)

Receptacle (Socket) Connectors

A

B

C

.025 (0.64) TYP

.005

(0.13)

X

LEAD LENGTH

± .015 (0.38)

.010 (0.25)

.108 / .102

2.74 / 2.59

B

.187 .365

(4.75) (9.27)

.344

(8.74)

.292

(7.42) .365

(9.27)

#0-80 UNF-2B, 2X

.018

(0.46)

.050

(1.27)

.050 (1.27)

.025 (0.64)

#0-80 UNF-2B, 2X

A

Layout

In. ± .005

9P

9S

15P

15S

21P

21S

25P

25S

31P

31S

37P

37S

51P

51S

.500

.650

.800

.900

1.050

1.200

1.550

B BSC.

mm. ± 0.13

12.70

16.51

20.32

22.86

26.67

30.48

39.37

C BSC.

mm.

10.03

13.84

17.65

20.19

24.00

27.81

36.70

In.

.395

.545

.695

.795

.945

1.095

1.445

In.

.284

.285

.434

.435

.584

.585

.684

.685

.834

.835

.984

.985

1.334

1.335

mm.

7.21

7.24

11.02

11.05

14.83

14.86

17.37

17.40

21.18

21.21

24.99

24.02

33.88

33.91

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

24

E-Mail: sales@glenair.com

890-008 and -009

Series 89 Nanominiature Connectors

Single Row Right Angle Printed Circuit Board

Patterns shown are for connector mounting side of PC Board.

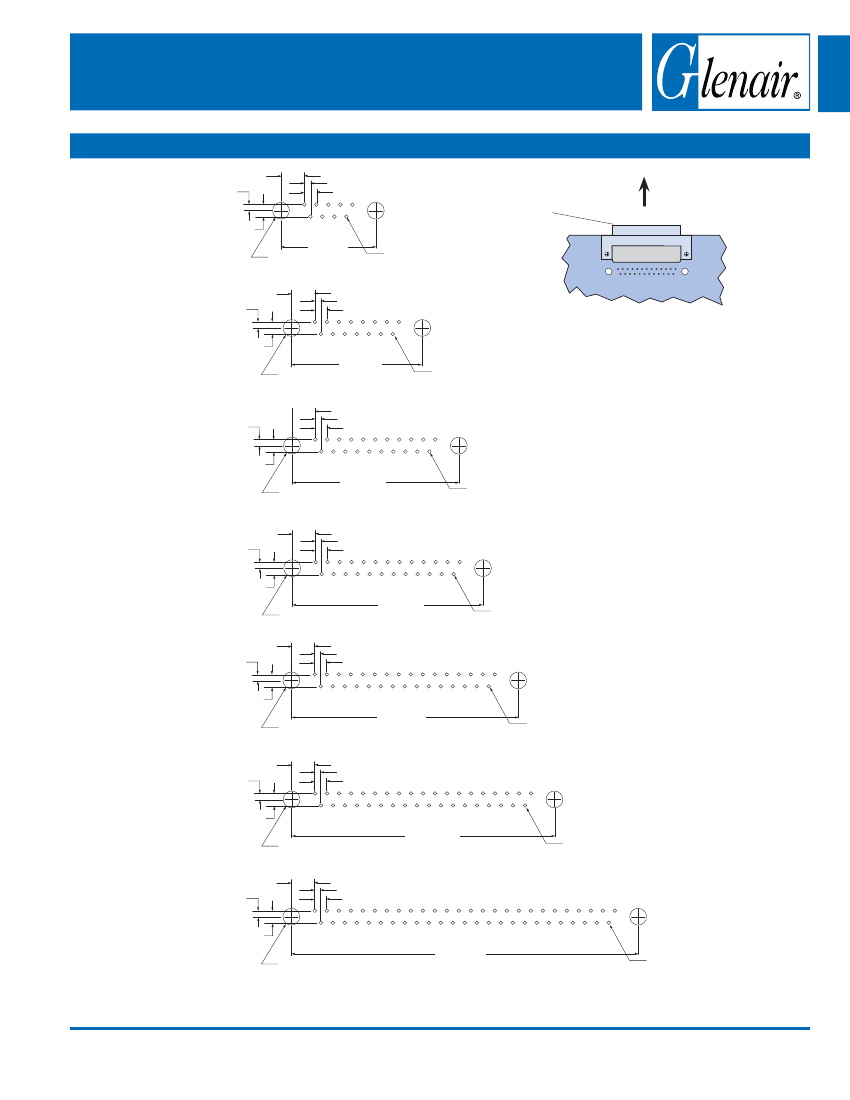

RIGHT ANGLE PCB PLUG (PIN) CONNECTOR LAYOUT 890-008

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

1

3

2

4

5

6

7

8

9

9 Contacts

Pin #1

Connector Mating Face

.050 (1.27) TYP

.395(10.03)

.070 (1.78) 2 PLCS

.013/.016

(0.33/0.41) TYP

1

2

3

4

5

6

7

8

9

11 13 15 17 19 21

23 25

10 12 14 16 18 20 22 24

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

1

3

2

4

5

6

7

8

9

11 13 15

10 12 14

15

Contacts

Component Mounting Side of PCB

(25P actual size)

.013/.016

(0.33/0.41) TYP

.050 (1.27) TYP

.545(13.84)

.070 (1.78) 2 PLCS

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

1

3

2

4

5

6

7

8

9

.018 (0.46) TYP

21 Contacts

11 13 15 17 19 21

10 12 14 16 18 20

.050 (1.27) TYP

.695 (17.65)

.070 (1.78) 2 PLCS

.013/.016

(0.33/0.41) TYP

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

1

3

2

4

5

6

7

8

9

11 13 15 17 19 21

23 25

10 12 14 16 18 20 22 24

25 Contacts

.050 (1.27) TYP

.070 (1.78) 2 PLCS

.795 (20.19)

.013/.016

(0.33/0.41) TYP

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

1

3

2

4

5

6

7

8

9

11 13 15 17 19 21

23 25 27 29 31

10 12 14 16 18 20 22 24 26 28 30

31 Contacts

.050 (1.27) TYP

.070 (1.78) 2 PLCS

.945 (24.00)

.013/.016

(0.33/0.41) TYP

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

1

3

2

4

5

6

7

8

9

11 13 15 17 19 21

23 25 27 29 31 33 35 37

32 34 36

10 12 14 16 18 20 22 24 26 28 30

37 Contacts

.050 (1.27) TYP

.070 (1.78) 2 PLCS

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

1

3

2

4

5

6

7

8

9

1.095 (27.81)

.013/.016

(0.33/0.41) TYP

.018 (0.46) TYP

51 Contacts

11 13 15 17 19 21

23 25 27 29 31 33 35 37 39 41 43 45 47 49 51

32 34 36 38 40 42 44 46 48 50

.050 (1.27) TYP

10 12 14 16 18 20 22 24 26 28 30

.070 (1.78) 2 PLCS

1.445 (36.71)

.013/.016

(0.33/0.41) TYP

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

25

E-Mail: sales@glenair.com

Single Row

Connectors

890-008 and -009

Series 89 Nanominiature Connectors

Single Row Right Angle Printed Circuit Board

Patterns shown are for connector mounting side of PC Board.

Single Row

Connectors

.018 (0.46) TYP

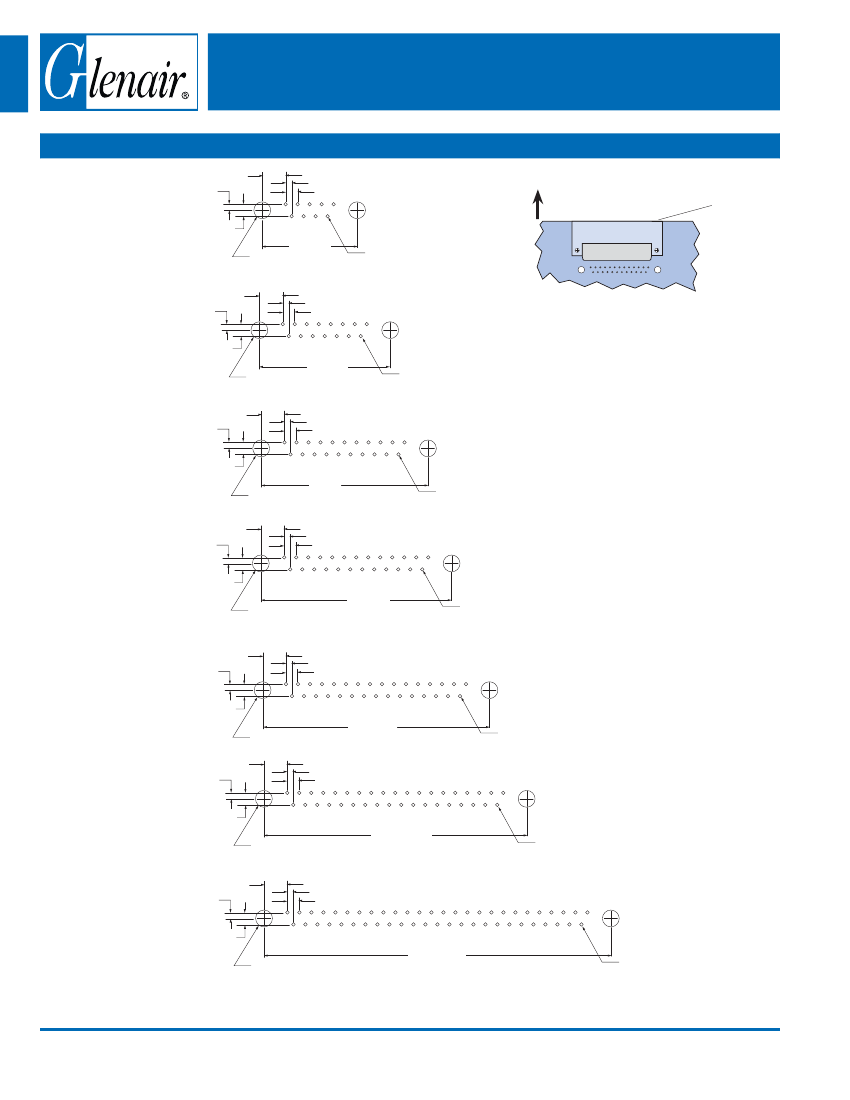

RIGHT ANGLE PCB RECEPTACLE (SOCKET) CONNECTOR LAYOUT 890-009

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

9 7 5 3 1

8 6 4 2

9 Contacts

Connector Mating Face

Socket #1

.050 (1.27) TYP

.395(10.03)

.070 (1.78) 2 PLCS

.013/.016

(0.33/0.41) TYP

25 23

21 19 17 15 13 11

9

8

7

6

5

4

3

2

1

24 22 20 18 16 14 12 10

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

15 13 11

9

8

7

6

5

4

3

2

1

14 12 10

Component Mounting Side of PCB

(25S actual size)

15

Contacts

.050 (1.27) TYP

.545(13.84)

.070 (1.78) 2 PLCS

.013/.016

(0.33/0.41) TYP

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

21 19 17 15 13 11

9

8

7

6

5

4

3

2

1

20 18 16 14 12 10

21 Contacts

.050 (1.27) TYP

.695 (17.65)

.070 (1.78) 2 PLCS

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

25 23

21 19 17 15 13 11

9

8

7

6

5

4

3

2

1

24 22 20 18 16 14 12 10

.013/.016

(0.33/0.41) TYP

.018 (0.46) TYP

25 Contacts

.050 (1.27) TYP

.070 (1.78) 2 PLCS

.795 (20.19)

.013/.016

(0.33/0.41) TYP

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

31 29 27 25 23

21 19 17 15 13 11

9

8

7

6

5

4

3

2

1

30 28 26 24 22 20 18 16 14 12 10

31 Contacts

.050 (1.27) TYP

.070 (1.78) 2 PLCS

.945 (24.00)

.013/.016

(0.33/0.41) TYP

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

37 35 33 31 29 27 25 23

21 19 17 15 13 11

9

8

7

6

5

4

3

2

1

36 34 32

30 28 26 24 22 20 18 16 14 12 10

37 Contacts

.050 (1.27) TYP

.070 (1.78) 2 PLCS

1.095 (27.81)

.013/.016

(0.33/0.41) TYP

.018 (0.46) TYP

.0975 (2.48)

.025 (0.64) TYP

.050 (1.27) TYP

51 49 47 45 43 41 39 37 35 33 31 29 27 25 23

21 19 17 15 13 11

9

8

7

6

5

4

3

2

1

50 48 46 44 42 40 38 36 34 32

30 28 26 24 22 20 18 16 14 12 10

51 Contacts

.050 (1.27) TYP

.070 (1.78) 2 PLCS

1.445 (36.71)

.013/.016

(0.33/0.41) TYP

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

26

E-Mail: sales@glenair.com

890-009-15PA1-BRT2J
