D40C8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> D40C8

D40C8: DescriptionTrans Darlington NPN 30V 0.5A 3-Pin(3+Tab) TO-202; CategoryDiscrete semiconductor The transistor; File Size1MB，2 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric Compare View All

D40C8 Overview

Trans Darlington NPN 30V 0.5A 3-Pin(3+Tab) TO-202

D40C8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	New Jersey Semiconductor
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	10000
JESD-609 code	e0
Number of components	1
Polarity/channel type	NPN
Terminal surface	Tin/Lead (Sn/Pb)
Transistor component materials	SILICON
Nominal transition frequency (fT)	80 MHz

Preview

Download Datasheet

View All

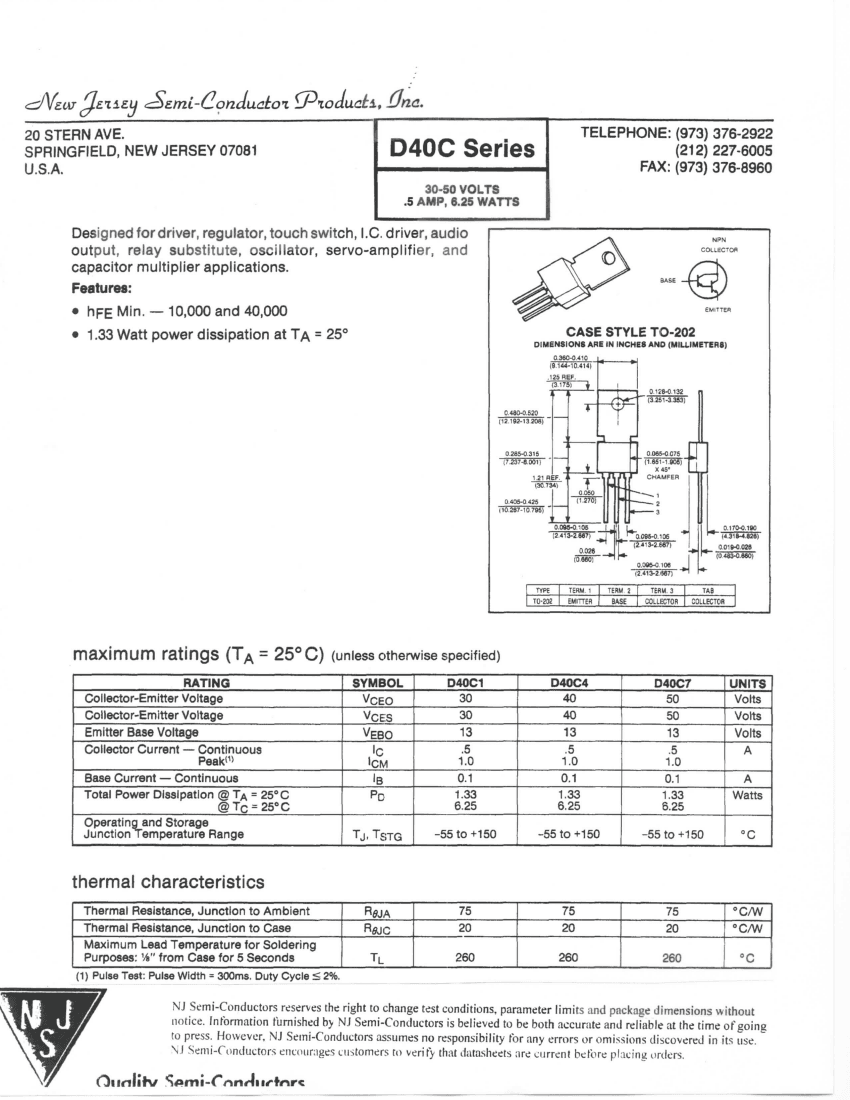

tSs-mi-donduckoi ^Pioaucta, One.

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

D40C Series

30-50 VOLTS

.5 AMP, 6.25 WATTS

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

Designed for driver, regulator, touch switch, I.C. driver, audio

output, relay substitute, oscillator, servo-amplifier, and

capacitor multiplier applications.

Features:

• hFE Min. — 10,000 and 40,000

NFN

COLLECTOR

• 1.33 Watt power dissipation at TA = 25°

CASE STYLE TO-202

DIMENSIONS ARE IN INCHES AND (MILLIMETER*)

0.360-0.410

TYPE

TO-202

TERM. 1

EMIT^E*

TERM 2

BASE

TE«M. 3

COLLECTOR

TAB

COLLECTOR

maximum ratings (T

= 25° C) (unless otherwise specified)

RATING

Collector-Emitter Voltage

Emitter Base Voltage

Collector Current — Continuous

Peak'

Base Current — Continuous

Total Power Dissipation @ T^ = 25° C

= 25°C

Operating and Storage

Junction Temperature Range

SYMBOL

D40C1

VCEO

VCES

VEBO

'CM

TJ, TSTG

1.0

0.1

1.33

6.25

-55 to +150

D40C4

1.0

0.1

1.33

6.25

-5510+150

040C7

1.0

0.1

1.33

6.25

-55to+150

UNITS

Volts

Watts

°C

thermal characteristics

Thermal Resistance, Junction to Ambient

Thermal Resistance, Junction to Case

Maximum Lead Temperature tor Soldering

Purposes:

from Case for 5 Seconds

(1) Pulse Test: Pulse Width = 300ms. Duty Cycle < 2%.

R0JA

RffJC

260

"C/W

°C/W

°C

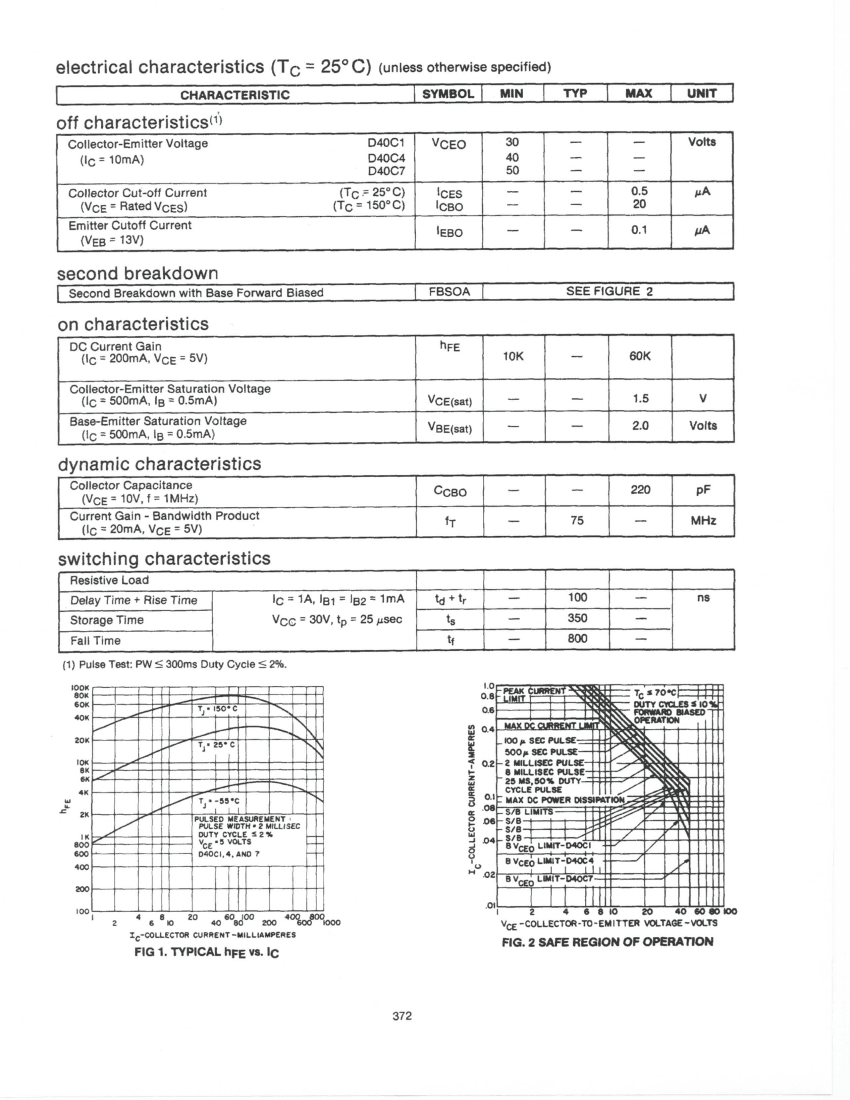

NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without

notice. Information furnished b> NJ Semi-Conductors is believed to be both accurate and reliable at the time of going

to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.

NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.

Qurtllh/
