NACE470M35V6.3X6.3TR13 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 47uF, SURFACE MOUNT, 2626, CAN

NACE470M35V6.3X6.3TR13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	, 2626
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	4240 mΩ
high	6.3 mm
JESD-609 code	e0
leakage current	0.01645 mA
length	7.2 mm
Manufacturer's serial number	NACE
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	70 mA
series	NACE
size code	2626
surface mount	YES
Delta tangent	0.12
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	FLAT
width	6.6 mm

Preview

Download Datasheet

View All

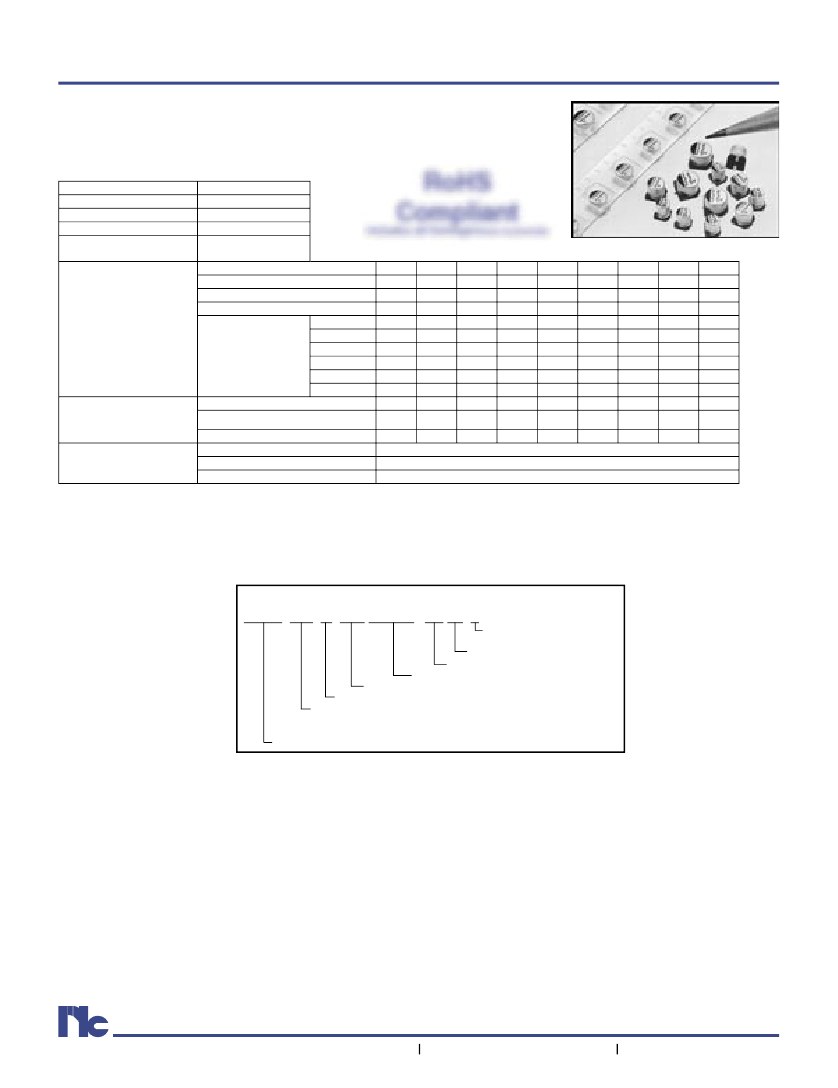

Surface Mount Aluminum Electrolytic Capacitors

FEATURES

•

LOW COST, GENERAL PURPOSE, 2000 HOURS AT 85

O

C

NEW EXPANDED CV RANGE (up to 6800µF)

ANTI-SOLVENT (2 MINUTES)

DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING

NACE Series

CHARACTERISTICS

Rated Voltage Range

Rate Capacitance Range

Oerating Temp. Range

Capacitance Tolerance

Max. Leakage Current

After 2 Minutes @ 20°C

4.0 ~ 100Vdc

0.1 ~ 6,800µF

-40°C ~ +85°C

includes all homogeneous

materials

±20% (M), ±10%

*See Part Number System for Details

0.01CV or 3µA

whichever is greater

W.V. (Vdc)

4.0

6.3

10

16

25

35

50

3mm Dia.

0.40

0.35

0.24

0.19

0.16

0.14

4 ~ 6.3mm Dia.

0.35

0.26

0.20

0.16

0.14

0.12

0.10

8x6.5mm Dia.

-

0.25

0.26

0.20

0.16

0.14

0.12

C<1000µF

0.40

0.30

0.24

0.20

0.16

0.14

0.12

Tan

δ

@120Hz/20°C

C<1500µF

-

0.31

0.25

0.21

-

0.15

-

C<2200µF

-

0.32

-

0.18

-

8mm Dia. ~ up

C<3300µF

-

0.34

-

0.24

-

C<4700µF

-

0.36

-

C<6800µF

-

0.40

-

W.V. (Vdc)

4.0

6.3

10

16

25

35

50

Low Temperature Stability

Z-25°C/Z+20°C

7

3

2

Impedance Ratio @ 120Hz

Z-40°C/Z+20°C

15

8

6

4

3

Capacitance Change

Within ± 25% of initial measured value

Load Life Test

Tan

δ

Less than 200% of specified max. value

85°C 2,000 Hours

Leakage Current

Less than specified max. value

*See standard products and case size table for items available in 10% tolerance

RoHS

Compliant

63

-

0.10

-

0.12

-

63

2

3

100

-

0.10

-

100

2

3

PART NUMBER SYSTEM

NACE 101 M 16V 6.3x5.5 TR 13 F

Pb-free/RoHS Compliant*

97% Sn (min.), 3% Bi (max.)

330mm (13”) Reel

Tape & Reel

Size in mm

Working Voltage

Tolerance Code M=20%, K=10%

Capacitance Code in mF, first 2 digits are significant

Third digit is no. of zeros, “R” indicates decimal for

values under 10mF

Series

*Add "F" suffix for optional RoHS compliant parts

®

NIC COMPONENTS

www.niccomp.com
