NASER33M50V4X5.5NBF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NASER33M50V4X5.5NBF

NASER33M50V4X5.5NBF: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.33uF, Surface Mount, 1717, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size106KB，4 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

NASER33M50V4X5.5NBF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.33uF, Surface Mount, 1717, CHIP, ROHS COMPLIANT

NASER33M50V4X5.5NBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 1717
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e6
leakage current	0.003 mA
Manufacturer's serial number	NASE
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	2.8 mA
size code	1717
surface mount	YES
Delta tangent	0.12
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT

Preview

Download Datasheet

View All

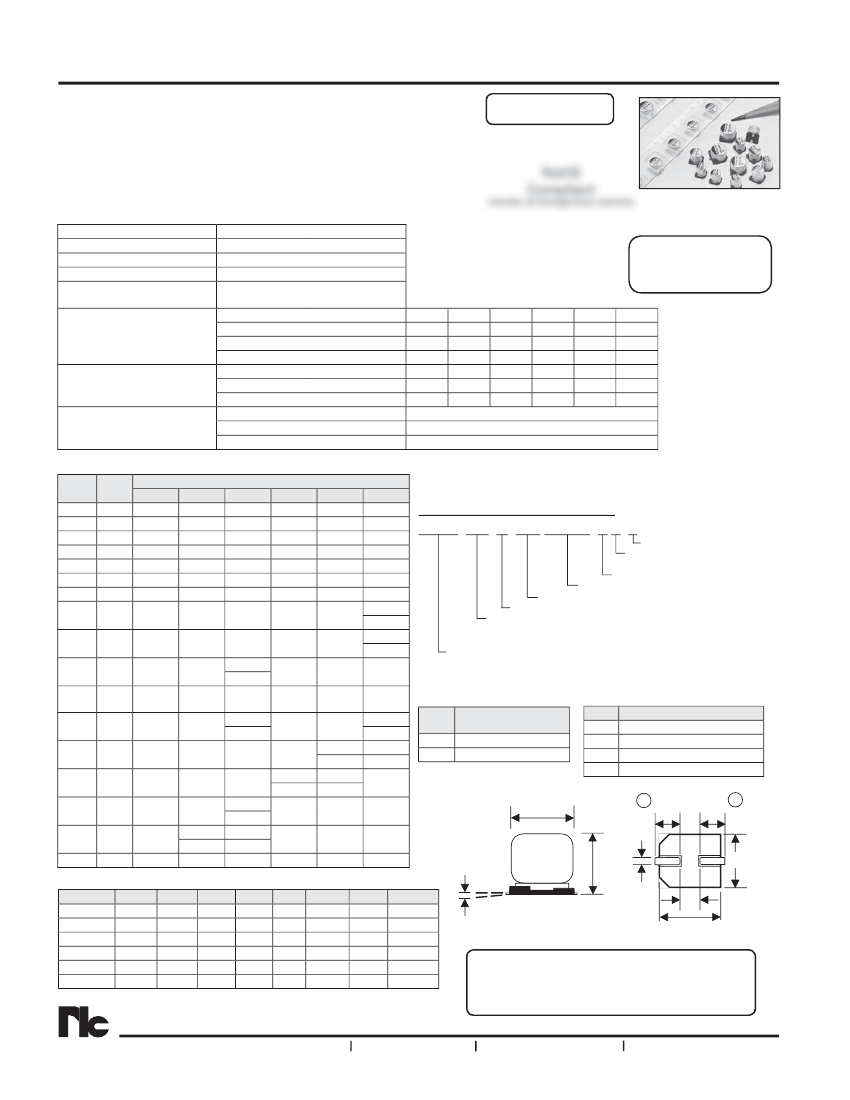

Surface Mount Aluminum Electrolytic Capacitors

FEATURES

•

CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING

SUIT FOR HIGH TEMPERATURE REFLOW SOLDERING (UP TO 260°C)

2,000 HOUR LOAD LIFE @ +85°C)

DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING

SAC

Alloy Compatible

230°C ~ 260°C

NASE Series

includes all homogeneous materials

RoHS

Compliant

CHARACTERISTICS

Rated Voltage Rating

Rated Capacitance Range

Operating Temp. Range

Capacitance Tolerance

Max. Leakage Current

After 2 Miuntes @ 20°C

Tan

@ 120Hz/20°C

Low Temperature

Stability

Impedance Ratio @ 120Hz

Load Life Test @ 85°C

All Case Sizes = 2,000 hours

6.3 ~ 50Vdc

0.1 ~ 1,000μF

-40 ~ +85°C

±20% (M)

0.01CV or 3μA

whichever is greater

W.V. (Vdc)

S.V. (Vdc)

4 ~ 5mm diameter & 6.3x5.5mm

6.3x8mm & 8~10mm diameter

W.V. (Vdc)

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Capacitance Change

Tan

Leakage Current

Working Voltage (Vdc)

4x5.5

5x5.5

4x5.5

5x5.5

*See Part Number System for Details

P N b S

f D il

LOW ESR COMPONENT

LIQUID ELECTROLYTE

For Performance Data

see www.LowESR.com

0.22

0.18

0.16

0.13

0.12

0.26

0.20

0.16

0.14

0.12

Within ±25% of initial measured value

Less than ±200% of the speciﬁed maximum value

Less than the speciﬁed maximum value

6.3

8.0

0.26

0.35

6.3

STANDARD VALUES AND CASE SIZES (mm)

Cap.

(μF)

0.1

0.22

0.33

0.47

1.0

2.2

3.3

4.7

100

220

330

470

1000

Code

R10

R22

R33

R47

1R0

2R2

3R3

4R7

100

220

330

470

101

221

331

471

102

6.3

4x5.5

5x5.5

6.3x5.5

PART NUMBER SYSTEM

NASE 101 M 16V 6.3x5.5 N B F

RoHS Compliant

Termination/Packaging Code

(see table)

Reﬂow Temperature Code (see table)

Size in mm

Working Voltage

Tolerance Code M=20%

Capacitance Code in

μF,

ﬁ

rst 2 digits are signiﬁcant

Third digit is no. of zeros, “R” indicates decimal for

values under 10μF

Series

6.3x5.5 6.3x5.5

6.3x8

5x5.5

5x5.5 6.3x5.5 6.3x5.5

8x10.5

5x5.5

8x10.5

5x5.5

6.3x5.5 6.3x8

6.3x5.5

10x10.5

8x10.5 8x10.5

6.3x5.5 6.3x5.5 6.3x5.5 6.3x8

10x10.5 10x10.5

8x10.5 8x10.5

6.3x8 8x10.5

10x10.5 10x10.5

8x10.5

6.3x8 8x10.5

10x10.5

8x10.5 8x10.5

8x10.5

10x10.5

10x10.5 10x10.5

10x10.5

TERMINATION FINISH &

PEAK REFLOW

TEMPERATURE CODES PACKAGING OPTIONS CODES

Code

Peak Reﬂow

Temperature

260°C

250°C

Code

Finish & Reel Size

Sn-Bi Finish & 13" Reel

Sn-Bi Finish & 15" Reel

100% Sn Finish & 13" Reel

LS 100% Sn Finish & 15" Reel

Dφ

0.3mm max.

PRECAUTIONS

DIMENSIONS (mm) AND REEL QUANTITIES

Case Size

φD±0.5

L max. A±0.2 B±0.2 I±0.3

P±0.3 Qty/Reel

4x5.5

4.0

5.5

4.3

1.8 0.5~0.8 1.0

1,500

5x5.5

5.0

5.5

5.3

2.2 0.5~0.8 1.4

1,000

6.3x5.5

6.3

5.5

6.6

2.7 0.5~0.8 2.2

1,000

6.3X8

6.3

8.0

6.6

2.7 0.5~0.8 2.2

500

8x10.5

8.0

10.5

8.3

2.9 0.7~1.1 3.2

300

10x10.5

10.0

10.5

10.3 10.3 3.2 0.8~1.4 4.6

300

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
