NCM21NP0102J50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> NCM21NP0102J50

NCM21NP0102J50: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.001uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size39KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

NCM21NP0102J50 Overview

CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.001uF, THROUGH HOLE MOUNT, RADIAL LEADED

NCM21NP0102J50 Parametric

Parameter Name	Attribute value
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.001 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e0
Manufacturer's serial number	NCM
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	TIN LEAD
Terminal shape	WIRE

Preview

Download Datasheet

View All

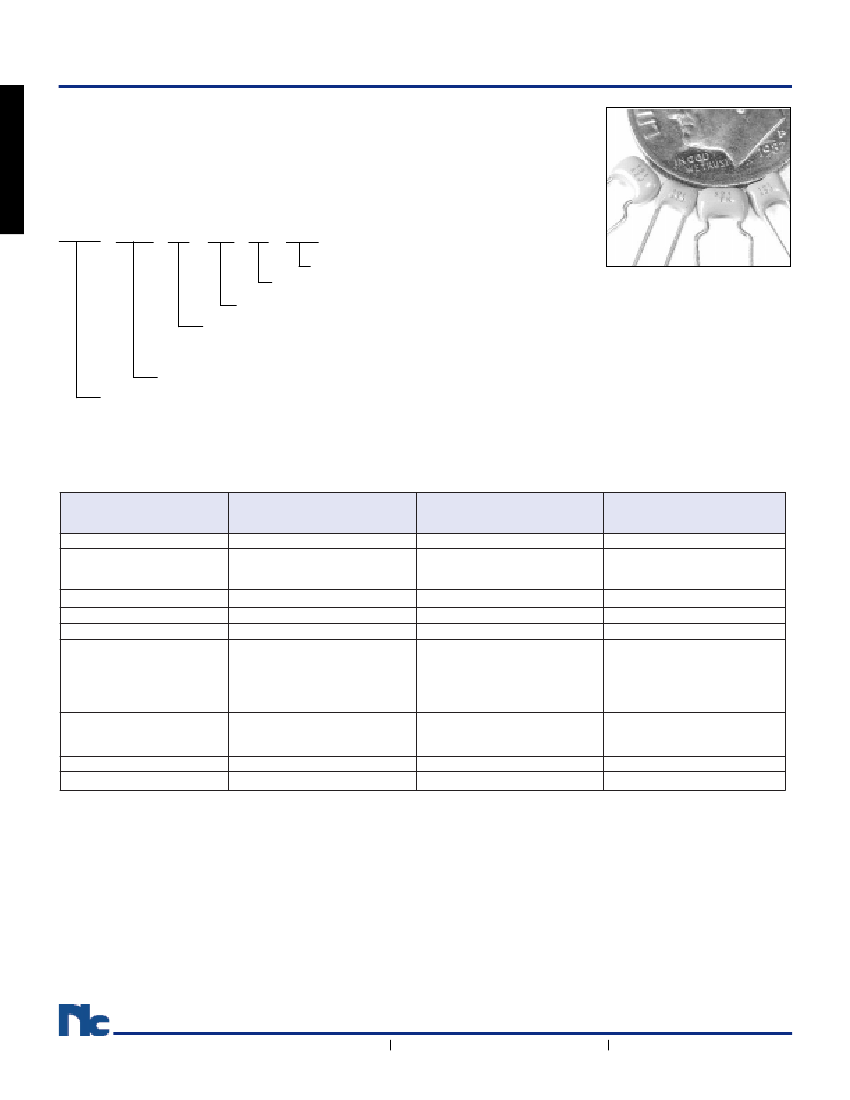

Conformally Coated, Radial Leaded Multilayer Ceramic Capacitors

LEADED

FEATURES

• FLAME RETARDANT EPOXY COATING

• TEMPERATURE COEFFICIENTS NPO, X7R, Z5U

• 50, 100 AND 200 VOLTS

• AVAILABLE ON TAPE AND REEL

PART NUMBERING SYSTEM

NCM20

Z5U

104

Tape and Reel (Optional)

Voltage

Tolerance Code (see specifications

table below)

Capacitance code, expressed in pF,

first two digits are significant, third digit is no. of zeros. “R” indicates

decimal for under 10pF

Temperature Coefficient

Series, Size Code

NCM Series

SPECIFICATIONS

Characteristics

Capacitance Range*

Capacitance Tolerance (Code)

Operating Temperature Range

Temperature Characteristics

Voltage Rating

NPO

1pF ~ .1

µF

±1%(F), ±2%(G), ±5%(J), ±10%(K)

-55°C to +125°C

0±30ppm/°C

50, 100 & 200 Vdc

0.15% Max. (+25

C and +125°C) for

values greater than 30pF.

For values of 30pF and below:

Q = 20 x C +400 1 .0 Vrms

1MHz for values

≤

1000pF

1KHz for values >1000pF

100K Megohms or

1000 Megohms-

F Min.,

Whichever is Less

250% of Rated Vdc

200% of Rated Voltage at +125°C

X7R

470pF ~ 4.7

µF

±5%(J), ±10%(K), ±20%(M)

-55°C to +125°C

±15% (0 Vdc)

50 & 100 Vdc

Z5U

1000pF ~ 4.7

µF

±20%(M), +80 -20%(Z)

-10°C to +85°C

+22%, -56%

50 & 100 Vdc

Dissipation Factor

2.5% Max. at 1 KHz 1 Vrms Max.

4.0% Max. at 1KHz, 5Vrms Max.

Insulation Resistance 25

(MIL-STD-202-Method 302)

Dielectric Strength

Life Test (1000 hours)

100K Megohms or

1000 Megohms-

F Min.,

Whichever is Less

250% of Rated Vdc

200% of Rated Voltage at +125°C

10K Megohms or

100 Megohms-

F Min.,

Whichever is Less

200% of Rated Vdc

150% of Rated Voltage at +85°C

168

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com
