NCMA10Z5U154Z50TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> NCMA10Z5U154Z50TR

Preview

NCMA10Z5U154Z50TR: DescriptionCeramic Capacitor, Ceramic, 50V, 80% +Tol, 20% -Tol, 30ppm/Cel;-56/+22% TC, 0.15uF,; CategoryPassive components capacitor; File Size117KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

NCMA10Z5U154Z50TR Overview

Ceramic Capacitor, Ceramic, 50V, 80% +Tol, 20% -Tol, 30ppm/Cel;-56/+22% TC, 0.15uF,

NCMA10Z5U154Z50TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknow
capacitance	0.15 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Selected Values, Contact NIC
diameter	2.54 mm
dielectric materials	CERAMIC
JESD-609 code	e0
length	4.32 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Axial
method of packing	TR
positive tolerance	80%
Rated (DC) voltage (URdc)	50 V
series	NCMA
Temperature Coefficient	30ppm/Cel;-56/+22% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

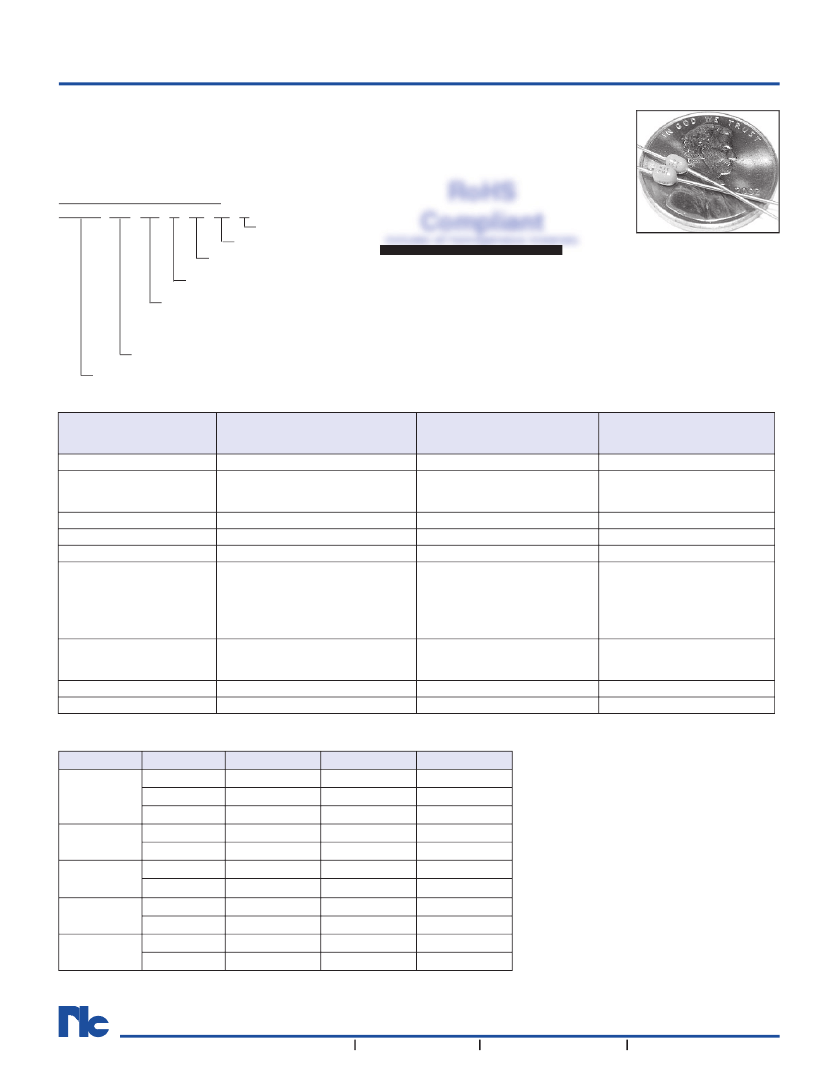

Axial Multilayer Ceramic Capacitors

FEATURES

• CONFORMALLY COATED, MINIATURE SIZE

• 50, 100, AND 200 Vdc

• NPO, X7R, AND Z5U TEMPERATURE COEFFICIENTS

• TAPE AND REEL

NCMA20 Z5U 104 M

NCMA Series

PART NUMBER SYSTEM

50 TR

F

RoHS Compliant

Tape and Reel

includes all homogeneous materials

*See Part

Number System for Details

RoHS

Compliant

Voltage

Tolerance Code (see specifications table below)

Capacitance code, expressed in pF,

first two digits are significant, third digit is no. of zeros. “R” indicates

decimal for under 10pF

Temperature Coefficient

Series, Size Code

SPECIFICATIONS

Characteristics

Capacitance Range

Capacitance Tolerance (Code)

Operating Temperature Range

Temperature Characteristics

Voltage Rating

NPO

1pF ~ .01

µF

±1%(F), ±2%(G), ±5%(J), ±10%(K)

-55

o

C to +125

o

C

0±30ppm/

o

C

50, 100 & 200 Vdc

0.15% Max. (+25

o

C and +125

o

C)

For Values Greater Than 30pF

For Values of 30pF and Below:

Q = 20 x C +400

1.0 Vrms, 1 MHz For Values

≤

1000pF

and 1kHz For Values > 1000pF

100K Megohms or

1000 Megohms-

µ

F Min.,

Whichever is Less

250% of Rated Vdc

200% of Rated Voltage at +125°C

X7R

220pF ~.47

µF

±5%(J), ±10%(K), ±20%(M)

-55

o

C to +125

o

C

±15% (0 Vdc)

50, 100 & 200 Vdc

Z5U

.01

µ

F ~ 1.0

µF

±20%(M), +80 -20%(Z)

+10

o

C to +85

o

C

+22%, -56%

50 & 100 Vdc

Dissipation Factor

2.5% Max. at 1 kHz 1 Vrms Max.

4.0% Max. at 1kHz, 5Vrms Max.

Insulation Resistance 25

o

C

(MIL-STD-202-Method 302)

Dielectric Strength

Life Test (1000 hours)

100K Megohms or

1000 Megohms-

µ

F Min.,

Whichever is Less

250% of Rated Vdc

200% of Rated Voltage at +125°C

10K Megohms or

100 Megohms-

µ

F Min.,

Whichever is Less

200% of Rated Vdc

150% of Rated Voltage at +85°C

SIZE CODE AND AVAILABLE CAPACITANCE RANGE

Size Code

NCMA 10

WVDC

50

100

200

NCMA 11

NCMA 20

NCMA 30

NCMA 40

50

100

50

100

50

100

50

100

NPO

1000pF~1200pF

150pF~820pF

1pF~330pF*

1800pF~3900pF

1000pF~2700pF

1800pF~3900pF

1000pF~1800pF

4700pF~5600pF

1800pF~3900pF

8200pF~.01

µF

4700pF~8200pF

X7R

8200pF~.047

µF

560pF~.015

µF

220pF~.01

µF

.047

µ

F~.1

µF

.018

µF

~.039

µF

.027

µF

~.1

µF

8200pF~.033

µF

.056

µF

~.33

µF

.022

µF

~.1

µF

.33

µF

~.47

µF

.12

µ

F~.18

µF

Z5U

.068

µ

F~.22

µF

.01

µF

~.047

µF

NA

.22

µF

~.47

µF

.1

µF

.047

µF

~.1

µF

.033

µF

~.047

µF

.15

µF

~1.0

µF

.068

µF

~.33

µF

NA

.15

µF

~.47

µF

*-Selected values, Please contact NIC for availability.

®

38

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

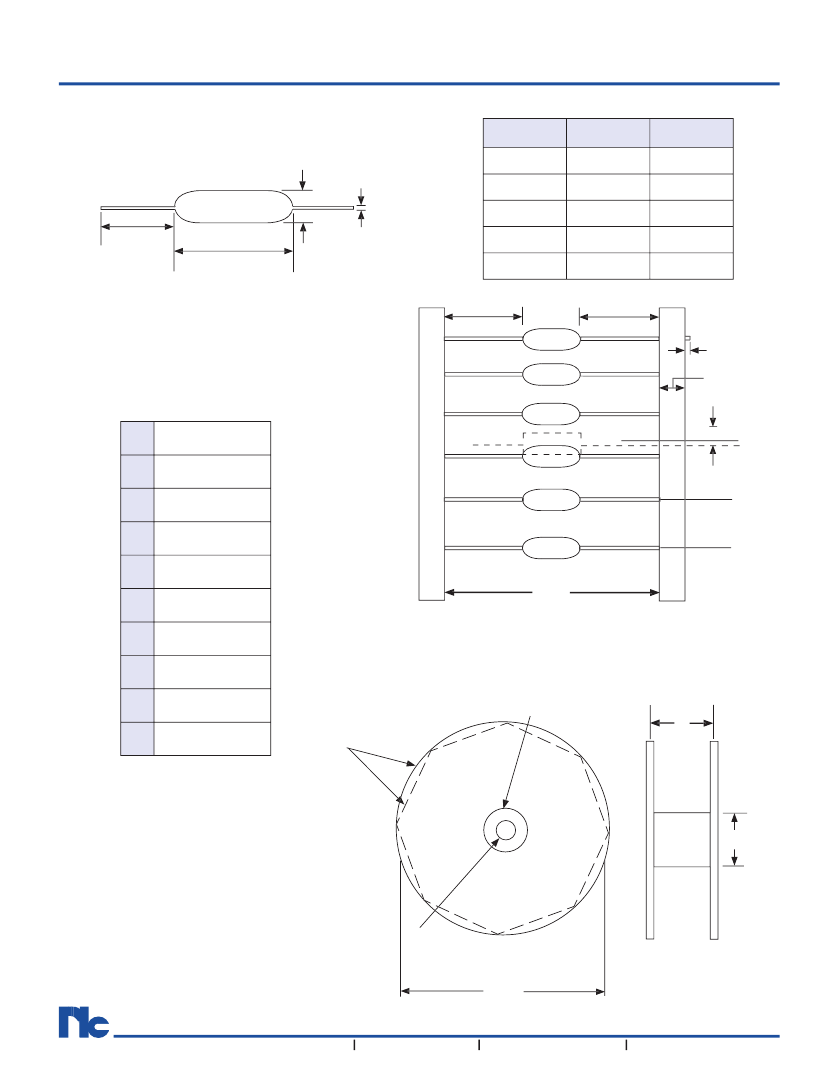

NCMA10Z5U154Z50TR Related Products

	NCMA10Z5U154Z50TR	NCMA40NP0103J50TR
Description	Ceramic Capacitor, Ceramic, 50V, 80% +Tol, 20% -Tol, 30ppm/Cel;-56/+22% TC, 0.15uF,	CAP,CERAMIC,10NF,50VDC,5% -TOL,5% +TOL,-30,30PPM TC
Is it Rohs certified?	incompatible	incompatible
Maker	Nichicon	Nichicon
Reach Compliance Code	unknow	unknow
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC
JESD-609 code	e0	e0
Number of terminals	2	2
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie

Recommended Resources

DW15 series circuit breaker motor closing circuit without pre-storage b

Three-phase multi-switch Buck type rectifier circuit

Crystal diode three-phase bridge resistive load rectifier circuit

555 liquid level monitoring alarm circuit

UPS-500W circuit diagram 2

Pulse dialing eight-way infrared remote control circuit
