ATF1500ABV-15JI datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> ATF1500ABV-15JI

ATF1500ABV-15JI: DescriptionHigh- Performance EE PLD; CategoryProgrammable logic devices Programmable logic; File Size205KB，12 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

ATF1500ABV-15JI Overview

High- Performance EE PLD

ATF1500ABV-15JI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	LCC
package instruction	PLASTIC, LCC-44
Contacts	44
Reach Compliance Code	unknow
Other features	NO
maximum clock frequency	52.6 MHz
In-system programmable	NO
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
JTAG BST	NO
length	16.5862 mm
Humidity sensitivity level	2
Dedicated input times
Number of I/O lines	32
Number of macro cells	32
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	0 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	3/5 V
Programmable logic type	FLASH PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	16.5862 mm

Preview

Download Datasheet

View All

Features

•

Operates Between 2.7V to 5.5V

•

High Density, High-Performance Electrically Erasable Complex

Programmable Logic Device

– 44-Pin, 32 I/O CPLD

– 12 ns Maximum Pin-to-Pin Delay

– Registered Operation Up To 90.9 MHz

– Fully Connected Input and Feedback Logic Array

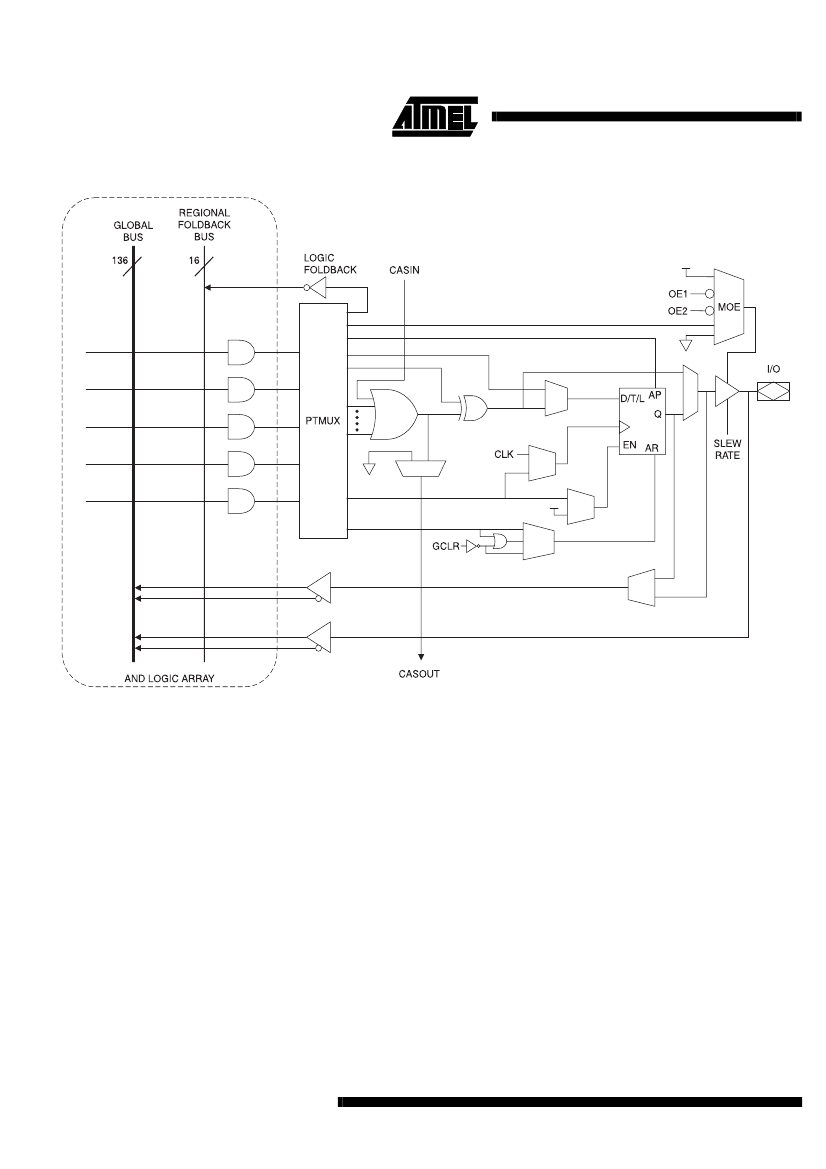

Flexible Logic Macrocell

– D/T/Latch Configurable Flip Flops

– Global and Individual Register Control Signals

– Global and Individual Output Enable

– Programmable Output Slew Rate

Advanced Power Management Features

– Automatic 3 mA Stand-By (ATF1500ABVL)

– Pin-Controlled 5

A Stand-By Mode (Typical)

– Programmable Pin-Keeper Inputs and I/Os

Available in Commercial and Industrial Temperature Ranges

Available in 44-Pin PLCC and TQFP Packages

Advanced Flash Technology

– 100% Tested

– Completely Reprogrammable

– 100 Program/Erase Cycles

– 20 Year Data Retention

– 2000V ESD Protection

– 200 mA Latch-Up Immunity

Supported By Popular 3rd Party Tools

Security Fuse Feature

•

High-

Performance

EE PLD

ATF1500ABV

ATF1500ABVL

ATF1500ABV/L

•

Description

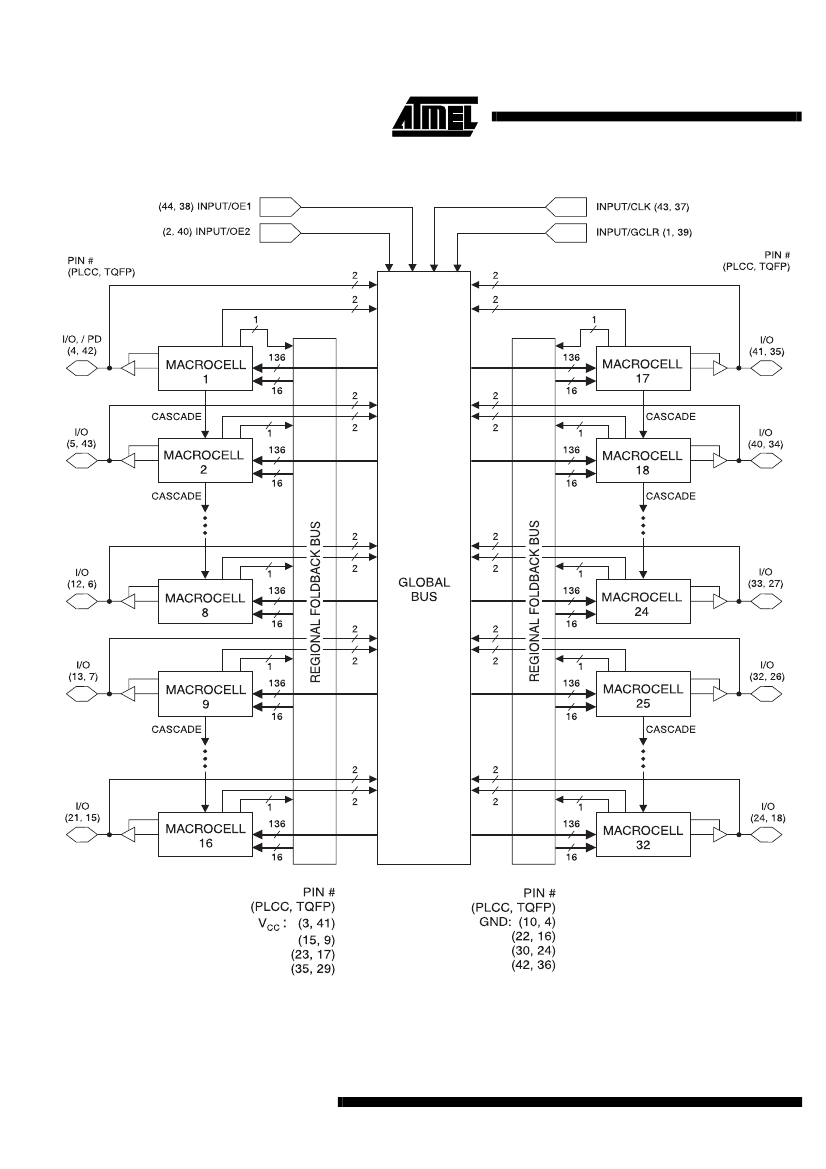

The ATF1500ABV is a high performance, high density Complex PLD. Built on an

advanced Flash technology, it has maximum pin to pin delays of 12 ns and supports

sequential logic operation at speeds up to 90.9 MHz. With 32 logic macrocells and up

to 36 inputs, it easily integrates logic from several TTL, SSI, MSI and classic PLDs.

The ATF1500ABV’s global input and feedback architecture simplifies logic placement

and eliminates pinout changes due to design changes.

(continued)

Pin Configurations

Name

CLK

I/O

GCLR

OE1,

OE2

Function

Clock

Logic Inputs

Bidirectional

Buffers

(active low)

Output Enable

(active low)

(+3V to 5.25V)

Supply

Power Down

(active high)

INDEX

CORNER

I/O

I/O/PD

VCC

OE2/I

GCLR/I

OE1/I

CLK/I

GND

I/O

PLCC

Top View

TQFP

Top View

44 42 40

36 34

43 41 39

I/O

GND

I/O

VCC

I/O

13 15 17 19 21

12 14 16 18 20 22

I/O

GND

VCC

I/O

VCC

I/O

GND

I/O

Rev. 0723D–6/98

ATF1500ABV-15JI Related Products

	ATF1500ABV-15JI	ATF1500ABV-12JC	ATF1500ABVL	ATF1500ABV	ATF1500ABV-12AC	ATF1500ABV-15AC	ATF1500ABV-15AI	ATF1500ABVL-25AC	ATF1500ABVL-25JC
Description	High- Performance EE PLD	High- Performance EE PLD	High- Performance EE PLD	High- Performance EE PLD	High- Performance EE PLD	High- Performance EE PLD	High- Performance EE PLD	High- Performance EE PLD	High- Performance EE PLD
Is it Rohs certified?	incompatible	incompatible	-	-	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Atmel (Microchip)	Atmel (Microchip)	-	-	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
Parts packaging code	LCC	LCC	-	-	QFP	QFP	QFP	QFP	LCC
package instruction	PLASTIC, LCC-44	PLASTIC, LCC-44	-	-	1 MM HEIGHT, PLASTIC, TQFP-44	1 MM HEIGHT, PLASTIC, TQFP-44	1 MM HEIGHT, PLASTIC, TQFP-44	1 MM HEIGHT, PLASTIC, TQFP-44	PLASTIC, LCC-44
Contacts	44	44	-	-	44	44	44	44	44
Reach Compliance Code	unknow	unknow	-	-	unknow	unknow	unknow	_compli	_compli
Other features	NO	NO	-	-	NO	NO	NO	NO	NO
maximum clock frequency	52.6 MHz	62.5 MHz	-	-	62.5 MHz	52.6 MHz	52.6 MHz	-	-
In-system programmable	NO	NO	-	-	NO	NO	NO	NO	NO
JESD-30 code	S-PQCC-J44	S-PQCC-J44	-	-	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	S-PQCC-J44
JESD-609 code	e0	e0	-	-	e0	e0	e0	e0	e0
JTAG BST	NO	NO	-	-	NO	NO	NO	NO	NO
length	16.5862 mm	16.5862 mm	-	-	10 mm	10 mm	10 mm	10 mm	16.5862 mm
Humidity sensitivity level	2	2	-	-	3	3	3	-	2
Number of I/O lines	32	32	-	-	32	32	32	32	32
Number of macro cells	32	32	-	-	32	32	32	32	32
Number of terminals	44	44	-	-	44	44	44	44	44
Maximum operating temperature	85 °C	70 °C	-	-	70 °C	70 °C	85 °C	70 °C	70 °C
organize	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	-	-	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL	MACROCELL	-	-	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	-	-	TQFP	TQFP	TQFP	TQFP	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	LDCC44,.7SQ	-	-	TQFP44,.47SQ,32	TQFP44,.47SQ,32	TQFP44,.47SQ,32	TQFP44,.47SQ,32	LDCC44,.7SQ
Package shape	SQUARE	SQUARE	-	-	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	-	-	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225	225	-	-	240	240	240	240	225
power supply	3/5 V	3/5 V	-	-	3/5 V	3/5 V	3/5 V	3/3.3 V	3/3.3 V
Programmable logic type	FLASH PLD	FLASH PLD	-	-	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD
propagation delay	15 ns	12 ns	-	-	12 ns	15 ns	15 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	-	-	1.2 mm	1.2 mm	1.2 mm	1.2 mm	4.57 mm
Maximum supply voltage	5.5 V	5.5 V	-	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V	-	-	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage	3 V	3 V	-	-	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	-	-	YES	YES	YES	YES	YES
technology	CMOS	CMOS	-	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	-	-	GULL WING	GULL WING	GULL WING	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	-	-	0.8 mm	0.8 mm	0.8 mm	0.8 mm	1.27 mm
Terminal location	QUAD	QUAD	-	-	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	30	30	-	-	30	30	30	30	30
width	16.5862 mm	16.5862 mm	-	-	10 mm	10 mm	10 mm	10 mm	16.5862 mm
