NMC-M0603NPO3R3C50TRP datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC-M0603NPO3R3C50TRP

NMC-M0603NPO3R3C50TRP: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.0000033uF, SURFACE MOUNT, 0603, CHIP; CategoryPassive components capacitor; File Size120KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

NMC-M0603NPO3R3C50TRP Overview

CAPACITOR, CERAMIC, MULTILAYER, 50V, C0G, 0.0000033uF, SURFACE MOUNT, 0603, CHIP

NMC-M0603NPO3R3C50TRP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	, 0603
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.0000033 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1 mm
JESD-609 code	e0
length	1.6 mm
Manufacturer's serial number	NMC-M
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	7.5758%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR
positive tolerance	7.5758%
Rated (DC) voltage (URdc)	50 V
series	NMC-M(OLD)
size code	0603
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

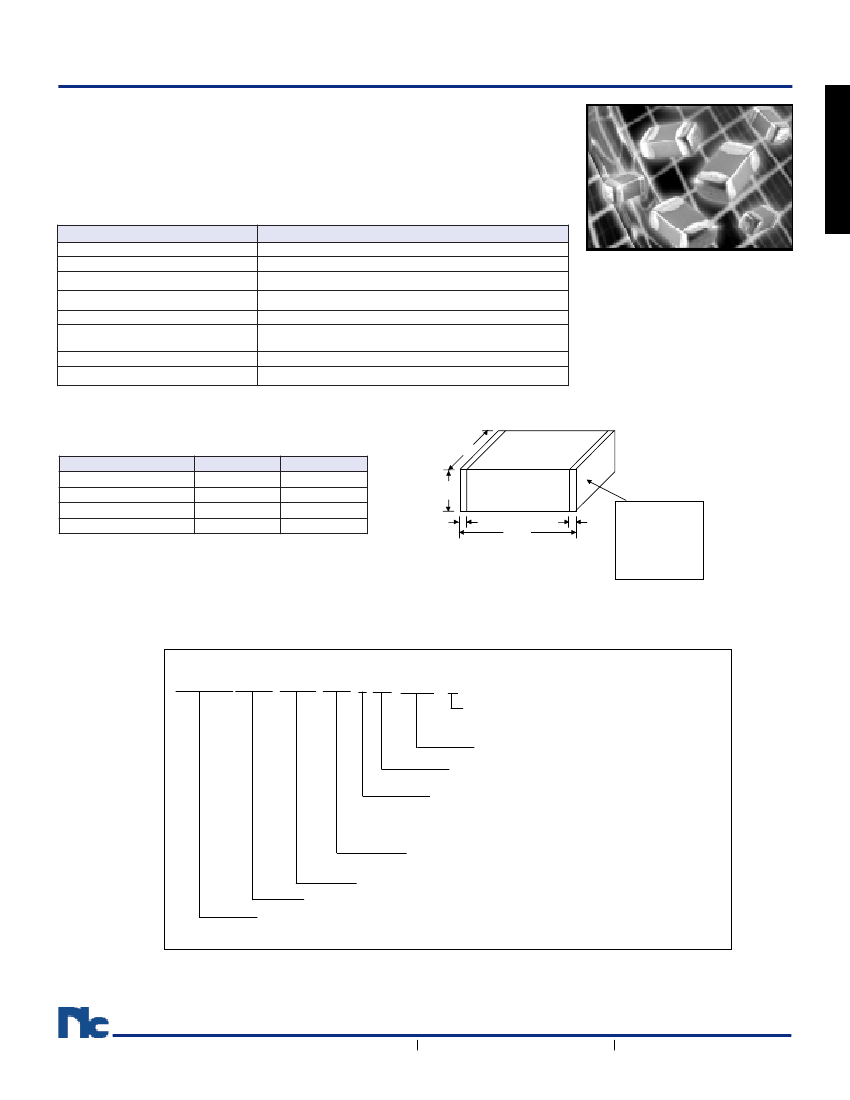

Low ESR Multilayer Ceramic Chip Capacitors

FEATURES

•

LOWER ESR - HIGH Q at HIGH FREQUENCY

•

STABLE NPO CHARACTERISTICS OVER TIME, TEMPERATURE AND VOLTAGE

•

EIA 0402 AND 0603 CASE SIZES

•

IDEAL FOR WIRELESS DATA AND VOICE COMMUNICATIONS APPLICATIONS

WLANs, HIPERLAN, 802.11A, 802.11B, Wi-Fi, BLUETOOTH,TELEMATICS, PCS,

LMDS AND CELLULAR

SPECIFICATIONS

Operating Temperature Range

Temperature Characteristic

Dissipation Factor

Insulation Resistance@WVDC

Capacitance Range

Capacitance Tolerances

Rated Voltage

Dielectric Withstanding Voltage

NPO

-55 C to +125

0 ± 30PPM/°C

NMC-M Series

SURFACE MOUNT

0.001 max. (1MHz, +25°C)

10,000 Megohms min. @ +25

0.4pF ~ 22pF (1MHz, 1.0Vrms±0.2, +25°C)

±0.05pF(A), ±0.075 (X), ±0.1pF(B), ±0.25pF(C), ±0.5pF(D)

±1%(F), ±2%(G), ±5%(J)

25, 50VDC

125VDC for 5 ± 1 seconds

DIMENSIONS (mm)

EIA Case Size

Length (L)

Width

(W)

Thickness (T)

Termination Width (P)

0402

1.0 ±0.05

0.5 ±0.05

0.6 max.

0.10 ~ 0.30

0603

1.6 ±0.15

0.8 ±0.15

1.0 max.

.25 ~.60

T (max.)

Termination:

Sn-Pb solder plate

finish over nickel

barrier over Ag base.

Also available with

100% Sn lead-free

plating finish.

PART NUMBERING SYSTEM

NMC-M 0603 NPO 100 J 50 TRP F

Lead-free Terminations

(100% Sn optional)

TRP=Tape and Reel, Paper Carrier,

TRP10=10K pcs per reel

Working Voltage

Capacitance Value Tolerance:

See Characteristics Table Above

Capacitance Value in pF

(3 digit code) First 2 digits are significant. Third

T.C.

digit is number of zeros. 100 = 10pF, Values less

EIA Case Size than 10pF R = decimal. 1R0 = 1.0pF

Series

NIC COMPONENTS

www.niccomp.com
