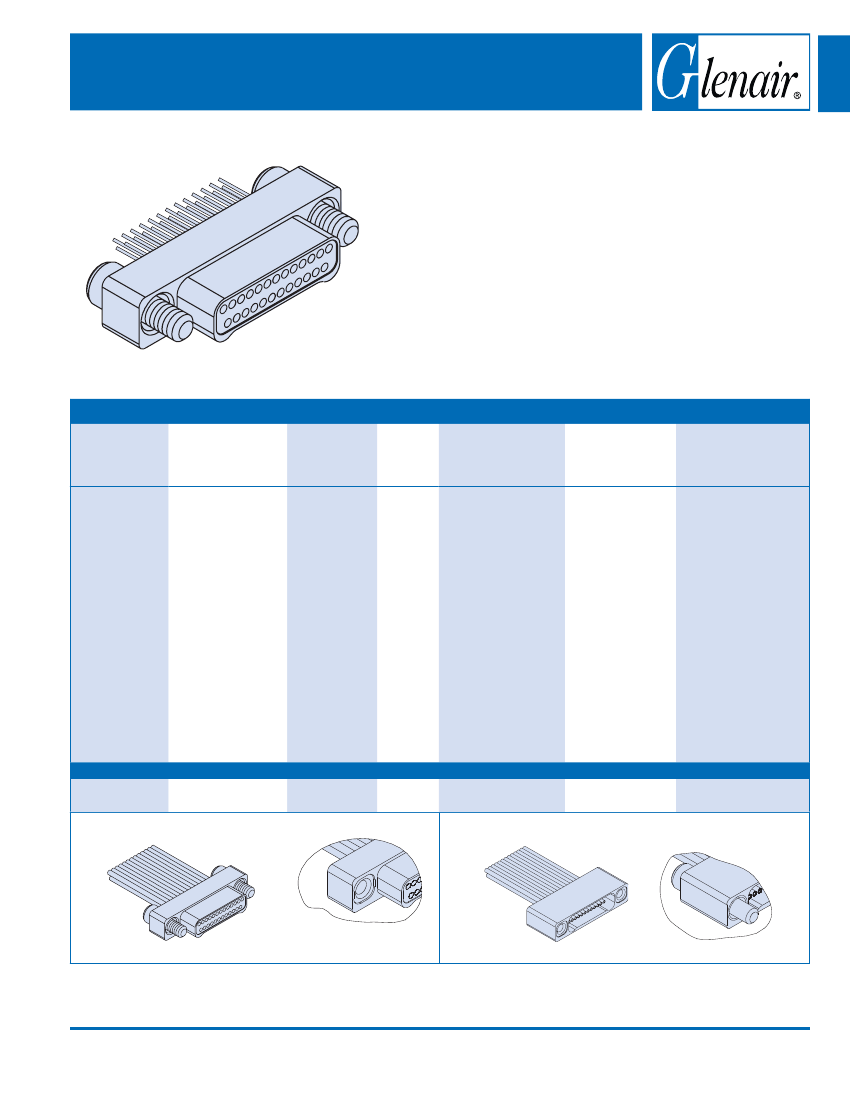

891-003 and -004
Series 89 Nanominiature Connectors
Double Row Uninsulated Wire Pigtail Assemblies
Glenair’s Pigtail Nano Connectors
feature gold alloy
TwistPin contacts. Contacts are precision-crimped to solid wire.
These nanomimiature connectors offer premium preformance
and reliability for demanding applications. Contact spacing is
.025 inches. 1 amp current rating, DWV rating 300 volts AC.
Wire gages #30 and #32 AWG.
TwistPin Contact System
assures premium performance in
demanding environments. The gold/platinum alloy contacts will
stand up to years of exposure without corrosion.
Typical Applications
include UAV's, satellites, missile
systems and geophysical instruments.
HOW TO ORDER NANOMINIATURE CONNECTORS WITH UNINSULATED WIRE
Series
Insert
Arrangement/
Contact Type
Plugs (891-003)
Shell Material
and Finish
Wire
Gage
Wire Type
Wire Length
Hardware
891-003
Plug, Pin
Contacts,
Double Row,
Nanominiature,
Uninsulated Wire
A1
0
D3
Single Strand Copper
Wire, Uninsulated, with
Gold Plating
891-004
9P
15P
21P
25P
31P
37P
51P
Aluminum Shell, #30 AWG
Cadmium Plating
A2
Aluminum Shell,
Electroless
Nickel Plating
2
#32 AWG
.125
.250
.375
.500
Wire Length in Inches
J
Jackscrew, #0-80
T
#0-80
Female Thread
Female Threads are available
on plug connectors only if the
shell material is titanium or
stainless steel.
Receptacle,
Socket Contacts, Receptacles (891-004)
9S
Double Row,
Nanominiature,
15S
Uninsulated Wire
21S
T
Titanium Shell,
Unplated
S
Stainless Steel
Shell, Passivated
25S
31S
37S
51S
Sample Part Number
891-003
— 9P
A1
—0
D3
— 12
J
PLUG (PIN) CONNECTOR
RECEPTACLE (SOCKET) CONNECTOR
“J” Jackscrew Option
“T” Female Thread Option
Titanium or Stainless Steel
Shells Only
“T” Female Thread Option
“J” Jackscrew Option
© 2007 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
37
E-Mail: sales@glenair.com
Double Row
Connectors
891-003 and -004
Series 89 Nanominiature Connectors
Double Row Uninsulated Wire Pigtail Assemblies

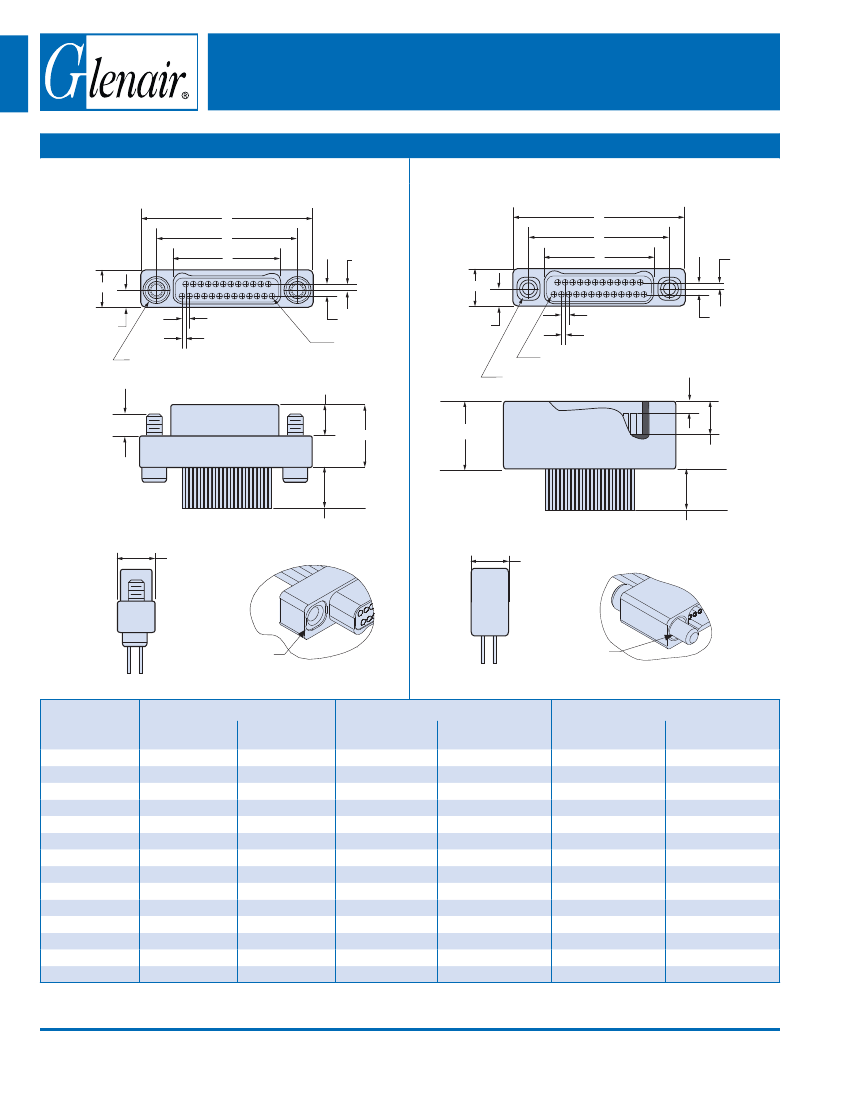

DOUBLE ROW NANO PIGTAIL DIMENSIONS
Plug (Pin) Connectors
Receptacle (Socket) Connectors
A
B
.020 (0.51)
.125 (3.18)
.025 (0.64) TYP
.0125 (0.32) TYP
#0-80 UNF-2A, 2X
.108 / .102
2.74 / 2.59
.040 (1.02)
PIN 1
SKT
1
Double Row
Connectors
A
B
C
.125 (3.18)
.0575 (1.46)
.080
(2.03)
.125 (3.18)
C
.020 (0.51)
.0575 (1.46)
.025 (0.64) TYP
.0125 (0.32) TYP
.040 (1.02)
#0-80 UNF-2B, 2X
.042/.037
(1.07/0.94)
.210 (5.33 )
.225 (5.72)
.110 ± .003
(2.79 ± 0.08)
LEAD LENGTH ± .015 (0.38)
LEAD LENGTH ± .015 (0.38)
.125 (3.18)
PLUG WITH “T”
FEMALE THREAD
OPTION
Titanium or Stainless
Steel Shells Only
RECEPTACLE
WITH “J”
JACKSCREW
OPTION
A
Layout
In. ± .005
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
.375
.375
.450
.450
.525
.525
.575
.575
.650
.650
.725
.725
.900
.900
B BSC.
mm. ± 0.13
9.52
9.52
11.43
11.43
13.33
13.33
14.60
14.60
16.51
16.51
18.41
18.41
22.86
22.86
C BSC.
mm.
6.86
6.86
8.76
8.76
10.67
10.67
11.94
11.94
13.84
13.84
15.75
15.75
20.19
20.19
In.
.270
.270
.345
.345
.420
.420
.470
.470
.545
.545
.620
.620
.795
.795
In.
.160
.163
.235
.238
.310
.313
.360
.363
.435
.438
.510
.513
.685
.688
mm.
4.06
4.14
5.97
6.04
7.87
7.95
9.14
9.22
11.05
11.12
12.95
13.03
17.40
17.47
