NMC0603X7R753K16TRPLPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC0603X7R753K16TRPLPF

NMC0603X7R753K16TRPLPF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.075uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size262KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

NMC0603X7R753K16TRPLPF Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.075uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

NMC0603X7R753K16TRPLPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 0603
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.075 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	NMC
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
size code	0603
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

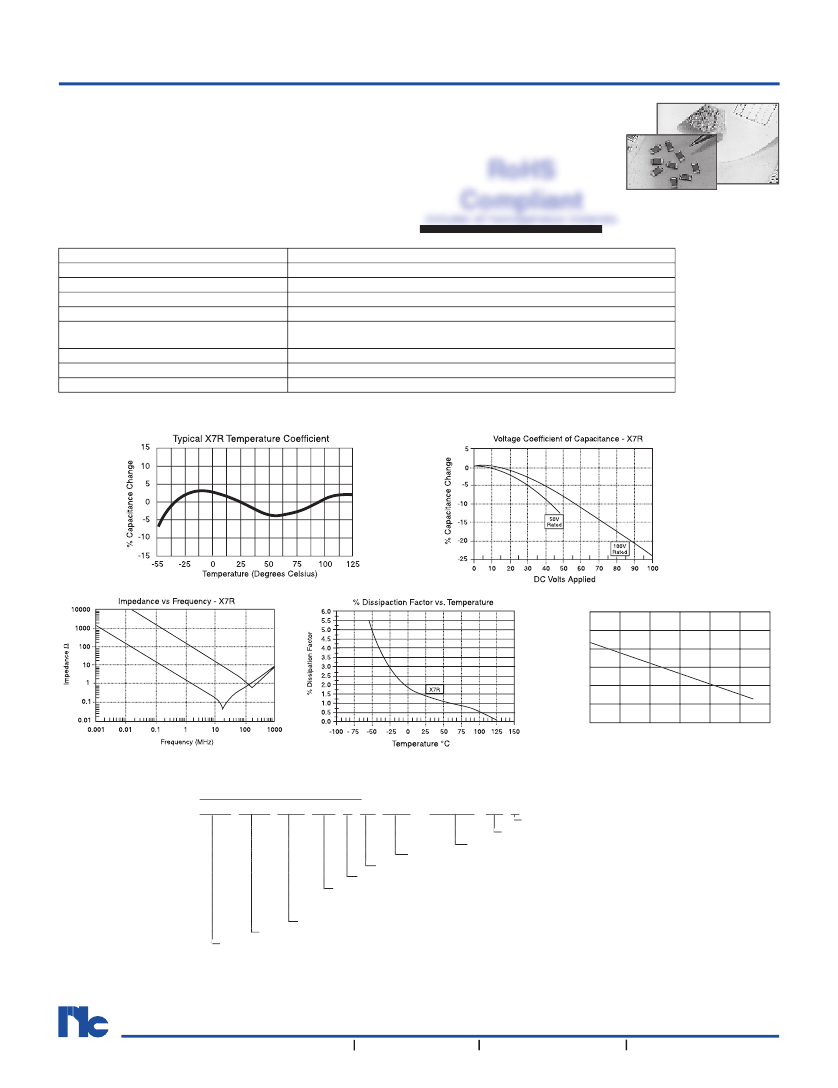

Multilayer Ceramic Chip Capacitors

FEATURES

• CLASS II DIELECTRIC, TEMPERATURE STABLE

• EXCELLENT FREQUENCY CHARACTERISTICS, NON-LINEAR

CAPACITANCE CHANGE

• HIGHER CAPACITANCE THAN NPO

• NICKEL BARRIER TERMINATIONS AND EXCELLENT

MECHANICAL STRENGTH

includes all homogeneous materials

• EIA MARKING AVAILABLE

NMC Series X7R

RoHS

Compliant

*See Part

Number System for Details

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Characteristics

Rated Voltages

Dissipation Factor

insulation Resistance

Dielectric Withstanding Voltage

Test Conditions (EIA-198-2E)

470pF ~ 0.82µF (see high CV datasheet for higher capacitance values)

±5% (J), ±10% (K), ±20% (M)

-55°C ~ +125°C

±15%∆ max. over temperature range (with 0 Vdc applied)

16Vdc, 25Vdc, 35Vdc, 50Vdc (see NMC-H Series for higher voltages)

2.5% max. (50Vdc, 100Vdc); 3.5% max. (16Vdc, 25Vdc) 5% max. (10Vdc)

@ 1.0Vrms and 1KHz, +25°C

100Gigohms min. or 1000Megohm/µF min. whichever is less @ +25°C

250% of Rated Voltage for 5 ±1 seconds, 50mA maximum current

1KHz, 1.0V ±0.2Vrms

10000

½½½½½µ½

Insulation Resistance

(Ω Farads)

Minimum Insulation Resistance

vs. Temperature

1000

½½½µ½

100

Temperature °C

100 125

PART NUMBER SYSTEM

NMC 0805 X7R 102 K 50 TRP or TRPLP 3K F

Series

RoHS Compliant

Optional Reel Qty (3K=3,000pcs)

Tape & Reel (Embossed Plastic Carrier)

Tape & Reel (Paper carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, first 2 digits are

significant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

NMC0603X7R753K16TRPLPF Related Products

	NMC0603X7R753K16TRPLPF	NMC0603X7R753K16TRPF	NMC1812X7R754J50TRPLPF	NMC1812X7R754K50TRPLPF	NMC1812X7R754M50TRPF	NMC1812X7R754M50TRPLPF	NMC1206X7R753J16TRPLPF	NMC1206X7R753K16TRPF	NMC1206X7R753K16TRPLPF
Description	Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.075uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.075uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.75uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.75uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.75uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.75uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.075uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.075uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.075uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon
package instruction	, 0603	, 0603	, 1812	, 1812	, 1812	, 1812	, 1206	, 1206	, 1206
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.075 µF	0.075 µF	0.75 µF	0.75 µF	0.75 µF	0.75 µF	0.075 µF	0.075 µF	0.075 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	NMC	NMC	NMC	NMC	NMC	NMC	NMC	NMC	NMC
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
negative tolerance	10%	10%	5%	10%	20%	20%	5%	10%	10%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC	TR, PAPER	TR, EMBOSSED PLASTIC	TR, EMBOSSED PLASTIC	TR, PAPER	TR, EMBOSSED PLASTIC	TR, EMBOSSED PLASTIC	TR, PAPER	TR, EMBOSSED PLASTIC
positive tolerance	10%	10%	5%	10%	20%	20%	5%	10%	10%
Rated (DC) voltage (URdc)	16 V	16 V	50 V	50 V	50 V	50 V	16 V	16 V	16 V
size code	0603	0603	1812	1812	1812	1812	1206	1206	1206
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Temperature characteristic code	X7R	X7R	X7R	X7R	X7R	X7R	X7R	X7R	X7R
Temperature Coefficient	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
