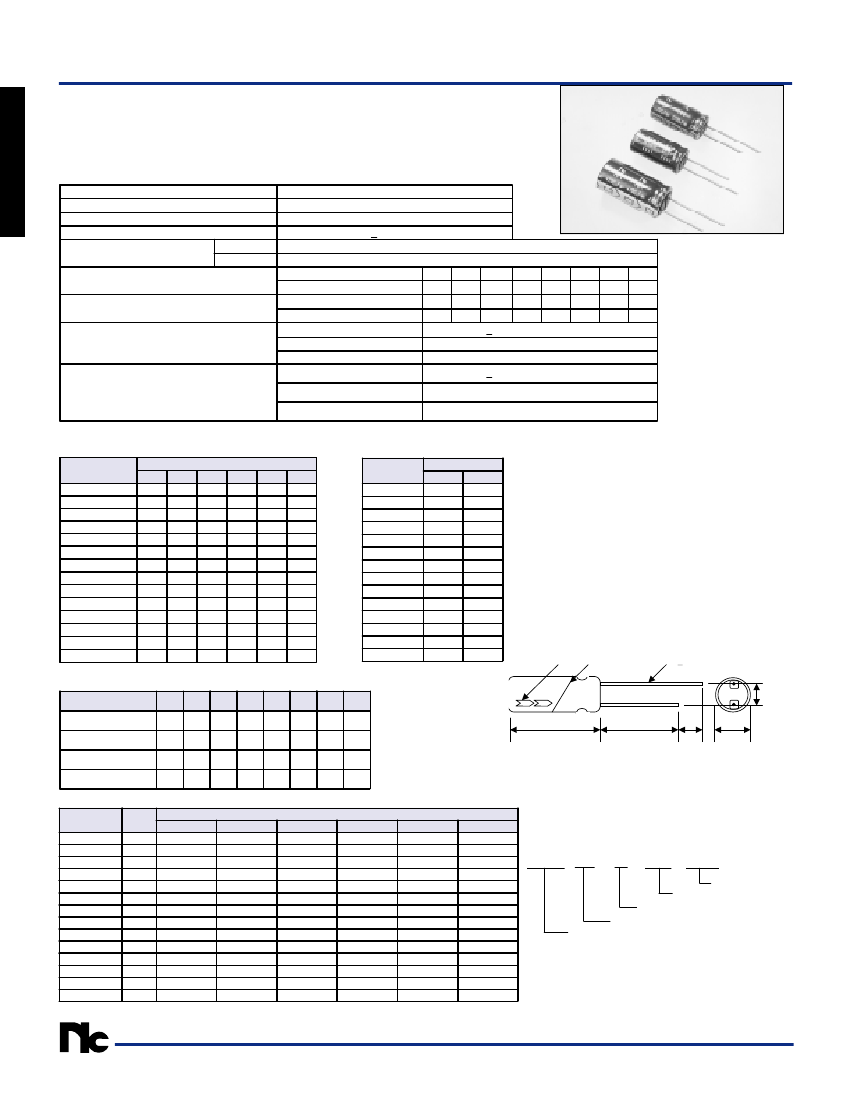

Miniature Aluminum Electrolytic Capacitors
NRE-H SERIES HIGH VOLTAGE, RADIAL LEADS, POLARIZED
LEADED
FEATURES
• HIGH VOLTAGE (UP THROUGH 450VDC)
• NEW REDUCED SIZES
CHARACTERISTICS
Rated Voltage Range
Capacitance Range
Operating Temperature Range
Capacitance Tolerance
After 1 min.
Max. Leakage Current @ (20
o
C)
After 2 min.
Max. Tan
δ
@ 120Hz/20°C
Low Temperature Stability
Impedance Ratio @ 120Hz
Load Life Test at Rated W.V.
85°C 2,000 Hours
Shelf Life Test
85°C 1,000 Hours
N o Lo a d
160 ~ 450 VDC
0.47 ~ 330µF
-40 ~ +85°C:160~ 250V or -25 ~ +85°C:315 ~ 450V
+ 20% (M)
0.03CV or 4µA , whichever if greater
0.01CV or 3µA , whichever if greater
W.V. (Vdc)
160 200 250 350 400 450
63
100
Tan
δ
0.20 0.20 0.20 0.25 0.25 0.25 79
125
Z-25°C/Z+20°C
3
3
3
10
12
12
Z-40°C/Z+20°C
6
6
6
-
-
-
Capacitance Change
Within +20% of initial measured value
Tan
δ
Less than 200% of specified maximum value
Leakage Current
Less than specified maximum value
Capacitance Change
Tan
δ
Leakage Current
Within +20% of initial measured value
Less than 200% of specified maximum value
Less than specified maximum value
NRE-H Series
MAXIMUM PERMISSIBLE RIPPLE CURRENT
(mA rms) AT 85
o
C & 120Hz
C a p (
µ
F )
W o r k in g V o lta g e ( V d c )
MAXIMUM E.S.R. (Ω)
Ω
o
AT 20 C AND 120Hz
Cap (µ
F)
W.V. (Vdc)
160-250 350-450
0 .4 7
1 .0
2 .2
3 .3
4 .7
10
22
33
47
68
100
150
220
330
160
10
21
31
40
55
90
153
195
245
310
410
550
745
800
200
11
23
34
45
57
92
160
210
250
325
430
575
760
250
12
25
35
48
59
94
170
220
260
335
432
588
760
350
14
29
40
52
67
100
175
225
260
340
440
400
14
29
40
52
67
100
180
230
270
345
450
450
26
40
52
67
100
180
220
245
270
0.47
1.0
2.2
3.3
4.7
10
22
33
47
68
100
150
220
330
706
332
151
101
70.6
33.2
15.1
10.1
7.06
4.88
3.32
2.21
1.51
1.01
882
415
188
126
86.2
41.5
18.8
12.6
8.82
6.10
4.15
Polarity Marking
Insulation Sleeve
dφ + 0.05
LEAD SPACING AND DIAMETER (mm)
C a se D ia . (D
∅
)
L e a d s D ia . (d
∅
)
L e a d S p a c in g (F )
D im .
α
D im .
β
5
0.5
2.0
0.5
1.5
6.3
0.5
2.5
0.5
1.5
8
0.6
3.5
0.5
1.5
10
0.6
5.0
0.5
1.5
12 .5
0.6
5.0
0.5
1.5
16
0.8
7.5
0.5
2.0
18
0.8
7.5
0.5
2.0
22
0.8
10
1.0
2.0
L +
β
Max.
15mm Min.
4mm
Min.
Dφ +
α
F
+ 0.5
SLEEVE COLOR: DARK BLUE
STANDARD PRODUCTS AND CASE SIZE TABLE Dφ x L (mm)
φ
C ap
µ
F
0 .4 7
1 .0
2 .2
3 .3
4 .7
10
22
33
47
68
100
150
220
330
C ode
R47
1R0
2R2
3R3
4R7
100
220
330
470
680
101
151
221
331
W o rk in g Vo lta g e (V d c)
160
200
250
350
400
450
5 x 11
5 x 11
5 x 11
6 .3 x 11 6 .3 x 11
5 x 11
5 x 11
5 x 11
6 .3 x 11 8 x 1 1.5 8 x 1 2.5
6 .3 x 11 6 .3 x 11 6 .3 x 11 8 x 1 1.5 8 x 1 1.5
10 x 16
6 .3 x 1 1 6 .3 x 1 1 8 x 1 1 .5 8 x 1 2 .5 10 x 12.5 1 0 x 2 0
6 .3 x 1 1 8 x 1 1 .5 8 x 1 1 .5 10 x 12.5 1 0 x 1 6 12.5 x 20
8 x 1 1 .5 8 x 1 2 .5 10 x 12.5 1 0 x 1 6
1 0 x 2 0 12.5 x 25
10 x 12.5 1 0 x 1 6
1 0 x 2 0 12.5 x 20 12.5 x 25 1 6 x 2 5
10 x 20
10 x 20
13 x 20
12.5 x 25 1 6 x 2 5
16 x 31
1 2 .5 x 2 0 1 2 .5 x 2 0 1 2 .5 x 2 5 1 6 x 2 5
16 x 31
18 x 36
1 2 .5 x 2 0 1 2 .5 x 2 5 1 6 x 2 5
16 x 36
16 x 36
18 x 41
12.5 x 25 1 6 x 2 5
16 x 31
18 x 36
18 x 41
16 x 31
16 x 36
18 x 36
16 x 36
18 x 36
18 x 41
18 x 41
PART NUMBERING SYSTEM
NRE-H 100
M
350V
10x16
Size (D∅ x L)
Rated Voltage
Tolerance Code
Capacitance Code
Series
See page 8 for complete part numbering system.
®
