NREL331M10V10X9.5TRNF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NREL331M10V10X9.5TRNF

NREL331M10V10X9.5TRNF: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 330uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size122KB，5 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

NREL331M10V10X9.5TRNF Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 330uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

NREL331M10V10X9.5TRNF Parametric

Parameter Name	Attribute value
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	1010 mΩ
leakage current	0.099 mA
Manufacturer's serial number	NREL
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TR, CARDBOARD, 14 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	290 mA
surface mount	NO
Delta tangent	0.2
Terminal shape	WIRE

Preview

Download Datasheet

View All

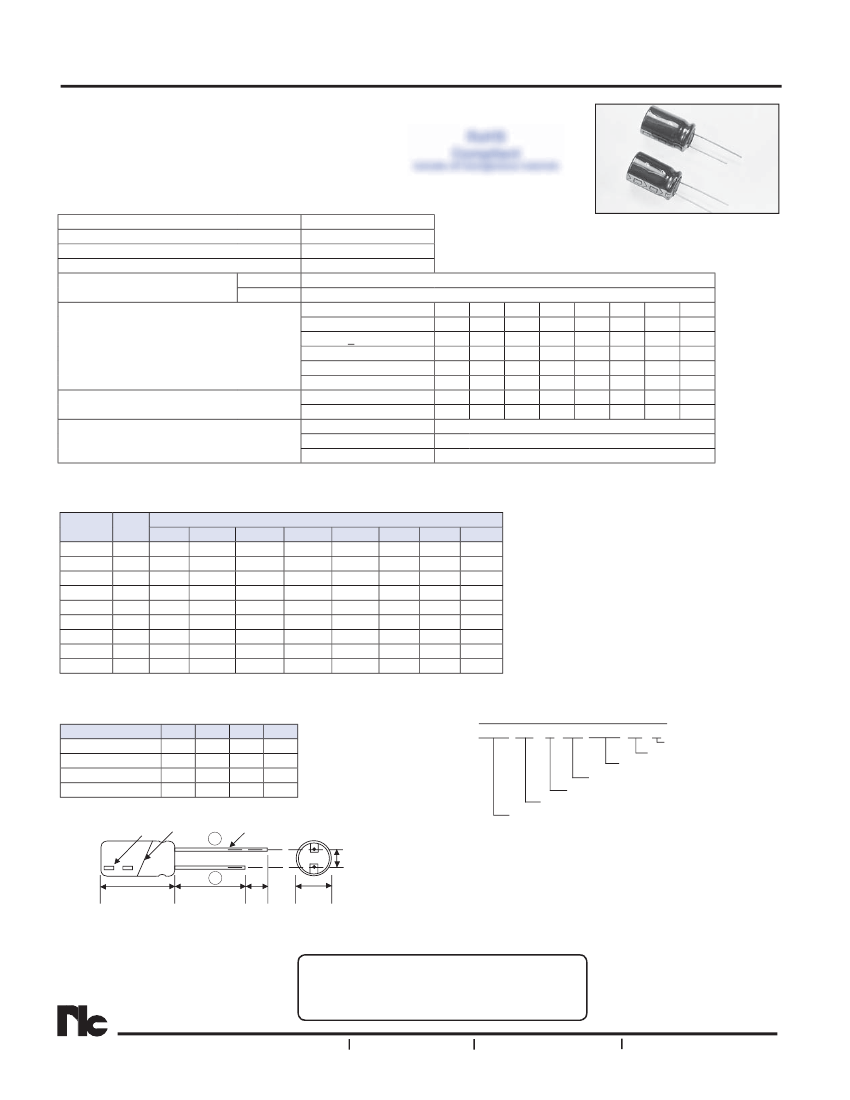

Miniature Aluminum Electrolytic Capacitors

LOW PROFILE, RADIAL LEAD, POLARIZED

FEATURES

• LOW PROFILE APPLICATIONS

• HIGH STABILITY AND PERFORMANCE

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

After 1 min.

Max. Leakage Current @ +20°C

After 2 min.

6.3 ~ 100Vdc

22 ~ 4,700μF

-40 ~ +85°C

±20%(M)

NREL Series

includes all homogeneous materials

RoHS

Compliant

*See Part N b System f D il

for Details

P Number S

Max. Tan

@ 120Hz/+20°C

Low Temperature Stability

Inpedance Ratio @ 120Hz

Load Life Test at Rated W.V. and +85°C

3,000 Hours

0.03CV or 4μA, whichever is greater

0.01CV or 3μA, whichever is greater

W.V. (Vdc)

6.3

100

S.V. (Vdc)

125

0.24 0.20 0.16 0.14 0.12 0.10 0.09 0.08

C < 1,000μF

0.26 0.22 0.18 0.16

C = 2,200μF

0.28 0.24

C = 3,300μF

0.30 0.26

C = 4,700μF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Capacitance Change

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Tan

Leakage Current

Less than speciﬁed maximum value

STANDARD PRODUCT AND CASE SIZE TABLE D

x L (mm)

Cap (μF) Code

100

220

330

470

1,000

2,200

3,300

4,700

220

101

221

331

471

102

222

332

472

Working Voltage (Vdc)

6.3

100

10x9.5

10x9.5 10x9.5

16x16

10x9.5 10x9.5

18x21

10x9.5 10x9.5 10x12.5 12.5x16 16x16 16x16

10x9.5

12.5x16 16x16 16x16 16x21

12.5x16 12.5x16 16x16

18x21

16x16 16x16

16x16

16x21

18x21 18x21

LEAD SPACING AND DIAMETER (mm)

Case Dia. (Dφ)

Lead Dia. (dφ)

Lead Spacing (F)

Dim.

dim.

Polarity Marking

PART NUMBERING SYSTEM

NREL 471 M 35V 16X16 TB

RoHS Compliant

Tape and Box*

Size (D∅ x L)

Rated Voltage

Tolerance Code

Capacitance Code

0.6

5.0

0.5

1.5

12.5

0.6

5.0

0.5

1.5

0.8

7.5

0.5

2.0

0.8

7.5

0.5

2.0

DIMENSIONS (mm)

Insulation Sleeve

dφ ± 0.05

*see taping speciﬁcations for details

F ± 0.5

Series

L +

max.

15mm Min.

4mm

Min.

Dφ ±

Drawing is representative of parts as supplied in bulk or

straight lead format, please see taping speciﬁcation for details

on taped format packaging.

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
