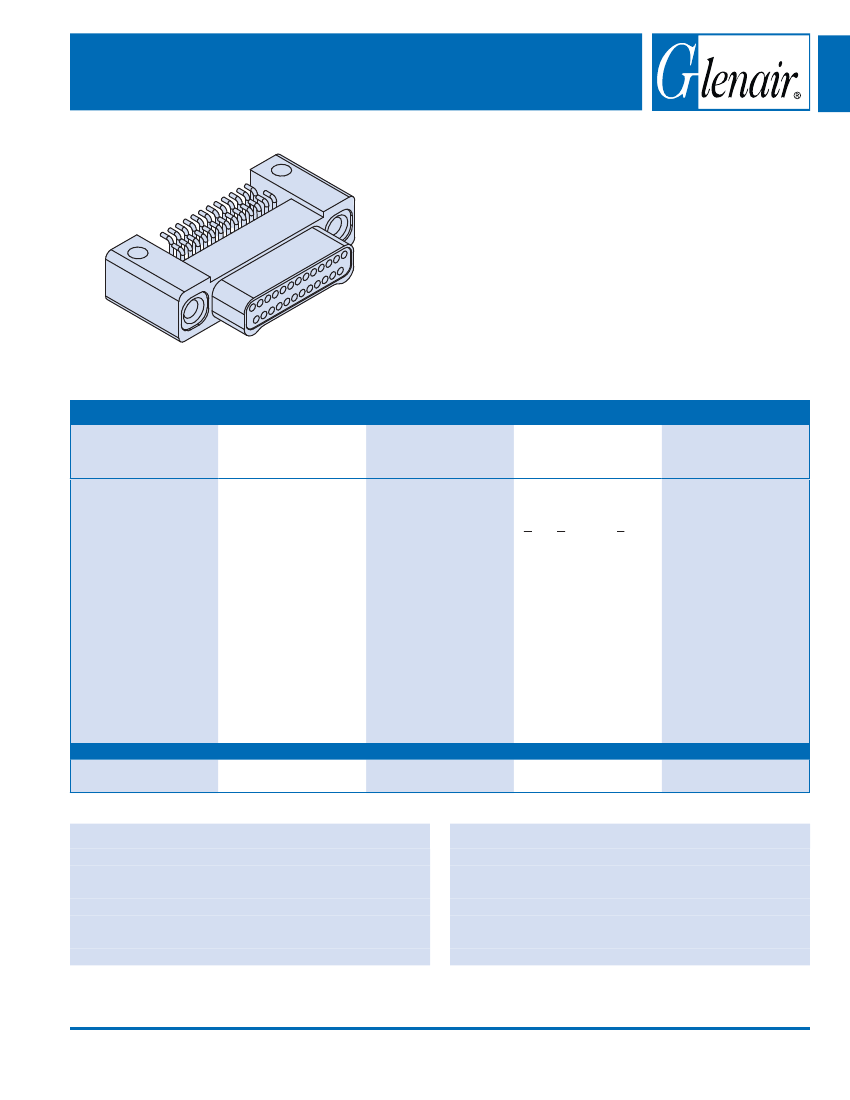

891-013-21PA2-BRS datasheet, PDF

891-012 and -013

Series 89 Nanominiature Connectors

Double Row Right Angle Surface Mount

Right Angle Surface Mount PCB Nano Connectors

feature gold alloy TwistPin contacts. These nanomimiature

connectors offer premium performance and reliability for

demanding applications. Available with #0-80 female

threads, or with jackscrews for use with ﬂexible circuits.

Pre-Tinned PC Tails

are coated with Sn63Pb37 tin-lead for

excellent solderability.

Choose Aluminum, Titanium or Stainless Steel Shells

in seven layouts from 9 to 51 contacts. Complies to the

requirements of MIL-DTL-32139.

HOW TO ORDER RIGHT ANGLE SURFACE MOUNT PCB CONNECTORS

Series

Insert

Arrangement/

Contact Type

Shell Material

and Finish

Termination Type

Hardware

891-012

Plug, Pin Contacts, Double

Row, Right Angle Surface

Mount Nanominiature

Plugs (891-012)

A1

Aluminum Shell, Cadmium

Plating

BRS

”Board

Right

Angle

Surface

Mount”

T

#0-80

Female Threads

891-013

Receptacle, Socket

Contacts, Double Row,

Right Angle Surface Mount

Nanominiature

9P

15P

21P

25P

31P

37P

51P

Receptacles (891-013)

A2

Aluminum Shell, Electroless

Nickel Plating

T

Titanium Shell, Unplated

9S

15S

21S

25S

31S

37S

51S

S

Stainless Steel Shell,

Passivated

Sample Part Number

891-012

— 25P

A1

—BRS

T

MATERIALS AND FINISHES

Connector Shell

Insulator

Contacts

Hardware

PC Tails

PCB Trays

Encapsulant

See Ordering Information

Liquid Crystal Polymer (LCP),30% Glass-Filled

Gold Alloy, Unplated

300 Series Stainless Steel

#30 (.010 Dia.) Copper Wire, Solder Dipped

Liquid Crystal Polymer (LCP) or Epoxy

Epoxy

Durability

SPECIFICATIONS

200 Cycles Minimum

1 AMP Maximum

300 VAC RMS Sea Level

5000 Megohms Minimum

-55° C. to +125° C.

71 mV. @1 AMP #30 AWG Wire

1.0% Max TML, 0.1% Max. CVCM

Current Rating

Voltage Rating (DWV)

Insulation Resistance

Operating Temperature

Contact Resistance

Thermal Vacuum Outgassing

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

53

E-Mail: sales@glenair.com

Double Row

Connectors

891-012 and -013

Series 89 Nanominiature Connectors

Double Row Right Angle Surface Mount

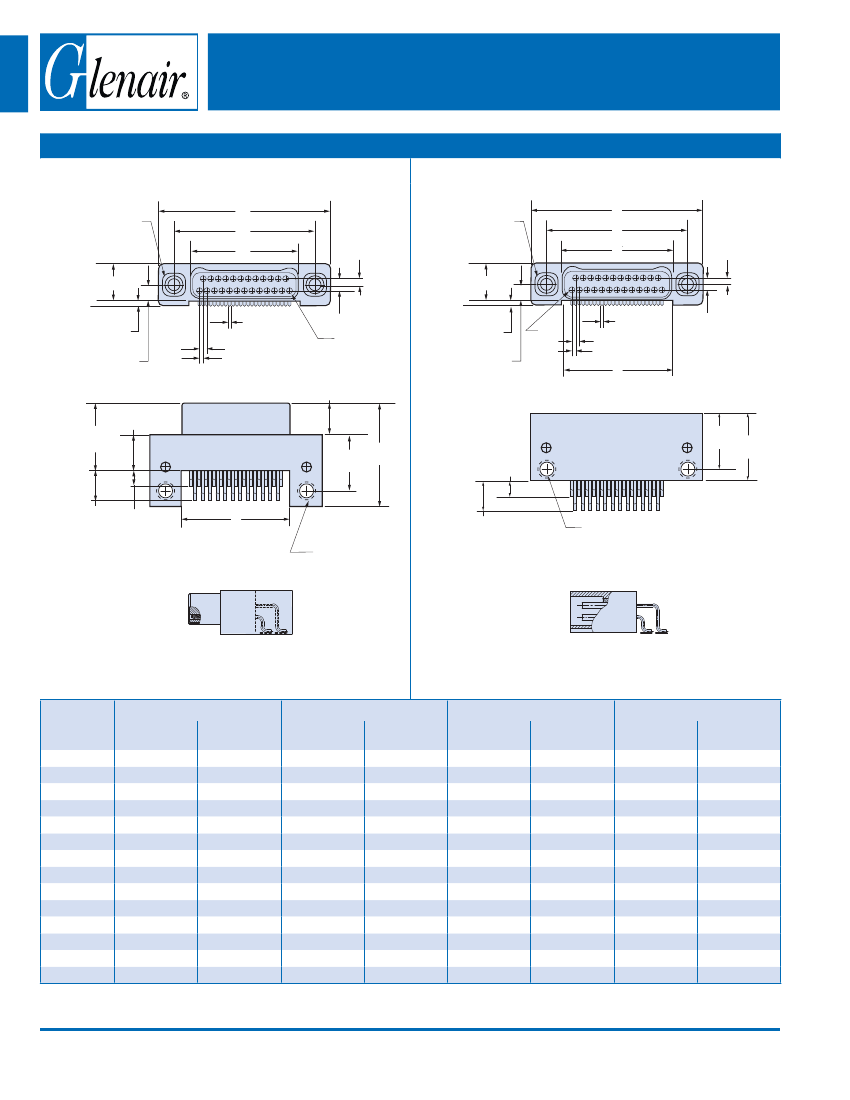

DOUBLE ROW RIGHT ANGLE SURFACE MOUNT NANO DIMENSIONS

Plug (Pin) Connectors

A

#0-80 UNF-2B, 2X

FEMALE

THREADED

INSERTS OPTION T

.125 (3.18)

.040 (1.02)

PIN 1

.025 (0.64) TYP

.0125 (0.32) TYP

.108 / .102

(2.74 / 2.59)

.120

(3.05)

.345

.187 (8.76)

(4.75)

.051

(1.30)

.015 (0.38)

.0575 (1.46)

SKT

1

Double Row

Connectors

B

C

.015 (0.38)

.0575 (1.46)

.010 (0.25)

.225

(5.72)

.101

.051

(2.57) (1.30)

D

Receptacle (Socket) Connectors

A

.020

(0.51)

#0-80 UNF-2B, 2X

FEMALE

THREADED

NSERTS OPTION T

I

.125 (3.18)

.040 (1.02)

B

C

.020

(0.51)

.010 (0.25)

.025 (0.64) TYP

.0125 (0.32) TYP

D

.187

(4.75) .225

(5.72)

.101

(2.57)

#0-80 UNF-2B

2X

#0-80

UNF-2B

2X

A

Layout

In. ± .005

9P

9S

15P

15S

21P

21S

25P

25S

31P

31S

37P

37S

51P

51S

.375

.450

.525

.575

.650

.725

.900

B BSC.

mm. ± 0.13

9.52

11.43

13.33

14.60

16.51

18.41

22.86

C BSC.

mm.

6.86

8.76

10.67

11.94

13.84

15.75

20.19

D

mm.

4.06

4.14

5.97

6.04

7.87

7.95

9.14

9.22

11.05

11.12

12.95

13.03

17.40

17.47

In.

.270

.345

.420

.470

.545

.620

.795

In.

.160

.163

.235

.238

.310

.313

.360

.363

.435

.438

.510

.513

.685

.688

In.

±

.005

.170

.245

.320

.370

.445

.520

.695

mm.

±

0.13

4.32

6.22

8.13

9.40

11.30

13.21

17.65

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

54

E-Mail: sales@glenair.com

891-012 and -013

Series 89 Nanominiature Connectors

Double Row Right Angle Surface Mount

Patterns shown are for connector mounting side of PC Board.

DOUBLE ROW RIGHT ANGLE SURFACE MOUNT BOARD LAYOUT—891-012 PLUGS (PIN CONTACTS)

.016 (0.41) TYP

PAD WIDTH

.035 (0.89)

LEAD LENGTH

.010 (0.25)

LEAD WIDTH

.040 (1.02)

PAD HEIGHT

PAD/ FOOTPRINT DETAIL

1

. 00 (2.54)

.0125 (0.32) TYP

.025 (0.64) TYP

9 8 7 6

5 4 3 2 1

.037 (0.94)

.175 (4.45)

.0125 (0.32) TYP

.025 (0.64) TYP

.037 (0.94)

1 1 1 1 1 1 9

5 4 3 2 1 0

8 7 6 5 4 3 2 1

.085 (2.16)

.270 (6.86)

.013 (0.33)

.085 (2.16)

.345 (8.76)

.013 (0.33)

9 Contacts

.0125 (0.32) TYP

.025 (0.64) TYP

.250 (6.35)

2 2 1 1 1 1 1 1 1 1

1 0 9 8 7 6 5 4 3 2

1 1 9 8 7 6 5 4 3 2 1

1 0

15 Contacts

.037 (0.94)

.0125 (0.32) TYP

.025 (0.64) TYP

.300 (7.62)

2 2 2 2 2 2 1 1 1 1 1 1

5 4 3 2 1 0 9 8 7 6 5 4

.037 (0.94)

.085 (2.16)

.420 (10.67)

.013 (0.33)

1 1 1 1 9 8 7 6 5 4 3 2 1

3 2 1 0

.085 (2.16)

.470 (11.94)

.013 (0.33)

21 Contacts

.0125 (0.32) TYP

.025 (0.64) TYP

.375 (9.53)

3 3 2 2 2 2 2 2 2 2 2 2 1 1 1

1 0 9 8 7 6 5 4 3 2 1 0 9 8 7

1 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1

6 5 4 3 2 1 0

25 Contacts

.037 (0.94)

.0125 (0.32) TYP

.025 (0.64) TYP

.450 (11.43)

3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2

7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0

.037 (0.94)

.085 (2.16)

.545 (13.84)

.013 (0.33)

1 1 1 1 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1

9 8 7 6 5 4 3 2 1 0

.085 (2.16)

.620 (15.75)

.013 (0.33)

31 Contacts

.0125 (0.32) TYP

.025 (0.64) TYP

.625 (15.88)

5 5 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 3 3 3 3 3 2 2 2

1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7

2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1

6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0

37 Contacts

.037 (0.94)

.085 (2.16)

.795 (20.19)

.013 (0.33)

51 Contacts

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

55

E-Mail: sales@glenair.com

Double Row

Connectors

891-012 and -013

Series 89 Nanominiature Connectors

Double Row Right Angle Surface Mount

Patterns shown are for connector mounting side of PC Board.

Double Row

Connectors

.100 (2.54)

.0125 (0.32) TYP

.025 (0.64) TYP

6 7 8 9

DOUBLE ROW RIGHT ANGLE SURFACE MOUNT BOARD LAYOUT—891-013 RECEPTACLES

.016 (0.41) TYP

PAD WIDTH

.035 (0.89)

LEAD LENGTH

.010 (0.25)

LEAD WIDTH

.040 (1.02)

PAD HEIGHT

PAD/ FOOTPRINT DETAIL

.175 (4.45)

.0125 (0.32) TYP

.025 (0.64) TYP

9 1 1 1 1 1 1

0 1 2 3 4 5

1 2 3 4 5

.142 (3.61)

.092 (2.34)

.085 (2.16)

.142 (3.61)

.092 (2.34)

.085 (2.16)

1 2 3 4 5 6 7 8

.270 (6.86)

.345 (8.76)

9 Contacts

.250 (6.35)

1 1 1 1 1 1 1 1 2 2

2 3 4 5 6 7 8 9 0 1

15 Contacts

.300 (7.62)

1 1 1 1 1 1 2 2 2 2 2 2

4 5 6 7 8 9 0 1 2 3 4 5

.0125 (0.32) TYP

.025 (0.64) TYP

.142 (3.61)

.092 (2.34)

.085 (2.16)

.0125 (0.32) TYP

.025 (0.64) TYP

.142 (3.61)

.092 (2.34)

.085 (2.16)

1 2 3 4 5 6 7 8 9 1 1

0 1

1 2 3 4 5 6 7 8 9 1 1 1 1

0 1 2 3

.420 (10.67)

.470 (11.94)

21 Contacts

.0125 (0.32) TYP

.025 (0.64) TYP

.142 (3.61)

.092 (2.34)

.085 (2.16)

.375 (9.53)

1 1 1 2 2 2 2 2 2 2 2 2 2 3 3

7 8 9 0 1 2 3 4 5 6 7 8 9 0 1

1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1

0 1 2 3 4 5 6

25 Contacts

.0125 (0.32) TYP

.025 (0.64) TYP

.142 (3.61)

.092 (2.34)

.085 (2.16)

.450 (11.43)

2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3

0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7

1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1

0 1 2 3 4 5 6 7 8 9

.545 (13.84)

.620 (15.75)

31 Contacts

.0125 (0.32) TYP

.025 (0.64) TYP

.142 (3.61)

.092 (2.34)

.085 (2.16)

.625 (15.88)

2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5 5

7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1

1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2

0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6

37 Contacts

.795 (20.19)

51 Contacts

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

56

E-Mail: sales@glenair.com
