NRSG392M6.3V12.5X25TR

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 3900uF, THROUGH HOLE MOUNT, RADIAL LEADED
CategoryPassive components    capacitor
File Size75KB,3 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Download Datasheet Parametric View All

NRSG392M6.3V12.5X25TR Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 3900uF, THROUGH HOLE MOUNT, RADIAL LEADED

NRSG392M6.3V12.5X25TR Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNichicon
package instruction,
Reach Compliance Codecompli
ECCN codeEAR99
capacitance3900 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
JESD-609 codee0
leakage current0.2457 mA
Manufacturer's serial numberNRSG
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
method of packingTR
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)6.3 V
ripple current2770 mA
surface mountNO
Delta tangent0.26
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeWIRE

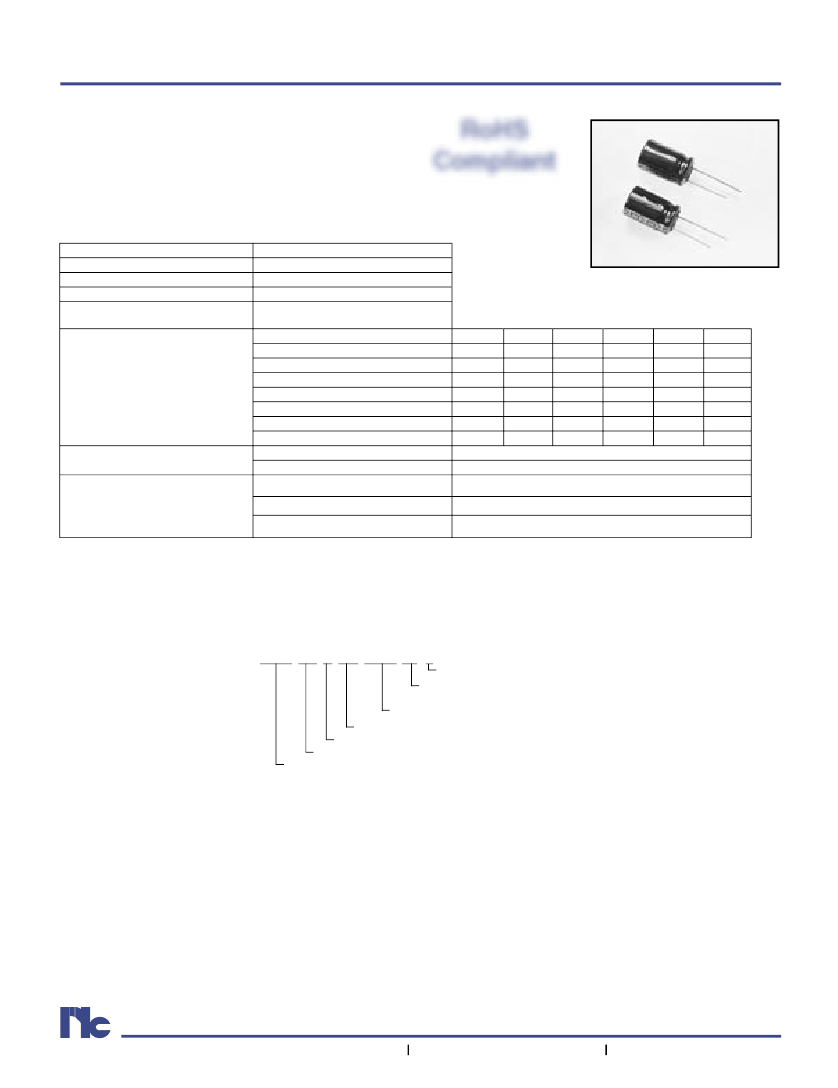

NRSG392M6.3V12.5X25TR Preview

Miniature Aluminum Electrolytic Capacitors
ULTRA LOW IMPEDANCE, RADIAL LEADS, POLARIZED, ALUMINUM ELECTROLYTIC
FEATURES
• VERY LOW IMPEDANCE
• LONG LIFE AT 105°C (2000 ~ 4000 hrs.)
*See Part Number System for Details
• HIGH STABILITY AT LOW TEMPERATURE
• IDEALLY FOR SWITCHING POWER SUPPLIES & CONVERTORS
CHARACTERISTICS
Rated Voltage Range
Capacitance Range
Operating Temperature Range
Capacitance Tolerance
Maximum Leakage Current
After 2 Minutes at 20°C
6.3 ~ 50Vdc
22 ~ 6,800µF
-40° ~ +105°C
±20% (M)
0.01CV or 3µA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
C = 1,000µF ~ 1,800µF
C = 2,200µF ~ 2,700µF
C = 3,300µF ~ 3,900µF
C = 4,700µF
C = 5,600µF
C = 6,800µF
Z-25°C/Z+20°C
Z-40°C/Z+20°C
Capacitance Change
Tan
δ
Leakage Current
NRSG Series
RoHS
Compliant
Max. Tan
δ
at 120Hz/20°C
6.3
8
0.22
0.24
0.26
0.28
0.30
0.32
10
13
0.19
0.21
0.23
-
0.27
-
16
20
0.16
0.18
0.20
-
-
-
2
3
25
32
0.14
-
-
-
-
-
35
44
0.12
-
-
-
-
-
50
63
0.10
-
-
-
-
-
Low Temperature Stability
Impedance Ratio @ 120Hz
Load Life Test at Rated W.V.
105°C 2,000 Hrs. 5 ~ 6.3mm Dia
105°C 3,000 Hrs 8mm Dia
105°C 4,000 Hrs 10 ~ 12.5mm Dia
Within ±25% of initial measured value
Less than 200% of specified value
Less than specified value
PART NUMBER SYSTEM
NRSG 102 M 25V 10X20 TR F
Pb-free/RoHS Compliant
TR = Tape & Reel (optional)
TB = Tape & Box (optional)
Case Size (mm)
Working Voltage
Tolerance Code M=20%, K=10%
Capacitance Code in
µF
Series
*"F" suffix denotes RoHS compliant parts
®
98
NIC COMPONENTS
www.niccomp.com
www.lowESR.com
www.RFpassives.com
Miniature Aluminum Electrolytic Capacitors
MAXIMUM IMPEDANCE (mΩ @ 100KHz/20°C)
Cap (µF)
22
33
47
56
100
120
150
180
220
270
330
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
6.3
-
-
-
-
-
300
-
-
-
130
-
72
-
56
53
41
38
23
-
23
-
21
18
16
18
16
Working Voltage (Vdc)
10
16
25
35
-
-
-
-
-
-
-
300
300
-
-
300
-
130
300
-
130
-
-
130
-
-
-
-
-
72
-
-
-
-
56
130
-
72
53
-
-
-
41
56
-
72
38
53
56
41
72
23
53
38
-
-
-
22
56
41
23
21
53
38
-
-
23
-
41
23
21
18
38
16
23
23
-
18
23
21
18
-
16
-
-
16
18
21
18
-
-
16
-
16
-
18
18
-
-
-
16
16
-
-
18
-
-
-
-
16
-
-
-
-
-
-
-
50
340
-
140
-
74
61
61
46
42
30
28
27
28
21
23
21
-
-
-
-
-
-
-
-
-
-
NRSG Series
MAXIMUM RIPPLE CURRENT (mA@ 100KHz/105°C)
Cap (µF)
22
33
47
56
100
120
150
180
220
270
330
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
6.3
-
-
-
-
-
250
-
-
-
405
-
760
-
995
1030
1250
1430
1820
-
1820
-
2360
2770
3290
3140
3460
Working Voltage (Vdc)
10
16
25
35
-
-
-
-
-
-
-
250
250
-
-
250
-
405
250
-
405
-
-
405
-
-
-
-
-
760
-
-
-
-
995
405
-
760
1030
-
-
-
1250
995
-
760
1430
1030
995 1250
760
1820
1030 1430
-
-
-
2150
995 1250
1820 2360
1030 1430
-
-
1820
-
1250
1820 2360 2770
1430
3290
1820 1820
-
3140
1820 2360 2770
-
3290
-
-
3460
3140
2360 2770
-
-
3290
-
3460
-
3140
2770
-
-
-
3290
3460
-
-
3140
-
-
-
-
3460
-
-
-
-
-
-
-
50
238
-
385
-
724
950
979
1190
1370
1580
1870
2050
2410
2360
2730
3010
-
-
-
-
-
-
-
-
-
-
®
NIC COMPONENTS
www.niccomp.com
www.lowESR.com
www.RFpassives.com
99
Miniature Aluminum Electrolytic Capacitors
STANDARD PRODUCTS AND CASE SIZES (mm)
Cap (µF)
22
33
47
56
100
120
150
180
220
270
330
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
Code
220
330
470
560
101
121
151
181
221
271
331
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
6.3
-
-
-
-
-
5x11
-
-
-
6.3x11
-
8x11.5
-
8x15
10x12.5
8x20
10x16
10x20
-
10x20
-
12.5x20
12.5x25
12.5x30
16x21
16x25
Working Voltage (Vdc)
10
16
25
35
-
-
-
-
-
-
-
5x11
5x11
-
-
6.3x11
-
5x11
5x11
-
6.3x11
-
-
-
6.3x11
-
-
-
-
8x12.5
-
-
-
-
8x15
6.3x11
-
8x11.5
10x12.5
-
-
-
8x20
8x15
-
8x11.5
10x16
10x12.5
8x15
8x20
8x11.5
10x20
10x12.5 10x16
-
-
-
10x23
8x15
8x20
10x20 12.5x20
10x12.5 10x16
-
-
10x20
-
8x20
10x20 12.5x20 12.5x25
10x16
12.5x30
10x20
10x20
-
16x21
10x20 12.5x20 12.5x25
-
12.5x30
-
-
16x25
16x21
12.5x20 12.5x25
-
-
12.5x30
-
16x25
-
16x21
12.5x25
-
-
-
12.5x30
16x25
-
-
16x21
-
-
-
-
16x25
-
-
-
-
-
-
-
50
5x11
-
6.3x11
-
8x12.5
8x15
10x12.5
8x20
10x16
10x20
10x23
12.5x20
12.5x25
12.5x30
16x21
16x25
-
-
-
-
-
-
-
-
-
-
NRSG Series
DIAMETER AND LEADSPACE (mm)
Polarity Marking
Case Dia. (D
∅)
Lead Spacing (F)
Leads Dia. (d
∅)
α
= 0.5mm
5
6.3
8
10 12.5 12.5x30
5.0
0.8
16
7.5
0.8
L +
β
max.
Insulation Sleeve
dφ ± 0.05
2.0 2.5 3.5 5.0 5.0
0.5 0.5 0.6 0.6 0.6
F ± 0.5
15mm Min.
4mm
Min.
Dφ ±
α
β
= L < 20mm = 1.5mm, L > 20mm =2.0mm
®
100
NIC COMPONENTS
www.niccomp.com
www.lowESR.com
www.RFpassives.com
