UHC1A221MPH: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 220uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size43KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

UHC1A221MPH Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 220uF, THROUGH HOLE MOUNT, RADIAL LEADED

UHC1A221MPH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.022 mA
Manufacturer's serial number	HC
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	910 mA
surface mount	NO
Delta tangent	0.13
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

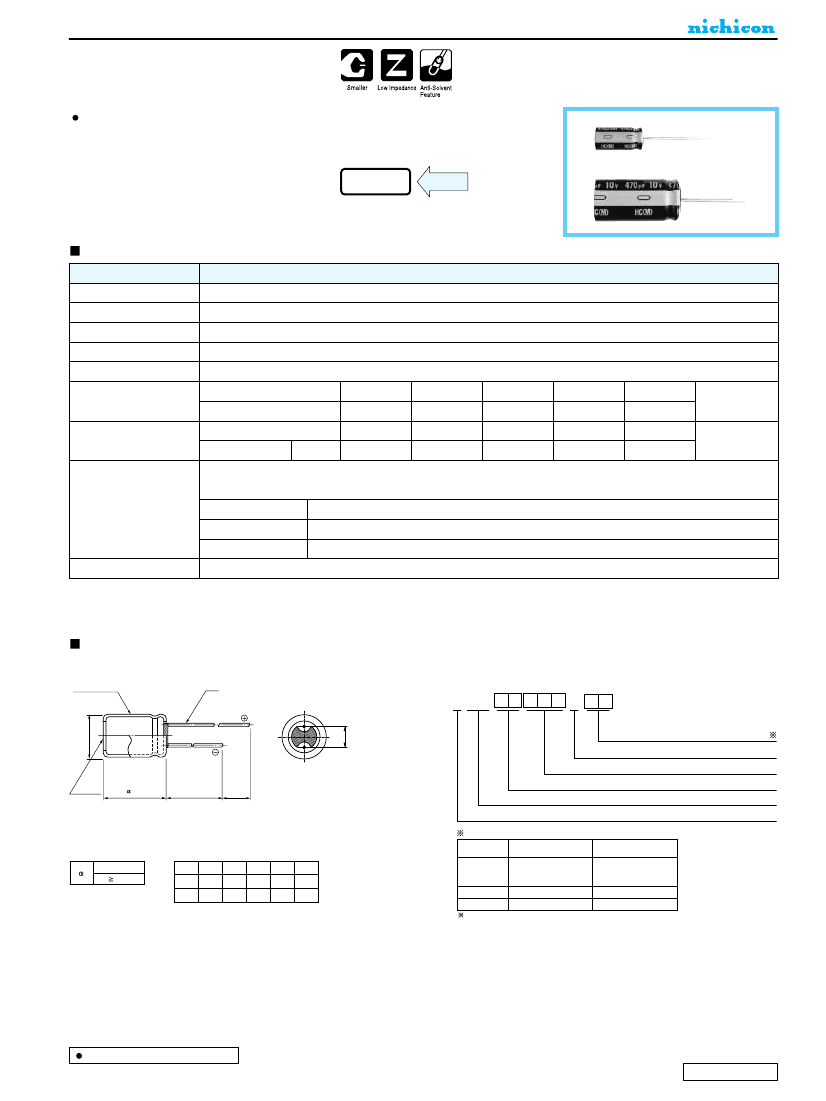

ALUMINUM ELECTROLYTIC CAPACITORS

HC

Low Impedance

series

Approved by Reliability Center for Electronic

Component, Japan-Certification No. RCJ-03-23C

Lower impedance than HD series.

HC

Low

Impedance

HD

Specifications

ltem

Category Temperature Range

– 40 ~ +105˚C

Rated Voltage Range

6.3 ~ 35V

Performance Characteristics

Rated Capacitance Range

4.7 ~ 1000µF

Capacitance Tolerance

Leakage Current

tan

δ

± 20% at 120Hz, 20˚C

After 2 minutes' application of rated voltage, leakage current is less than 0.01CV or 3 (µA), whichever is greater.

Rated voltage (V)

tan

δ

(MAX.)

Rated voltage (V)

6.3

0.15

6.3

2

10

0.13

10

2

16

0.12

16

2

25

0.10

25

2

35

0.10

35

2

120Hz

20˚C

120Hz

Stability at Low Temperature

Impedance ratio ZT / Z20 (MAX.) Z–40˚C / Z+20˚C

<

After an application of D.C. bias voltage plus the rated ripple current for 2000 hours (φD = 6.3 : 1000 hours ) at 105˚C the peak

voltage shall not exceed the rated D.C. voltage, capacitors meet the characteristic requirements listed below.

Endurance

Capacitance change

tan

δ

Leakage current

Within ± 20% of initial value

200% or less of initial specified value

lnitial specified value or less

Marking

Printed with white color letter on black sleeve.

Radial Lead Type

φ

d

Type numbering system (Example : 10V 470µF)

Sleeve (P.E.T.)

1

2

3

4

5

6

7

8

9

10 11

UHC 1 A 4 7 1 M PD

φD

+

0.5 MAX

P

±

0.5

Configuration

Capacitance tolerance (± 20%)

Rated Capacitance (470µF)

Pressure

relief vent

(φ6.3up)

L+

MAX

15

MIN

4

MIN

Rated voltage (10V)

Series name

Type

Configuration

(mm)

(No pressure relief vent for 7mmL products)

φ

D

φ4

×

7L

φ5

×

7L

φ6.3

×

7L

6.3

8 · 10

Pb-free leadwire

Pb-free PET sleeve

Sn-Pb finished leadwire

PVC sleeve (containing Pb)

(L = 7) 1.0

(L 11) 1.5

φD

P

φd

4

1.5

0.45

5

2.0

6.3

8

3.5

0.6

10

5.0

0.6

DD

ED

PD

DH

EH

PH

2.5

0.5

0.45 (0.45)

( ) : Applied to 7mmL products

Please contact to us if other configurations are required.

Please refer to page 19, 20, 21 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100T

UHC1A221MPH Related Products

	UHC1A221MPH	UHC1V221MPH	UHC1A330MDH	UHC1A471MPH
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 220uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 220uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 33uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 470uF, THROUGH HOLE MOUNT, RADIAL LEADED
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Nichicon	Nichicon	Nichicon	Nichicon
Reach Compliance Code	unknow	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
capacitance	220 µF	220 µF	33 µF	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e0	e0	e0	e0
leakage current	0.022 mA	0.077 mA	0.0033 mA	0.047 mA
Manufacturer's serial number	HC	HC	HC	HC
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%
Number of terminals	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
method of packing	TAPE	TAPE	TAPE	TAPE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%
Rated (DC) voltage (URdc)	10 V	35 V	10 V	10 V
ripple current	910 mA	1650 mA	350 mA	1230 mA
surface mount	NO	NO	NO	NO
Delta tangent	0.13	0.1	0.13	0.13
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal shape	WIRE	WIRE	WIRE	WIRE
