UHC1V4R7MDR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UHC1V4R7MDR

UHC1V4R7MDR: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size85KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UHC1V4R7MDR Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, RADIAL LEADED

UHC1V4R7MDR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.003 mA
Manufacturer's serial number	HC
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	230 mA
surface mount	NO
Delta tangent	0.1
Terminal shape	WIRE

Preview

Download Datasheet

View All

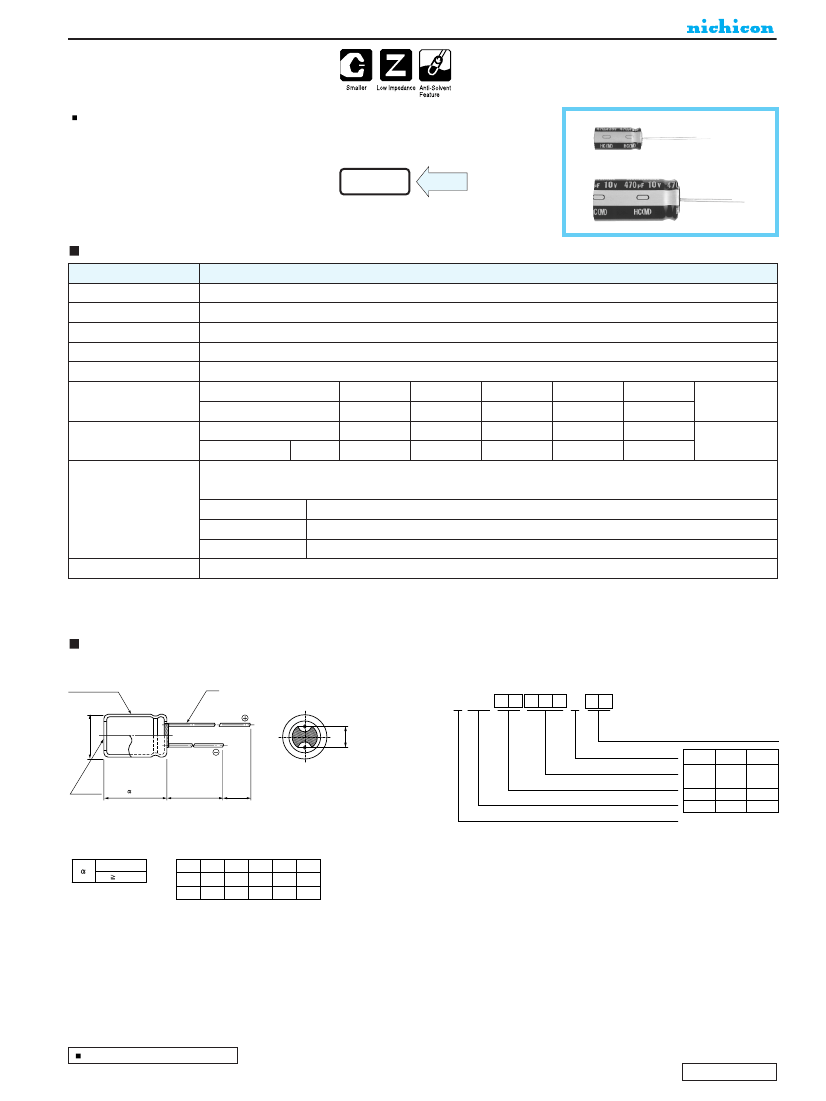

ALUMINUM ELECTROLYTIC CAPACITORS

Low Impedance

series

Approved by Reliability Center for Electronic

Component, Japan-Certification No. RCJ-03-23C

Lower impedance than HD series.

Low

Impedance

Specifications

ltem

Category Temperature Range

– 40 ~ +105˚C

Rated Voltage Range

6.3 ~ 35V

Performance Characteristics

Rated Capacitance Range

4.7 ~ 1000µF

Capacitance Tolerance

Leakage Current

tan

± 20% at 120Hz, 20˚C

After 2 minutes' application of rated voltage, leakage current is less than 0.01CV or 3 (µA), whichever is greater.

Rated voltage (V)

tan

(MAX.)

Rated voltage (V)

6.3

0.15

6.3

0.13

0.12

0.10

120Hz

20˚C

120Hz

Stability at Low Temperature

Impedance ratio ZT / Z20 (MAX.) Z–40˚C / Z+20˚C

After an application of D.C. bias voltage plus the rated ripple current for 2000 hours (φD = 6.3 : 1000 hours ) at 105˚C the peak

voltage shall not exceed the rated D.C. voltage, capacitors meet the characteristic requirements listed below.

Endurance

Capacitance change

tan

Leakage current

Within ± 20% of initial value

200% or less of initial specified value

lnitial specified value or less

Marking

Printed with white color letter on black sleeve.

Radial Lead Type

Type numbering system (Example : 10V 470µF)

Sleeve (P.E.T.)

10 11

UHC 1 A 4 7 1 M P T

φD

0.5 MAX

0.5

Configuration

Capacitance tolerance (± 20%)

Rated Capacitance (470µF)

φD

Code

Code for PET Laminatedfor

Case

Pressure

relief vent

(φ6.3UP)

L+

MAX

MIN

(No pressure relief vent for 7mmL products)

φ4

φ5

Rated voltage (10V)

φ6.3

6.3

Series name

•

Type

(mm)

(L = 7) 1.0

(L 11) 1.5

φD

φd

1.5

0.45

2.0

6.3

3.5

0.6

5.0

0.6

2.5

0.5

0.45 (0.45)

( ) : Applied to 7mmL products

The laminated case is also available upon request.

Please refer to page 18, 19, 20 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100R
