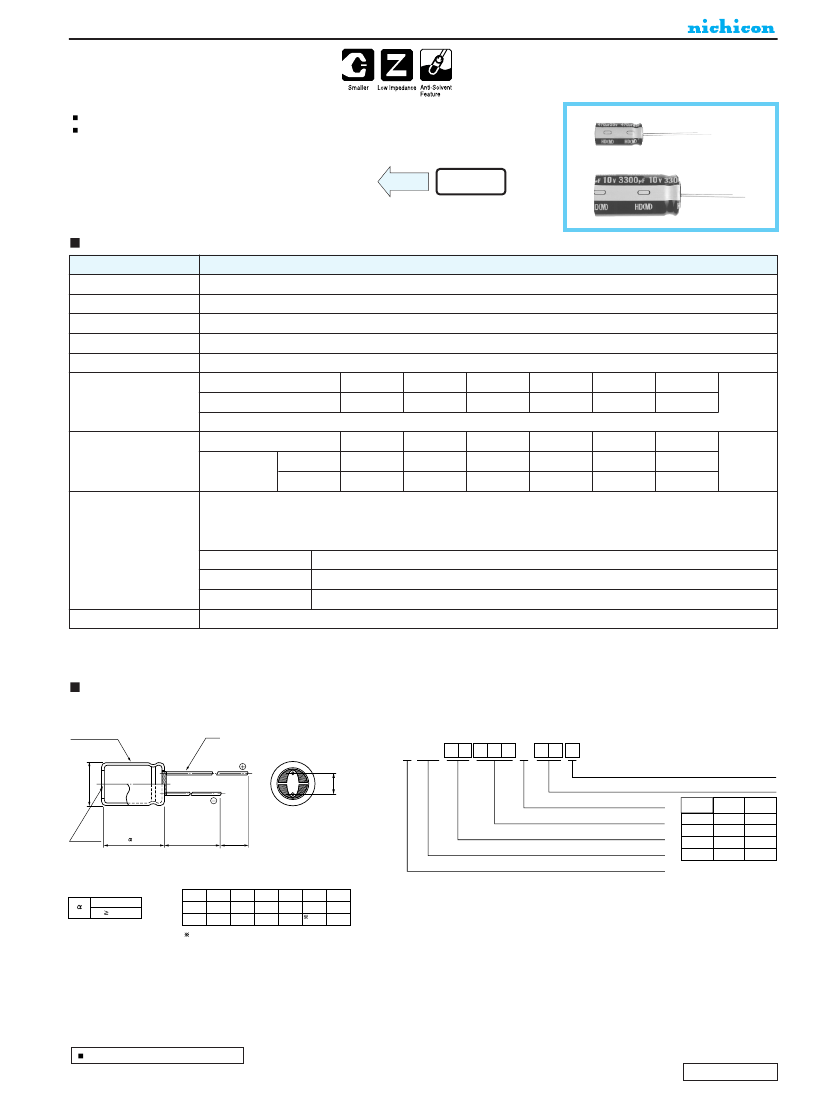

ALUMINUM ELECTROLYTIC CAPACITORS
HD
High Ripple Low Impedance
series
Approved by Reliability Center for Electronic
Component, Japan-Certification No. RCJ-03-23C
Lower impedance at high frequency range.
Smaller case size and high ripple current.
HC
Low
Impedance
HD
Specifications
ltem
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Performance Characteristics
– 40 ~ +105˚C
6.3 ~ 50V
22 ~ 6800µF
± 20% at 120Hz, 20˚C
After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA), whichever is greater.
Rated voltage (V)
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
50
0.10
120Hz
20˚C
tan
δ
tan
δ
(MAX.)
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V)
Stability at Low Temperature
6.3
2
3
10
2
3
16
2
3
25
2
3
35
2
3
50
2
3
120Hz
Impedance ratio
ZT / Z20 (MAX.)
Z–25˚C / Z+20˚C
Z–40˚C / Z+20˚C
<
After an application of D.C. bias voltage plus the rated ripple current for 5000 hours (
φD
= 6.3 : 2000 hours,
φD=8
: 3000 hours,
φD=10
: 4000 hours) at 105˚C the peak voltage shall not exceed the rated D.C. voltage, capacitors
meet the characteristic requirements listed below.
Endurance
Capacitance change
tan
δ
Leakage current
Marking
Within ± 25% of initial value
200% or less of initial specified value
lnitial specified value or less
Printed with white color letter on black sleeve.
Radial Lead Type
φ
d
Type numbering system (Example : 10V 3300
µ
F)
Sleeve (P.E.T.)
1
2
3
4
5
6
7
8
9
10 11
12
U HD 1 A 3 3 2 M H T
φD
+
0.5 MAX
Size code
P
±
0.5
Configuration
Capacitance tolerance (± 20%)
Rated Capacitance (3300µF)
φ
D
5
6.3
8
•
10
12.5
•
16
Code
Code for PET Laminatedfor
Case
DT
DR
ET
PT
HT
ER
PR
HR
Pressure
relief vent
(φ6.3UP)
L+
MAX
15
MIN
4
MIN
Rated voltage (10V)
Series name
Type
(mm)
(L < 20) 1.5
(L 20) 2.0
φ
D
5
2.0
0.5
6.3
2.5
0.5
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
P
φ
d
In case L > 25 for the
φ12.5
dia. unit, lead dia.
φ
d = 0.8mm.
The laminated case is also available apom request.
Please refer to page 18, 19, 20 about the formed or taped product spec.
Please refer to page 3 for the minimum order quantity.
Dimension table in next page.
CAT.8100R
