UHE1A222MHH3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UHE1A222MHH3

UHE1A222MHH3: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 2200uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size82KB，5 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UHE1A222MHH3 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 2200uF, THROUGH HOLE MOUNT, RADIAL LEADED

UHE1A222MHH3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.22 mA
Manufacturer's serial number	HE
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	1940 mA
surface mount	NO
Delta tangent	0.21
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

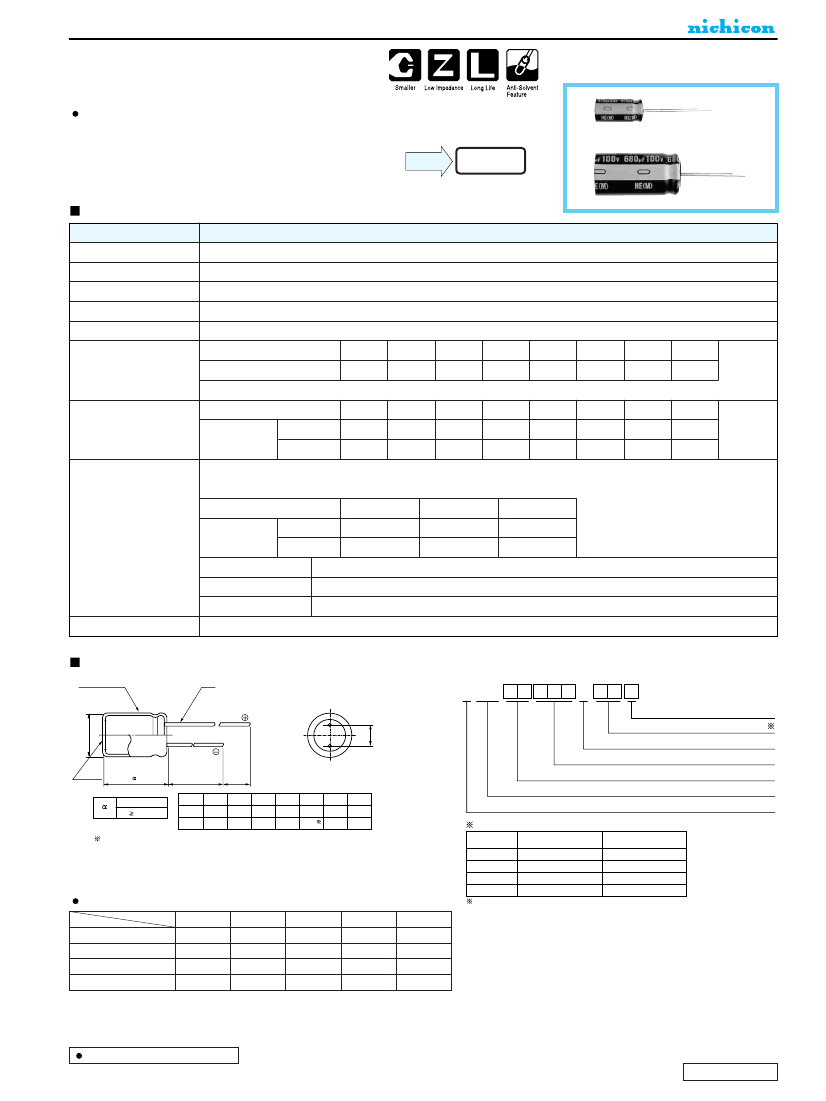

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, Low Impedance,High Reliability

series

Approved by Reliability Center for Electronic

Component, Japan-Certification No. RCJ-03-23C

Low impedance and high reliability withstanding 4000hours to 10000hours.

Long Life

Specifications

ltem

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

– 40 ~ +105˚C

6.3 ~ 100V

6.8 ~ 18000µF

± 20% at 120Hz, 20˚C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA), whichever is greater.

Rated voltage (V)

6.3

0.22

0.19

0.16

0.14

0.12

0.10

0.09

100

0.08

120Hz

20˚C

tan

(MAX.)

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Rated voltage (V)

Stability at Low Temperature

6.3

100

120Hz

Impedance ratio

ZT / Z20 (MAX.)

Z–25˚C / Z+20˚C

Z–40˚C / Z+20˚C

After an application of D.C. bias voltage plus the rated ripple current for stated in the below at 105˚C the peak voltage shall not

exceed the rated D.C. voltage, capacitors shall meet the following requirements.

Case size

Endurance

φD

< 6.3

4000hours

5000hours

φD

= 8 , 10

6000hours

7000hours

φD

> 12.5

8000hours

10000hours

Rated voltage

(V)

6.3 ~ 10WV

16 ~ 100WV

Capacitance change

tan

Leakage current

Marking

Within ± 25% of initial value

200% or less of initial specified value

lnitial specified value or less

Printed with white color letter on black sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 1000µF)

10 11

U HE 1 A 1 0 2 M PD

Size code

0.5

φD

0.5 MAX

Configuration

Capacitance tolerance (± 20%)

Rated Capacitance (1000µF)

Pressure

relief vent

(

6.3up)

L+

MAX

MIN

Rated voltage (10V)

(mm)

Series name

Type

Configuration

6.3

8 · 10

12.5 ~ 18

Pb-free leadwire

Pb-free PET sleeve

Sn-Pb finished leadwire

PVC sleeve (containing Pb)

(L < 20) 1.5

(L 20) 2.0

φD

φd

2.0

0.5

6.3

2.5

0.5

3.5

0.6

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

In case L > 25 for the

φ12.5

dia. unit, lead dia.

φd

= 0.8mm

Frequency coefficient of rated ripple current

Cap. (µF)

Frequency

Please contact to us if other configurations are required.

50Hz

0.45

0.60

0.65

0.75

120Hz

0.55

0.70

0.75

0.80

300Hz

0.70

0.85

0.90

0.95

1kHz

0.90

0.95

0.98

1.00

10kHz~

1.00

6.8 ~ 33

39 ~ 330

390 ~ 1000

1200 ~ 18000

Please refer to page 19, 20, 21 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100T-1
